- Model:HAT5300-12T
- 12TB Storage Capacity
- 7200 RPM Speed
- Up to 254 MB/s Sustained Transfer
- 2.5M Hours MTBF, 550TB/Year Workload
- 5 Years Warranty from Synology
Overview

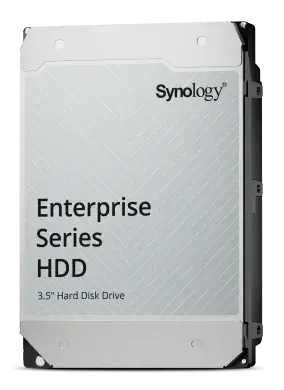

The Synology HAT5300 Enterprise 12TB NAS Hard Drive (HAT5300-12T) is a 7,200 RPM SATA 6 Gb/s drive engineered for enterprise storage deployments. Enterprise storage drives for Synology systems, the HAT5300 series HDDs offer class-leading performance thanks to tight integration with DSM and Synology hardware.
With over 500,000 hours of in-house validation testing and backed by Synology's 5-year limited warranty, the HAT5300 series bring unmatched reliability to Synology deployments. With an MTBF rating of up to 2.5 million hours, the HAT5300 series HDD supports a workload of 550 TB per year and persistent write cache technology to minimize data corruption in the event of sudden power loss.
Through testing and optimizations, HAT5300 series HDDs has been tuned to deliver up to 35% higher sustained sequential read performance in demanding multi-user environments. Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights. Compared to similar-class drives from other brands, Synology hard drives deliver up to 13% quicker drive repair speeds within RAID arrays.
- 2.5 million hours MTBF
- 550 TB/year workload rating
- Over 500,000 hours stress testing
- Up to 35% higher sustained sequential read performance
- Up to 13% faster RAID repairs
- One-click firmware updates through DSM
- Persistent write cache technology
- 5-year warranty
Specifications
- Capacity
- 12 TB
- Form Factor
- 3.5"
- Interface
- SATA 6 Gb/s
- Rotational Speed
- 7,200 rpm
- Maximum Sustained Data Transfer Speed (Typ.)
- 254 MB/s
- Warranty
- 5 Years
- Active Idle (Typ.)
- 4.25 W
- Random Read / Write (4KB Q1) (Typ.)
- 7.83 W
- Operating
- 5°C to 60°C (41°F to 140°F)
- Non-operating
- -40°C to 70°C (-40°F to 158°F)
- Notes
- The warranty period starts from the purchase date as stated on your purchase receipt. [(Learn more)](https://www.synology.com/en-global/company/legal/warranty) Power consumption may differ according to configurations and platforms.
