ZOTAC RTX 5060 Graphics Cards

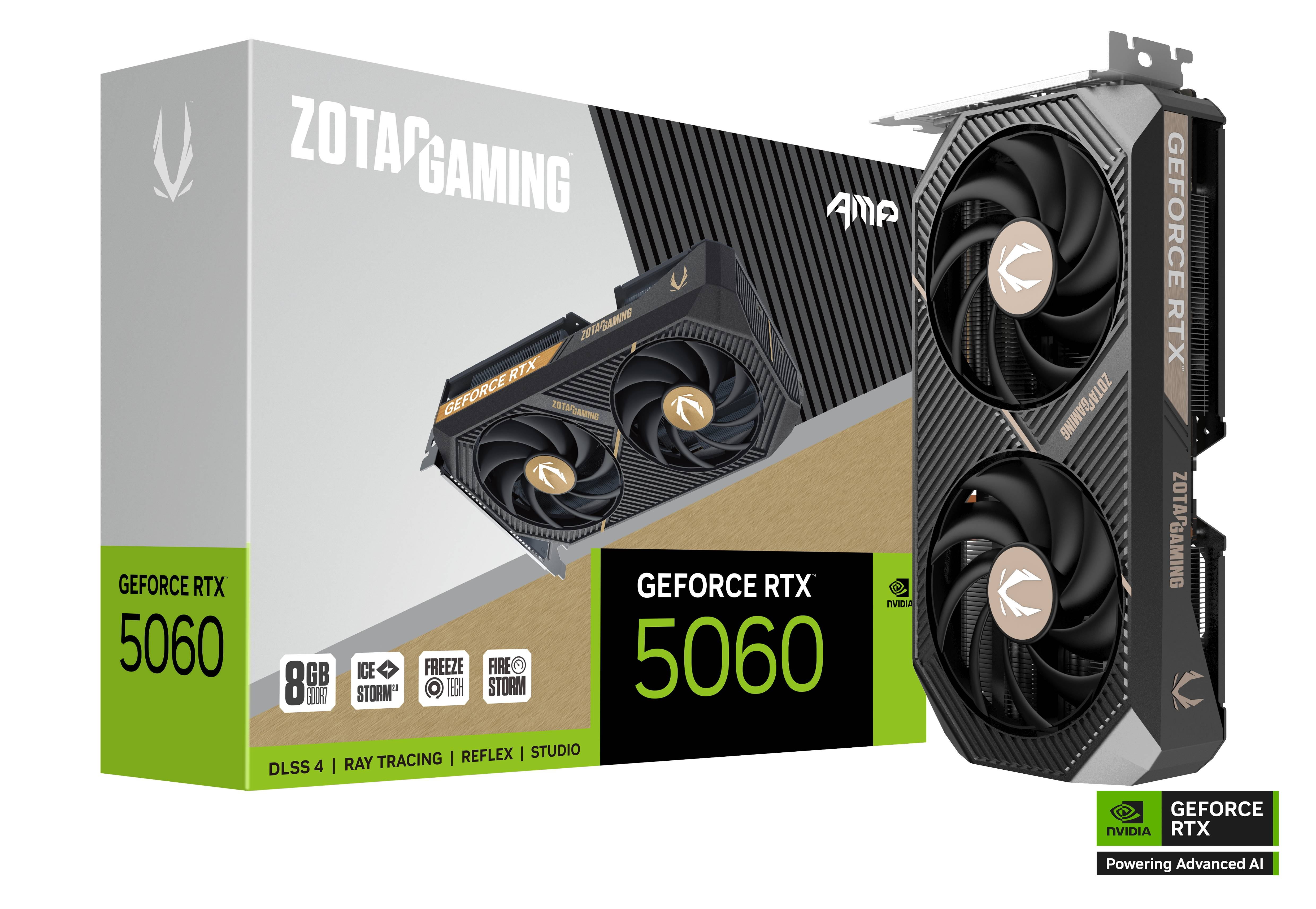

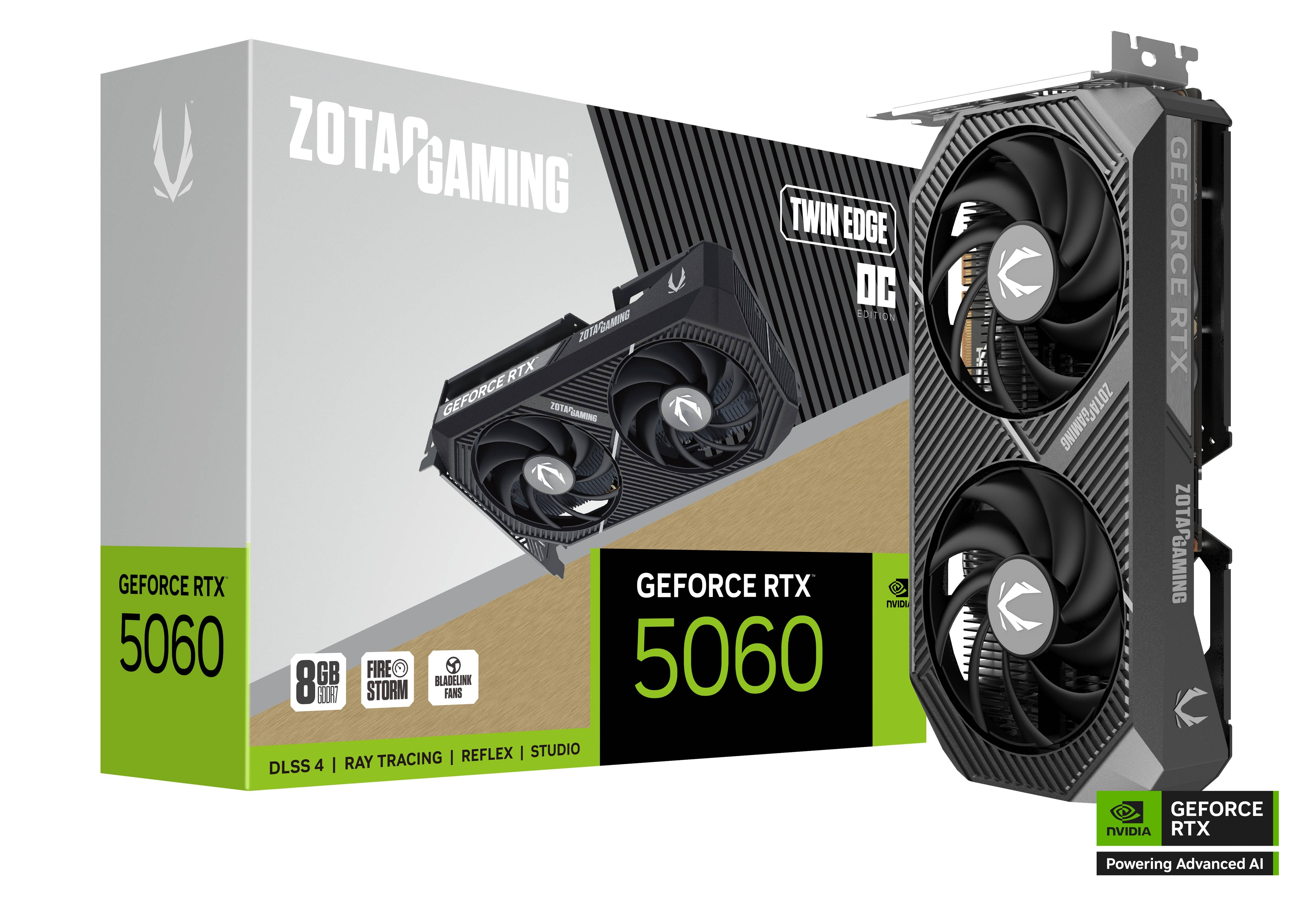

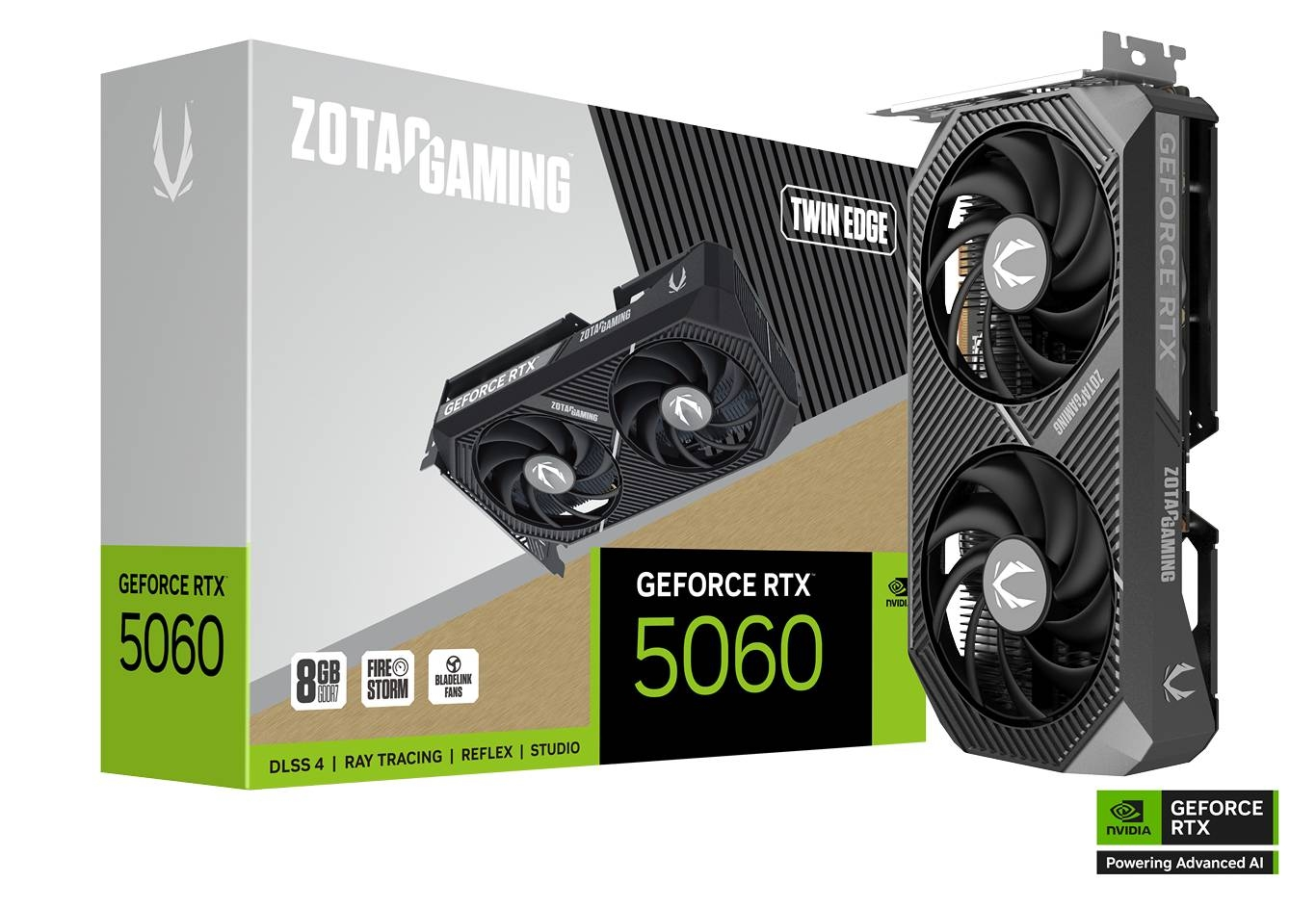

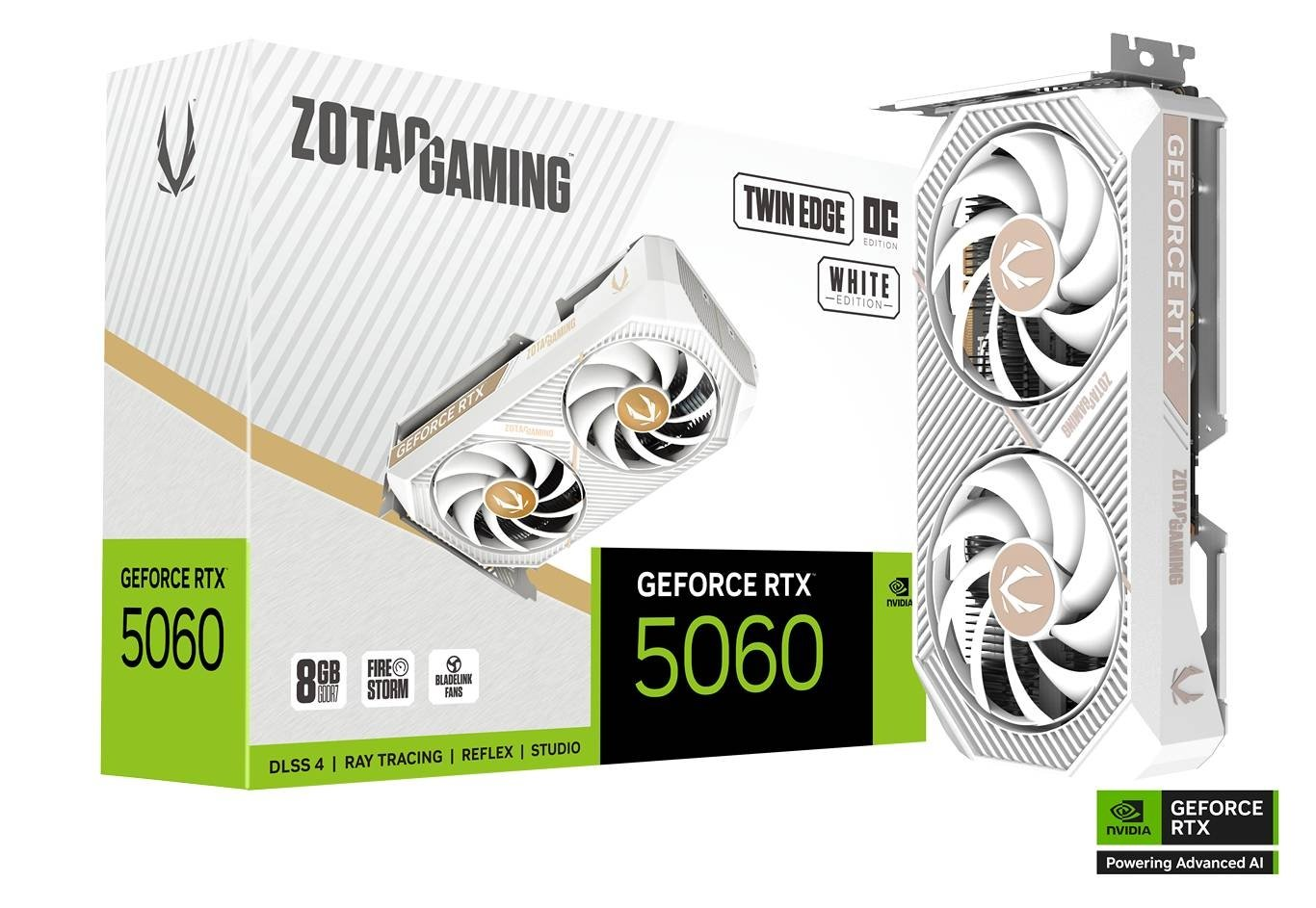

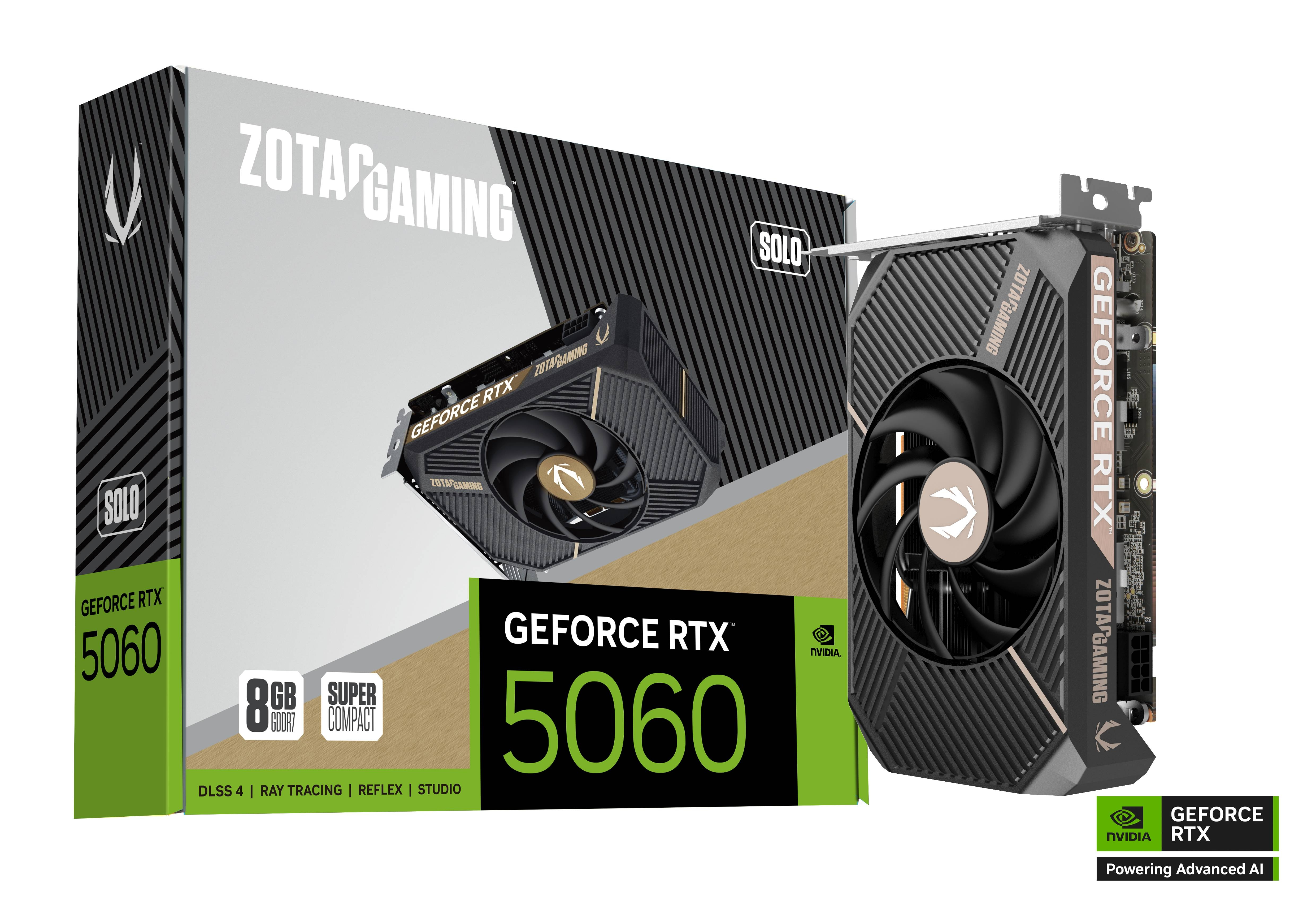

The ZOTAC RTX 5060 cards here all use the GeForce RTX 5060 chip with 8GB GDDR7 memory, PCIe 5.0, HDMI 2.1 and DisplayPort 2.1 outputs, and one 8-pin power connector. They run from the compact single-fan SOLO (ZT-B50600G-10L), 164 mm long and 36 mm thick, through the dual-fan Twin Edge (ZT-B50600E-10M), Twin Edge OC (ZT-B50600H-10M) and Twin Edge OC White Edition (ZT-B50600Q-10M), all 220 mm long, to the AMP (ZT-B50600F-10M) rated at 155 W. ZOTAC covers them with a 3 + 2 years warranty.

Since every card here uses the same chip and memory, the choice comes down to case size, clocks and looks. The SOLO suits mini-ITX and small cases where a 220 mm card will not fit. The Twin Edge models fit most micro-ATX and ATX cases and run cooler and quieter with two fans. The OC and AMP versions ship with higher factory clocks, with the AMP drawing 155 W instead of 145 W. The White Edition matches white builds. All support ray tracing and DLSS 4, and 8GB of VRAM is aimed mainly at 1080p gaming.

Frequently asked questions

Will a ZOTAC RTX 5060 work on a PCIe 4.0 motherboard? Yes. PCIe 5.0 cards are backward compatible with PCIe 4.0 and 3.0 x16 slots and simply run at the slot's lower link speed.

What power supply does the RTX 5060 need? ZOTAC recommends 550 W for the SOLO and Twin Edge models and 600 W for the AMP, each with one 8-pin PCIe connector.

What is the difference between Twin Edge and Twin Edge OC? They share the same 220 mm dual-fan cooler, but the OC version comes with a higher boost clock out of the box.
