ZOTAC RTX 5070 Graphics Cards

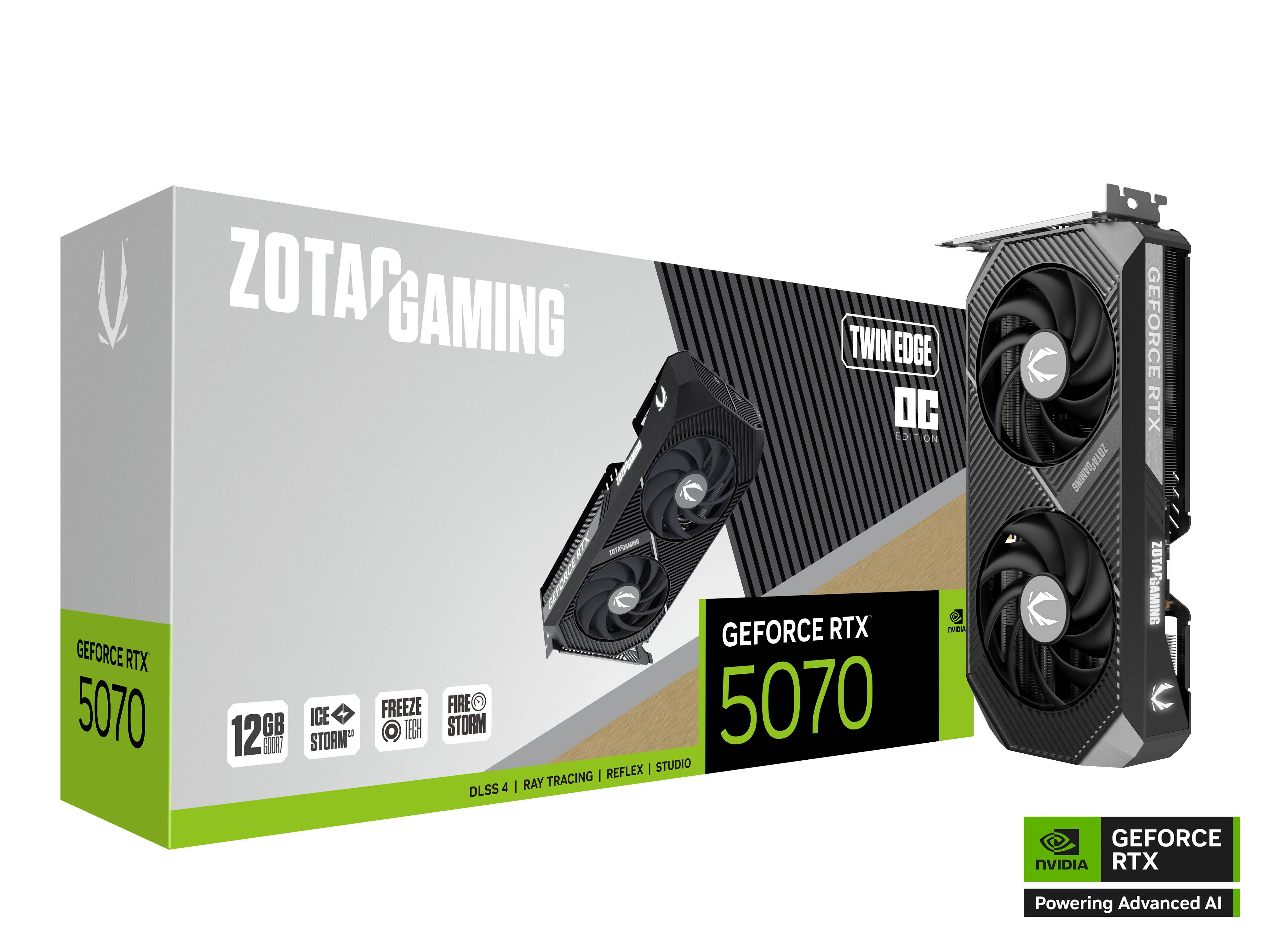

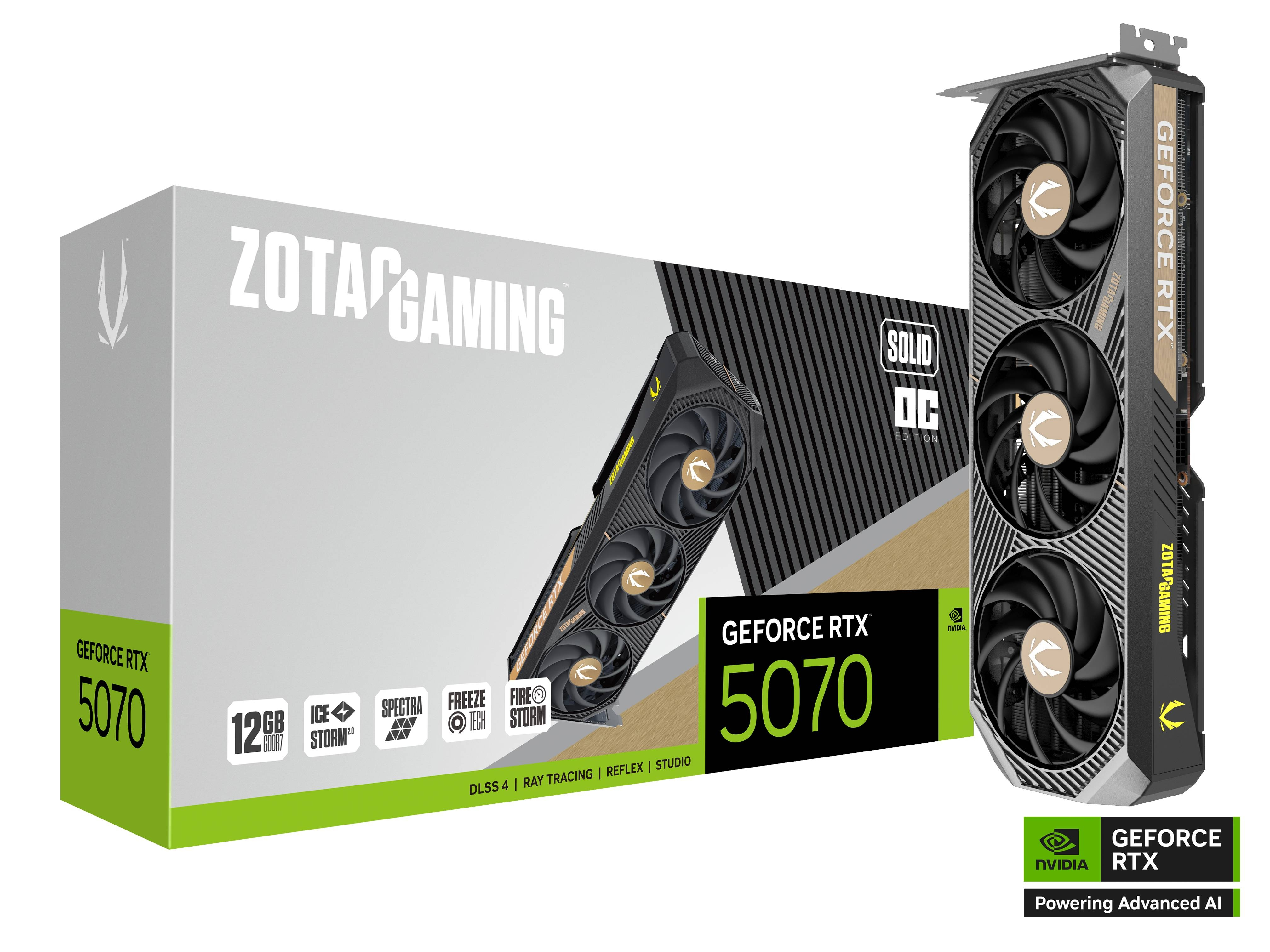

The ZOTAC GeForce RTX 5070 cards here come in two designs: the compact Twin Edge (ZT-B50700E-10P) and Twin Edge OC (ZT-B50700H-10P), both 241 mm long and 40 mm thick, and the larger SOLID (ZT-B50700D-10P) and SOLID OC (ZT-B50700J-10P), both 304 mm long and 42 mm thick. Every model uses the same RTX 5070 chip with 12GB GDDR7, PCIe 5.0, HDMI 2.1 and DisplayPort outputs, ray tracing and DLSS 4 support. Each draws 250 W through a single 12V-2x6 connector, with a 650 W power supply recommended. ZOTAC covers them with a 3 + 2 year warranty.

Since the GPU and memory are identical, the choice comes down to size and cooling. The Twin Edge cards suit compact and micro-ATX cases where a 241 mm card fits but a 304 mm one does not. The SOLID cards use a bigger IceStorm 2.0 cooler, which helps them run cooler and quieter under long gaming loads, but check that the case has at least 304 mm of GPU clearance. The OC versions carry a small factory overclock; the real-world gain over the standard versions is modest. With 12GB of VRAM, the RTX 5070 is aimed mainly at 1440p gaming with high settings.

Frequently asked questions

What is the difference between the ZOTAC RTX 5070 Twin Edge and SOLID? Both use the same RTX 5070 12GB GDDR7 chip; the SOLID is longer at 304 mm with a larger cooler, while the Twin Edge is 241 mm for smaller cases.

What power supply does a ZOTAC RTX 5070 need? A 650 W PSU is recommended, connected through the card's single 12V-2x6 power input.

Will it work on a PCIe 4.0 motherboard? Yes, PCIe 5.0 cards are backward compatible with PCIe 4.0 and 3.0 x16 slots.
