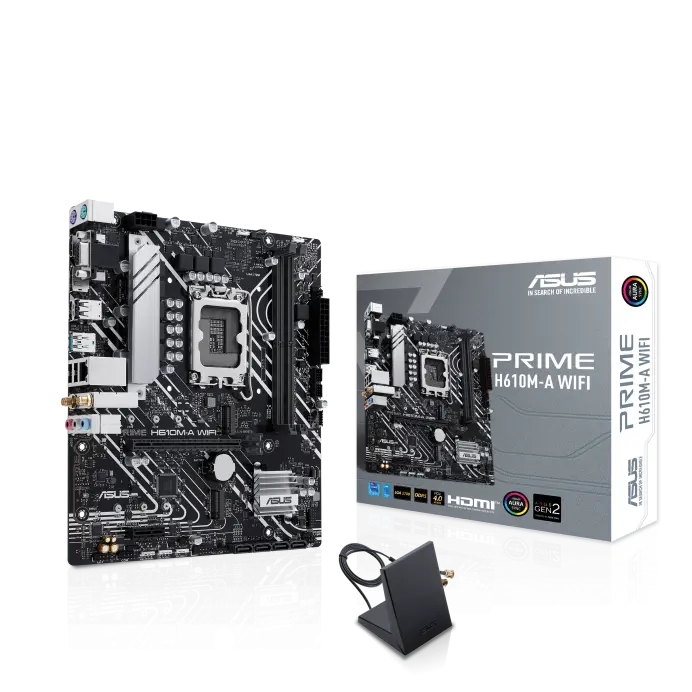

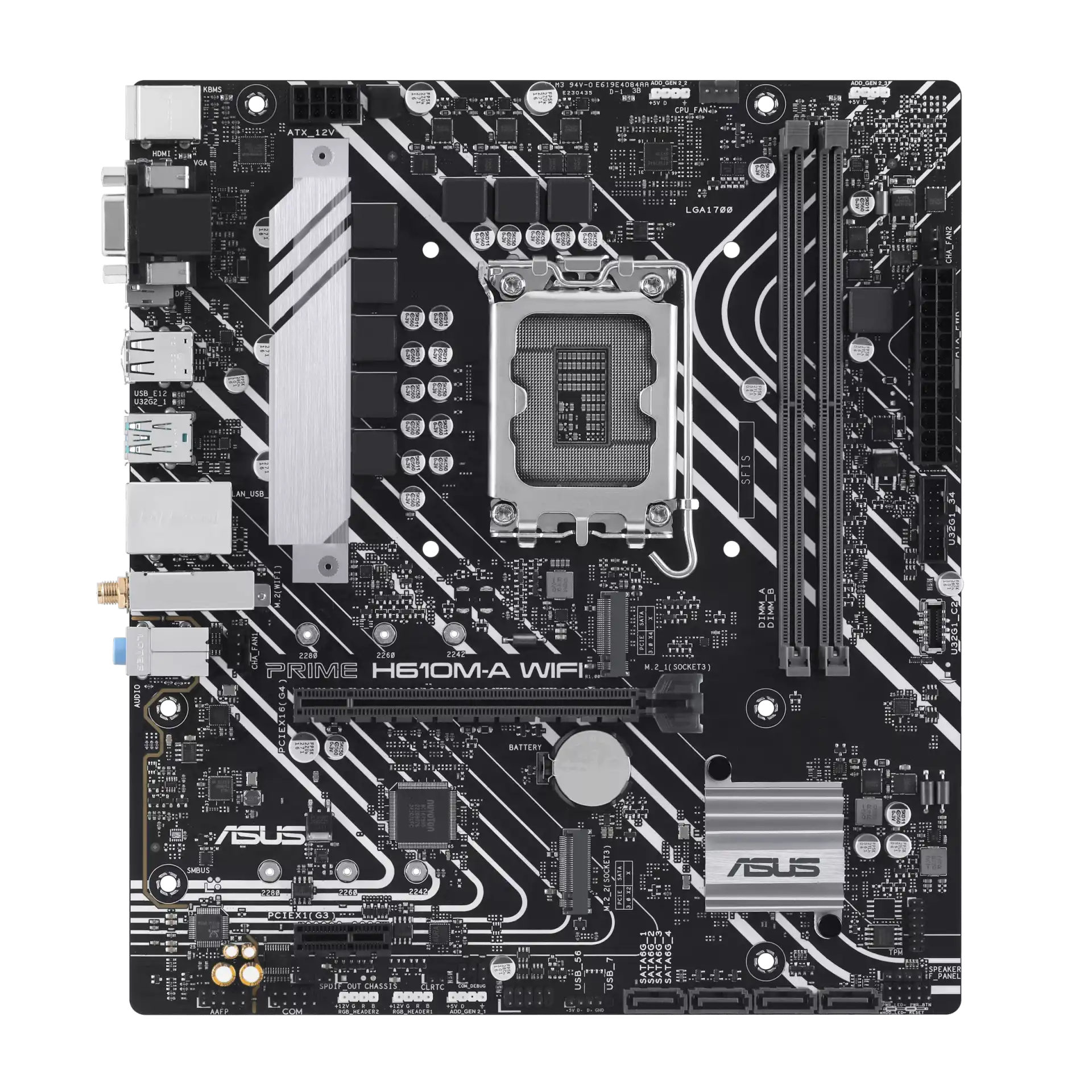

ASUS PRIME H610M-A WIFI Motherboard
  • Model:PRIME H610M-A WIFI
  • Supports Intel 13th/12th Gen LGA 1700 CPUs
  • Intel H610 chipset, Micro-ATX form factor
  • Dual DDR5 DIMM slots, up to 64GB memory
  • PCIe 4.0, dual M.2 slots, WiFi 5, USB 3.2 Gen 2
  • 3 Years Warranty from ASUS
₹ 8,950
Next Day Dispatch
1
Model
PRIME H610M-A WIFI
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
CPU Support
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
CPU Support Notes
* Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® H610 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Memory Architecture
Dual Channel Memory Architecture
Memory Features
Supports Intel® Extreme Memory Profile (XMP)
Memory Notes
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/ *Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort** 1 x VGA port 1 x HDMITM port***
Graphics Notes
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 4.0 x16 slot
Expansion Slots Intel® H610 Chipset
1 x PCIe 3.0 x1 slot
Expansion Slots Notes
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Storage Intel® H610 Chipset
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode) 4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 1Gb Ethernet ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 5 Wi-Fi 5 (802.11 a/b/g/n/ac) Supports 2.4/5GHz frequency band Bluetooth® v5.0*
Wireless & Bluetooth Notes
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB Rear USB (Total 5 ports)
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A)
USB Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 1 USB 2.0 port 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers
Audio Notes
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x VGA port 1 x HDMITM port 1 x Wi-Fi Module 1 x Intel® 1Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard (purple) port 1 x PS/2 Mouse (green) port
Internal I/O Connectors Fan and Cooling related
1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers
Internal I/O Connectors Power related
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Internal I/O Connectors Storage related
2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
Internal I/O Connectors USB
1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 (5G) header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports 1 USB 2.0 port 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Internal I/O Connectors Miscellaneous
3 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x COM Port header 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header
Special Features ASUS 5X PROTECTION III
- DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core - Stainless-Steel Back I/O
Special Features ASUS Q-Design
- Q-DIMM - Q-LED Core - Q-Slot
Special Features ASUS Thermal Solution
- VRM heatsink design
Special Features AURA Sync
- AURA RGB headers - Addressable Gen 2 headers
Software Features ASUS Exclusive Software
Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancellation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 for  Deluxe (60 Days Free Trial) WinRAR
Software Features UEFI BIOS
ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories Cables
2 x SATA 6Gb/s cables
Accessories Miscellaneous
1 x ASUS Wi-Fi moving antennas 1 x I/O Shield 1 x Screw package for M.2 SSD
Accessories Documentation
1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
mATX Form Factor 9.6 inch x 8.5 inch ( 24.4 cm x 21.6 cm )
