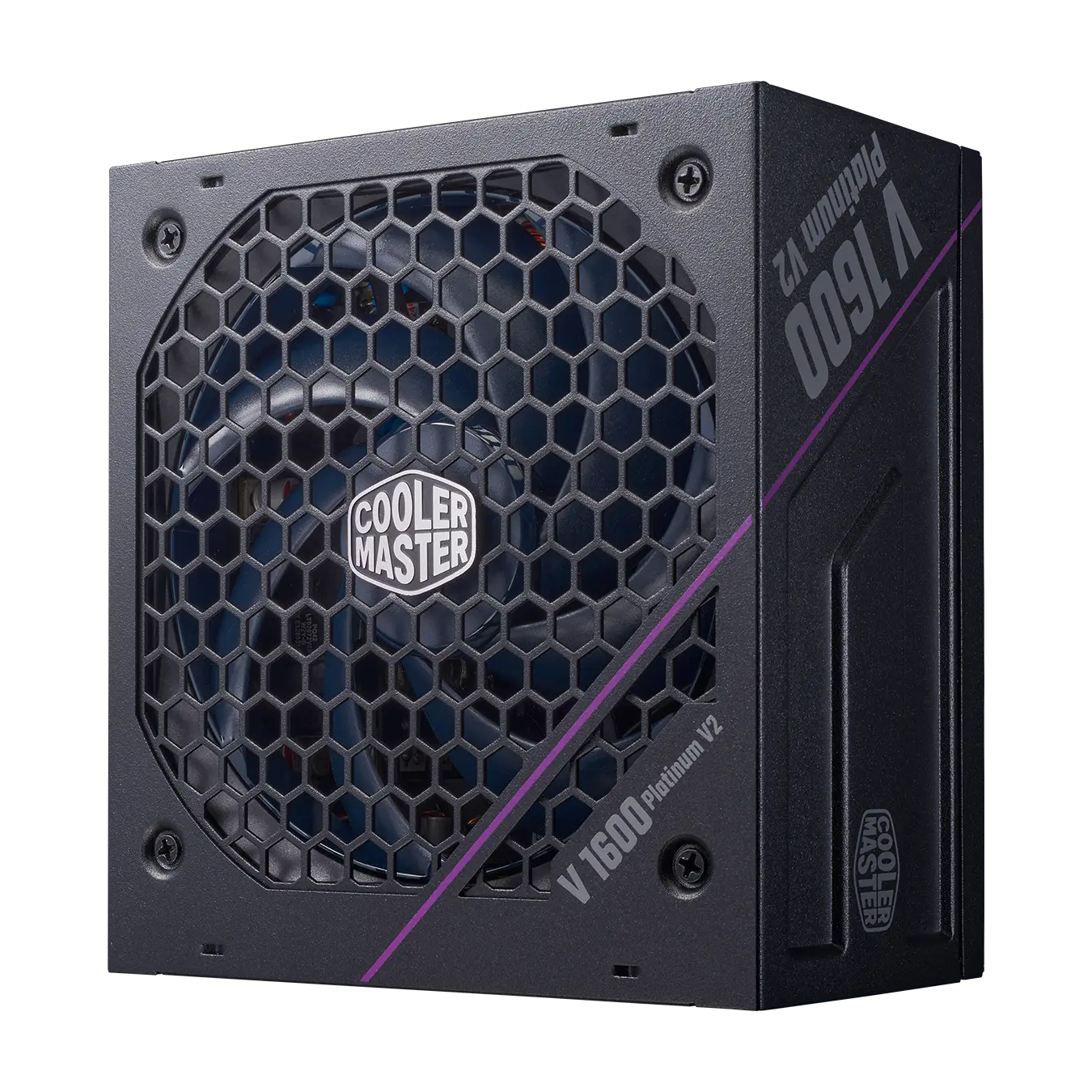

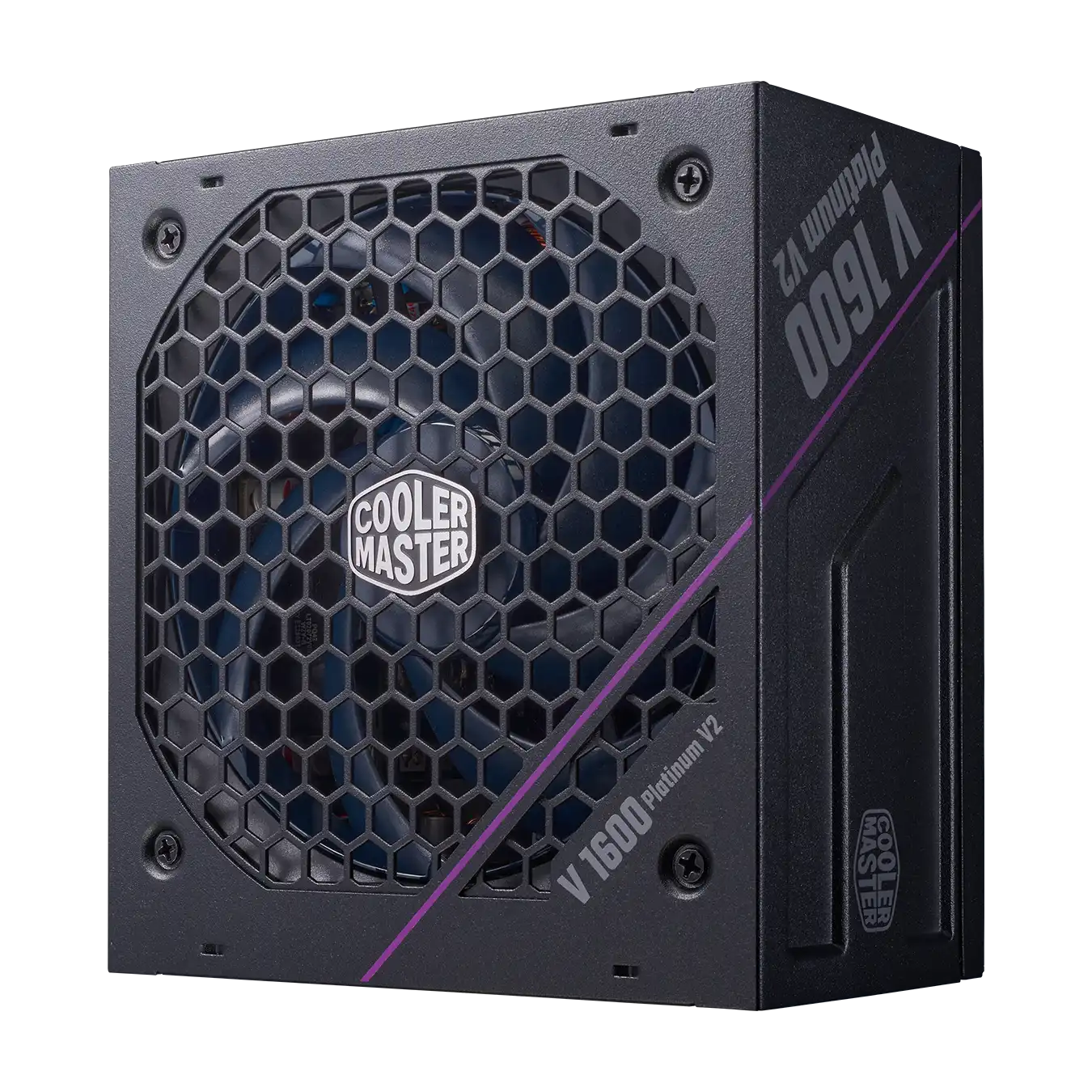

Cooler Master V 1600W V2 80 Plus Platinum Power Supply
- Model:V Platinum 1600 V2
- 1600W 80 Plus Platinum Certified
- Form Factor: ATX
- Fully Modular Cables
- ATX 3.1 Support
- 12 Years Warranty as per Cooler Master
₹ 37,550
On Order
1
Specifications
- Model
- MPZ-G002-AFAP
- ATX Version
- ATX 12V Ver. 3.1
- PFC
- Active PFC
- Input Voltage
- 100-240V
- Input Current
- 16-8A
- Input Frequency
- 50-60Hz
- Dimensions (L x W x H)
- 160 x 150 x 86 mm
- Fan Size
- 135mm
- Fan Bearing
- LDB
- Fan Speed
- 2400±10% RPM
- Efficiency
- ≥ 92% @ Typical Load
- 80 PLUS Rating
- 80 PLUS Platinum
- ErP 2014 Lot 3
- Yes
- Operating Temperature
- 0-50°C
- Power Good Signal
- 100 - 150 ms
- Hold Up Time
- ≥ 16ms
- MTBF
- >100,000 Hours
- Protections
- OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
- Regulatory
- cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

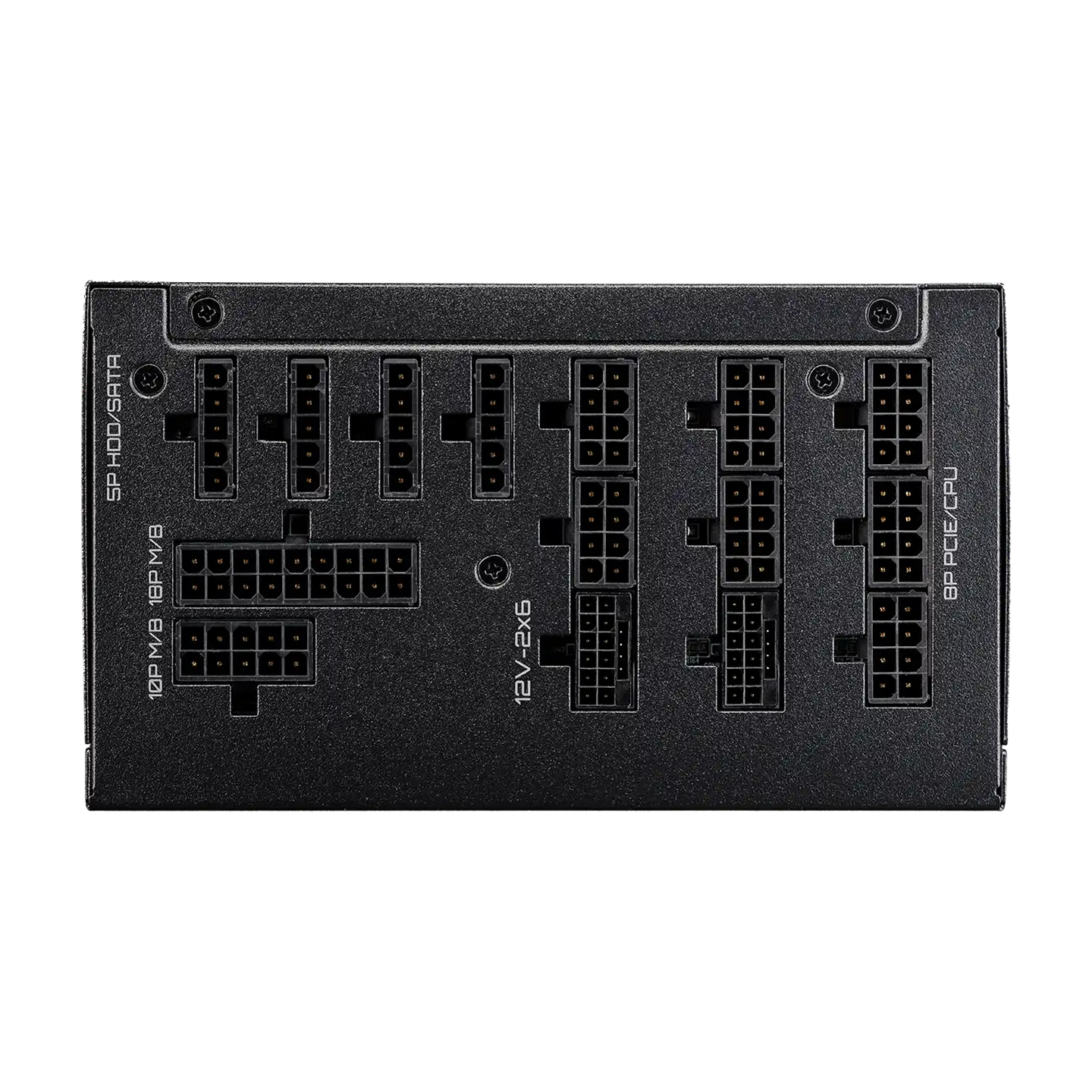

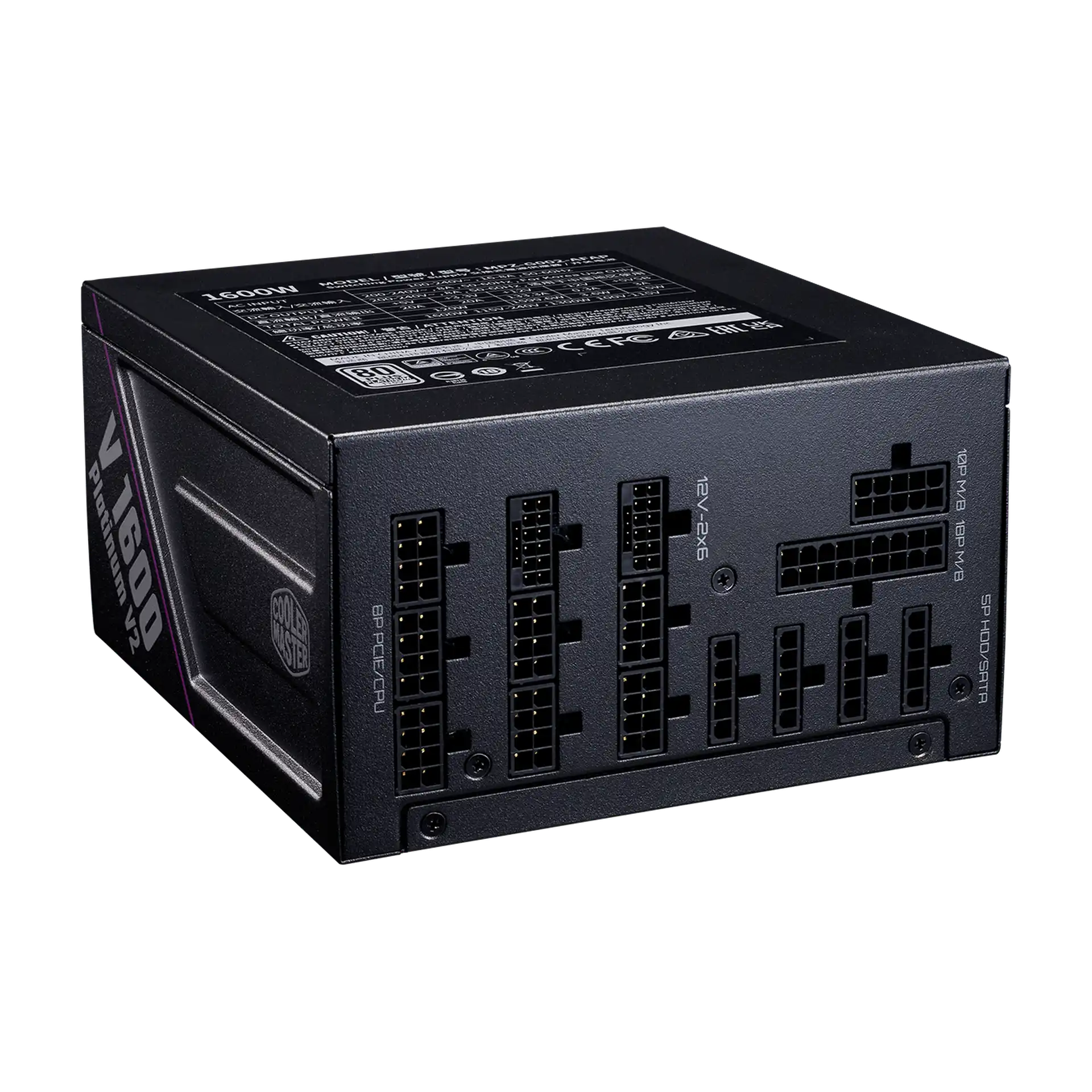

- ATX 24 Pin Connectors
- 1
- EPS 4+4 Pin Connectors
- 1
- EPS 8 Pin Connector
- 1
- SATA Connectors
- 16
- Peripheral 4 Pin Connectors
- 4
- PCI-e 6+2 Pin Connectors
- 5
- 12V-2x6 Connectors
- 2
- Series
- V Platinum Series
- 80 Plus Efficiency
- Platinum
- Modular
- Fully Modular
- Category
- Above 750W
- Form Factor
- ATX
- Watts
- 1600W
Warranty
12 Years manufacturer warranty from Cooler Master. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
