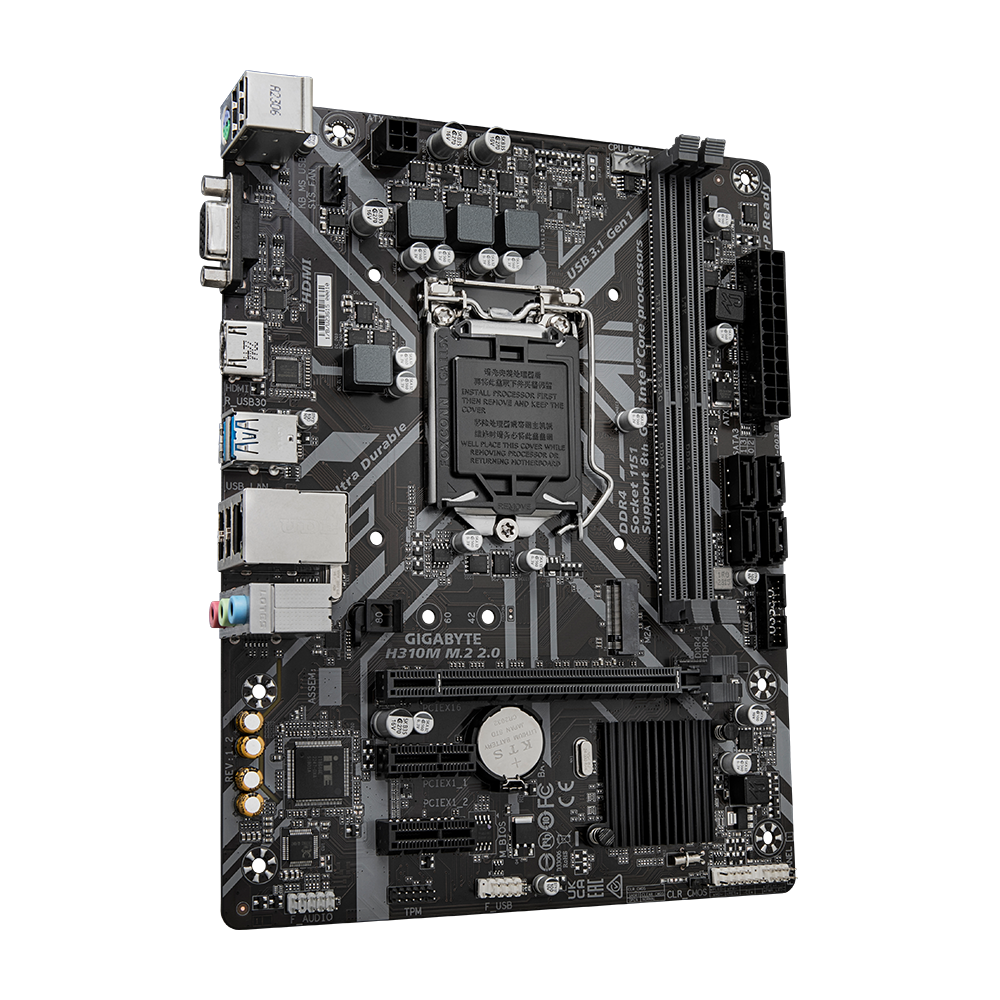

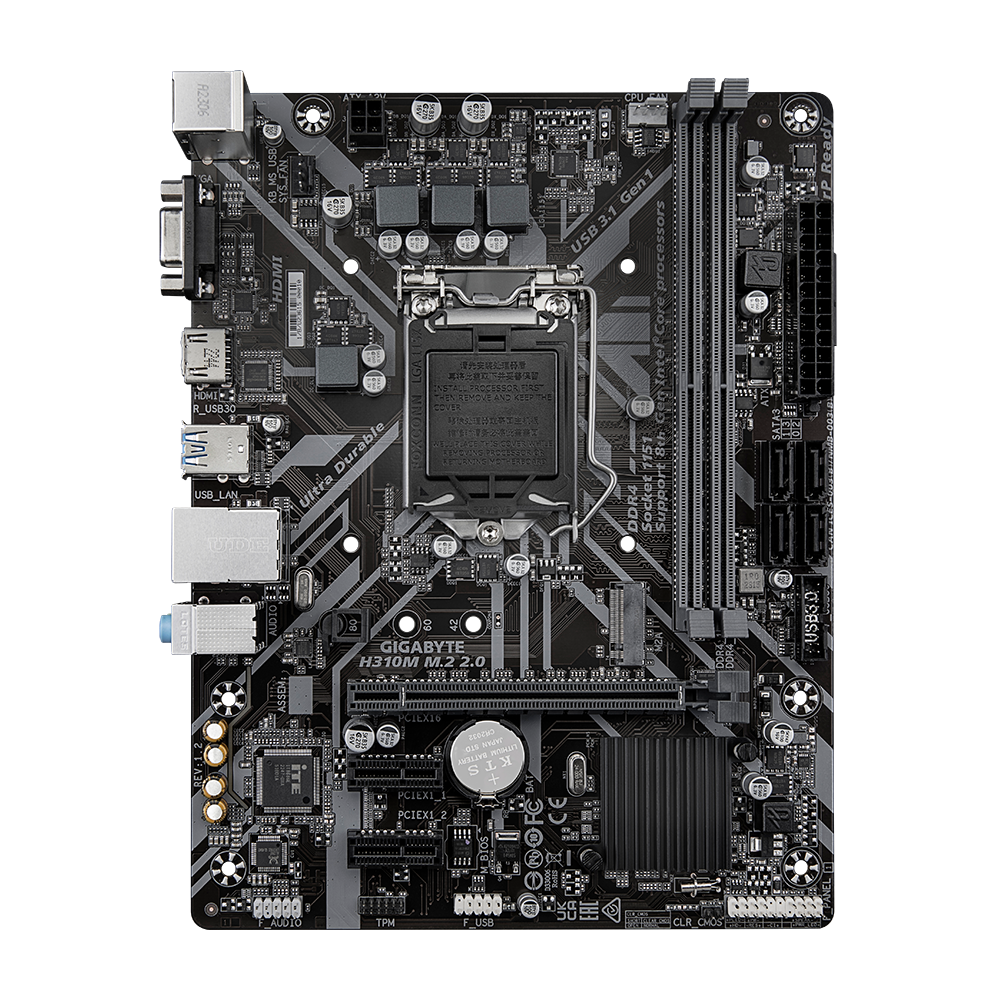

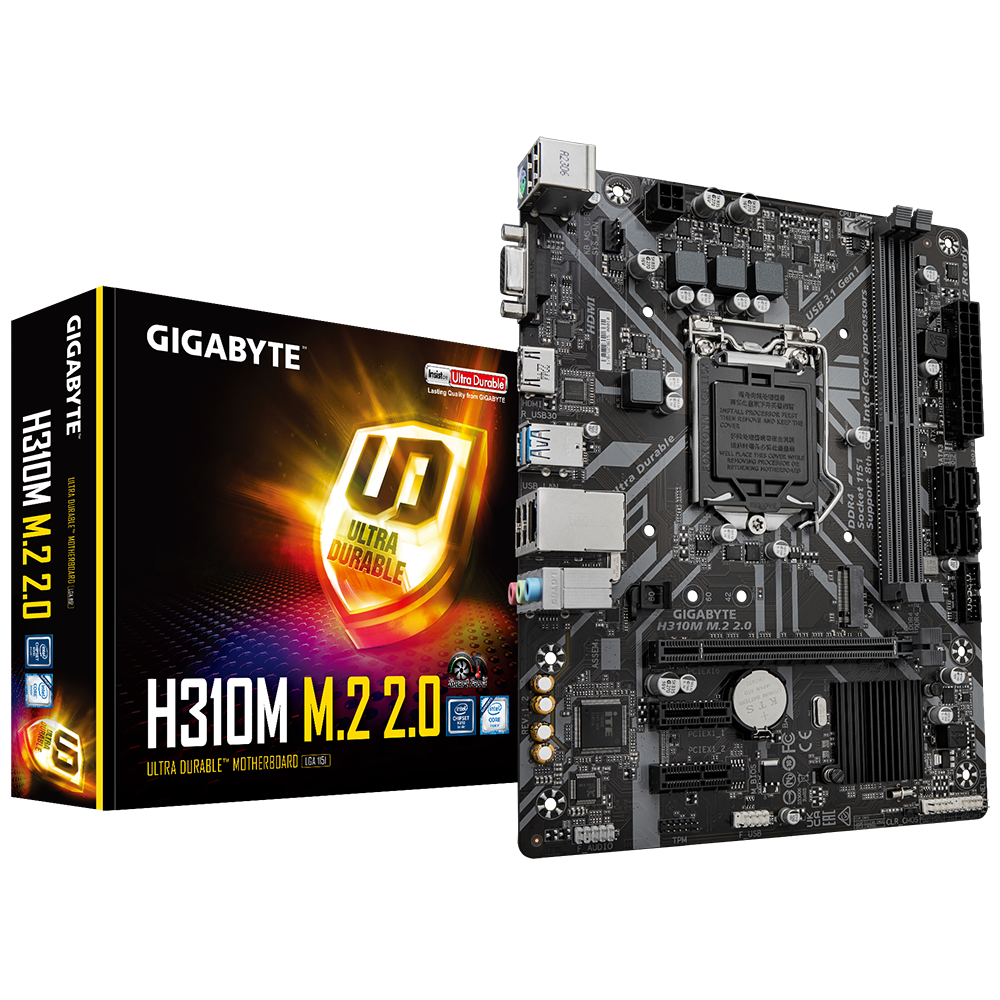

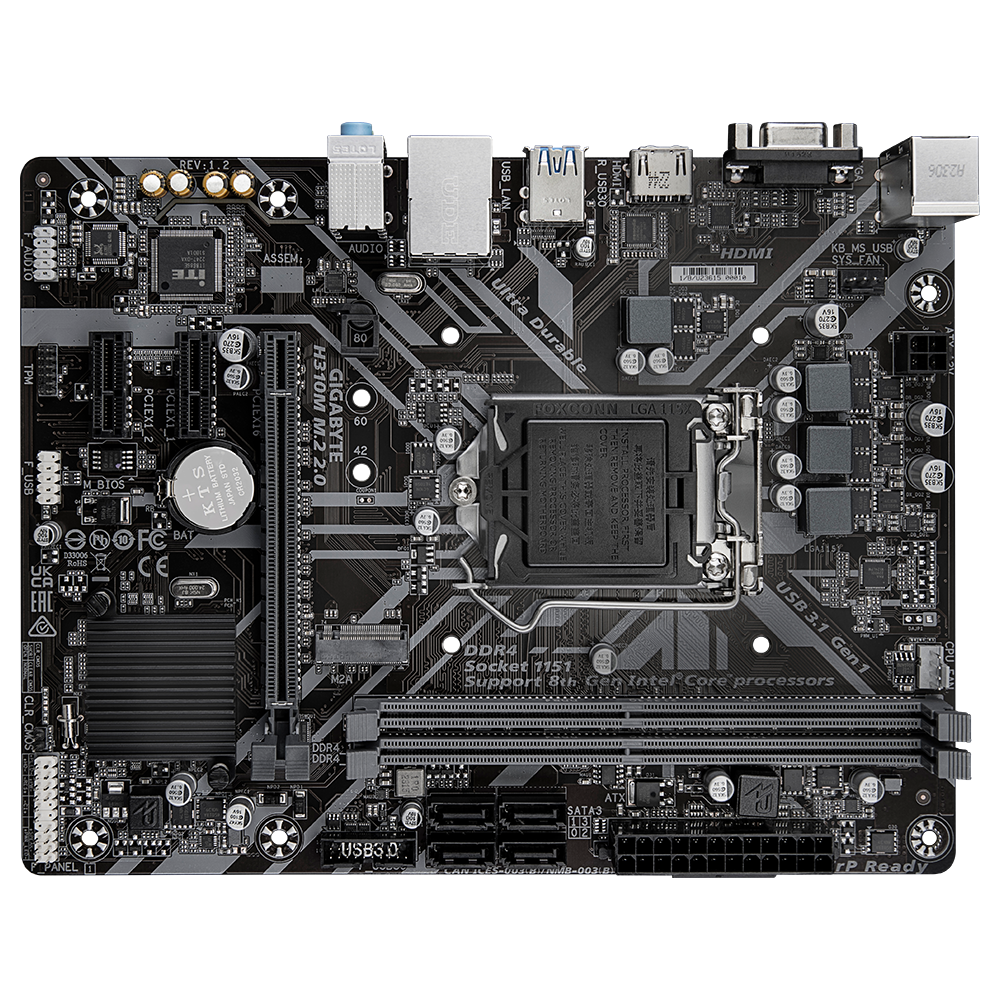

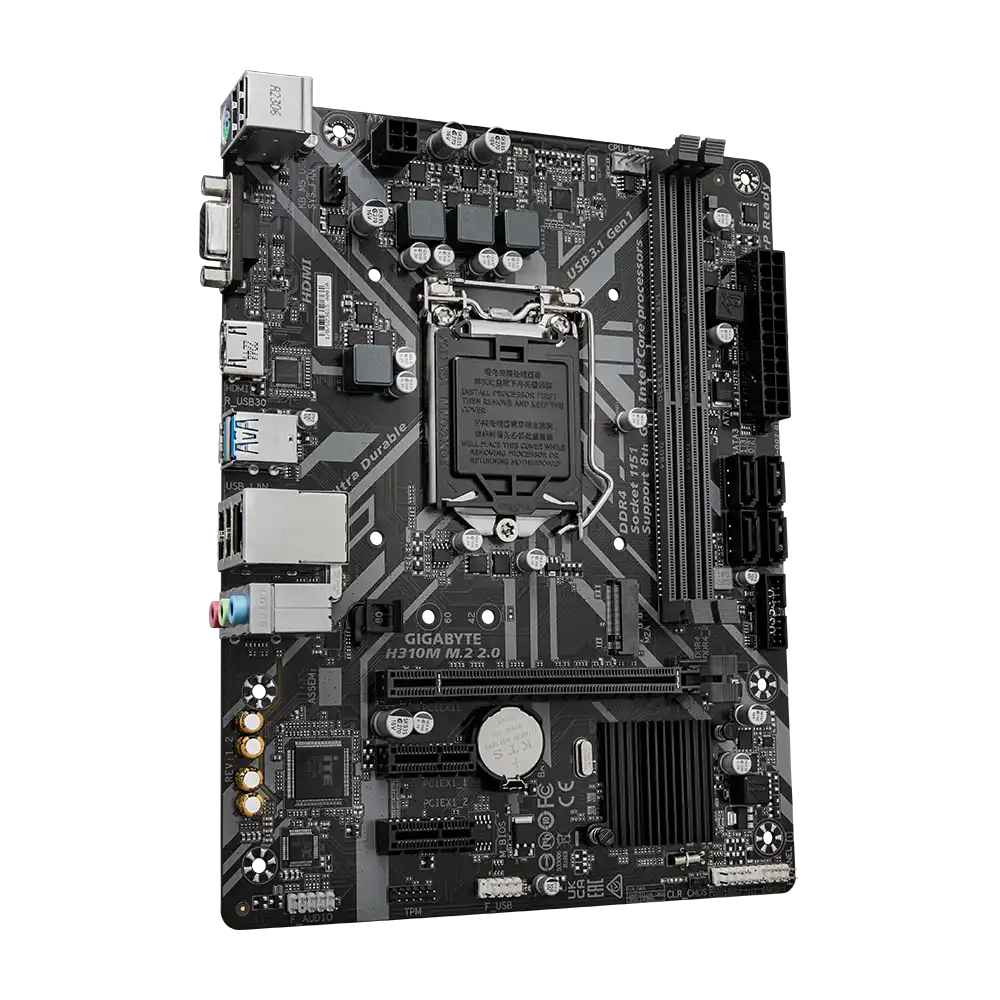

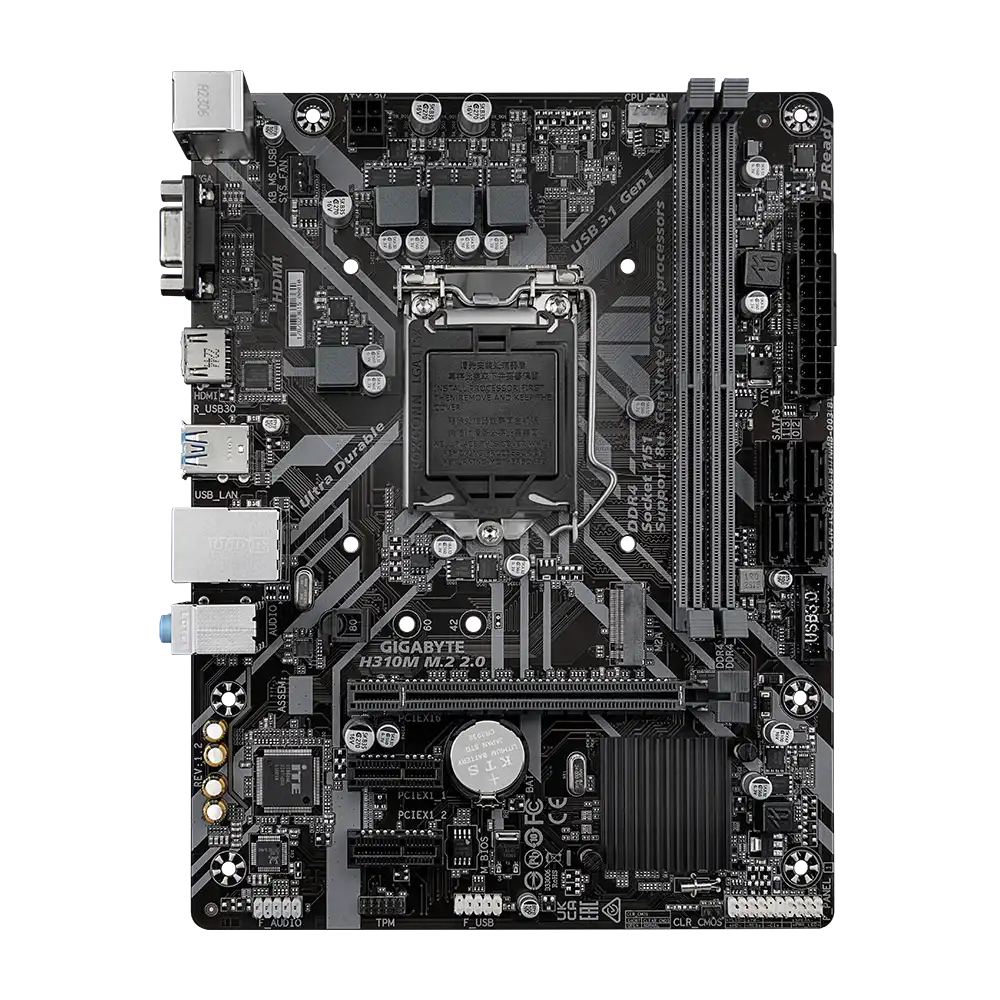

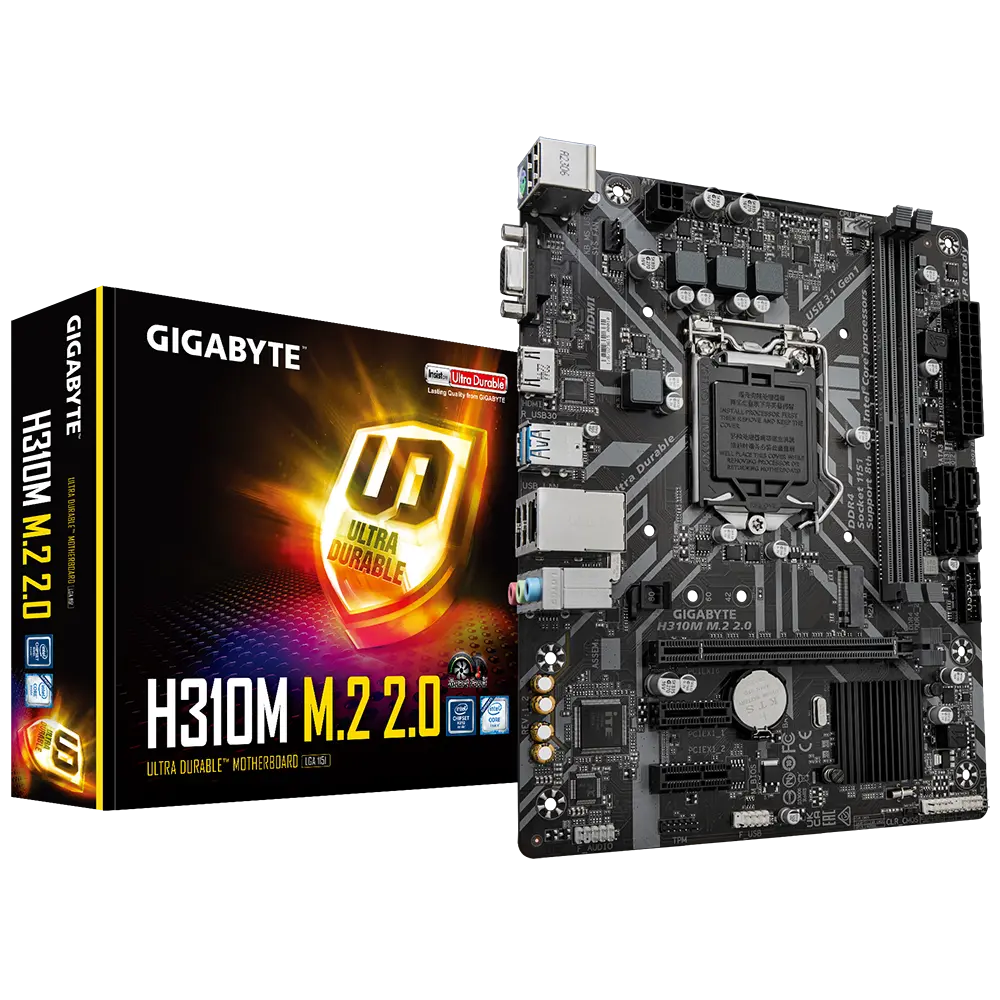

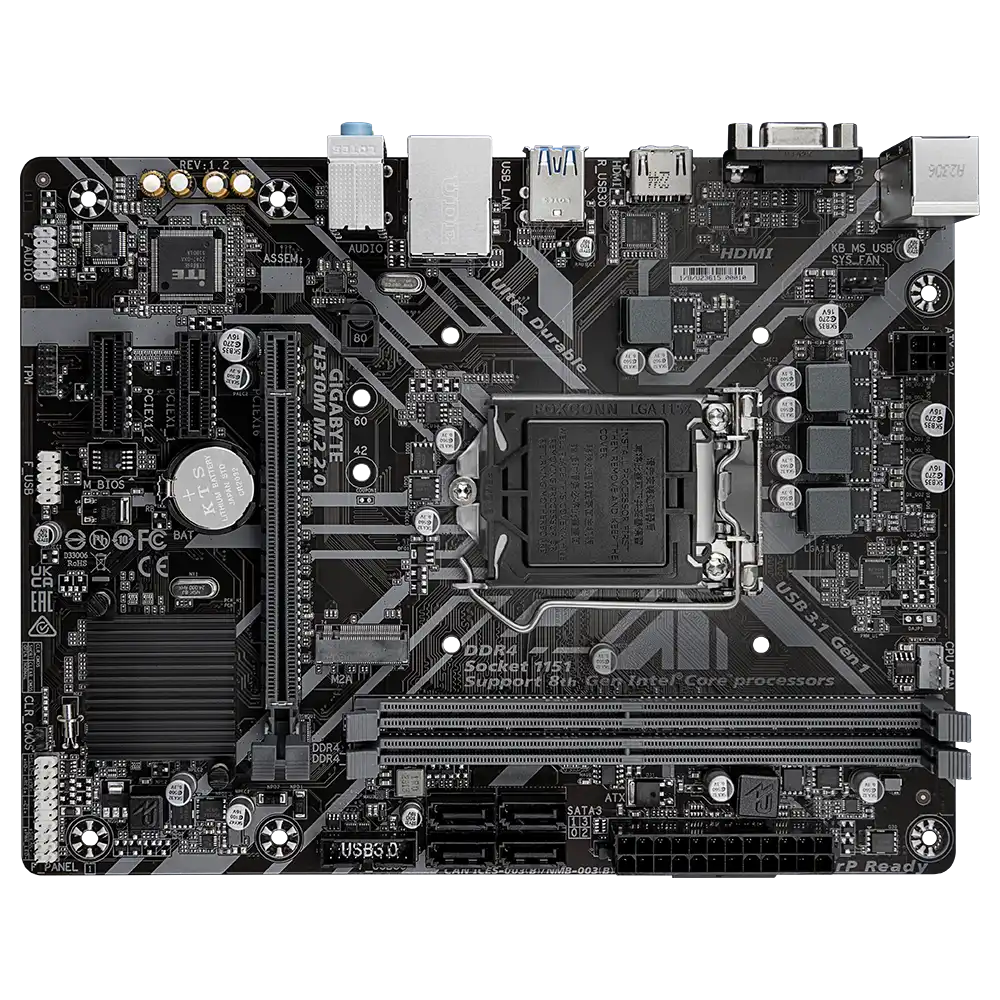

Gigabyte H310M M.2 2.0 Motherboard
  • Model:H310M M.2 2.0
  • Supports Intel 8th and 9th Gen CPUs
  • Intel H310 chipset, LGA 1151, Micro-ATX
  • Dual Channel DDR4 Memory Support
  • PCIe Gen2 x2 M.2, HDMI 1.4, Smart Fan 5
  • 3 Years Warranty from Gigabyte
₹ 6,250
Next Day Dispatch
1
CPU
1 x Socket 1151, supports 8th Generation Intel® Core™ i7 / i5 / i3 processors, Intel® Pentium® Gold, and Celeron® processors (Please refer "CPU Support List" for more information.)
Chipset
Intel® H310 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for non-ECC Un-buffered Memory Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor - Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz* *Support for HDMI 1.4 version. Support for up to 2 displays at the same time Maximum shared memory of 1 GB
Audio
Realtek® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16) 2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 2.0 standard.)
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe x2/x4 SSD support) 4 x SATA 6Gb/s connectors
USB
Chipset: 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x M.2 Socket 3 connector 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Clear CMOS jumper

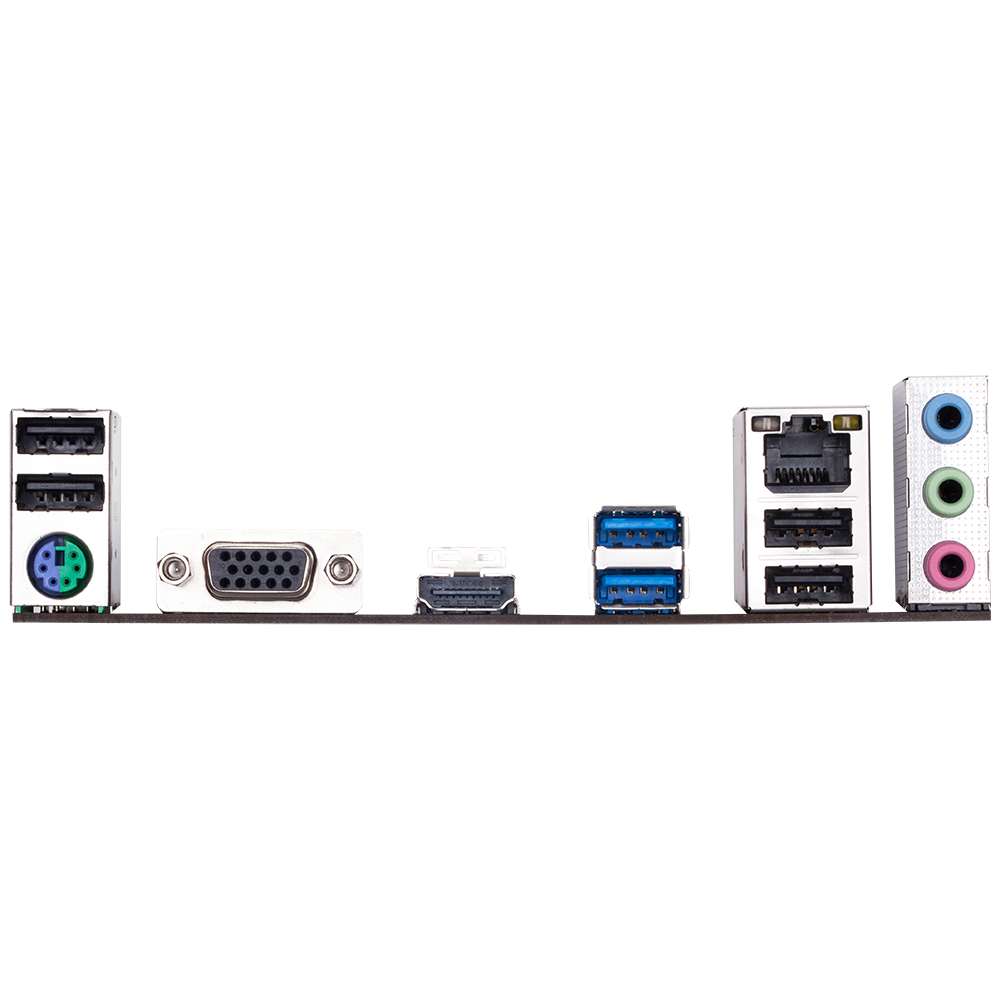

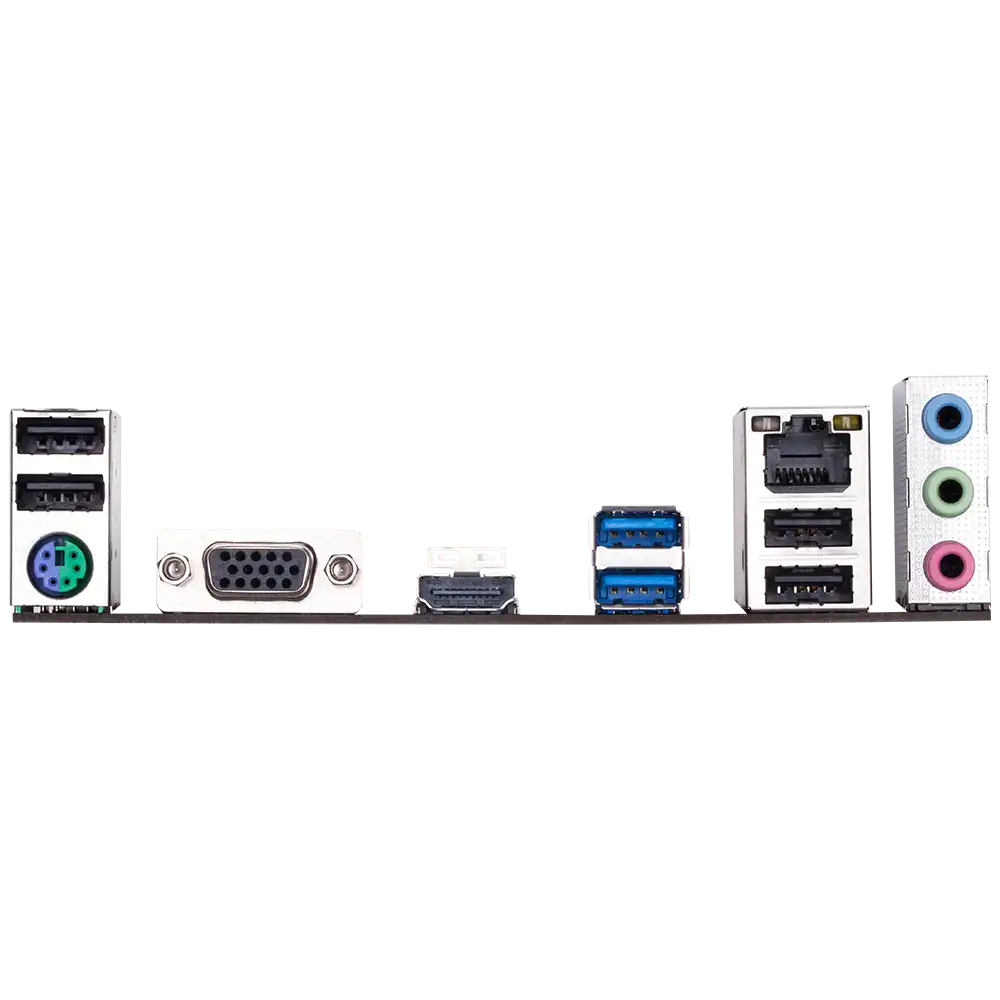

Back Panel Connectors
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI port 2 x USB 3.1 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PNP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 3.0, ACPI 5.0
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version) Realtek® Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
