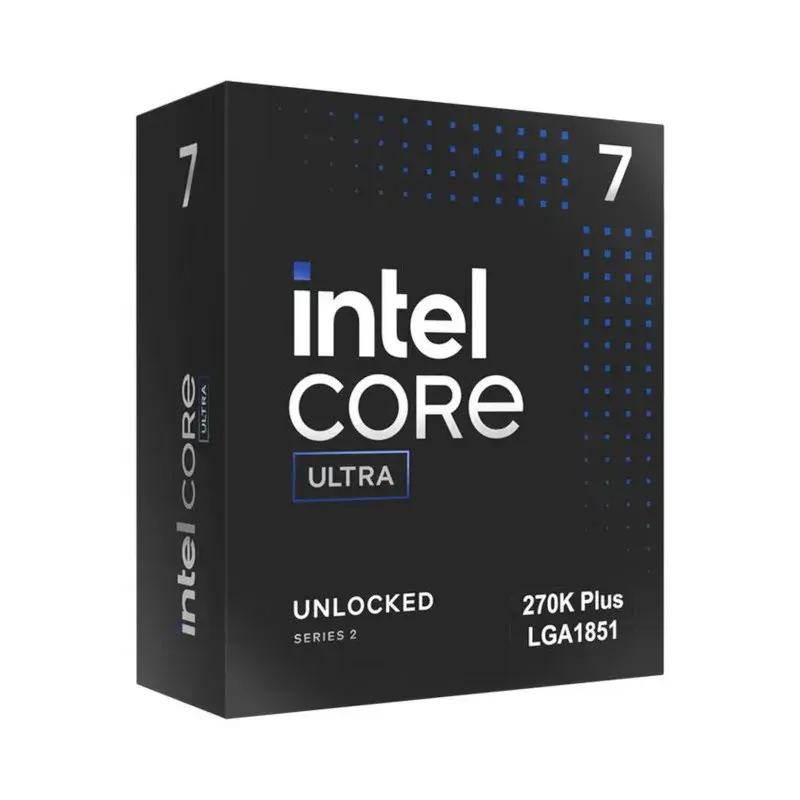

- Model:Intel Core Ultra 7 270K Plus Processor, BX80768270K
- 24 Cores / 24 Threads
- Up to 5.5 GHz Boost Clock
- FCLGA1851 Socket Support
- Arrow Lake Architecture
- 3 Years Warranty from Intel
Overview
The Intel Core Ultra 7 270K Plus is a high-performance desktop processor featuring 24 cores (8 Performance-cores and 16 Efficient-cores) with up to 5.5 GHz maximum turbo frequency. Built on TSMC N3B lithography, this processor delivers exceptional performance for demanding workloads including content creation, gaming, and professional applications.
With 36 MB of Intel Smart Cache and support for DDR5 7200 MT/s memory, the Core Ultra 7 270K Plus provides excellent bandwidth for data-intensive tasks. The processor includes integrated Intel Graphics with 4 Xe-cores, Intel AI Boost NPU with 13 TOPS, and comprehensive security features including Intel vPro Enterprise eligibility.
Key features include Intel Turbo Boost Max Technology 3.0, PCIe 5.0 support with up to 24 lanes, Thunderbolt 4 connectivity, and advanced AI acceleration capabilities. The processor operates at a base power of 125W with a maximum turbo power of 250W, making it suitable for high-performance desktop systems.
- 24 Cores (8 Performance + 16 Efficient) / 24 Threads
- Up to 5.5 GHz Max Turbo Frequency
- 36 MB Intel Smart Cache
- Integrated Intel Graphics with 4 Xe-cores
- Intel AI Boost NPU (13 TOPS)
- PCIe 5.0 and 4.0 Support
- DDR5 7200 MT/s Memory Support
- Intel Turbo Boost Max Technology 3.0
- Thunderbolt 4 Support
- Intel vPro Enterprise Eligible
Specifications
- Product Collection
- Intel® Core™ Ultra Processors (Series 2)
- Code Name
- Products formerly Arrow Lake
- Vertical Segment
- Desktop
- Processor Number
- 270K PLUS
- Recommended Customer Price
- $339.00-$349.00
- Total Cores
- 24
- # of Performance-cores
- 8
- # of Efficient-cores
- 16
- Total Threads
- 24
- Max Turbo Frequency
- 5.5 GHz
- Intel® Turbo Boost Max Technology 3.0 Frequency ‡
- 5.5 GHz
- Performance-core Max Turbo Frequency
- 5.4 GHz
- Efficient-core Max Turbo Frequency
- 4.7 GHz
- Performance-core Base Frequency
- 3.7 GHz
- Efficient-core Base Frequency
- 3.2 GHz
- Cache
- 36 MB Intel® Smart Cache
- Total L2 Cache
- 40 MB
- Processor Base Power
- 125 W
- Maximum Turbo Power
- 250 W
- Marketing Status
- Launched
- Launch Date
- Q1'26
- Embedded Options Available
- No
- Use Conditions
- PC/Client/Tablet, Workstation
- Max Memory Size (dependent on memory type)
- 256 GB
- Memory Types
- Up To DDR5 7200 MT/s
- Max # of Memory Channels
- 2
- GPU Name‡
- Intel® Graphics
- Graphics Base Frequency
- 300 MHz
- Graphics Max Dynamic Frequency
- 2 GHz
- Max Resolution (HDMI)‡
- 4096 x 2304 @ 60Hz (HDMI 2.1 TMDS) 7680 x 4320 @ 60Hz (HDMI 2.1 FRL)
- Max Resolution (DP)‡
- 7680 x 4320 @ 60Hz
- Max Resolution (eDP - Integrated Flat Panel)‡
- 3840 x 2400 @ 120Hz
- DirectX* Support
- 12
- OpenGL* Support
- 4.5
- OpenCL* Support
- 3
- Intel® Quick Sync Video
- Yes
- # of Displays Supported ‡
- 4
- Direct Media Interface (DMI) Revision
- 4
- Max # of DMI Lanes
- 8
- Scalability
- 1S Only
- PCI Express Revision
- 5.0 and 4.0
- PCI Express Configurations ‡
- Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
- Max # of PCI Express Lanes
- 24
- Sockets Supported
- FCLGA1851
- Thermal Solution Specification
- PCG 2020A
- Max Operating Temperature
- 105 °C
- Package Size
- 45 mm x 37.5 mm
- Intel® Gaussian & Neural Accelerator
- 3.5
- Intel® Thread Director
- Yes
- Intel® Speed Shift Technology
- Yes
- Intel® Turbo Boost Max Technology 3.0 ‡
- Yes
- Intel® Turbo Boost Technology ‡
- 2.0
- Intel® Hyper-Threading Technology ‡
- No
- Intel® 64 ‡
- Yes
- Instruction Set
- 64-bit
- Instruction Set Extensions
- Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
- Idle States
- Yes
- Enhanced Intel SpeedStep® Technology
- Yes
- Thermal Monitoring Technologies
- Yes
- Intel® Volume Management Device (VMD)
- Yes
- Intel® Standard Manageability (ISM) ‡
- Yes
- Intel® Secure Key
- Yes
- Intel® Control-Flow Enforcement Technology
- Yes
- Intel® AES New Instructions
- Yes
- Intel® Trusted Execution Technology ‡
- Yes
- Execute Disable Bit ‡
- Yes
- Intel® OS Guard
- Yes
- Intel® Boot Guard
- Yes
- Mode-based Execute Control (MBEC)
- Yes
- Intel® Virtualization Technology (VT-x) ‡
- Yes
- Intel® Virtualization Technology for Directed I/O (VT-d) ‡
- Yes
- Intel® VT-x with Extended Page Tables (EPT) ‡
- Yes
Warranty
3 Years manufacturer warranty from Intel. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
