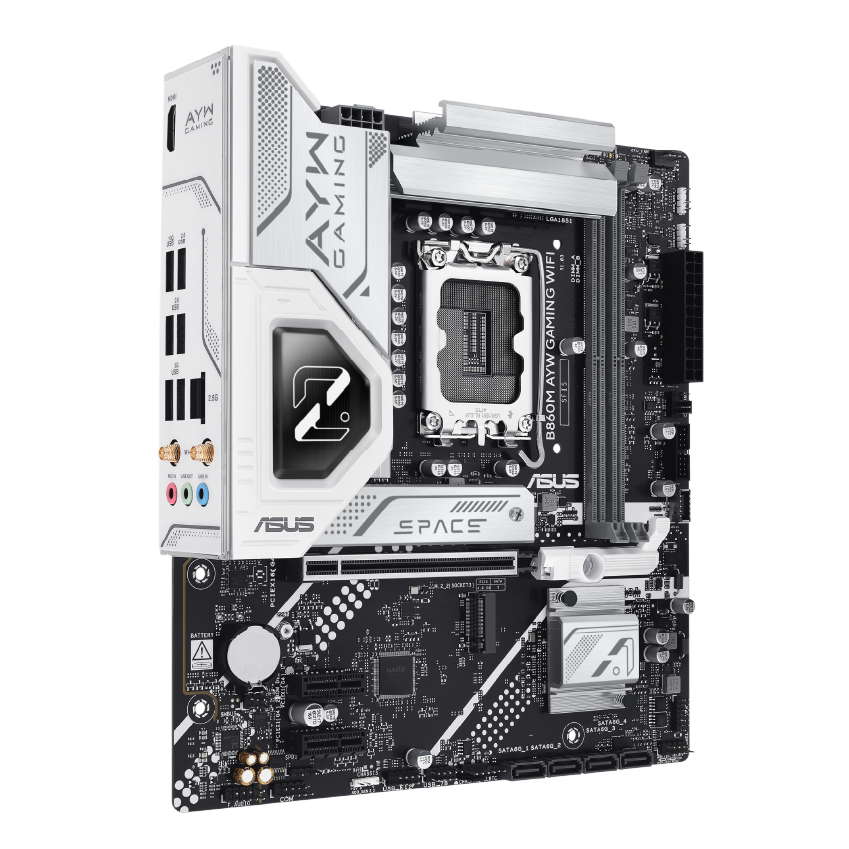

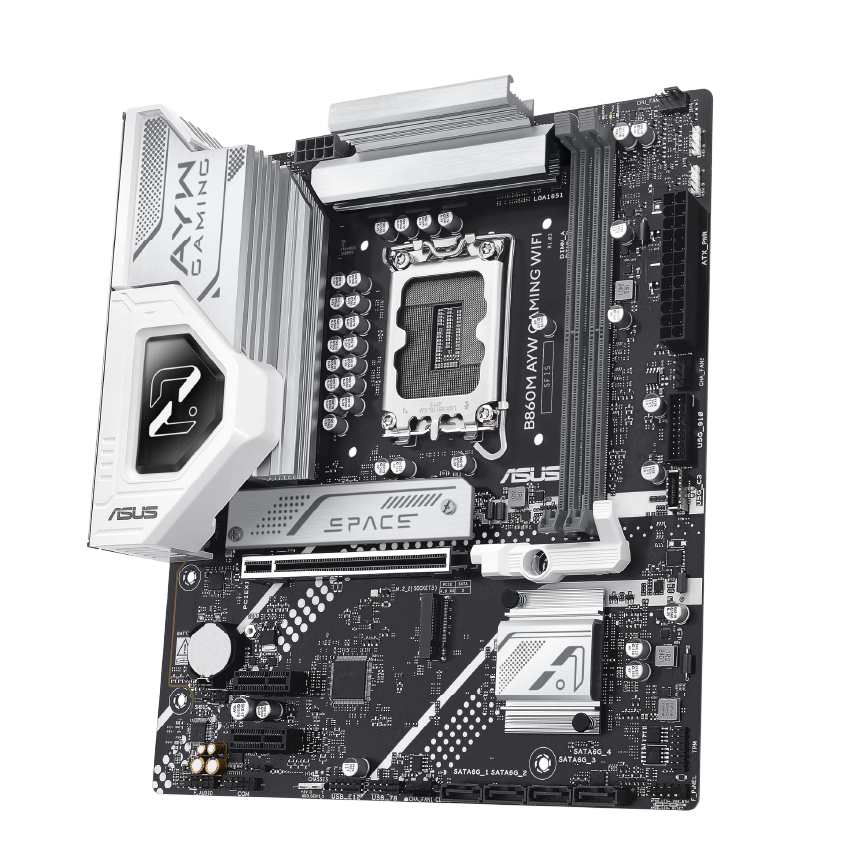

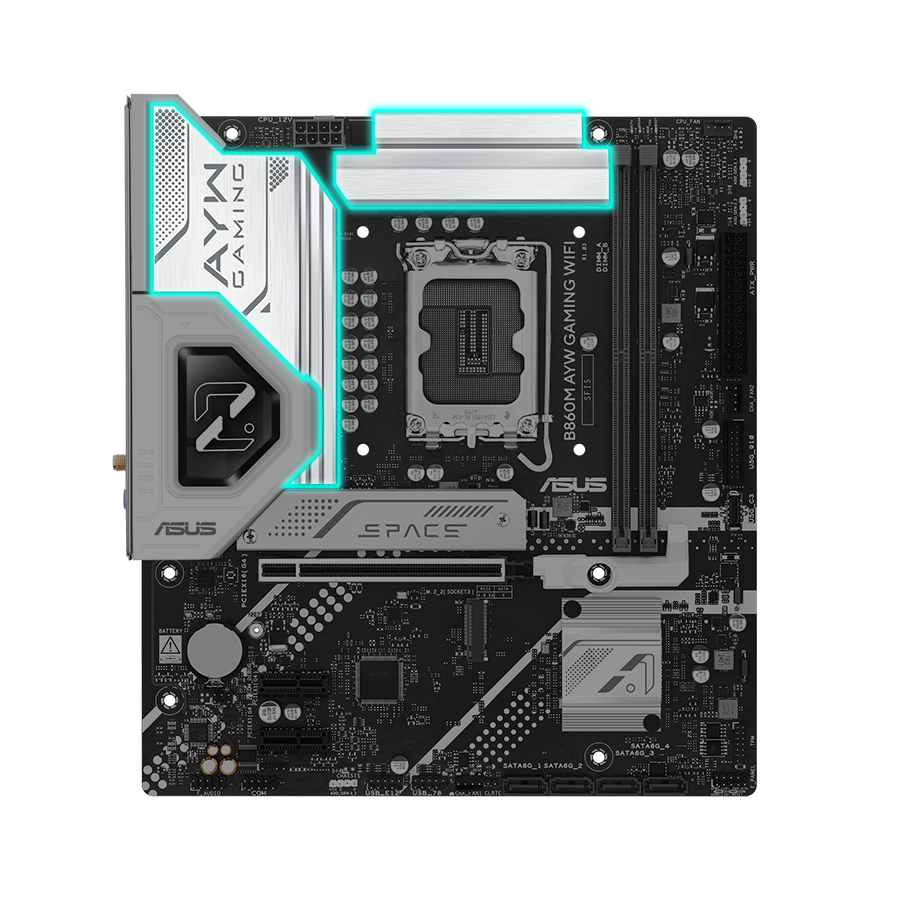

ASUS B860M AYW GAMING WIFI Motherboard
  • Model:B860M AYW GAMING WIFI
  • Supports Intel Core Ultra (Series 2)
  • Intel B860 chipset, LGA1851 socket, Micro-ATX
  • Dual DDR5 DIMM slots, up to DDR5-7600 OC
  • PCIe 5.0 M.2 slot, WiFi 6, 2.5Gb LAN, USB 10Gbps
  • 3 Years Warranty from ASUS
₹ 12,550
Next Day Dispatch
1
Model
B860M AYW GAMING WIFI
CPU
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
CPU Features
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
CPU Note
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
CPU Note
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B860 Chipset
Memory Slots
2 x DIMM slots, max. 128GB, DDR5
Memory Speed
Supports up to 8800+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile
ASUS Enhanced Memory Profile III(AEMPIII)
Memory Note
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Memory Note
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics Output
1 x HDMITM port**
Graphics Note 1
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Graphics Note 2
** Supports 4K@60Hz as specified in HDMI 2.1.
Graphics Note 3
*** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots - Intel® Core™ Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Expansion Slots - Intel® B860 Chipset
2 x PCIe 4.0 x1 slots
Expansion Slots Note
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage (Total)
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage - Intel® Core™ Ultra Processors (Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Storage - Intel® B860 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Storage - SATA
4 x SATA 6Gb/s ports
Storage Note
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
LAN Features
ASUS LANGuard
Wireless
Wi-Fi 6
Wi-Fi Standard
1x1 Wi-Fi 6 (802.11ax)
Wi-Fi Bands
Supports 2.4/5GHz frequency band
Bluetooth®
Bluetooth® v5.3*
Bluetooth Note
* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Rear USB (Total)
6 ports
Rear USB - Type-A 10Gbps
1 x USB 10Gbps port (1 x Type-A)
Rear USB - Type-A 5Gbps
2 x USB 5Gbps ports (2 x Type-A)
Rear USB - Type-A 2.0
3 x USB 2.0 ports (3 x Type-A)**
Front USB (Total)
7 ports
Front USB - Type-C®
1 x USB 5Gbps connector (supports USB Type-C®)*
Front USB - Type-A 5Gbps
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
Front USB - USB 2.0
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
USB Note
* USB Type-C® power delivery output: max. 5V/3A.
USB Note
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio Controller
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio Features
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback
Audio Additional Features
- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers
Audio Note
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
1 x USB 10Gbps port (1 x Type-A)2 x USB 5Gbps ports (2 x Type-A)3 x USB 2.0 ports (3 x Type-A)1 x HDMITM port1 x Wi-Fi module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks
Internal I/O Connectors - Fan and Cooling
1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headers
Internal I/O Connectors - Power
1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connector
Internal I/O Connectors - Storage
2 x M.2 slots (Key M)4 x SATA 6Gb/s ports
Internal I/O Connectors - USB
1 x USB 5Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors - Miscellaneous
3 x Addressable Gen2 headers1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1 pin)1 x 10-1 pin Front Panel System header
Special Features - ASUS 5X PROTECTION III
- DIGI+VRM- LANGuard- Overvoltage protection- SafeSlot Core+- Stainless-steel back I/O
Special Features - ASUS Q-Design
- M.2 Q-Latch- PCIe Slot Q-Release- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-Slot
Special Features - ASUS Thermal Solution
- M.2 heatsink- VRM heatsinks design
Special Features - ASUS EZ DIY
- ProCool- Pre-mounted I/O shield
Special Features - Aura Sync
- Addressable Gen2 headers
Software Features - ASUS Exclusive Software
Armoury Crate- Aura Sync- Fan Xpert 2+- Power Saving
Software Features
ASUS AI AdvisorASUS DriverHubASUS GlideXASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)
Software Features - UEFI BIOS
ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkey
BIOS
256(128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories - Cables
2 x SATA 6Gb/s cables
Accessories - Miscellaneous
1 x ASUS Wi-Fi moving antenna1 x M.2 rubber package1 x Screw package for M.2 SSD
Accessories - Documentation
1 x Quick start guide
Operating System
Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)
Form Factor
micro-ATX Form Factor
Dimensions
9.6 inch x 8.75 inch (24.4cm x 22.2cm)
