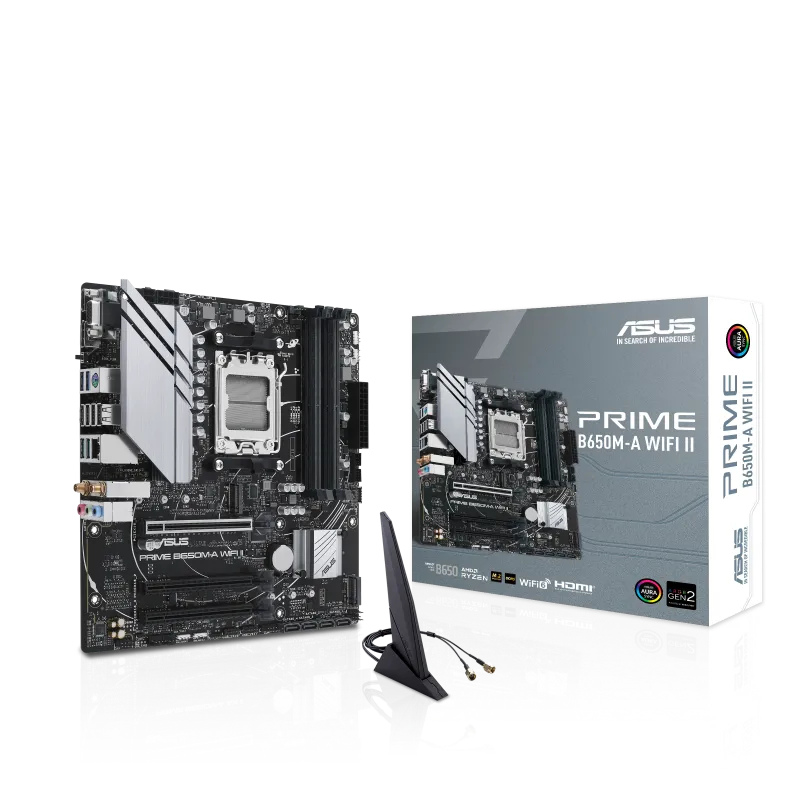

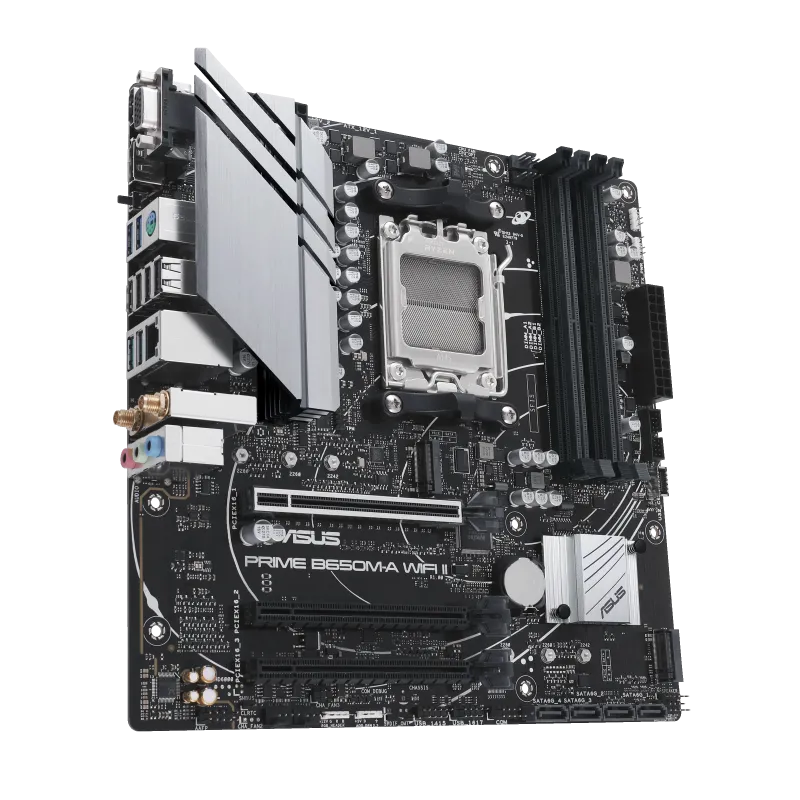

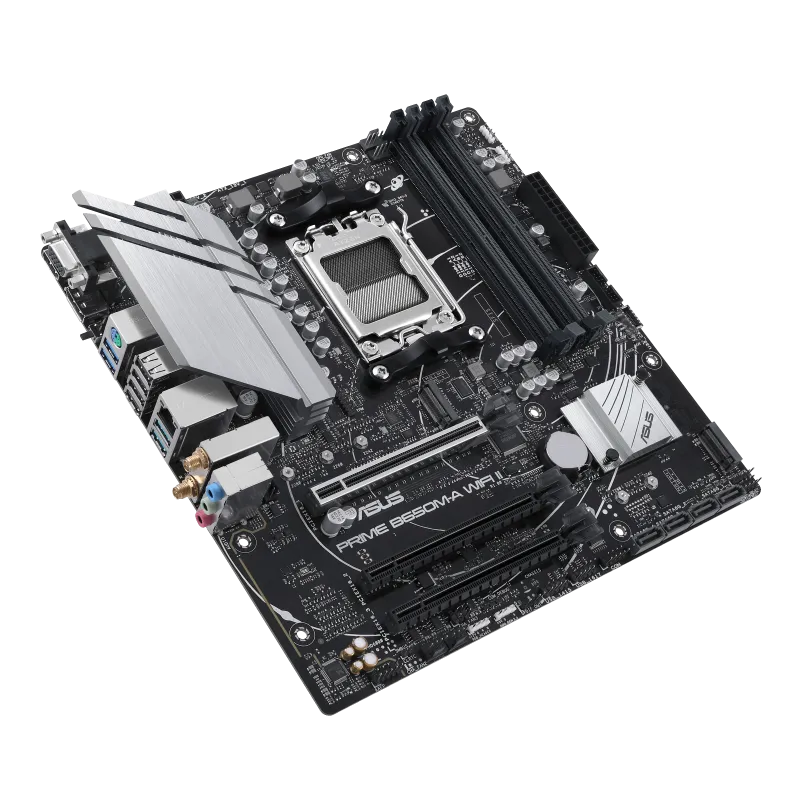

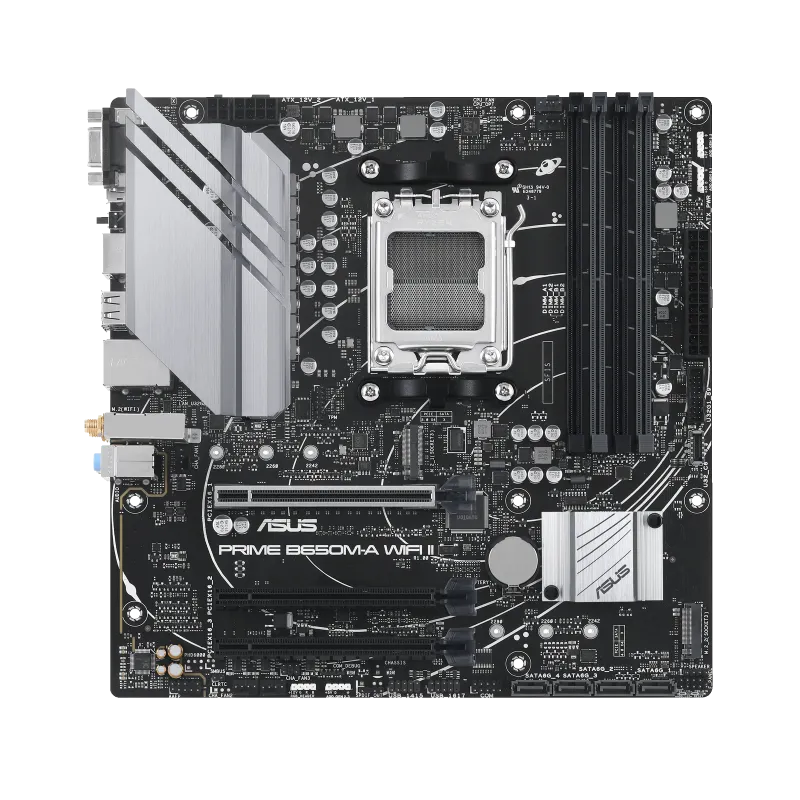

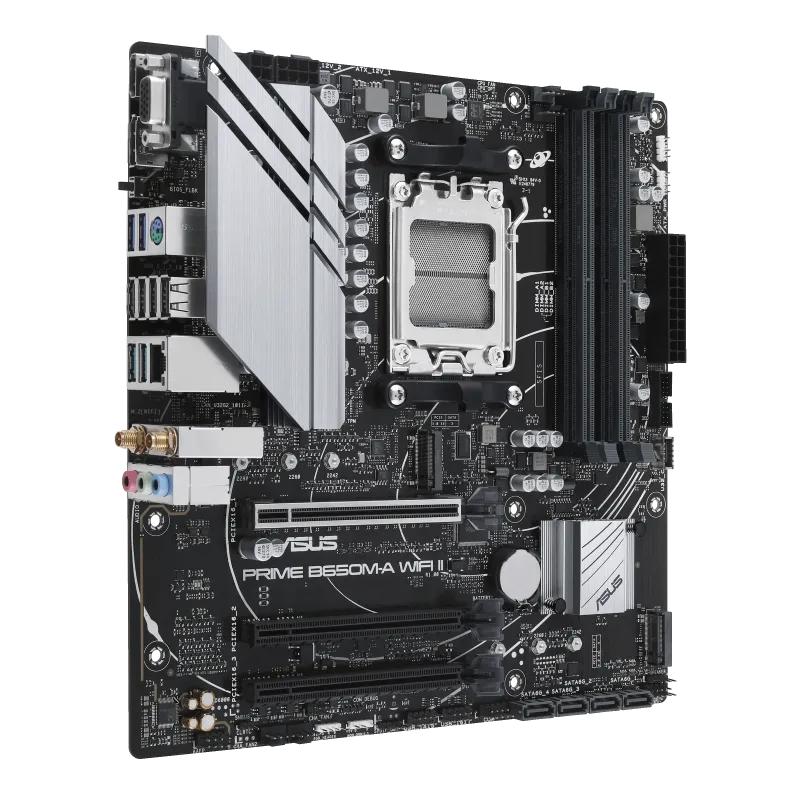

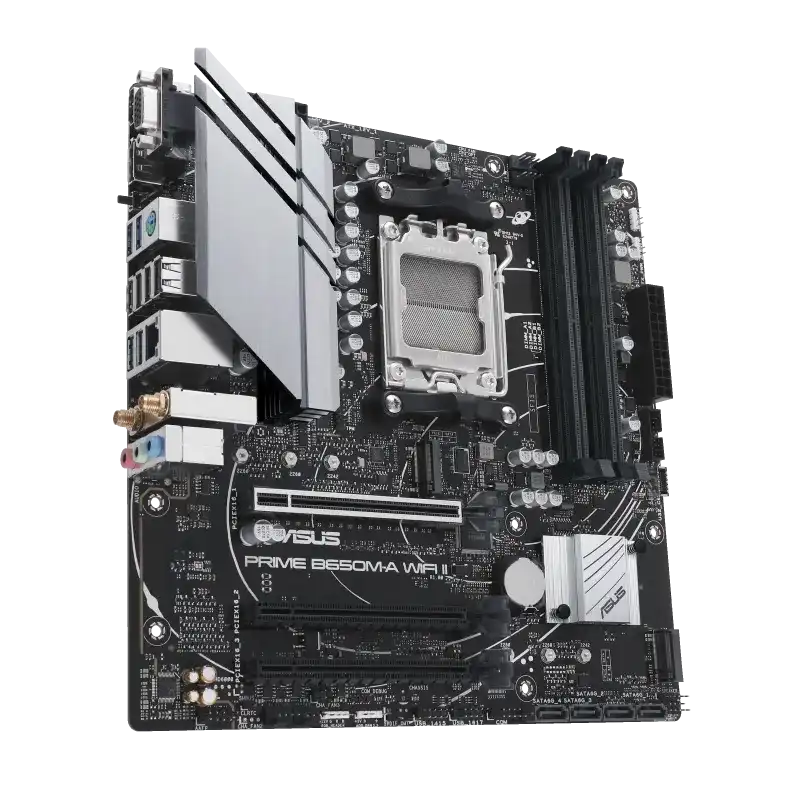

ASUS PRIME B650M-A WIFI II Motherboard
  • Model:PRIME B650M-A WIFI II
  • Supports AMD Ryzen 7000 Series Processors
  • AMD B650 Chipset with AM5 Socket, Micro-ATX Form Factor
  • DDR5 Memory Support for High-Speed Performance
  • Features PCIe 5.0 M.2 Slots, WiFi 6, and Realtek 2.5Gb Ethernet
  • 3 Years Warranty from ASUS
₹ 13,650
Next Day Dispatch
1
Model
PRIME B650M-A WIFI II
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
CPU Note
* Refer to www.asus.com for CPU support list.
Chipset
AMD B650 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800, ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Yes
Supports AMD Extended Profiles for Overclocking (EXPO™)
Yes
OptiMem II
Yes
Memory Note 1
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Memory Note 2
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x DisplayPort**1 x VGA port1 x HDMI® port***
Graphics Note 1
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Graphics Note 2
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Graphics Note 3
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots (AMD Ryzen™ 9000 & 7000)
1 x PCIe 4.0 x16 slot (supports x16 mode)
Expansion Slots (AMD Ryzen™ 8000)
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
Expansion Slots (AMD B650 Chipset)
2 x PCIe 4.0 x16 slots (support x1 mode)
Expansion Note 1
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Expansion Note 2
** Specifications vary by CPU types.
Expansion Note 3
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (AMD Ryzen™ 9000 & 7000)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Storage (AMD Ryzen™ 8000)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage (AMD B650 Chipset)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports
Storage Note
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth® v5.2
Wireless Note
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB - Rear
2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)
USB - Front
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio - Codec
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio - Features
Jack-detection, Multi-streaming, Front Panel Jack-retaskingSupports up to 24-Bit/192 kHz playback
Audio Features List
Audio ShieldingPremium audio capacitorsDedicated audio PCB layers
Audio Note
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

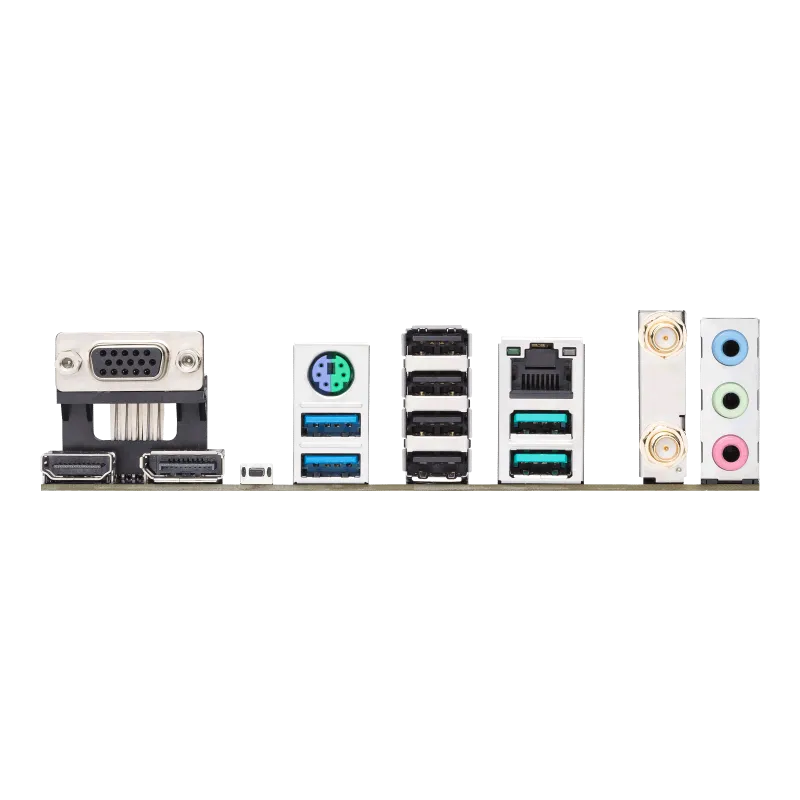

Back Panel I/O Ports
2 x USB 3.2 Gen 2 ports (2 x Type-A)2 x USB 3.2 Gen 1 ports (2 x Type-A)4 x USB 2.0 ports (4 x Type-A)1 x DisplayPort1 x VGA port1 x HDMI® port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x BIOS FlashBack™ button1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors - Fan and Cooling related
1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header3 x 4-pin Chassis Fan headers
Internal I/O Connectors - Power related
1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connector
Internal I/O Connectors - Storage related
2 x M.2 slots (Key M)4 x SATA 6Gb/s ports
Internal I/O Connectors - USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors - Miscellaneous
3 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header
Special Features - ASUS 5X PROTECTION III
DIGI+ VRMLANGuardOvervoltage ProtectionSafeslot Core+Stainless-Steel Back I/O
Special Features - ASUS Q-Design
Q-DIMMQ-LED CoreQ-Slot
Special Features - ASUS Thermal Solution
VRM heatsink design
Special Features - ASUS EZ DIY
BIOS FlashBack™ buttonBIOS FlashBack™ LED
Special Features - Aura Sync
Aura RGB headerAddressable Gen 2 headers
Software Features - ASUS Exclusive Software
Armoury Crate- Aura Creator- Aura Sync- Fan Xpert 2+- Power SavingAI Suite 3- TurboV EVO- DIGI+ VRM- PC CleanerASUS CPU-ZMyASUSNorton Anti-virus software (Free Trial version)WinRAR
Software Features - UEFI BIOS
ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories - Cables
2 x SATA 6Gb/s cables
Accessories - Miscellaneous
1 x ASUS Wi-Fi moving antennas1 x I/O Shield1 x Screw Package for M.2 SSD
Accessories - Documentation
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
mATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
