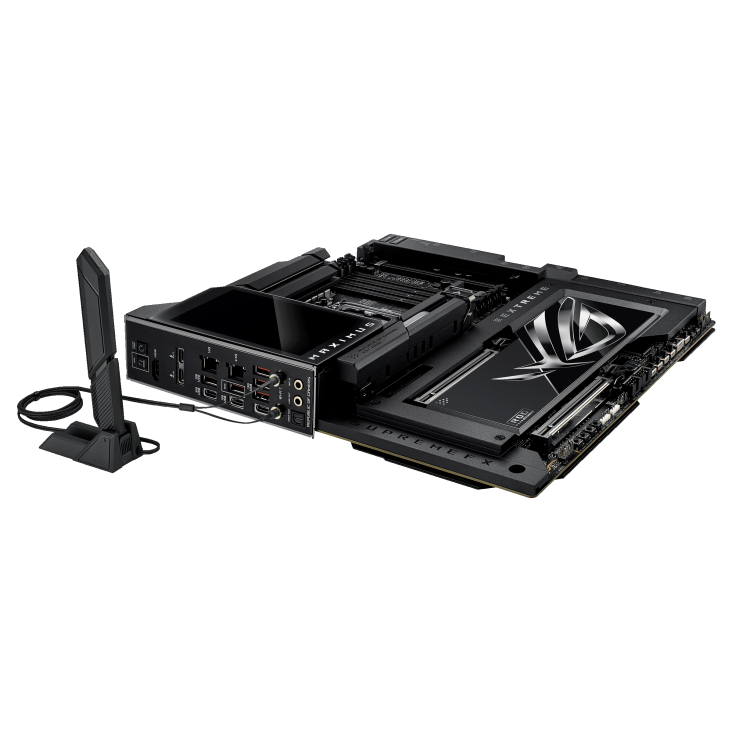

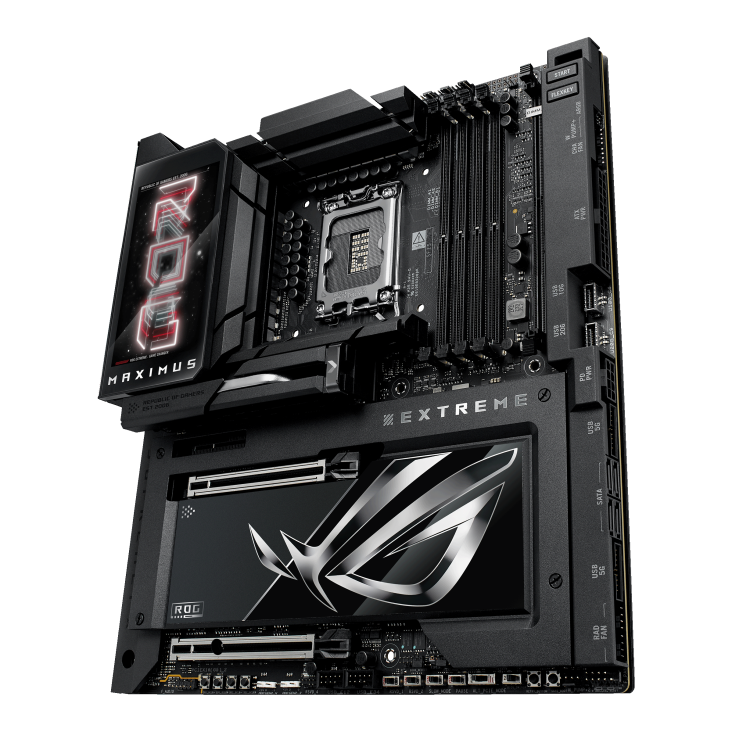

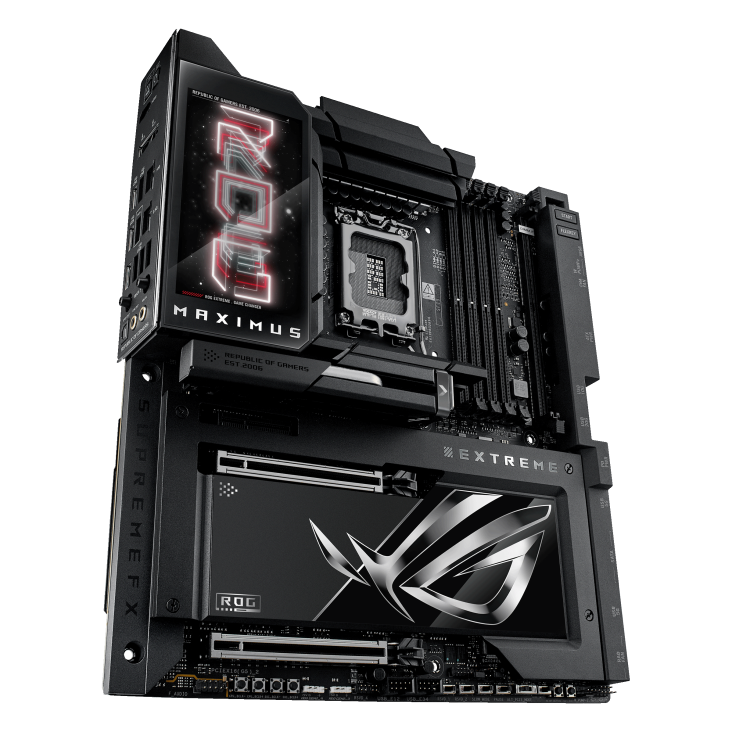

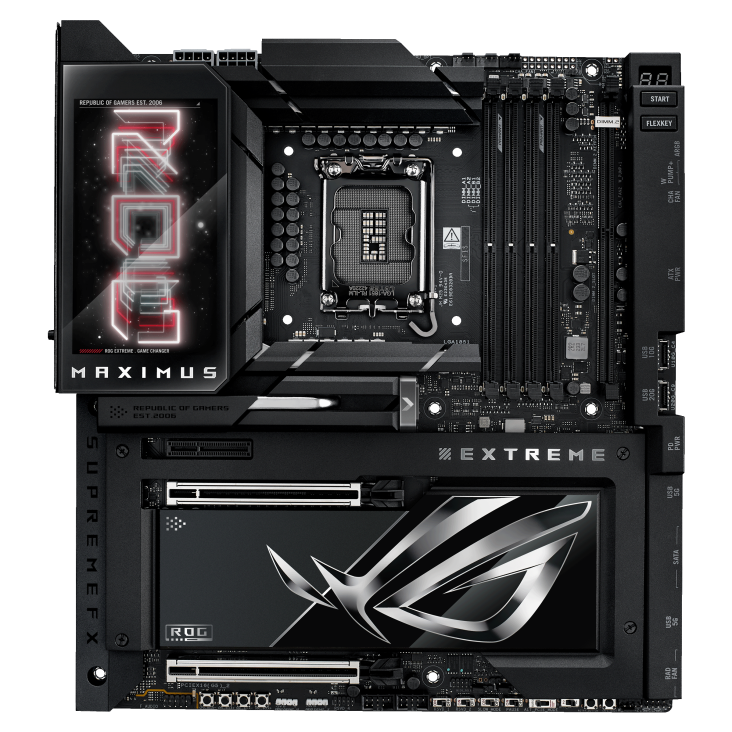

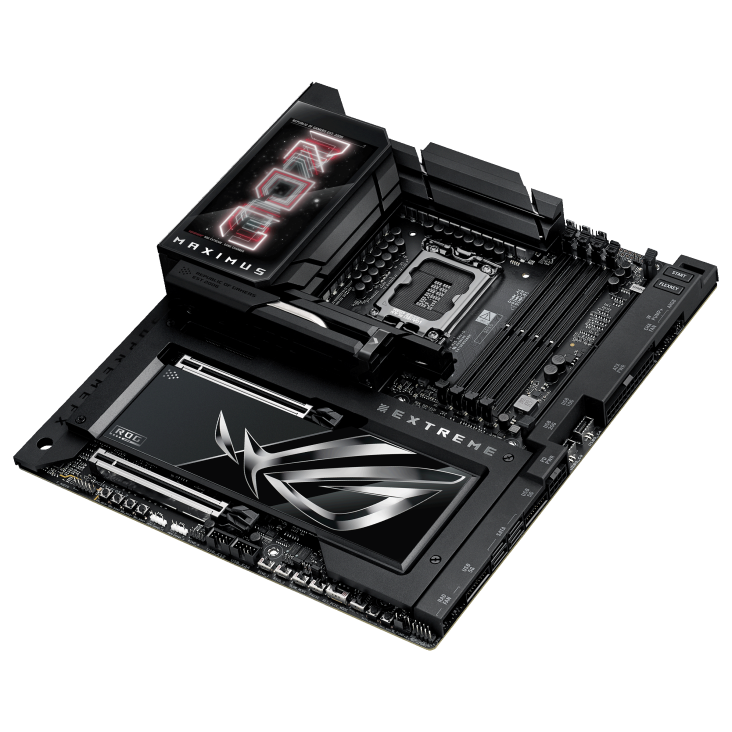

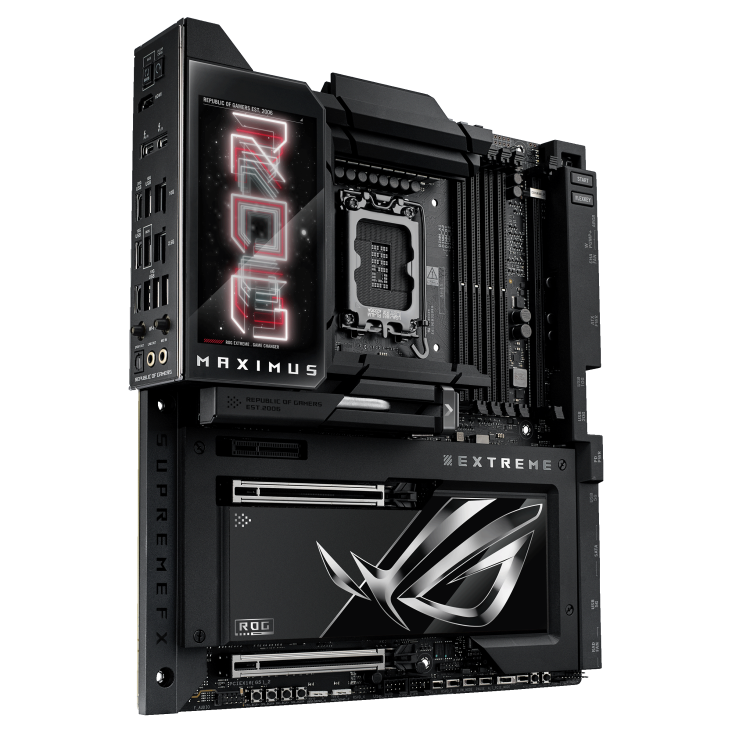

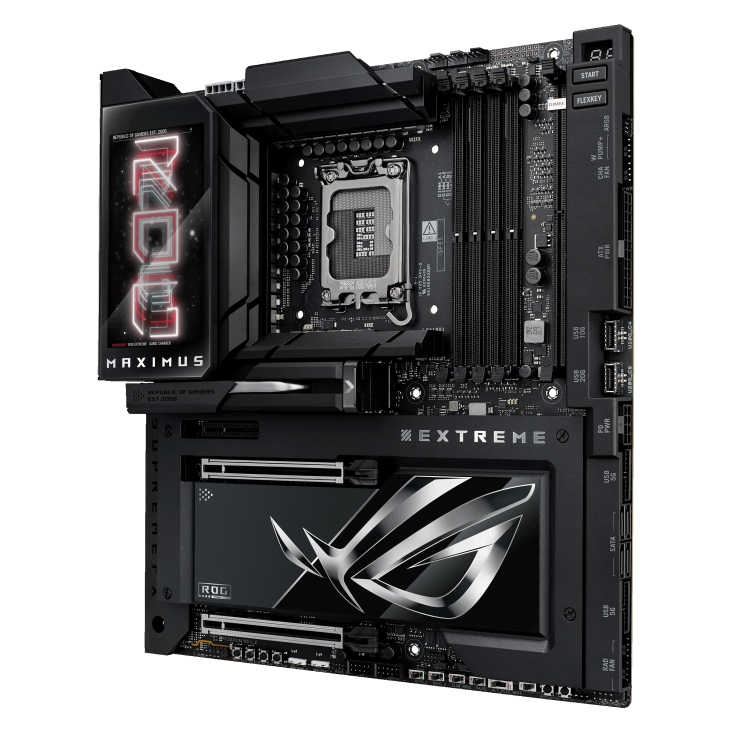

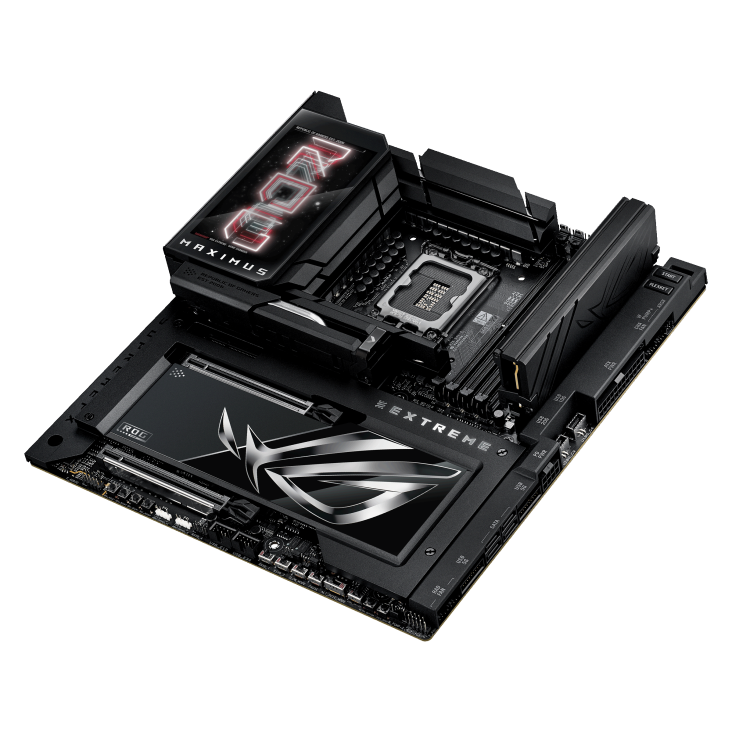

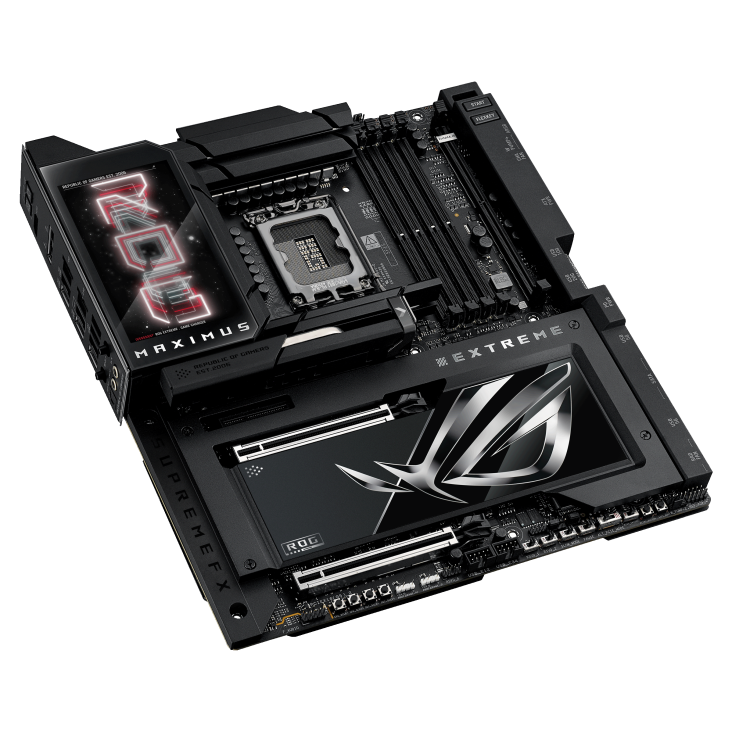

ASUS ROG MAXIMUS Z890 EXTREME Motherboard

  • Model:ROG MAXIMUS Z890 EXTREME
  • Supports Intel Core Ultra 200 Series processors
  • Intel Z890 chipset, LGA1851 socket, E-ATX
  • Up to 192GB DDR5, 4 DIMMs, dual channel
  • PCIe 5.0, WiFi 7, Thunderbolt 5, 10Gb LAN
  • 3 Years Warranty from ASUS
₹ 86,100
Next Day Dispatch
1
Model
ROG MAXIMUS Z890 EXTREME
CPU Support
Support Intel® Core™ Ultra Processors (Series 2) , LGA1851
CPU Technologies Supported
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
Intel® Z890 Chipset
Memory Slots
4 x DIMM slots, max. 256GB, DDR5
Memory Speed
Support up to 9200+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture
Dual Channel Memory Architecture
Memory Features
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory
ASUS Enhanced Memory Profile III (AEMP III)
DIMM Technologies
Supports DIMM Flex
DIMM Fit
DIMM Fit
NitroPath DRAM Technology
NitroPath DRAM Technology
Memory Notes
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
On-Die ECC
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics Output
1 x HDMITM port**
Thunderbolt Video Outputs
2 x Intel® Thunderbolt™ 5 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
Graphics Notes
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.**Supports max. 8K@60Hz with DSC as specified in HDMI 2.1.***Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors,  It is recommended to chain-connect the monitors using a verified Thunderbolt™ cable.****For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s.*****In ThunderboltTM  4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.******VGA resolution support depends on processors' or graphic cards' resolution.*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots (CPU)
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)**
Expansion Slots (Chipset)
1 x PCIe 4.0x4 slot
Expansion Slot Notes
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Total M.2 Slots
Total supports up to 6 x M.2 slots and 4 x SATA 6Gb/s ports*
M.2_1 (CPU)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 (CPU)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 (CPU)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes)**
M.2_4 (CPU)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)**
DIMM.2_1 (Chipset)
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
DIMM.2_2 (Chipset)
DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
SATA Ports
4 x SATA 6Gb/s ports
Storage Notes
*Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.**M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2. When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled.
Ethernet
1 x Intel® 2.5Gb Ethernet1 x Marvell® AQtion 10Gb EthernetASUS LANGuard
Wireless
Intel® Wi-Fi 7*
Wi-Fi Features
2x2 Wi-Fi 7 (802.11be)
Wi-Fi Bands
Supports 2.4/5/6GHz frequency band**
Wi-Fi 7 Bandwidth
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth
Bluetooth® v5.4***
Wireless Notes
*Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For Windows 10, only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Rear USB Ports
2 x Thunderbolt™ 5 ports (2 x USB Type-C®)1 x USB 20Gbps port (1 x USB Type-C®)7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)
Front USB Ports
1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)*1 x USB 10Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Power Delivery Output
USB Type-C® power delivery output: max. 5V/3A
Front Panel Type-C® Output
*USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
Audio Codec
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082**
Audio Features
- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel
Audio Extra Features
- SupremeFX Shielding Technology- ESS® ES9219 QUAD DAC- LED-illuminated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors
Audio Notes
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
Back Panel I/O Ports
2 x Thunderbolt™ 5 USB Type-C® ports1 x USB 20Gbps port (1 x USB Type-C®)7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C®)1 x HDMITM port1 x Wi-Fi Module1 x Intel® 2.5Gb Ethernet port1 x Marvell® AQtion 10Gb Ethernet port2 x LED-illuminated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™  button1 x Clear CMOS button
Internal I/O Connectors - Cooling
1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header2 x 4-pin Chassis Fan headers2 x 4-pin Radiator Fan headers2 x W_PUMP+ headers1 x WB_SENSOR header
Internal I/O Connectors - Power
1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connector1 x 8-pin PCIe Power connector
Internal I/O Connectors - Storage
4 x M.2 slots (Key M)1 x DIMM.2 slot supports 2 x M.2 slots (Key M)4 x SATA 6Gb/s ports
Internal I/O Connectors - USB
1 x USB 20Gbps connector (supports USB Type-C®)1 x USB 10Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support 4 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors - Misc
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers2 x Addressable Gen 2 header1 x Alteration PCIe mode switch4 x BCLK button1 x BIOS Switch button1 x FlexKey button1 x Front Panel Audio header (F_AUDIO)1 x LN2 Mode jumper18 x ProbeIt Measurement Points1 x ReTry button2 x RSVD switchs1 x RSVD header1 x Safe Boot button1 x Slow Mode switch1 x Start button1 x 10-1 pin System Panel header1 x Thermal Sensor header
Special Features - Extreme OC Kit
- FlexKey button- LN2 Mode- ProbeIt- ReTry button- Safe boot button- Start button- Slow Mode
Special Features - Extreme Engine Digi+
- 10K Black Metallic Capacitors- MicroFine Alloy Choke
Special Features - ASUS Q-Design
- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-Connector- Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-Slot- Q-DIMM.2
Special Features - ASUS Thermal Solution
- Fan bracket- M.2 heatsink backplate- M.2 heatsink- Metal backplate- VRM heatsink design- 3D VC M.2 Heatsink
Special Features - ASUS EZ DIY
- Backplate- BIOS FlashBack™ button- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMM
Special Features - Aura Sync
- Addressable Gen 2 headers
Special Features - Dual BIOS
Dual BIOS
Special Features - Full Color 5" LCD Display
Full Color 5" LCD Display
Special Features - ROG M.2 PowerBoost
ROG M.2 PowerBoost
Special Features - Front Panel USB 20Gbps with Quick Charge 4+ Support
- Support: up to 60W fast charging and USB Wattage Watcher*- Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A- Compatible with PD3.0 and PPS
Special Features Notes
* To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
ROG Exclusive Software
- ROG CPU-Z- Dolby Atmos- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate- AIDA64 Extreme (1 year full version)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- HWiNFO- Power Saving- LCD Display
Other ASUS Software
ASUS AI AdvisorASUS Driver HubTurbo VcoreASUS GlideXThunderbolt™ ShareUSB Wattage WatcherWinRAR (40 Days Free Trial)Adobe Creative Cloud (Free Trial)
UEFI BIOS Features
AI Overclocking GuideNPU BoostASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkey
BIOS
2 x 256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME
Accessories - Cables
1 x 1-to-3 ARGB splitter cable1 x 1-to-2 ARGB splitter cable2 x 1-to-4 fan splitter cable2 x ROG weave SATA 6G cable packages1 x 3-in-1 Thermistor cables pack
Accessories - ROG Q-DIMM.2 with Heatsink
1 x ROG Q-DIMM.2 with heatsink1 x M.2 pad package for ROG Q-DIMM.22 x Thermal pad for ROG Q-DIMM.2
Accessories - Additional Cooling Kit
2 x Thermal pad for M.2 221101 x DDR5 Fan holder
Accessories - Miscellaneous
1 x ASUS WiFi Q-Antenna1 x Q-connector1 x ROG logo plate sticker1 x ROG screwdriver1 x ROG stickers1 x ROG VIP card2 x M.2 Q-Slide packages6 x M.2 backplate rubber packages1 x ROG Bottle Opener
Accessories - Installation Media
1 x USB drive with utilities and drivers
Accessories - Documentation
1 x Quick start guide
Operating System Support
Windows 11  (22H2 & later)
Form Factor
E-ATX Form Factor
Dimensions
12 inch x 10.9 inch (30.5 cm x 27.7 cm)
