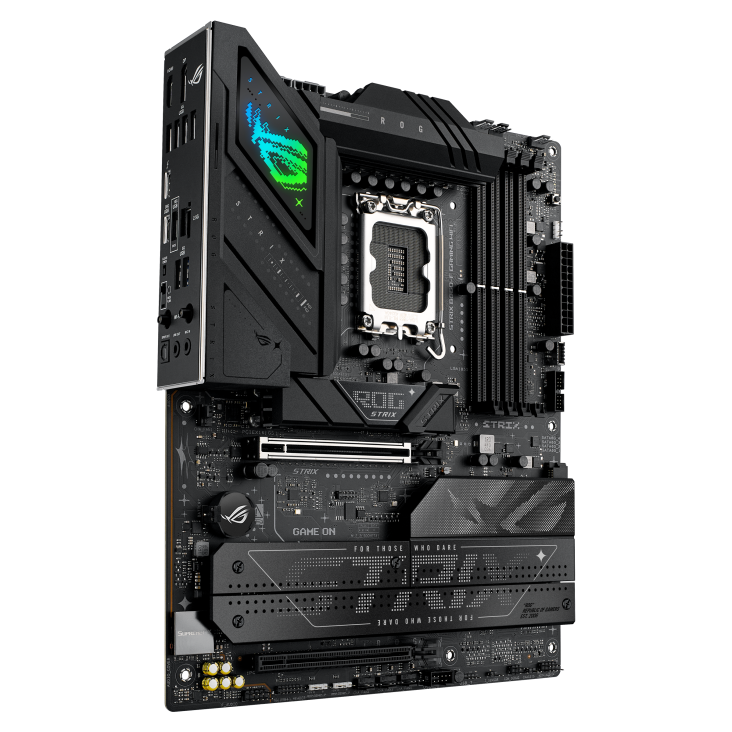

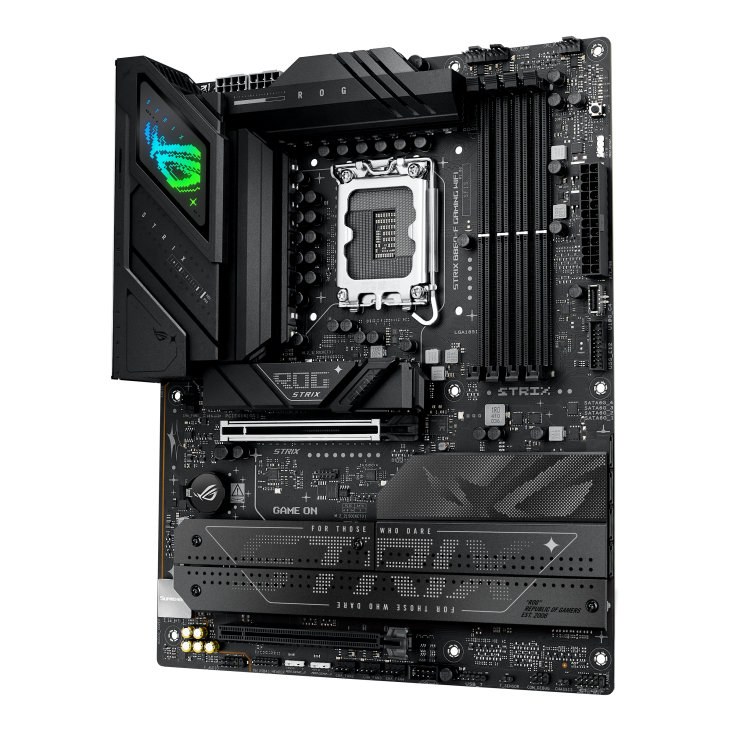

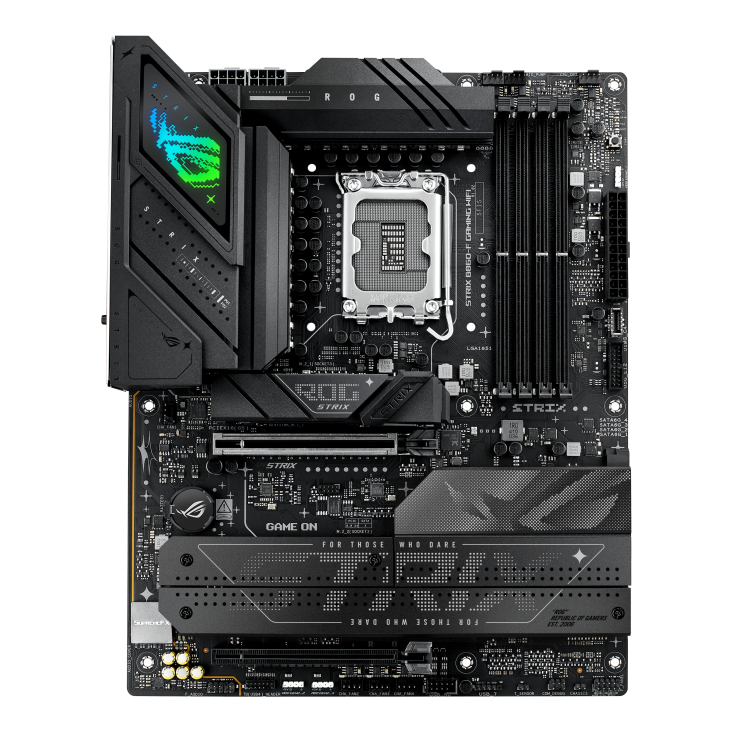

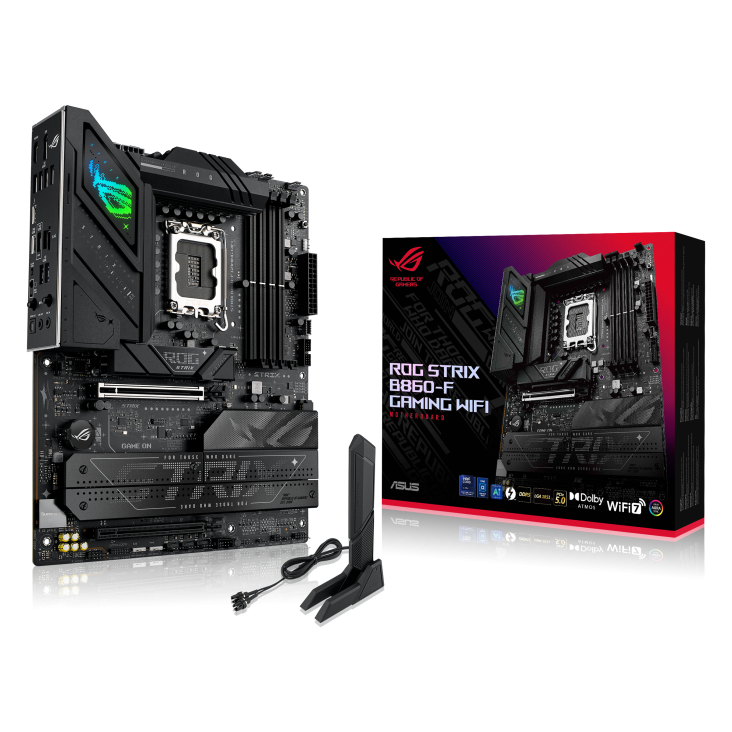

ASUS ROG STRIX B860-F GAMING WIFI Motherboard
  • Model:ROG STRIX B860-F GAMING WIFI
  • Compatible with Intel Core Ultra 200 series CPUs
  • Intel B860 chipset, LGA 1851, ATX form factor
  • Supports DDR5 memory, 4 DIMM slots
  • PCIe 5.0 x16 slot, WiFi 7, Thunderbolt 4 support
  • 3 Years Warranty from ASUS
₹ 29,350
Next Day Dispatch
1
Model
ROG STRIX B860-F GAMING WIFI
CPU
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
CPU Support
Supports Intel®Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
Intel® B860 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Memory Speed
Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Memory Channel
Dual channel memory architecture
XMP Support
Supports Intel® Extreme Memory Profile (XMP) memory module
DIMM Fit
DIMM Fit
Enhanced Memory Profile
ASUS Enhanced Memory Profile III (AEMP III)
Graphics Output
1 x DisplayPort**
Graphics Output
1 x HDMI™ port***
Thunderbolt Graphics
1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****
Expansion Slots (CPU)
1 x PCIe 5.0 x16 slot (supports x16 mode)
Expansion Slots (Chipset)
1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage (Total M.2/SATA)
Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
Storage (CPU)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Storage (Chipset)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Storage (Chipset)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
Storage (Chipset)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*
Storage (SATA)
4 x SATA 6Gb/s ports**
Ethernet
1 x Intel® 2.5Gb Ethernet
Ethernet Features
ASUS LANGuard
Wireless
Wi-Fi 7*
Wireless Spec
2x2 Wi-Fi 7 (802.11be)
Wireless Bands
Supports 2.4/5/6GHz frequency band**
WiFi Bandwidth & Speed
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth
Bluetooth® v5.4***
Rear USB Ports
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
Rear USB Ports
1 x USB 20Gbps port (1 x USB Type-C®)
Rear USB Ports
1 x USB 10Gbps port (1 x Type-A)
Rear USB Ports
6 x USB 5Gbps ports (6 x Type-A)
Front USB Ports
1 x USB 10Gbps (1 x USB Type-C®)
Front USB Ports
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
Front USB Ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
USB Type-C Power
USB Type-C® power delivery output: max. 5V/3A
Audio CODEC
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
Audio Features
Impedance sense for front and rear headphone outputs
Audio Features
Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking
Audio Features
High quality 120 dB SNR stereo playback output and 110 dB SNR recording input
Audio Playback
Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
SupremeFX Shielding Technology
Audio Features
Savitech SV3H712 AMP
Audio Features
Rear optical S/PDIF out port
Audio Features
Premium audio capacitors- Audio cover
Back Panel I/O Ports
1 x Thunderbolt™ 4 (1 x USB Type-C®)
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C®)
Back Panel I/O Ports
1 x USB 10Gbps port (1 x Type-A)
Back Panel I/O Ports
6 x USB 5Gbps ports (6 x Type-A)
Back Panel I/O Ports
1 x DisplayPort
Back Panel I/O Ports
1 x HDMI™ port
Back Panel I/O Ports
1 x Wi-Fi module
Back Panel I/O Ports
1 x Intel® 2.5Gb Ethernet port
Back Panel I/O Ports
2 x audio jacks
Back Panel I/O Ports
1 x Optical S/PDIF out port
Back Panel I/O Ports
1 x BIOS FlashBack™ button
Back Panel I/O Ports
1 x Clear CMOS button
Internal I/O Connectors, Fan and Cooling
1 x 4-pin CPU Fan header
Internal I/O Connectors, Fan and Cooling
1 x 4-pin CPU OPT Fan header
Internal I/O Connectors, Fan and Cooling
1 x 4-pin AIO Pump header
Internal I/O Connectors, Fan and Cooling
4 x 4-pin Chassis Fan headers
Internal I/O Connectors, Power
1 x 24-pin Main Power connector
Internal I/O Connectors, Power
2 x 8-pin +12V CPU Power connectors
Internal I/O Connectors, Storage
4 x M.2 slots (Key M)
Internal I/O Connectors, Storage
4 x SATA 6Gb/s ports
Internal I/O Connectors, USB
1 x USB 10Gbps connector (supports USB Type-C®)
Internal I/O Connectors, USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
Internal I/O Connectors, USB
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Internal I/O Connectors, Miscellaneous
3 x Addressable Gen2 headers
Internal I/O Connectors, Miscellaneous
1 x Chassis Intrusion header
Internal I/O Connectors, Miscellaneous
1 x Front Panel Audio header (F_AUDIO)
Internal I/O Connectors, Miscellaneous
1 x Start button
Internal I/O Connectors, Miscellaneous
1 x 10-1 pin Front System Panel header
Internal I/O Connectors, Miscellaneous
1 x Thermal Sensor header
Internal I/O Connectors, Miscellaneous
1 x Thunderbolt™ (USB4®) header
Special Features (Extreme Engine Digi+)
5K Black metallic capacitors
Special Features (ASUS Q-Design)
M.2 Q-Latch
Special Features (ASUS Q-Design)
M.2 Q-Release
Special Features (ASUS Q-Design)
M.2 Q-Slide
Special Features (ASUS Q-Design)
PCIe Slot Q-Release Slim (with PCIe SafeSlot)
Special Features (ASUS Q-Design)
Q-Antenna
Special Features (ASUS Q-Design)
Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Special Features (ASUS Q-Design)
Q-Slot
Special Features (ASUS Thermal Solution)
M.2 heatsink backplate
Special Features (ASUS Thermal Solution)
M.2 heatsink
Special Features (ASUS Thermal Solution)
VRM heatsink design
Special Features (ASUS EZ DIY)
BIOS FlashBack™ button
Special Features (ASUS EZ DIY)
BIOS FlashBack™ LED
Special Features (ASUS EZ DIY)
Clear CMOS button
Special Features (ASUS EZ DIY)
CPU Socket lever protector
Special Features (ASUS EZ DIY)
ProCool
Special Features (ASUS EZ DIY)
Pre-mounted I/O shield
Special Features (ASUS EZ DIY)
SafeSlot
Special Features (ASUS EZ DIY)
SafeDIMM
Special Features (Aura Sync)
Addressable Gen2 headers
Software Features (ROG Exclusive Software)
ROG CPU-Z
Software Features (ROG Exclusive Software)
Dolby Atmos
Software Features (ASUS Exclusive Software)
Armoury Crate
Software Features (ASUS Exclusive Software)
Aura Creator
Software Features (ASUS Exclusive Software)
Aura Sync
Software Features (ASUS Exclusive Software)
Fan Xpert 4
Software Features (ASUS Exclusive Software)
GameFirst
Software Features (ASUS Exclusive Software)
Power Saving
Software Features (ASUS Driver Hub)
ASUS Driver Hub
Software Features (ASUS Exclusive Software)
AIDA64 Extreme (60 days free trial)
Software Features (ASUS Exclusive Software)
HWiNFO
Software Features (ASUS Exclusive Software)
ASUS GlideX
Software Features (ASUS Exclusive Software)
TurboV Core
Software Features (ASUS Exclusive Software)
Adobe Creative Cloud (Days Free Trial)
Software Features (ASUS Exclusive Software)
Norton 360 for Gamers (60 Days Free Trial)
Software Features (ASUS Exclusive Software)
WinRAR (40 Days Free Trial)
Software Features (UEFI BIOS)
NPU Boost
Software Features (ASUS EZ DIY)
ASUS CrashFree BIOS 3
Software Features (ASUS EZ DIY)
ASUS EZ Flash
Software Features (ASUS UEFI BIOS)
ASUS UEFI BIOS EZ Mode
Software Features (ASUS UEFI BIOS)
ASUS MyHotkey
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories (Cables)
2 x SATA 6Gb/s cables
Accessories (Miscellaneous)
1 x ASUS WiFi Q-Antenna
Accessories (Miscellaneous)
1 x Cable ties package
Accessories (Miscellaneous)
1 x M.2 Q-Latch package
Accessories (Miscellaneous)
1 x M.2 Q-Slide package
Accessories (Miscellaneous)
1 x ROG key chain
Accessories (Miscellaneous)
1 x ROG Strix stickers
Accessories (Miscellaneous)
4 x M.2 rubbers
Accessories (Documentation)
1 x Quick start guide
Operating System
Windows®11 (22H2 & later)
Form Factor
ATX Form Factor
Dimensions
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
