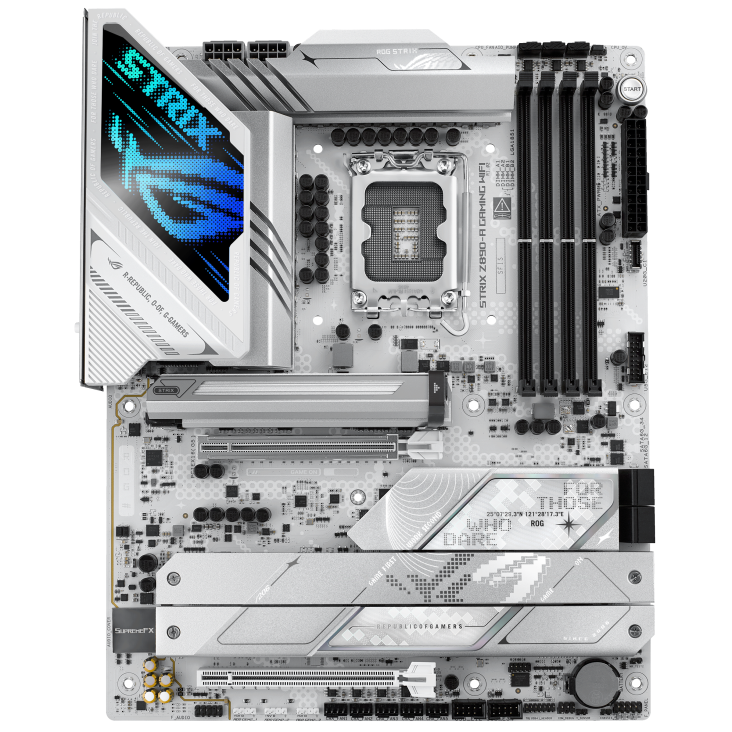

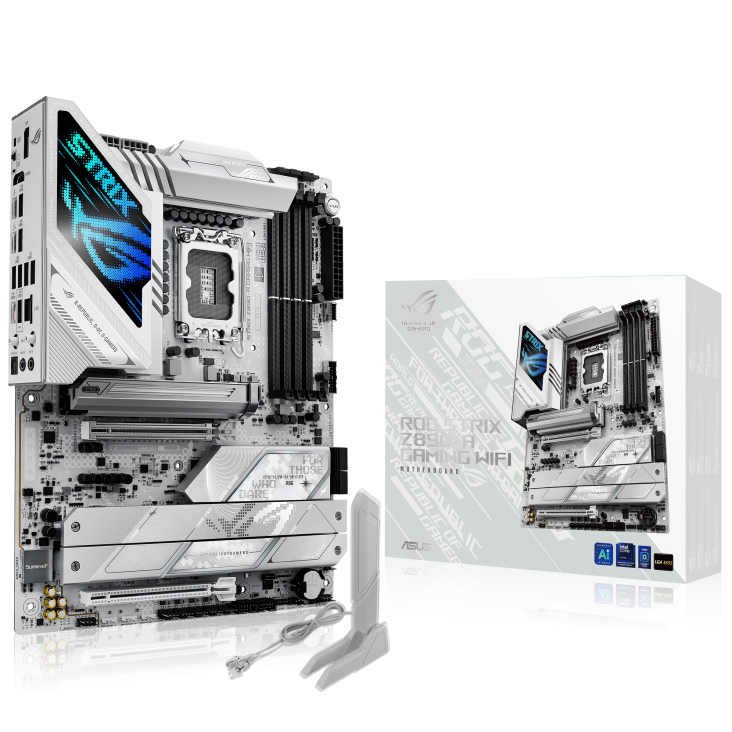

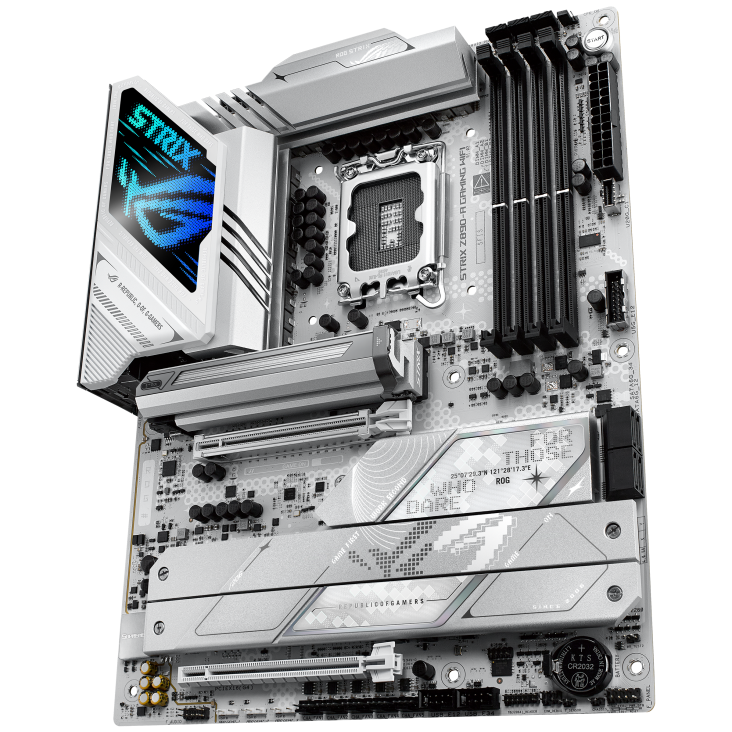

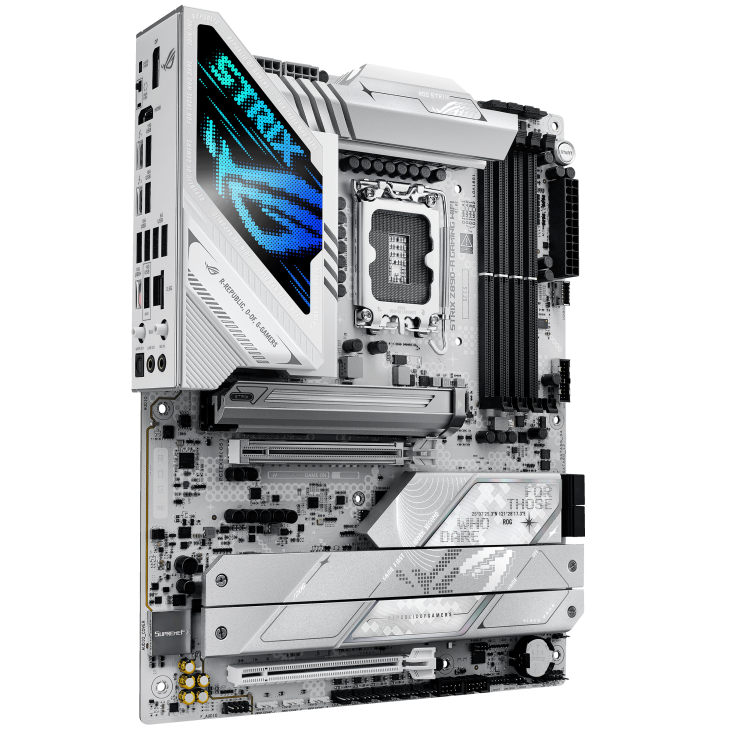

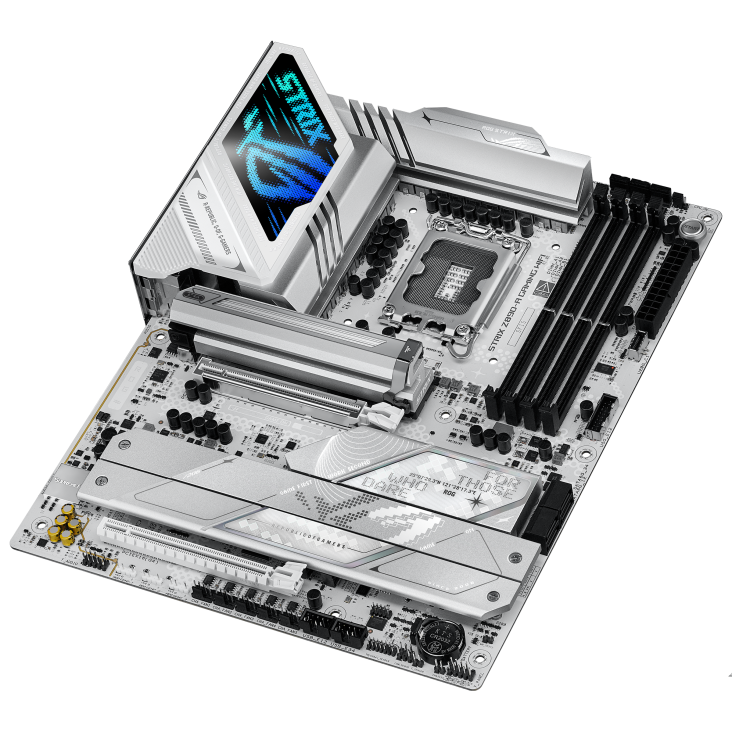

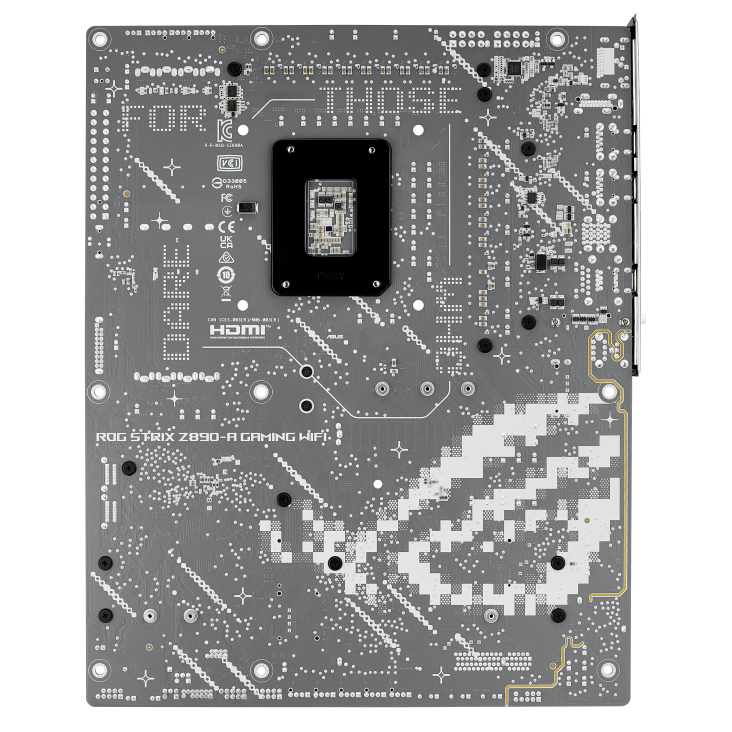

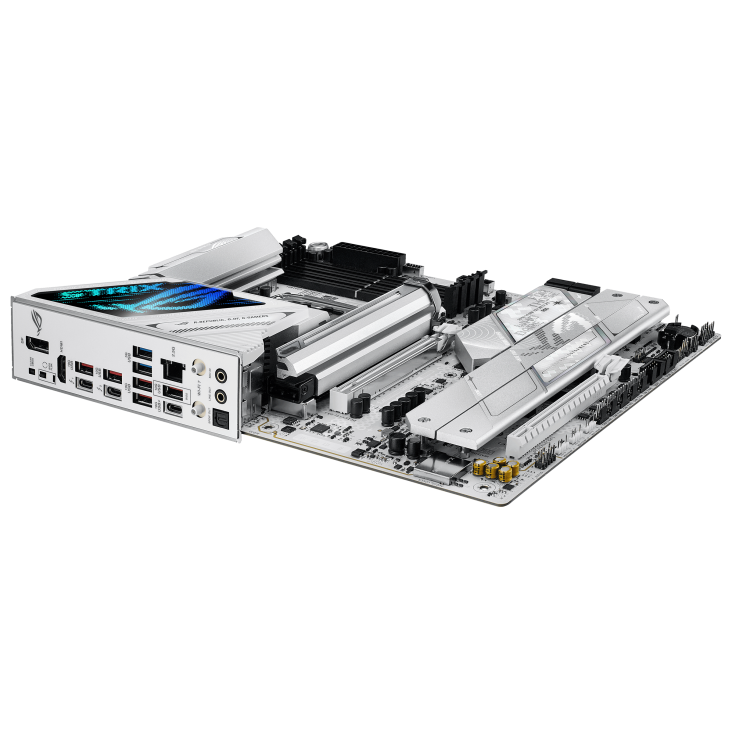

ASUS ROG STRIX Z890-A GAMING WIFI Motherboard
  • Model:ROG STRIX Z890-A GAMING WIFI
  • Supports Intel Core Ultra 200 processors
  • Intel Z890 chipset, LGA 1851, ATX form factor
  • 4 DIMM DDR5 slots, up to 192GB
  • PCIe 5.0, WiFi 7, Thunderbolt 4, M.2 support
  • 3 Years Warranty from ASUS
₹ 44,300
Next Day Dispatch
1
Model
ROG STRIX Z890-A GAMING WIFI
CPU
Support Intel® Core™ Ultra Processors (Series 2)*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z890 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*Dual channel memory architectureSupports Intel® Extreme Memory Profile (XMP) memory moduleSupports DIMM FlexSupports DIMM FITASUS Enhanced Memory Profile III (AEMPIII)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort*1 x HDMI™ port**2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs***- Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.* Supports max. 8K@60Hz as specified in DisplayPort 1.4.** Supports 4K@60Hz as specified in HDMI 2.1.*** In Thunderbolt™ 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, supports up to UHBR20.**** VGA resolution support depends on processors' or graphic cards' resolution.***** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots
Intel® Core™ Ultra Processors (Series 2) 1 x PCIe 5.0 x16 slotIntel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage
Total Supports 5 x M.2 slots and 4 x SATA 6Gb/s portsIntel® Core™ Ultra Processors (Series 2)* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)Intel® Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet
1 x Intel® 2.5Gb EthernetASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Supports Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.Bluetooth® v5.4****Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 10 ports) 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPS Fast-charge)**2 x USB 5Gbps ports (2 x Type-A)Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C® )*1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports* USB Type-C® power delivery output: max. 5V/3A** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panelAudio Features- SupremeFX Shielding Technology- Savitech SV3H712 AMP- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

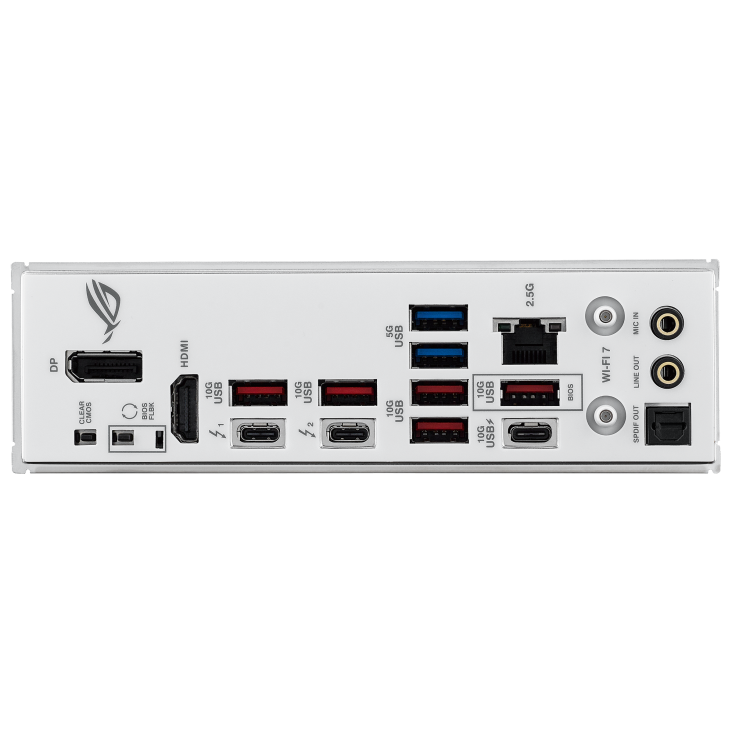

Back Panel I/O Ports
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)*6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C®with up to 30W PD/PPD Fast-charge)2 x USB 5Gbps ports (2 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi module1 x Intel® 2.5Gb Ethernet port2 x Audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™ button1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling Related 1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headersPower Related 1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectorsStorage Related 5 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 20Gbps connector (supports USB Type-C® )1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x Chassis Intrusion header1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x Start button1 x 10-1 pin Front System Panel header1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header
Special Features
Extreme Engine Digi+- 5K Black metallic capacitorsASUS Q-Design- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink backplate- M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- CPU Socket lever protector- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMMAura Sync- Addressable Gen 2 headers
Software Features
ROG Exclusive Software- ROG CPU-Z- Dolby AtmosASUS Exclusive Software Armoury Crate- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- Power SavingAIDA64 Extreme (60 days free trial)HWiNFOASUS AI AdvisorASUS DriverHubASUS GlideXUSB Wattage WatcherTurboV CoreAdobe Creative Cloud (30 Days Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)UEFI BIOSAI Overclocking GuideNPU BoostASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyFlexKey
BIOS
256 Mb UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables2 x SATA 6Gb/s cablesAdditional Cooling Kit 1 x Thermal pad for M.2 22110Miscellaneous 1 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers5 x M.2 rubbersDocumentation1 x Quick start guide
Operating System
Windows 11 (22H2 later)
Form Factor
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
