ASUS ROG STRIX Z890-F GAMING WIFI Motherboard
  • Model:ROG STRIX Z890-F GAMING WIFI
  • Supports Intel Core Ultra 200 Series processors
  • Intel Z890 chipset, LGA1851 socket, ATX form factor
  • 4 x DDR5 DIMM slots, max 192GB memory
  • WiFi 7, PCIe 5.0, Thunderbolt 4, USB-C ports
  • 3 Years Warranty from ASUS
₹ 38,800
Next Day Dispatch
1
Model
ROG STRIX Z890-F GAMING WIFI
CPU
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)
CPU Features
Supports Intel®Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
Intel® Z890 Chipset
Memory Slots
4 x DIMM slots, max. 256GB, DDR5
Memory Speed
Support up to 9066+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture
Dual Channel Memory Architecture
Memory Features
Supports Intel® Extreme Memory Profile (XMP) memory module
Memory Features
Supports DIMM Flex
Memory Features
DIMM Fit
Memory Features
ASUS Enhanced Memory Profile III (AEMP III)
Memory Notes
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Memory Support Notes
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
On-Die ECC
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics Output
1 x DisplayPort**
Graphics Output
1 x HDMI® port***
Graphics Output
2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs****
Graphics Notes 1
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Graphics Notes 2
** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
Graphics Notes 3
*** Supports 4K@60Hz as specified in HDMI 2.1.
Graphics Notes 4
**** In ThunderboltTM   4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.
Graphics Notes 5
***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.
Graphics Notes 6
****** VGA resolution support depends on processors' or graphic cards' resolution.
Graphics Notes 7
*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots (CPU)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Expansion Slots (Chipset)
1 x PCIe 4.0 x16 slot (supports x4 mode)
Expansion Slot Note
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
Compatibility Note
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage Total
Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports*
M.2_1 (CPU)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 (CPU)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 (Chipset)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 (Chipset)
M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_5 (Chipset)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA
4 x SATA 6Gb/s ports
RAID
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Ethernet
1 x Intel® 2.5Gb Ethernet
Ethernet Feature
ASUS LANGuard
Wireless
Wi-Fi 7*
Wireless Standard
2x2 Wi-Fi 7 (802.11be)
Wireless Frequency
Supports 2.4/5/6GHz frequency band**
Wireless Bandwidth
Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.
Bluetooth
Bluetooth® v5.4***
Wireless Note 1
*Wi-Fi features may vary depending on the operating system
Wireless Note 2
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
Wireless Note 3
For Windows 10, only Wi-Fi 6 is supported.
Wireless Note 4
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
Wireless Note 5
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB (Rear Ports Total)
Rear USB (Total 14 ports)
USB (Rear Thunderbolt 4)
2 x Thunderbolt™ 4 (2 x USB Type-C®)
USB (Rear 10Gbps)
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**
USB (Rear 5Gbps Ports)
4 x USB 5Gbps ports (4 x Type-A)
USB (Rear 2.0 Ports)
2 x USB 2.0 ports
USB (Front Ports Total)
Front USB (Total 9 ports)
USB (Front 20Gbps Type-C)
1 x USB 20Gbps connector (1 x USB Type-C®)
USB (Front 5Gbps Header)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
USB (Front 2.0 Header)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Note 1
* USB Type-C® power delivery output: 5V/3A
USB Note 2
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
Audio Codec
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*
Audio Features
- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features (Shielding)
- SupremeFX Shielding Technology
Audio Features (AMP)
- Savitech SV3H712 AMP
Audio Features (Ports and Capacitors)
- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover
Audio Note 1
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Note 2
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

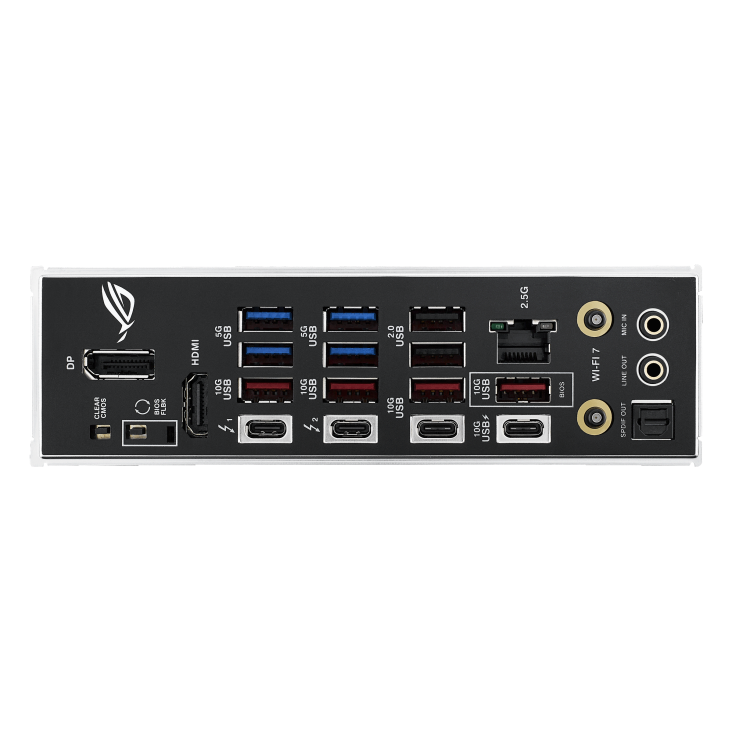

Back Panel I/O Ports
2 x Thunderbolt™ 4 (2 x USB Type-C®)
Back Panel I/O Ports
6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)**
Back Panel I/O Ports
4 x USB 5Gbps ports (4 x Type-A)
Back Panel I/O Ports
2 x USB 2.0 ports (2 x Type-A)
Back Panel I/O Ports
1 x DisplayPort
Back Panel I/O Ports
1 x HDMI™ port
Back Panel I/O Ports
1 x Wi-Fi module
Back Panel I/O Ports
1 x Intel® 2.5Gb Ethernet port
Back Panel I/O Ports
2 x Gold-plated audio jacks
Back Panel I/O Ports
1 x Optical S/PDIF out port
Back Panel I/O Ports
1 x BIOS FlashBack™ button
Back Panel I/O Ports
1 x Clear CMOS button
Internal I/O Connectors (Fan/Cooling)
1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headers
Internal I/O Connectors (Power)
1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectors
Internal I/O Connectors (Storage)
5 x M.2 slots (Key M)4 x SATA 6Gb/s ports
Internal I/O Connectors (USB)
1 x USB 20Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support additional 4 USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors (Miscellaneous)
3 x Addressable Gen2 headers1 x Chassis Intrusion header1 x CPU Over voltage jumper1 x Front Panel Audio header (F_AUDIO)1 x Start button1 x 10-1 pin Front System Panel header1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header
Special Features (Extreme Engine Digi+)
- 5K Black Metallic Capacitors
Special Features (ASUS Q-Design)
- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-Slot
Special Features (ASUS Thermal Solution)
- M.2 heatsinks- M.2 heatsink backplate- VRM heatsink design
Special Features (ASUS EZ DIY)
- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMM
Special Features (Aura Sync)
- Addressable Gen2 headers
Software Features (ROG Exclusive Software)
- ROG CPU-Z- Dolby Atmos
Software Features (ASUS Exclusive Software)
Armoury Crate- AIDA64 Extreme (60 days free trial)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- HWiNFO- Power Saving
ASUS Driver Hub
ASUS Driver Hub
ASUS GlideX
ASUS GlideX
TurboV Core
TurboV Core
USB Wattage Watcher
USB Wattage Watcher
Adobe Creative Cloud
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers
Norton 360 for Gamers (60 Days Free Trial)
WinRAR
WinRAR (40 Days Free Trial)
UEFI BIOS Features
AI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyNPU BoostFlexKey
BIOS
256 Mb  Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories (Cables)
2 x SATA 6Gb/s cables
Accessories (Cooling Kit)
1 x Thermal pad for M.2 22110
Accessories (Miscellaneous)
1 x ASUS Wi-Fi Q-Antenna1 x Cable ties pack1 x M.2 Q-Latch package1 x ROG key chain1 x ROG Strix stickers3 x M.2 rubber packages
Accessories (Documentation)
1 x Quick start guide
Operating System
Windows® 11 (22H2 & later)
Form Factor
ATX Form Factor
Dimensions
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
