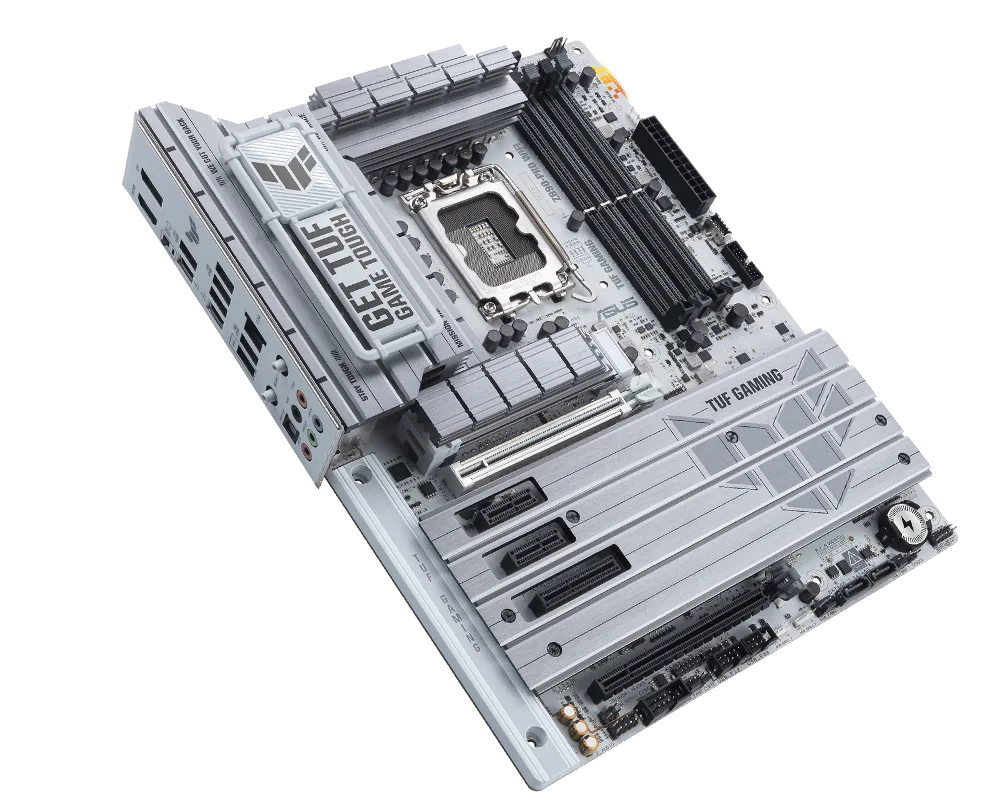

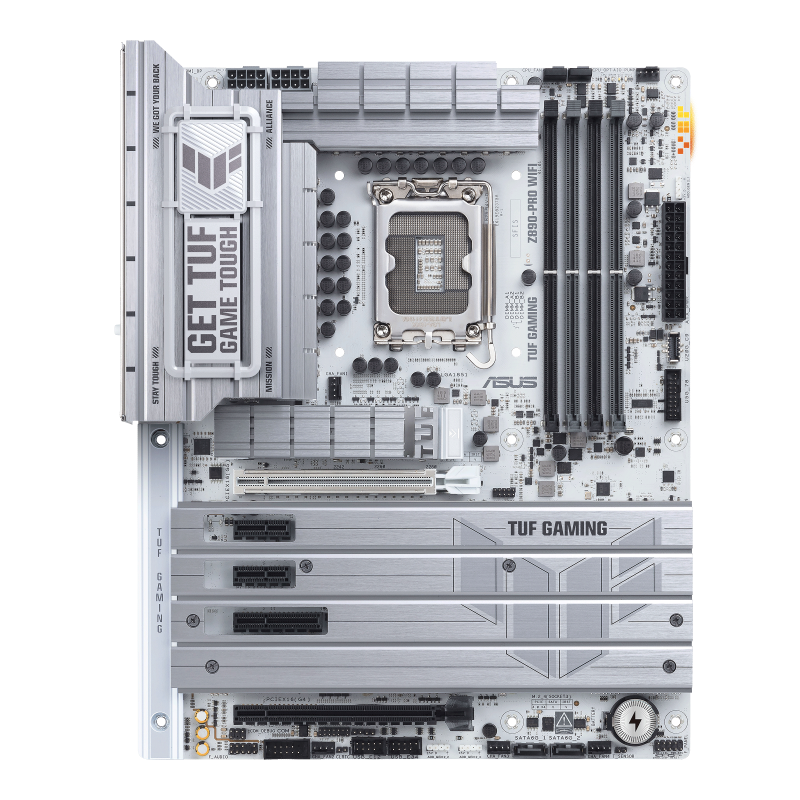

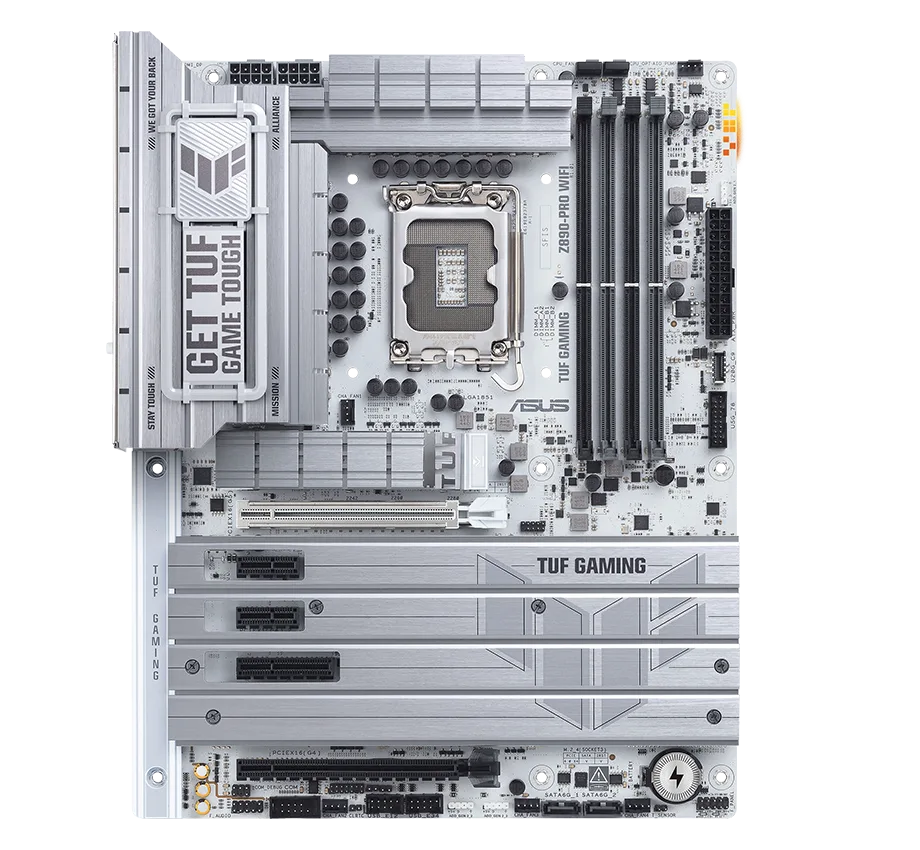

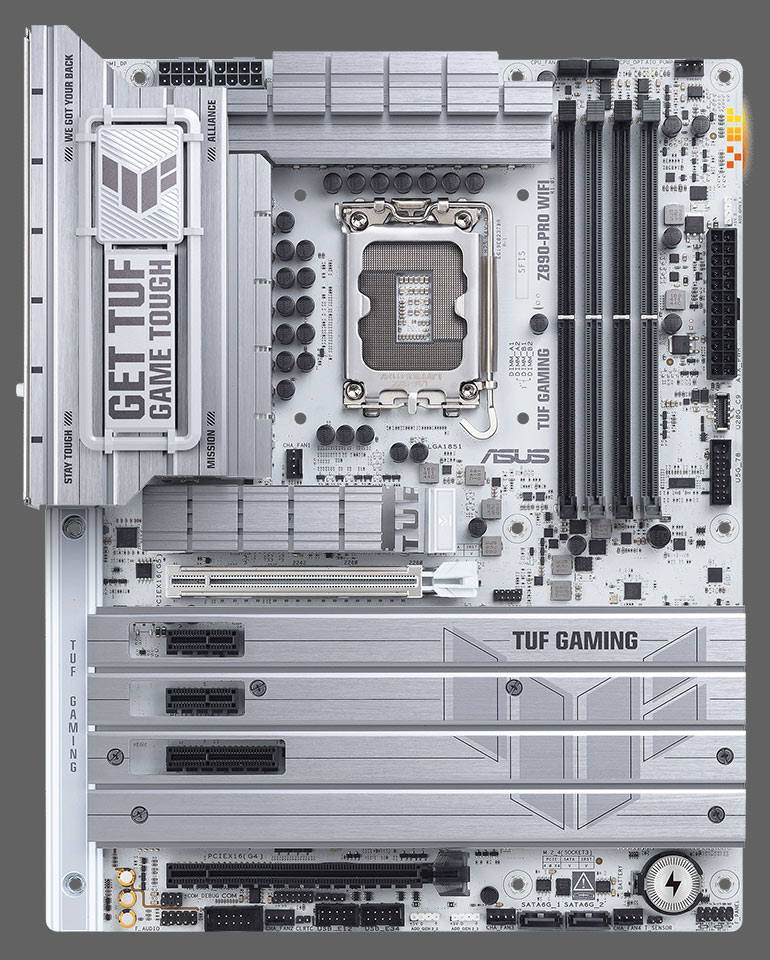

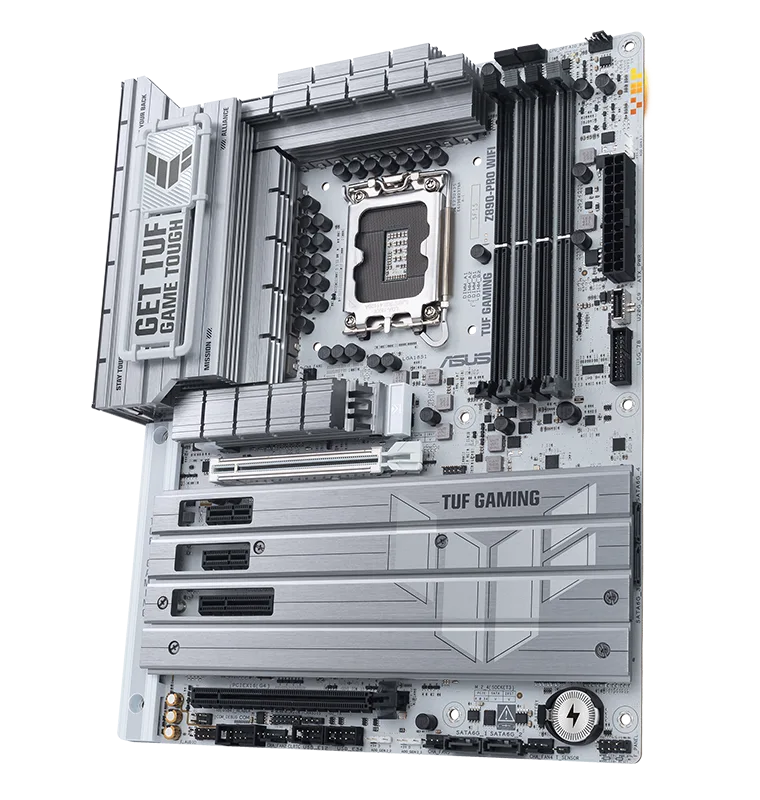

ASUS TUF GAMING Z890-PRO WIFI Motherboard
  • Model:TUF GAMING Z890-PRO WIFI
  • Supports Intel Core Ultra 200 Series CPUs
  • Intel Z890 chipset, LGA1851, ATX form factor
  • 4x DDR5 slots, up to 9066 MT/s
  • PCIe 5.0, WiFi 7, Thunderbolt 4, USB-C
  • 3 Years Warranty from ASUS
₹ 35,850
Next Day Dispatch
1
Model
TUF GAMING Z890-PRO WIFI
CPU
Support Intel® Core™ Ultra Processors (Series 2), LGA1851*
CPU Features
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
Intel® Z890 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Memory Speed
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile
ASUS Enhanced Memory Profile III(AEMPIII)
Graphics
1 x DisplayPort**
Graphics
1 x HDMI™ port***
Graphics
2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs****
Expansion Slots (CPU)
1 x PCIe 5.0 x16 slot
Expansion Slots (Chipset)
1 x PCIe 4.0 x16 slot (supports x4 mode)
Expansion Slots (Chipset)
1 x PCIe 4.0 x4 slot
Expansion Slots (Chipset)
2 x PCIe 4.0 x1 slots
Storage (Total)
4 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (CPU)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
Storage (CPU)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Storage (Chipset)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
Storage (Chipset)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Storage (Chipset)
4 x SATA 6Gb/s ports
Ethernet
1 x Intel® 2.5Gb Ethernet
Ethernet Features
TUF LANGuard
Wireless
Wi-Fi 7*
Wireless
2x2 Wi-Fi 7 (802.11be)
Wireless Bands
Supports 2.4/5/6GHz frequency band**
Wireless Bandwidth
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth
Bluetooth® v5.4***
Rear USB
2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
Rear USB
6 x USB 10Gbps ports (6 x Type-A)
Front USB
1 x USB 20Gbps (supports USB Type-C® with up to 30W PD/PPS Fast-charge)*
Front USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
Front USB
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
Audio Features
Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance the highest quality sound for headphone and speakers, Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), Supports up to 32-Bit/192 kHz playback*
Audio Features
Audio Shielding, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers, Audio cover, Unique de-pop circuit

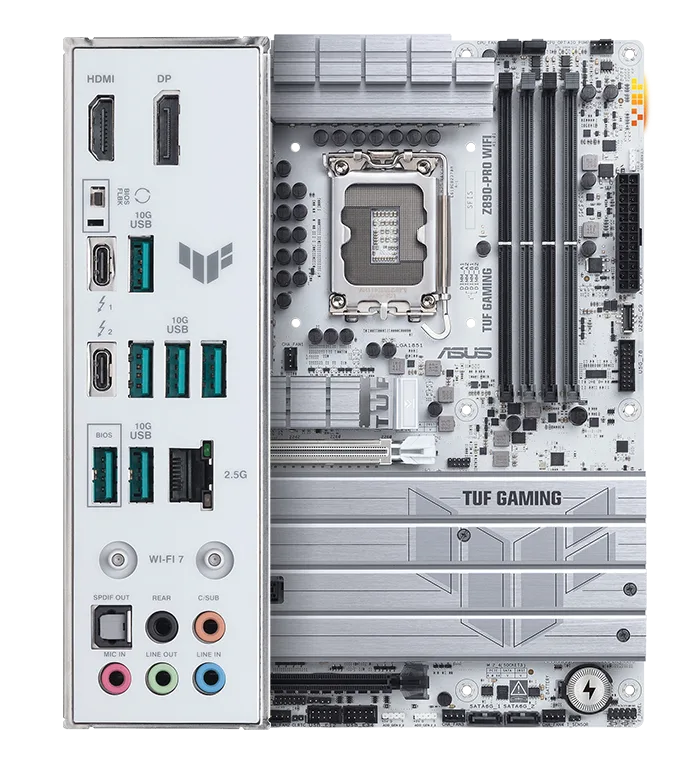

Back Panel I/O Ports
2 x Thunderbolt™ 4 USB Type-C® ports
Back Panel I/O Ports
6 x USB 10Gbps ports (6 x Type-A)
Back Panel I/O Ports
1 x DisplayPort
Back Panel I/O Ports
1 x HDMI™ port
Back Panel I/O Ports
1 x Wi-Fi module
Back Panel I/O Ports
1 x Intel® 2.5Gb Ethernet port
Back Panel I/O Ports
5 x Audio jacks
Back Panel I/O Ports
1 x Optical S/PDIF out port
Back Panel I/O Ports
1 x BIOS FlashBack™ button
Internal I/O Connectors (Fan and Cooling Related)
1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers
Internal I/O Connectors (Power Related)
1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors
Internal I/O Connectors (Storage Related)
4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
Internal I/O Connectors (USB)
1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors (Miscellaneous)
3 x Addressable RGB Gen 2 headers, 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header, 1 x Thunderbolt™ (USB4®) header
Special Features (ASUS TUF PROTECTION)
DIGI+ VRM (- Digital power design with DrMOS), ESD Guards, TUF LANGuard, Overvoltage protection, SafeSlot, Stainless-steel back I/O
Special Features (ASUS Q-Design)
M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Release Slim (with PCIe SafeSlot), Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot
Special Features (ASUS Thermal Solution)
M.2 heatsink backplate, M.2 heatsink, VRM heatsink design
Special Features (ASUS EZ DIY)
BIOS FlashBack™ button, BIOS FlashBack™ LED, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeDIMM
Special Features (Aura Sync)
Addressable Gen 2 headers
Special Features (Front Panel USB 20Gbps with PD Fast Charge Support)
Support: up to 30W fast charging and USB Wattage Watcher, Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A, Compatible with PD3.0
Software Features (ASUS Exclusive Software)
Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4 (with AI Cooling II), Power Saving, ASUS DriverHub, ASUS GlideX, USB Wattage Watcher, TurboV Core, TUF GAMING CPU-Z, DTS Audio Processing, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
Software Features (UEFI BIOS)
AI Overclocking Guide, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode, ASUS MyHotkey, NPU Boost
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories (Cables)
2 x SATA 6Gb/s cables
Accessories (Miscellaneous)
1 x ASUS WiFi Q-Antenna, 1 x M.2 Q-Slide package, 2 x M.2 rubber packages, 1 x Screw package for M.2 SSD, 1 x TUF GAMING sticker, 1 x TUF GAMING removable nameplate
Accessories (Documentation)
1 x Quick start guide
Operating System
Windows 11 (22H2 & later)
Form Factor
ATX Form Factor
Dimensions
12 inch x 9.6 inch (30.5 cm x 24.4 cm)
