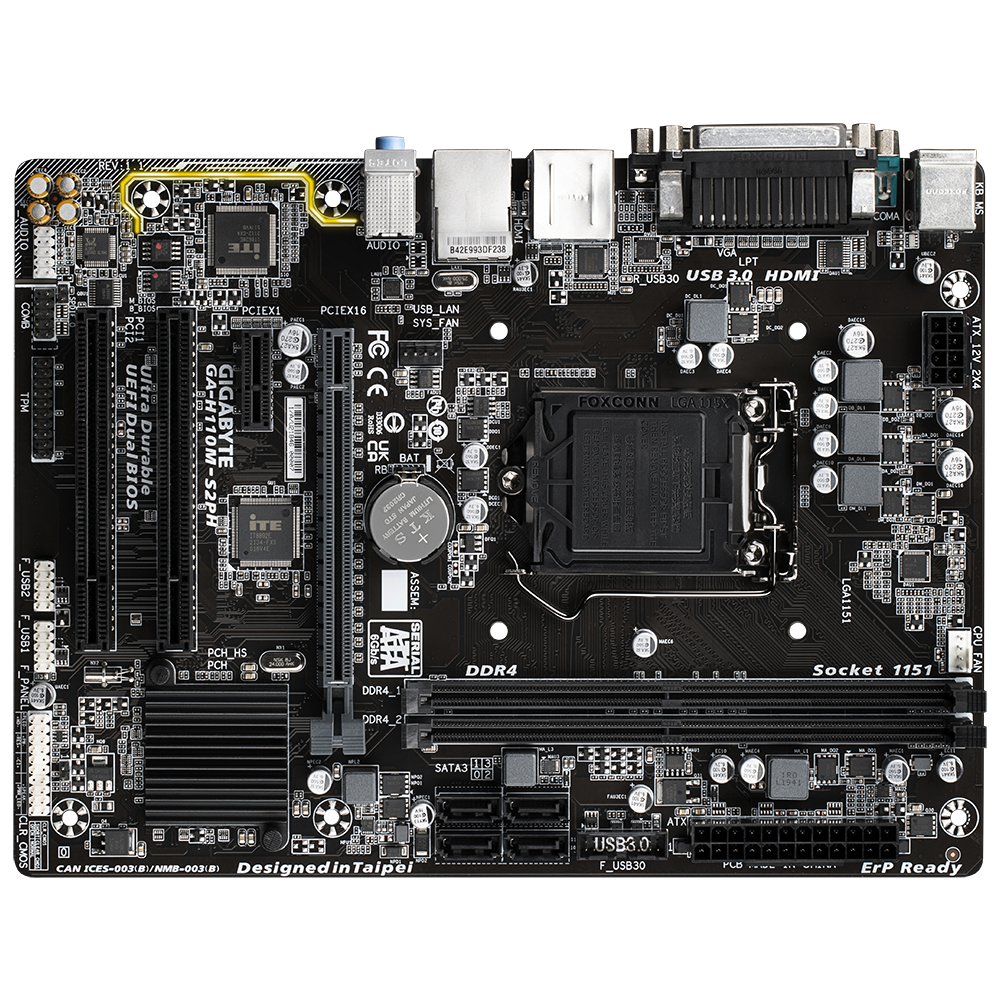

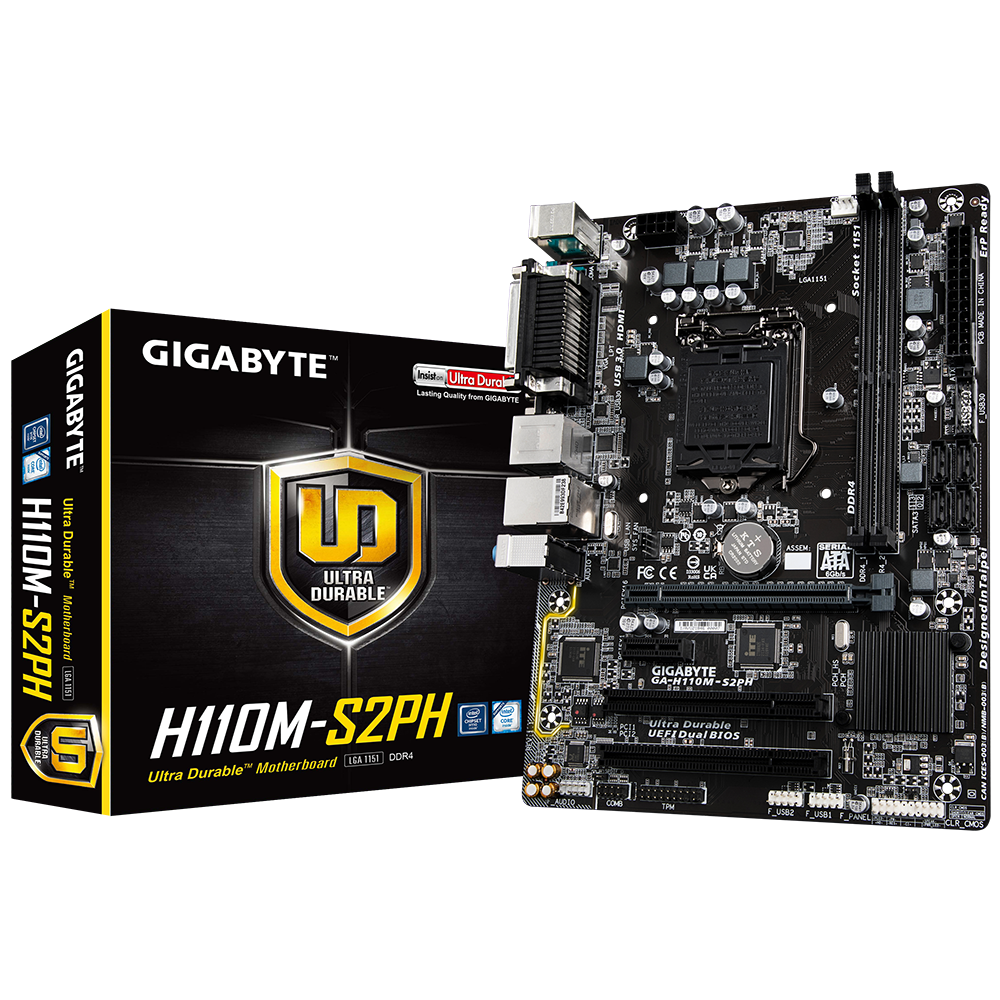

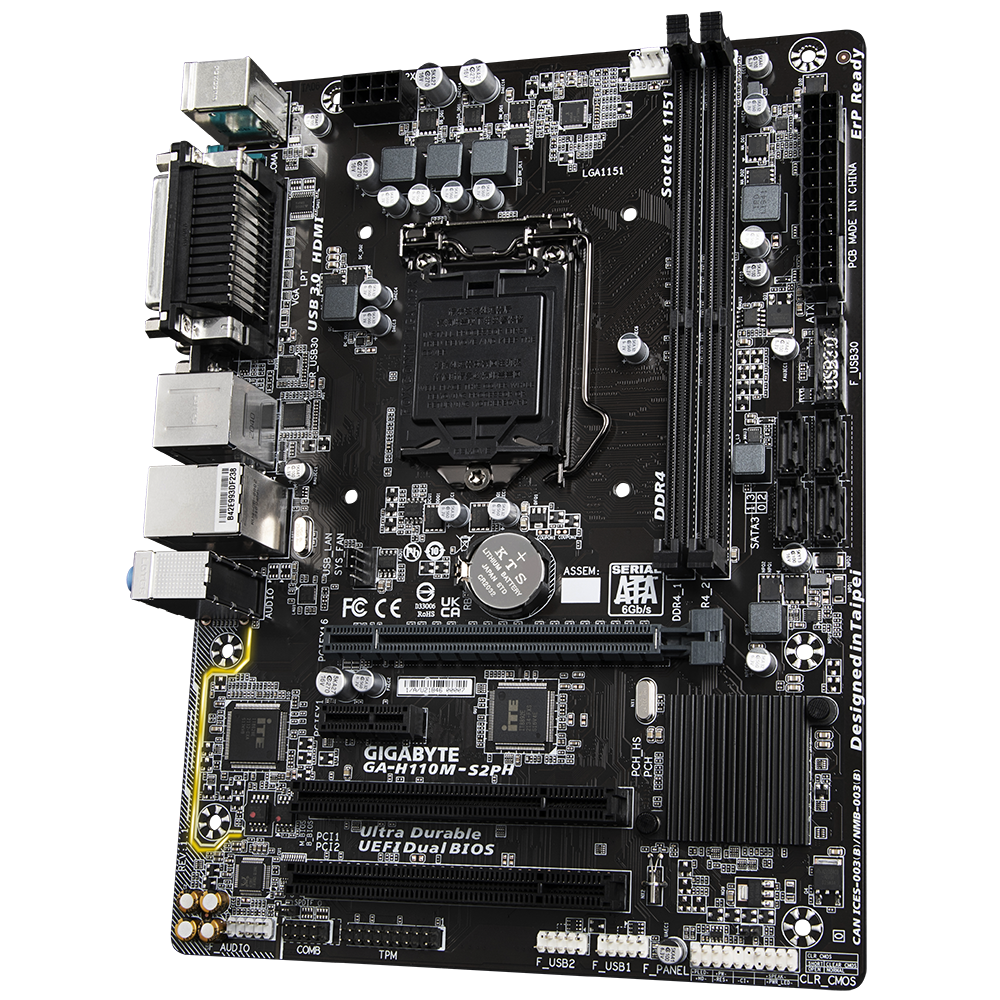

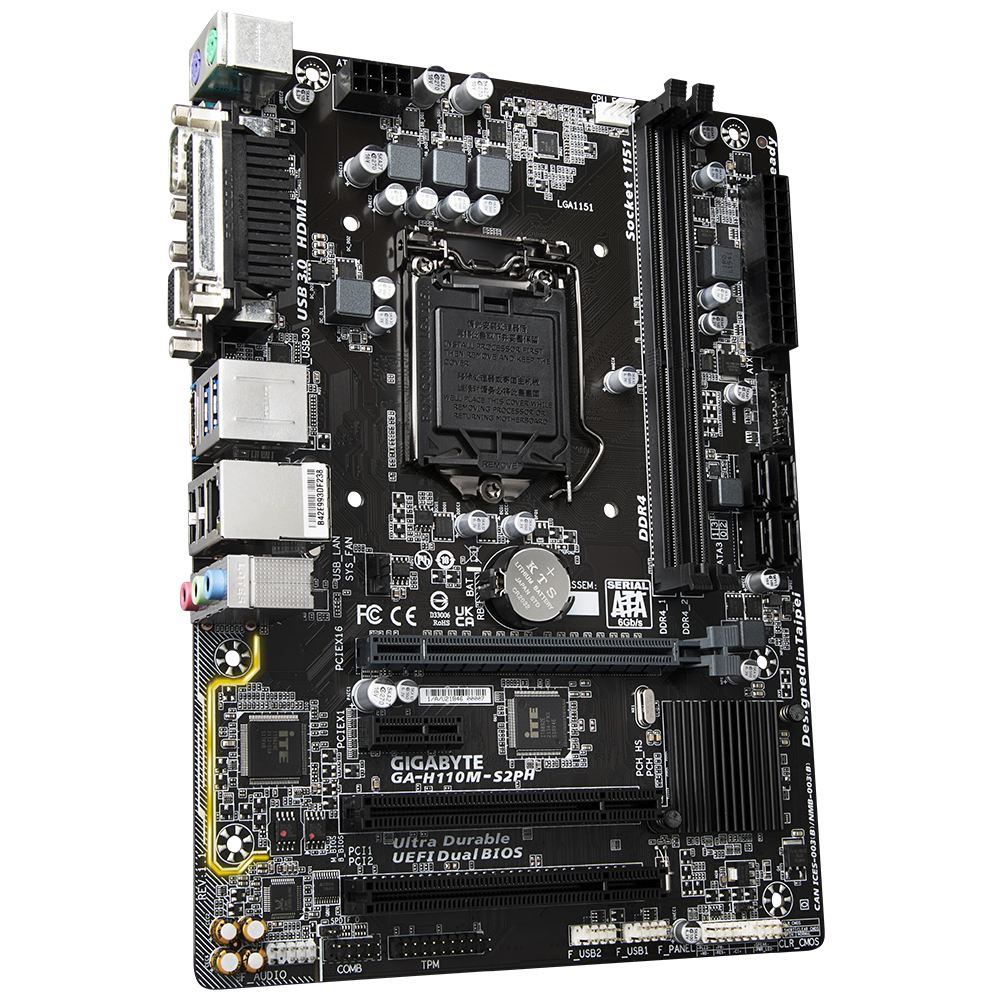

Gigabyte GA-H110M-S2PH Motherboard
  • Model:GA-H110M-S2PH
  • Supports Intel 6th and 7th Gen Core CPUs
  • Intel H110 chipset, LGA 1151, Micro-ATX form factor
  • Dual Channel DDR4, 2 DIMMs
  • HDMI, D-Sub, GbE LAN connectivity
  • 3 Years Warranty from Gigabyte
₹ 7,550
Next Day Dispatch
1
CPU
Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
CPU Note
For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
CPU L3 Cache
L3 cache varies with CPU
Chipset
Intel® H110 Express Chipset
Memory Sockets
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Memory OS Limitation
Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Memory Architecture
Dual channel memory architecture
Memory Support
Support for DDR4 2400/2133 MHz memory modules
ECC Memory
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Non-ECC Memory
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Onboard Graphics
Integrated Graphics Processor - Intel® HD Graphics support
D-Sub Port
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
HDMI Port
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
HDMI Version Support
Support for HDMI 1.4 version.
Maximum Shared Memory
Maximum shared memory of 1024 MB
Audio
8-Channel Audio
Audio Type
High Definition Audio
Audio Channel Support
2/4/5.1/7.1-channel
7.1-Channel Configuration Note
To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
S/PDIF Out
Support for S/PDIF Out
LAN
GbE LAN chip (10/100/1000 Mbit)
PCI Express x16
1 x PCI Express x16 slot, running at x16
PCI Express x16 Standard
The PCI Express x16 slots conform to PCI Express 3.0 standard.
PCI Express x1
1 x PCI Express x1 slot
PCI Express x1 Standard
The PCI Express x1 slot conforms to PCI Express 2.0 standard.
PCI Slots
2 x PCI slots
Storage Interface
4 x SATA 6Gb/s connectors
USB 3.0/2.0 Ports
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
USB 2.0/1.1 Ports
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
1 x system fan header
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x S/PDIF Out header
Internal I/O Connectors
1 x USB 3.0/2.0 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
1 x serial port header
Internal I/O Connectors
1 x Trusted Platform Module (TPM) header
Internal I/O Connectors
1 x Clear CMOS jumper

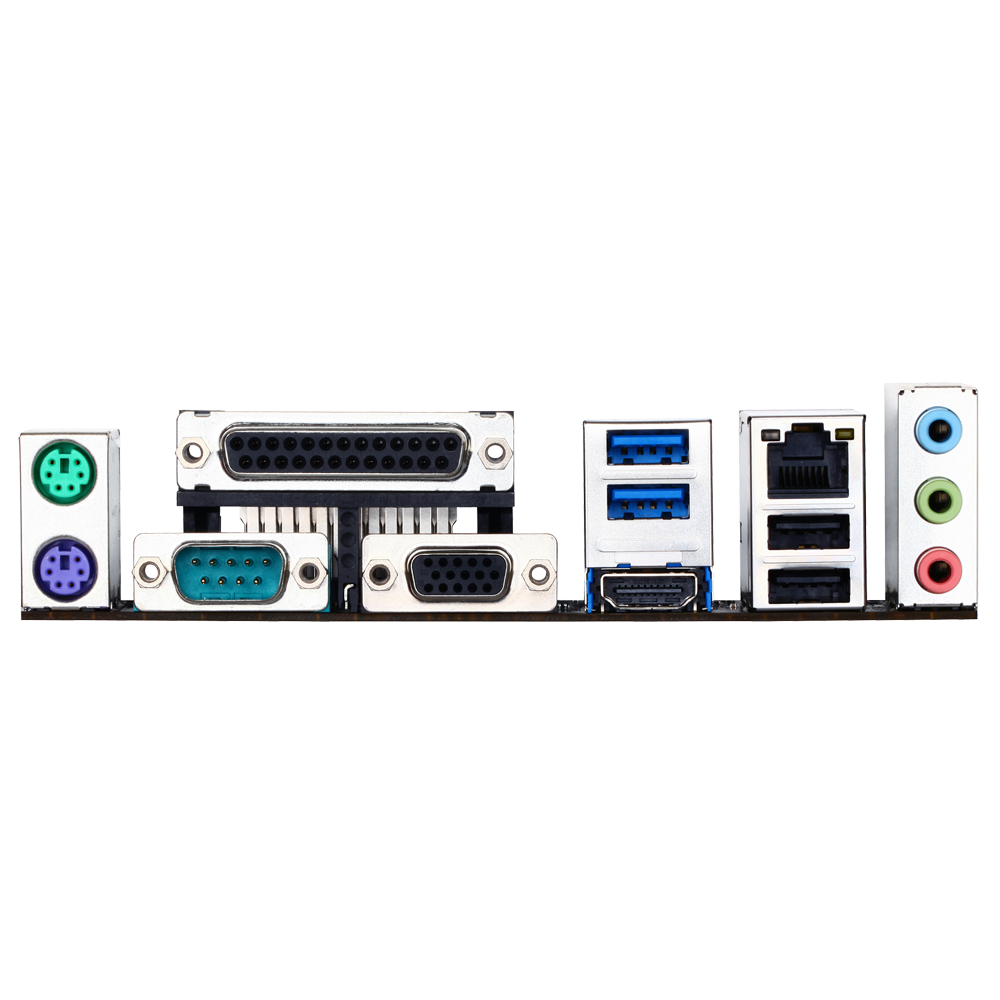

Back Panel Connectors
1 x PS/2 mouse port
Back Panel Connectors
1 x PS/2 Keyboard port
Back Panel Connectors
1 x D-Sub port
Back Panel Connectors
1 x parallel port
Back Panel Connectors
1 x serial port
Back Panel Connectors
1 x HDMI port
Back Panel Connectors
2 x USB 3.0/2.0 ports
Back Panel Connectors
2 x USB 2.0/1.1 ports
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
H/W Monitoring
CPU/System temperature detection
H/W Monitoring
CPU/System fan speed detection
H/W Monitoring
CPU/System overheating warning
H/W Monitoring
CPU/System fan fail warning
H/W Monitoring
CPU/System fan speed control
Fan Speed Control Note
Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 64 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
Support for DualBIOS™
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
APP Center Note
Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
3D OSD
3D OSD
@BIOS
@BIOS
AutoGreen
AutoGreen
Cloud Station
Cloud Station
EasyTune
EasyTune
Fast Boot
Fast Boot
Smart TimeLock
Smart TimeLock
Smart Keyboard
Smart Keyboard
Smart Backup
Smart Backup
System Information Viewer
System Information Viewer
USB Blocker
USB Blocker
Unique Features
Support for Q-Flash
Unique Features
Support for Xpress Install
Unique Features
Support for Smart Switch
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
cFosSpeed
Operating System
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Operating System
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
Operating System Note
Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
Micro ATX Form Factor; 24.4cm x 18.0cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Remark
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Trademark HDMI
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Disclaimer
The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
Performance Notice
Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
Trademarks
All trademarks and logos are the properties of their respective holders.
Memory Reservation Note
Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
