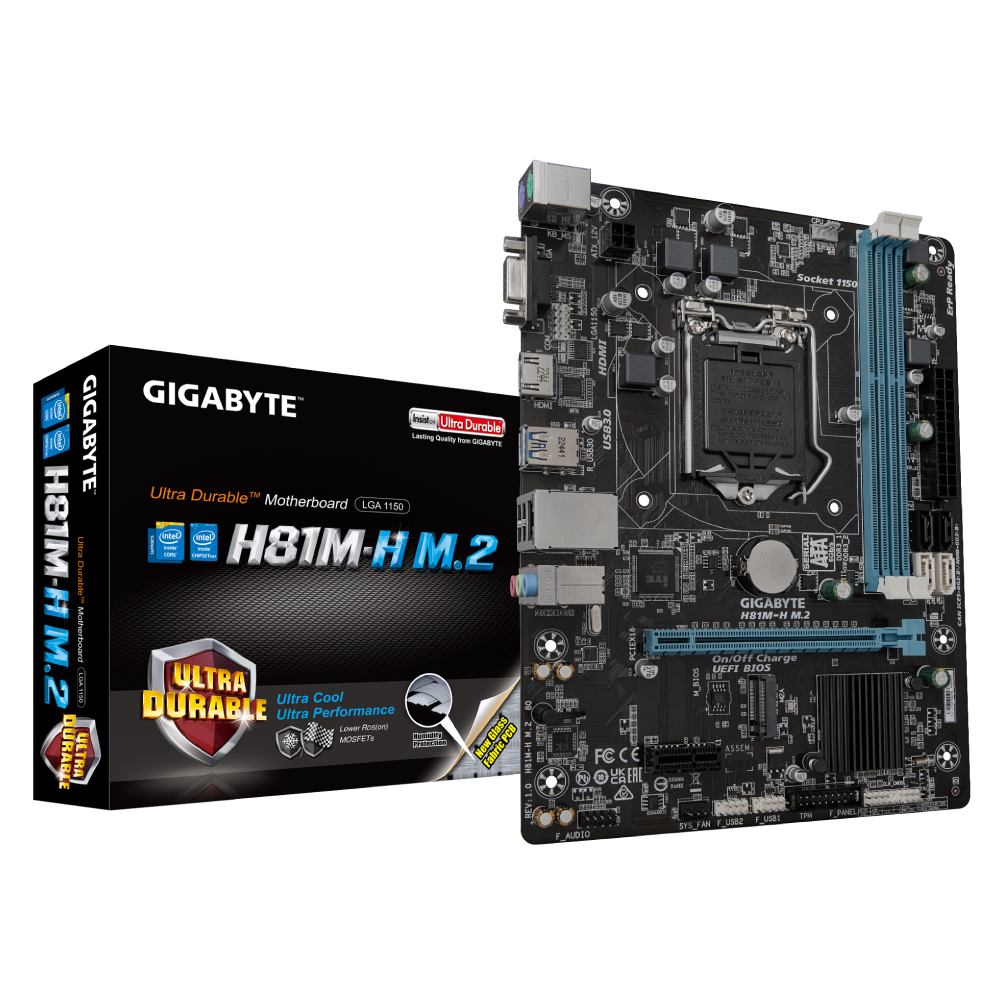

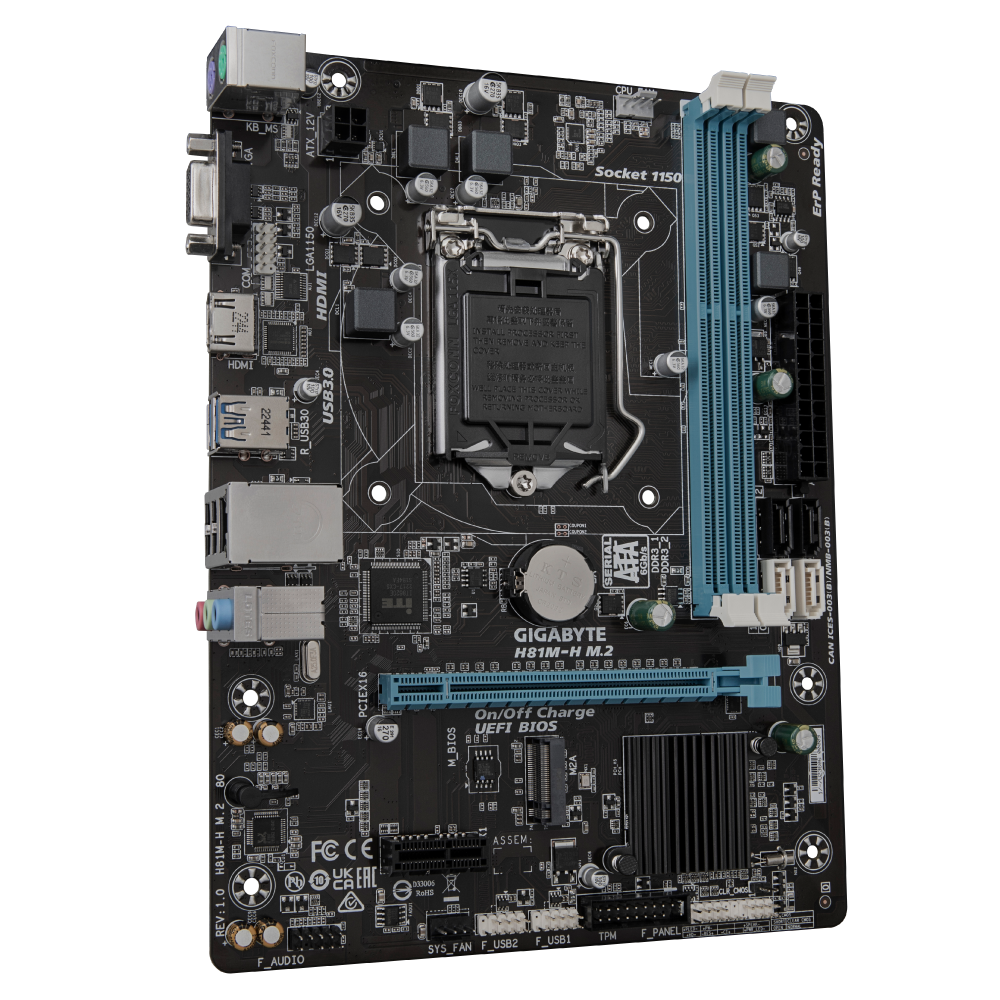

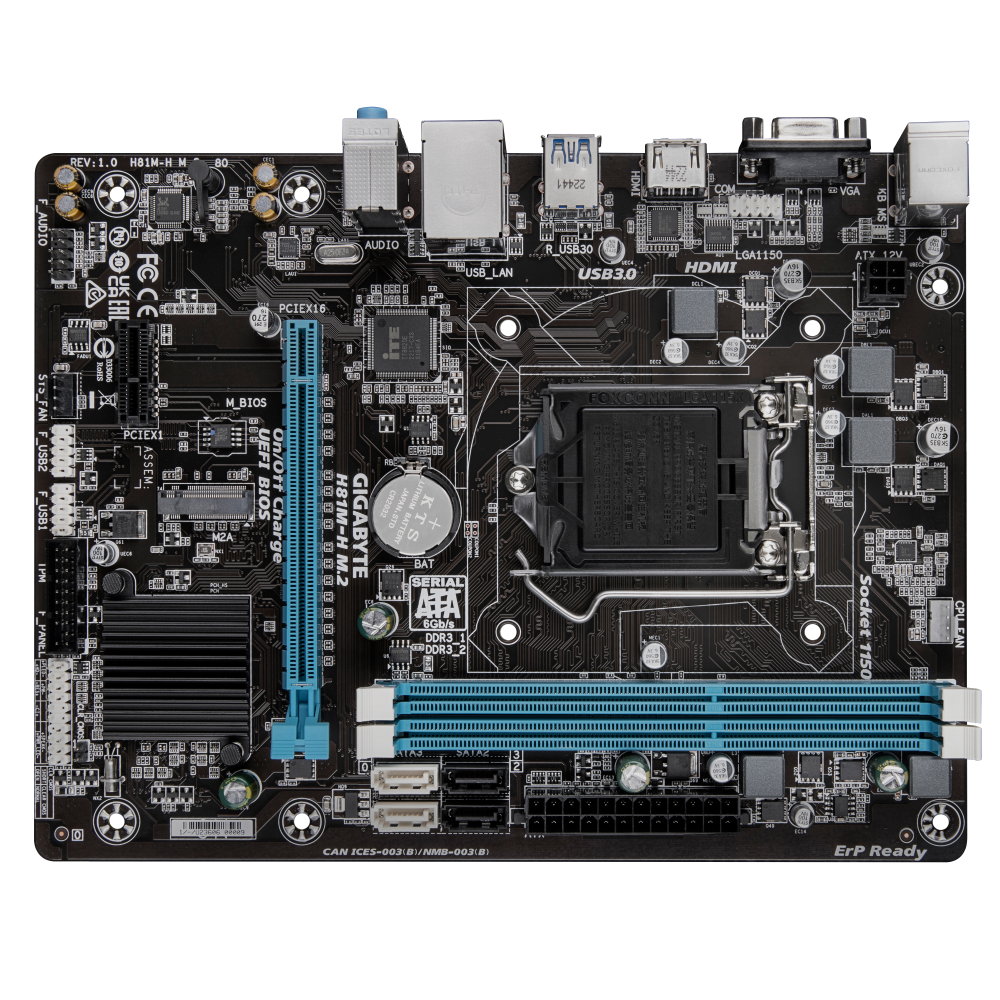

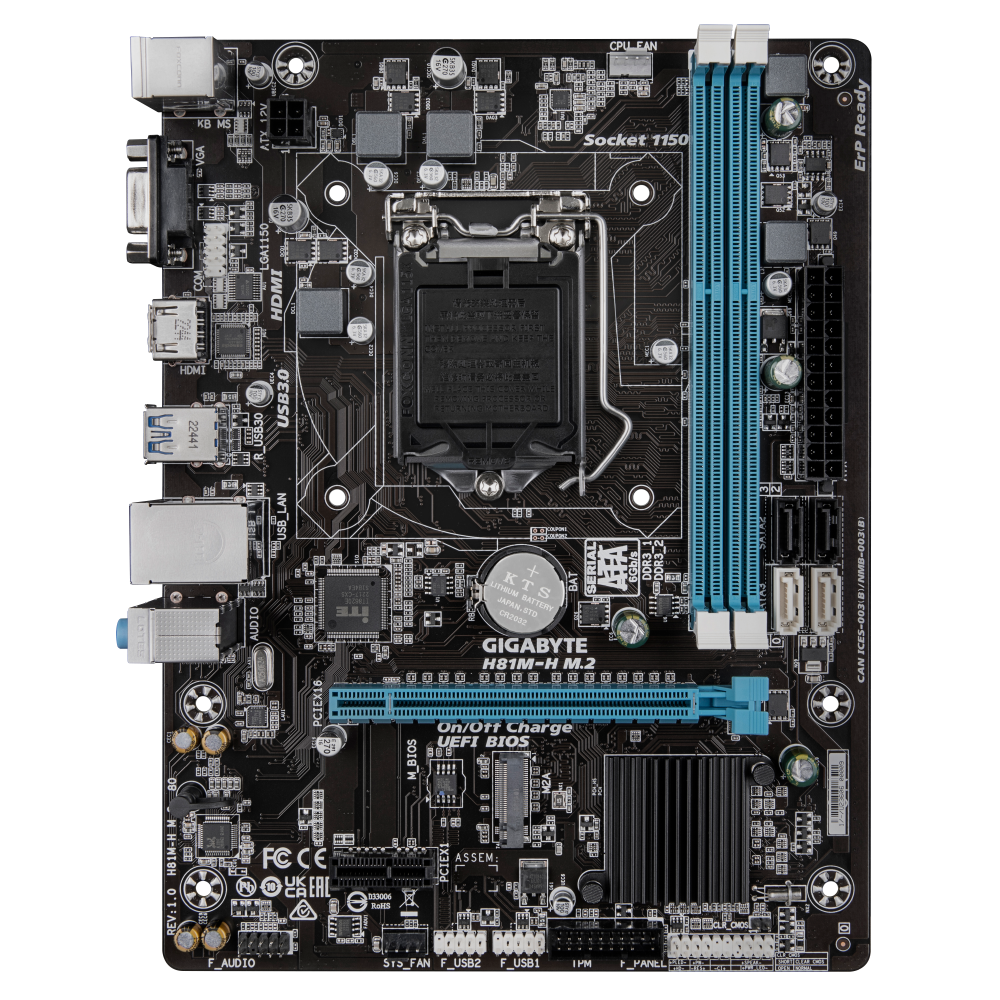

Gigabyte H81M-H M.2 Motherboard
  • Model:H81M-H M.2
  • Supports 4th Generation Intel Core processors
  • Intel H81 chipset, LGA 1150, Micro-ATX form factor
  • NVMe PCIe Gen2 x4 M.2 support
  • HDMI and D-SUB video output ports
  • 3 Years Warranty from Gigabyte
₹ 7,400
Next Day Dispatch
1
CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
CPU - L3 Cache
L3 cache varies with CPU
Chipset
Intel® H81 Express Chipset
Memory
2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
Memory - OS Limitation
Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Memory - Architecture
Dual channel memory architecture
Memory - Supported Modules
Support for DDR3 1600/1333 MHz memory modules
Memory - ECC Support
Support for non-ECC memory modules
Memory - XMP Support
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics - Integrated Graphics Processor
Intel® HD Graphics support
Onboard Graphics - D-Sub Port
1 x D-Sub port, supporting a maximum resolution of 1920x1200
Onboard Graphics - HDMI Port
1 x HDMI port, supporting a maximum resolution of 4096x2160
Onboard Graphics - HDMI Version
Support for HDMI 1.4a version.
Onboard Graphics - Maximum Shared Memory
Maximum shared memory of 1 GB
Audio
Realtek® Audio CODEC
Audio - High Definition
High Definition Audio
Audio - Channel Support
2/4/5.1/7.1-channel
Audio - Configuration
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots - PCIe x16
1 x PCI Express x16 slot, running at x16
Expansion Slots - PCIe x1
1 x PCI Express x1 slot
Expansion Slots - Standard
The PCI Express slots conform to PCI Express 2.0 standard.
Storage Interface - M.2
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 2.0 x4/x2 SSD support)
Storage Interface - SATA 6Gb/s
2 x SATA 6Gb/s connectors (SATA3 0/1)
Storage Interface - SATA 3Gb/s
2 x SATA 3Gb/s connectors (SATA2 2/3)
Storage Interface - M.2 & SATA Bandwidth Sharing
The M2A connector shares bandwidth with the SATA3 0 connector. The SATA3 0 connector will become unavailable when an SATA SSD is installed in the M2A connector.
Storage Interface - Installation Notices
Refer to "2-7 Internal Connectors," "8) M2A (M.2 Socket 3 Connector)," for the installation notices for the M.2 and SATA connectors.
USB - Back Panel
2 x USB 3.0/2.0 ports on the back panel
USB - Internal
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors - ATX Main Power
1 x 24-pin ATX main power connector
Internal I/O Connectors - ATX 12V Power
1 x 4-pin ATX 12V power connector
Internal I/O Connectors - M.2 Socket 3
1 x M.2 Socket 3 connector
Internal I/O Connectors - SATA 6Gb/s
2 x SATA 6Gb/s connectors
Internal I/O Connectors - SATA 3Gb/s
2 x SATA 3Gb/s connectors
Internal I/O Connectors - CPU Fan Header
1 x CPU fan header
Internal I/O Connectors - System Fan Header
1 x system fan header
Internal I/O Connectors - Front Panel Header
1 x front panel header
Internal I/O Connectors - Front Panel Audio Header
1 x front panel audio header
Internal I/O Connectors - USB 2.0/1.1 Headers
2 x USB 2.0/1.1 headers
Internal I/O Connectors - Serial Port Header
1 x serial port header
Internal I/O Connectors - Clear CMOS Jumper
1 x Clear CMOS jumper
Internal I/O Connectors - TPM Header
1 x Trusted Platform Module (TPM) header

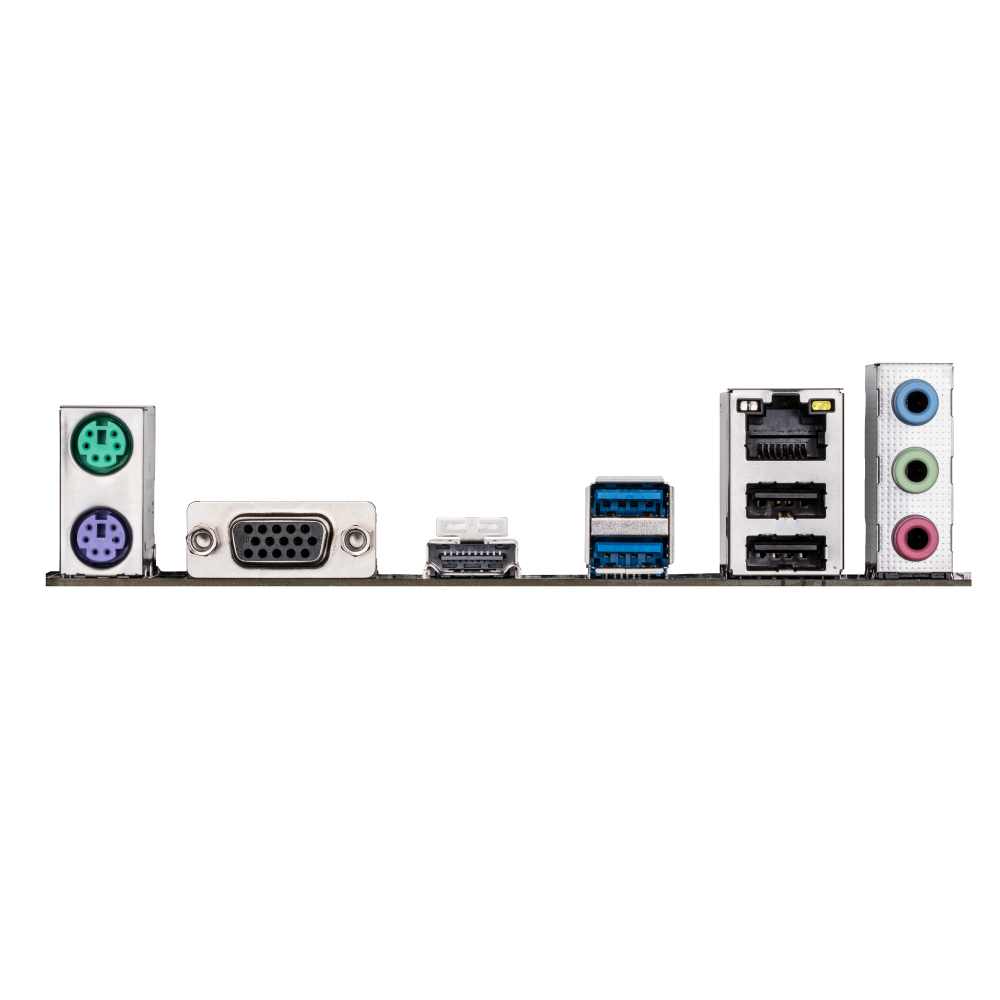

Back Panel Connectors - PS/2 Mouse Port
1 x PS/2 mouse port
Back Panel Connectors - PS/2 Keyboard Port
1 x PS/2 keyboard port
Back Panel Connectors - D-Sub Port
1 x D-Sub port
Back Panel Connectors - HDMI Port
1 x HDMI port
Back Panel Connectors - USB 3.0/2.0 Ports
2 x USB 3.0/2.0 ports
Back Panel Connectors - USB 2.0/1.1 Ports
2 x USB 2.0/1.1 ports
Back Panel Connectors - RJ-45 Port
1 x RJ-45 port
Back Panel Connectors - Audio Jacks
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring - Voltage Detection
Voltage detection
H/W Monitoring - Temperature Detection
Temperature detection
H/W Monitoring - Fan Speed Detection
Fan speed detection
H/W Monitoring - Overheating Warning
Overheating warning
H/W Monitoring - Fan Fail Warning
Fan fail warning
H/W Monitoring - Fan Speed Control
Fan speed control
H/W Monitoring - Fan Speed Control Support
Whether the fan speed control function is supported will depend on the fan you install.
BIOS - Flash
1 x 32 Mbit flash
BIOS - UEFI BIOS
Use of licensed AMI UEFI BIOS
BIOS - Standards Support
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features - Q-Flash
Support for Q-Flash
Unique Features - APP Center
Support for APP Center
Unique Features - APP Center Note
Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Unique Features - @BIOS
@BIOS
Unique Features - EasyTune
EasyTune
Unique Features - EZ Setup
EZ Setup
Unique Features - USB Blocker
USB Blocker
Unique Features - Smart TimeLock
Smart TimeLock
Unique Features - Smart Recovery 2
Smart Recovery 2
Unique Features - ON/OFF Charge
Support for ON/OFF Charge
Bundled Software - Norton® Internet Security
Norton® Internet Security (OEM version)
Bundled Software - LAN Bandwidth Management
LAN bandwidth management software
Operating System
Support for Windows 10/7
Form Factor
Micro ATX Form Factor; 23.0cm x 17.5cm
Remark - Linux Support
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Remark - Legacy Drivers
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
Remark - HDMI Logo
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Remark - Reference Materials
The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
Remark - Advertised Performance
Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
Remark - Trademarks
All trademarks and logos are the properties of their respective holders.
Remark - PC Architecture RAM Notice
Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
