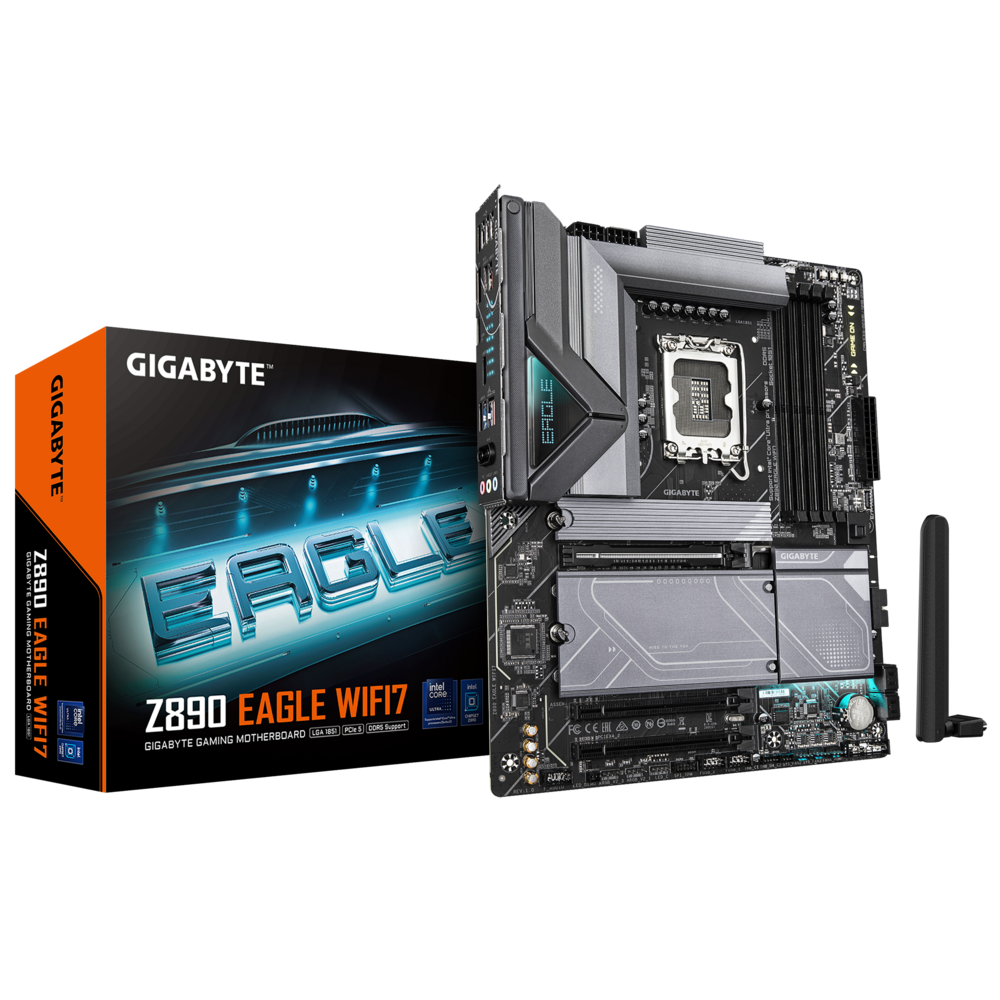

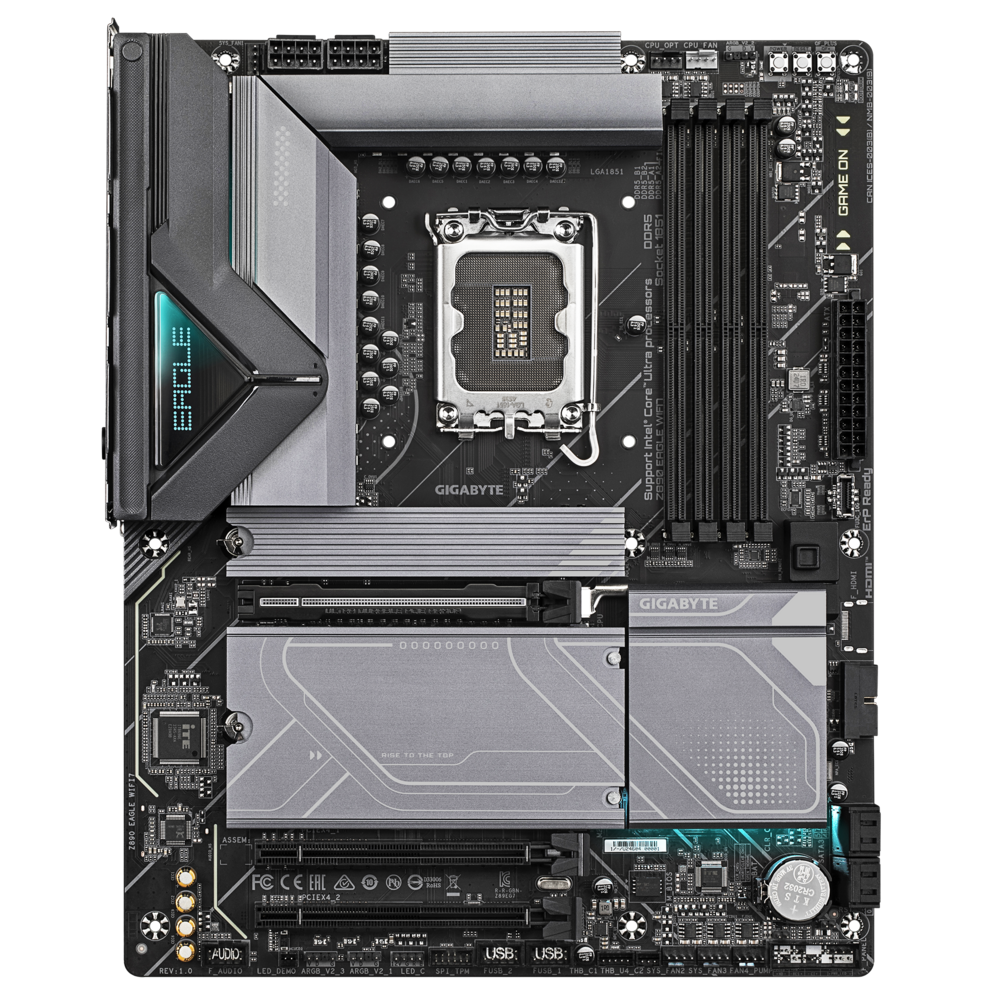

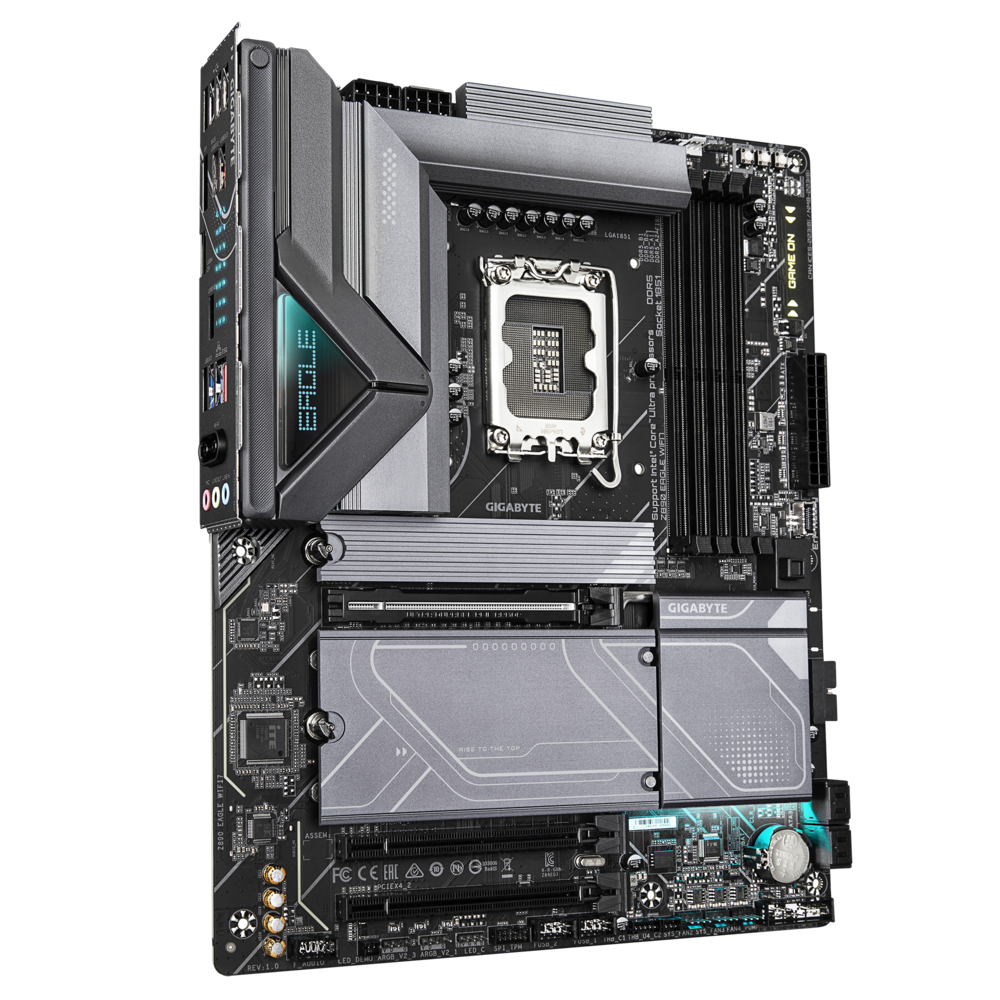

Gigabyte Z890 EAGLE WIFI7 Motherboard

  • Model:Z890 EAGLE WIFI7
  • Supports Intel Core Ultra CPUs
  • Intel Z890, LGA 1851, ATX Form Factor
  • DDR5 8000+ OC Ready
  • PCIe 5.0, WiFi 7, USB-C Ports
  • 3 Years Warranty from Gigabyte
₹ 24,600
Next Day Dispatch
1
CPU
LGA1851 socket: Support for Intel® Core™ Ultra ProcessorsL3 cache varies with CPU* Please refer to "CPU Support List" for more information.
Chipset
Intel® Z890 Express Chipset
Memory
Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modulesSupport CUDIMM memory module(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 2.1 version(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standardRealtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.4- Support for 11be 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
Expansion Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)
Storage Interface
CPU:- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
CPU:- 1 x USB4® USB Type-C® port on the back panelChipset:- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header3 x system fan headers1 x system fan/water cooling pump header3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header4 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x power button1 x Q-Flash Plus button1 x reset button1 x reset jumper1 x Clear CMOS jumper

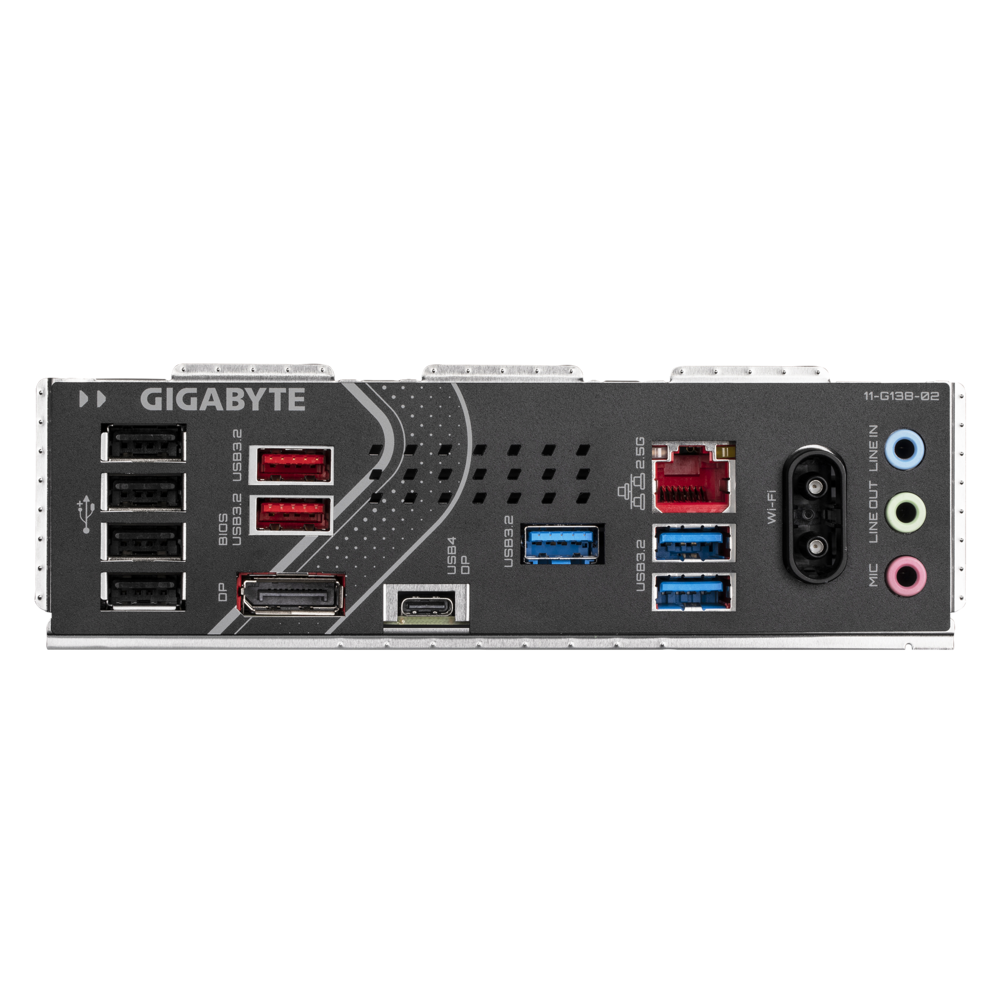

Back Panel Connectors
1 x USB4® USB Type-C® port (DisplayPort (Note))2 x USB 3.2 Gen 2 Type-A ports (red)3 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x DisplayPort (Note)2 x antenna connectors (2T2R)1 x RJ-45 port3 x audio jacks(Note) Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.* All trademarks and logos are the properties of their respective holders.* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
