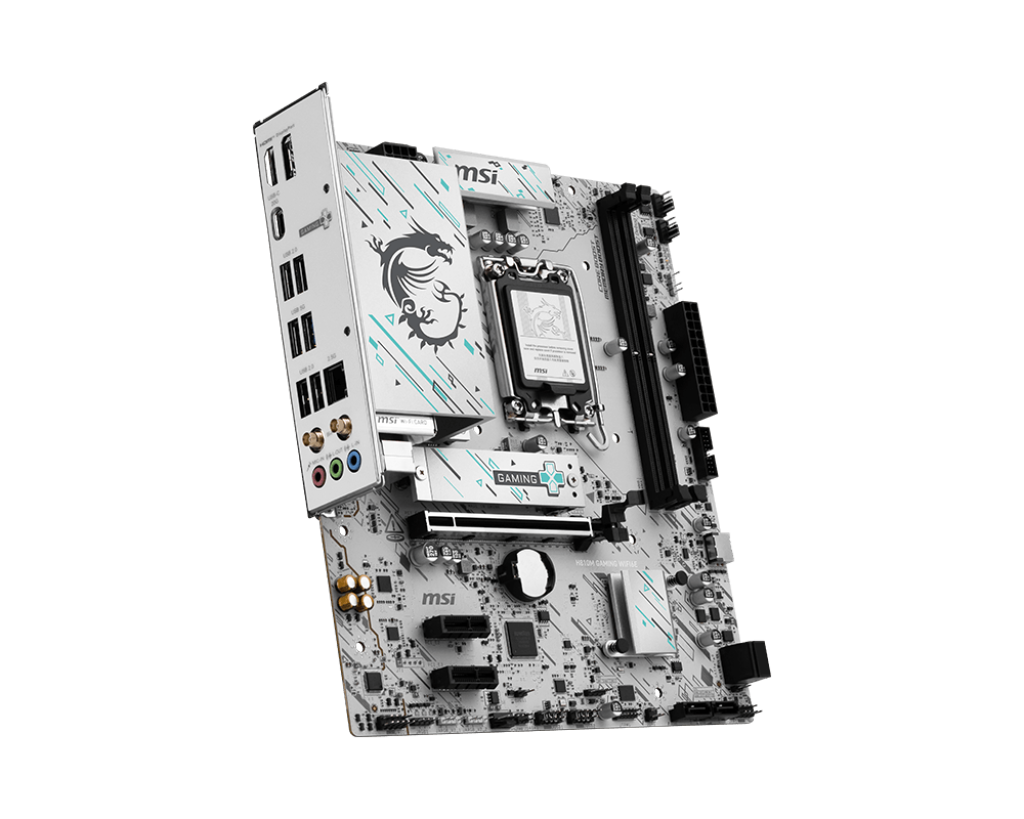

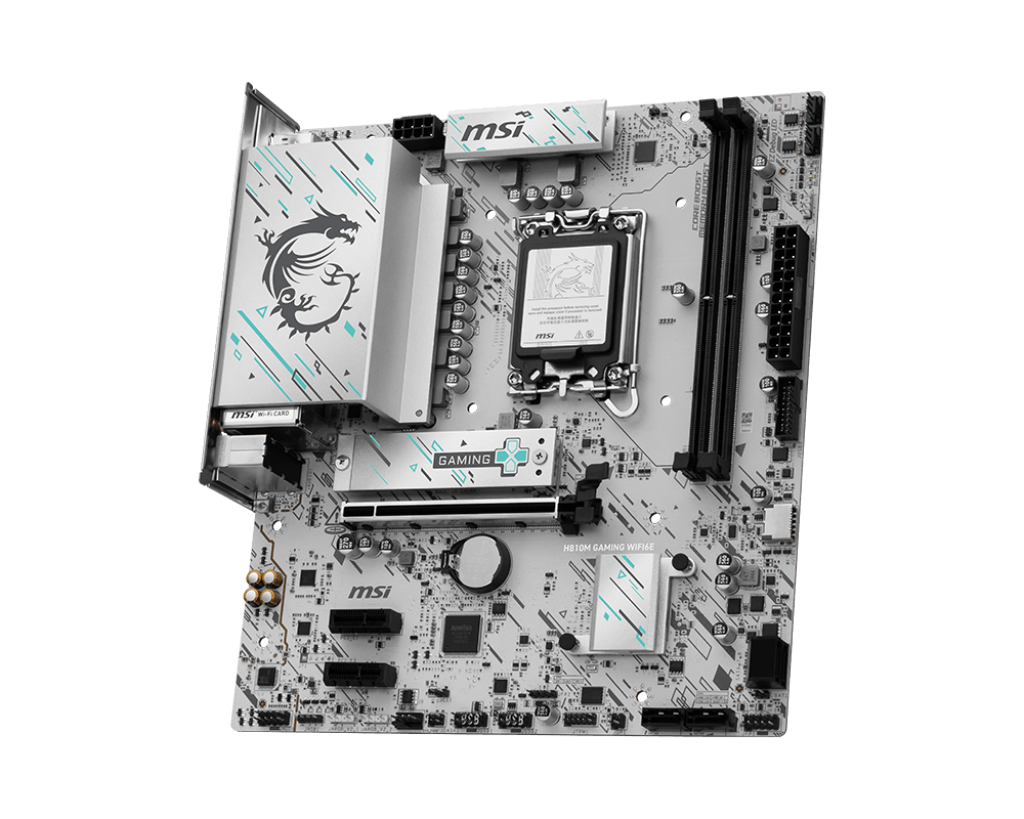

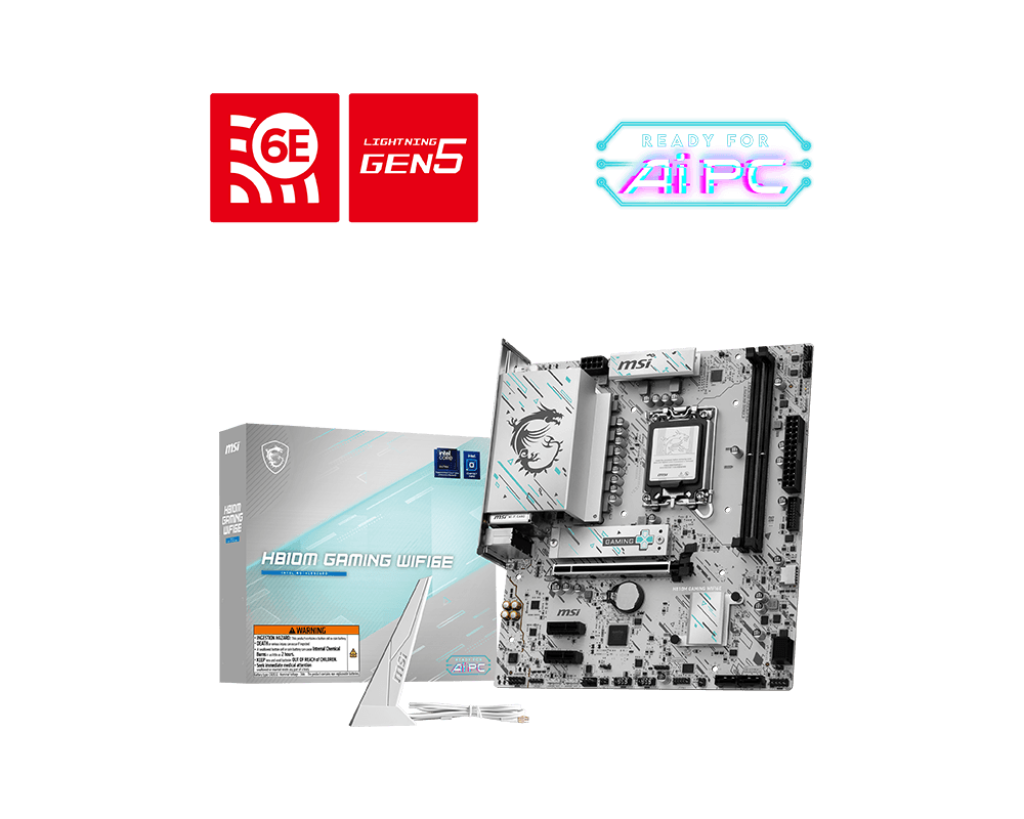

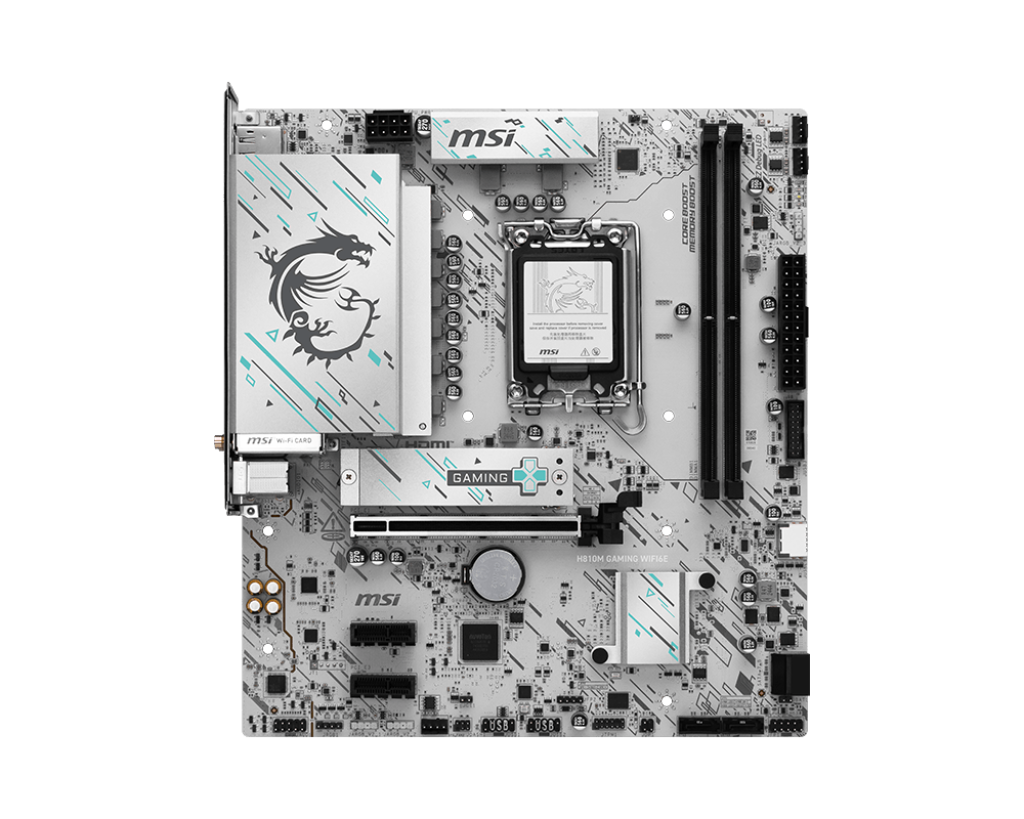

MSI H810M GAMING WIFI6E Motherboard
  • Model:H810M GAMING WIFI6E
  • Supports Intel Core Ultra processors (LGA 1851)
  • Intel H810 chipset, Micro-ATX form factor
  • Dual Channel DDR5-6400+ MT/s (OC) memory support
  • PCIe 5.0 slot, Wi-Fi 6E, USB 20G Type-C connectivity
  • 3 Years Warranty from MSI
₹ 11,300
Next Day Dispatch
1
Chipset
INTEL H810
CPU
Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 6400+ MT/s• 1DPC 2R Max speed up to 6400+ MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM_• The DIMM slots on this motherboard only have single-sided latches.__• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/._
Onboard Graphics
1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*_*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
1x PCI-E x16 slot2x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Storage
1x M.2M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G_*Please refer to the manual for M.2 SSD heatsink restrictions._
USB
4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)
LAN
Realtek® 8125 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 6E moduleThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA_\* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.__\*\* Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11._
LED FEATURE
4x EZ Debug LED1x EZ Memory Detection LED

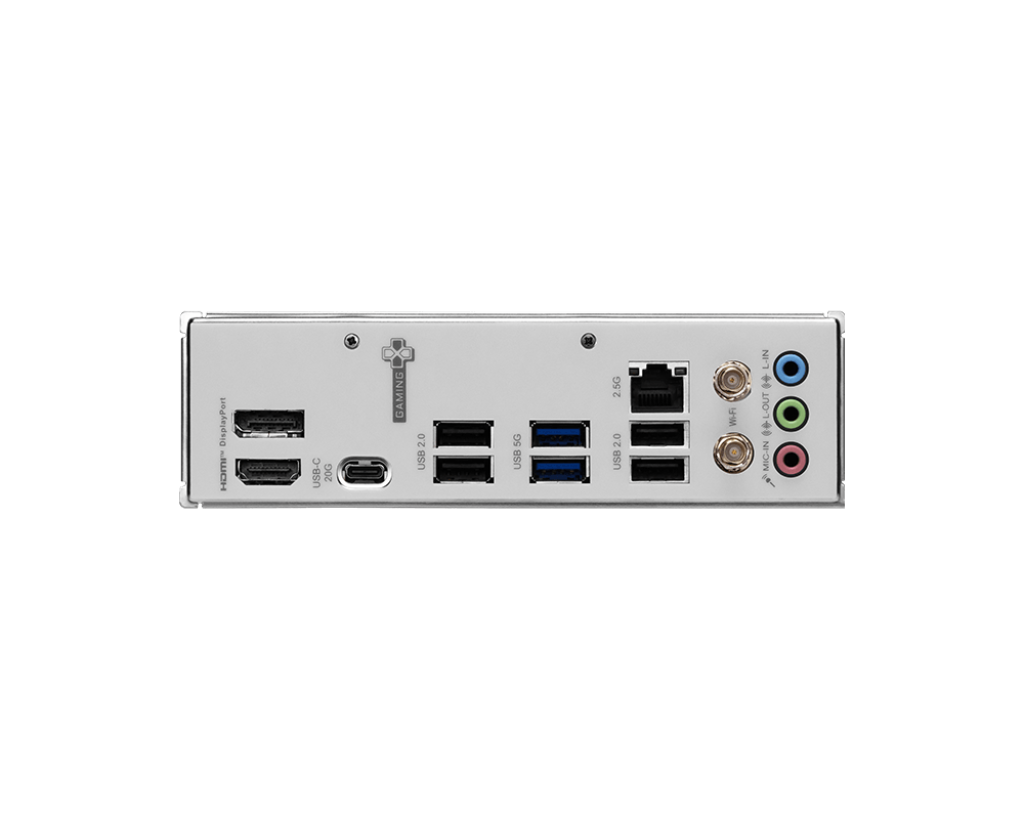

BACK PANEL PORTS
1. DisplayPort2. USB 2.03. USB 5Gbps (Type-A)4. 2.5G LAN5. Wi-Fi / Bluetooth6. HDMI™7. USB 20Gbps (Type-C)8. USB 2.09. Audio connectors
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
mATX220mmx243.84mm
