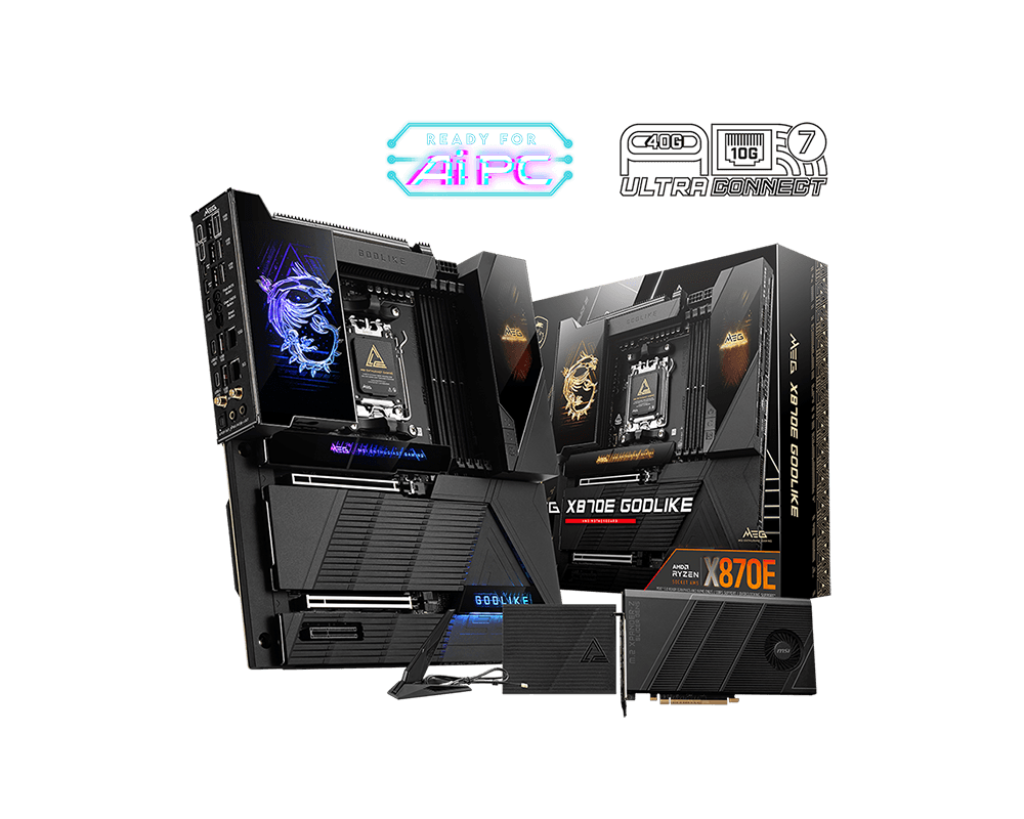

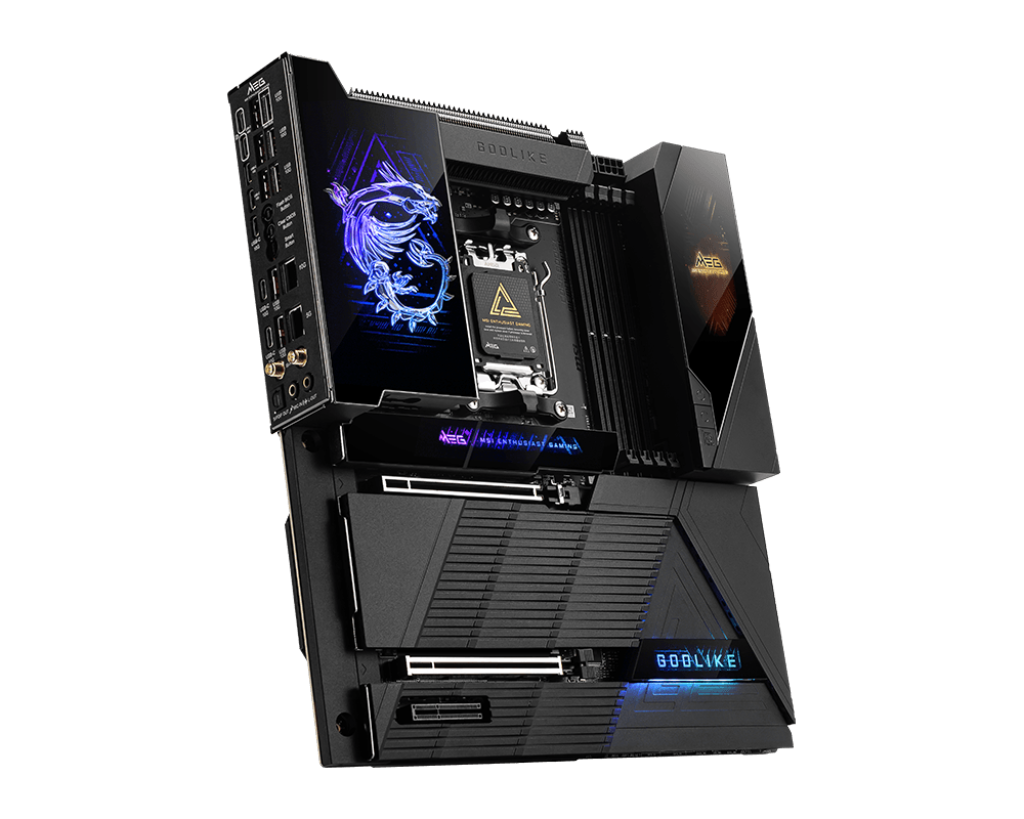

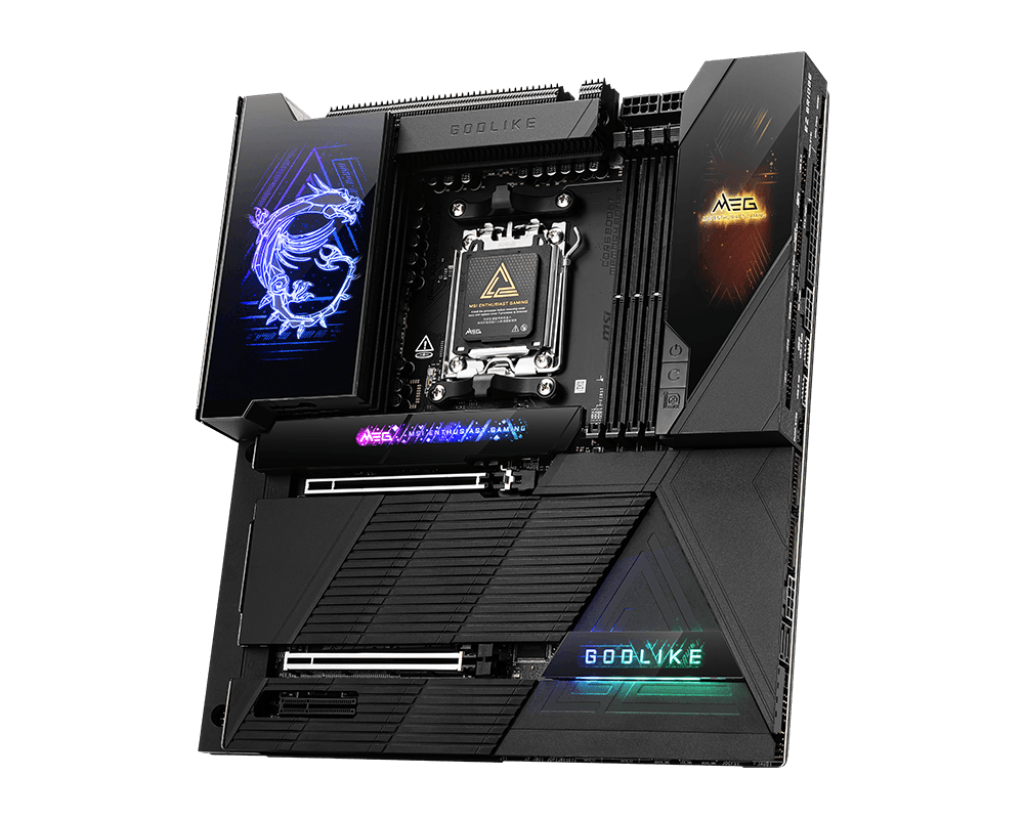

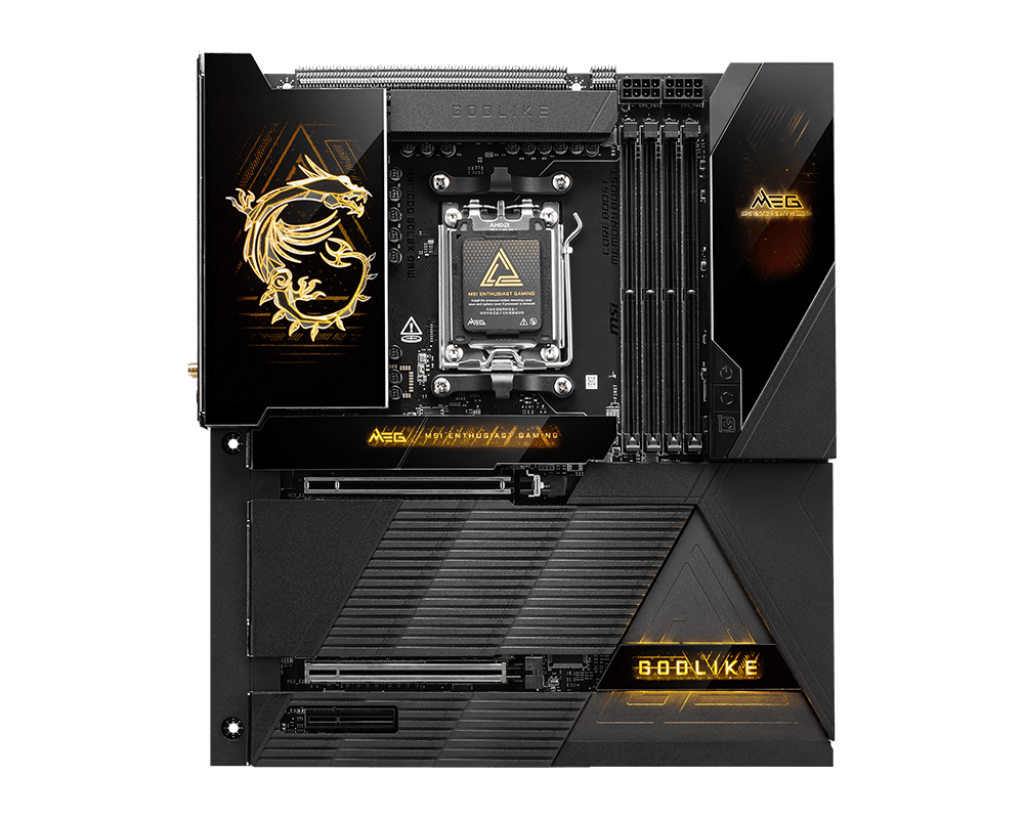

MSI MEG X870E GODLIKE Motherboard
  • Model:MEG X870E GODLIKE
  • Supports AMD Ryzen 9000
  • AMD X870E chipset
  • Dual Channel DDR5
  • Wi-Fi 7 & 10G LAN
  • 3 Years Warranty from MSI
₹ 1,48,850
Next Day Dispatch
1
Chipset
AMD X870E
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8400+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 4800+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.*** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
2x Type-C DisplayPortUSB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz** Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
2x PCI-E x16 slot1x PCI-E x4 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 & PCI_E2 slots• Supports up to PCIe 5.0 x16/ x0 or x8/ x8 (For Ryzen™9000/ 7000 Series processors)• Supports up to PCIe 4.0 x8/ x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports up to PCIe 4.0 x4/ x0 (For Ryzen™ 8500/ 8300 Series processors)PCI_E3 slot• Supports up to PCIe 4.0 x4* PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.Please refer to the PCIe configuration table in the manual for more details.
Audio
Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA7.1-Channel USB High-Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel
Storage
7x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6GM.2_1 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devicesM.2_2 Source (via M.2 XPANDER-Z SLIDER GEN5) supports up to PCIe 5.0 x4 , supports 2280 devicesM.2_1:• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)M.2_2:• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.M2_4:PCI_E3 slot will run at x2 speed when installing device in the M2_4 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_4 slot.* Supports onboard 5x M.2 slots and additional 2x M.2 slots via M.2 card.*** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1 and Raid 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.*** RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.**

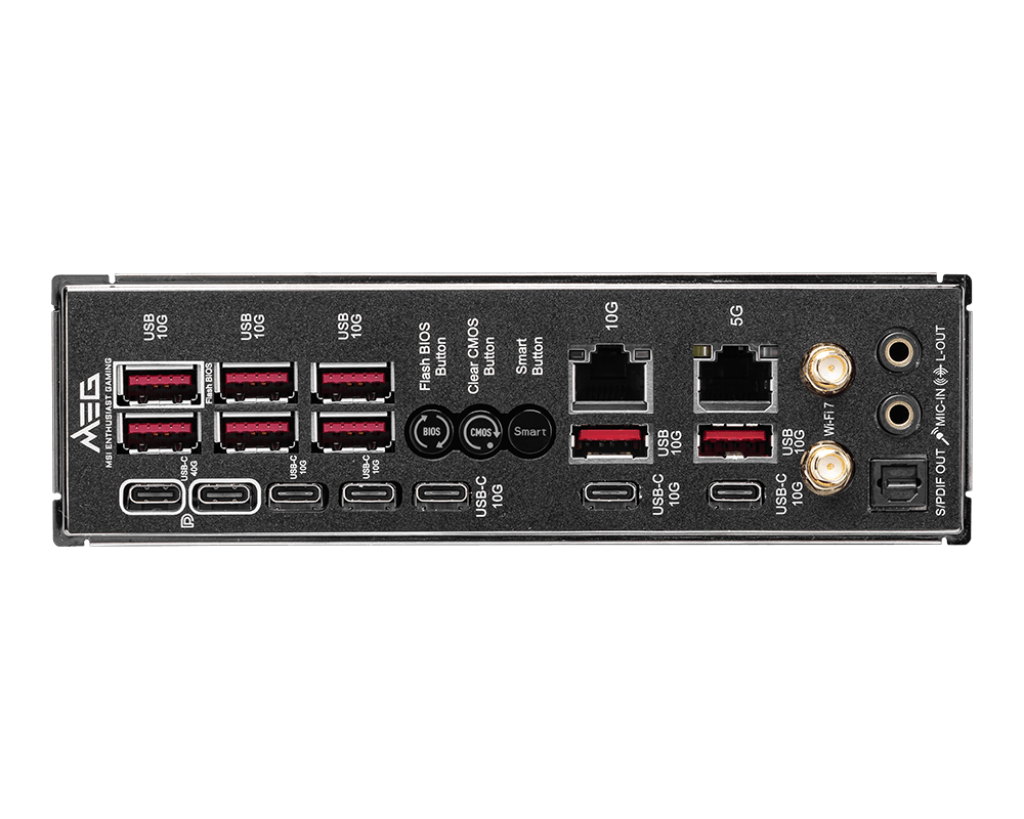

USB
4x USB 2.0 (Front)4x USB 5Gbps Type A (Front)8x USB 10Gbps Type A (Rear)5x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Front)2x USB 40Gbps Type C (Rear)* USB 40Gbps Type-C ports on the back panel and M2_2 slot share PCIe 5.0 x4 bandwidth. Both run at PCIe 5.0 x2 when a device is installed in the M2_2 slot. You can switch M2_2 to PCIe 5.0 x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports. The USB4 host controller supports up to PCIe 4.0 x4.*** USB 40Gbps Type-C ports on the back panel only run PCIe 4.0 x2 when install Ryzen™ 8500/ 8300 Series processors.**
LAN
1x Marvell® AQC113CS 10Gbps LAN1x Realtek® 8126 5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power C... (the JSON is too long to include in this example output)
