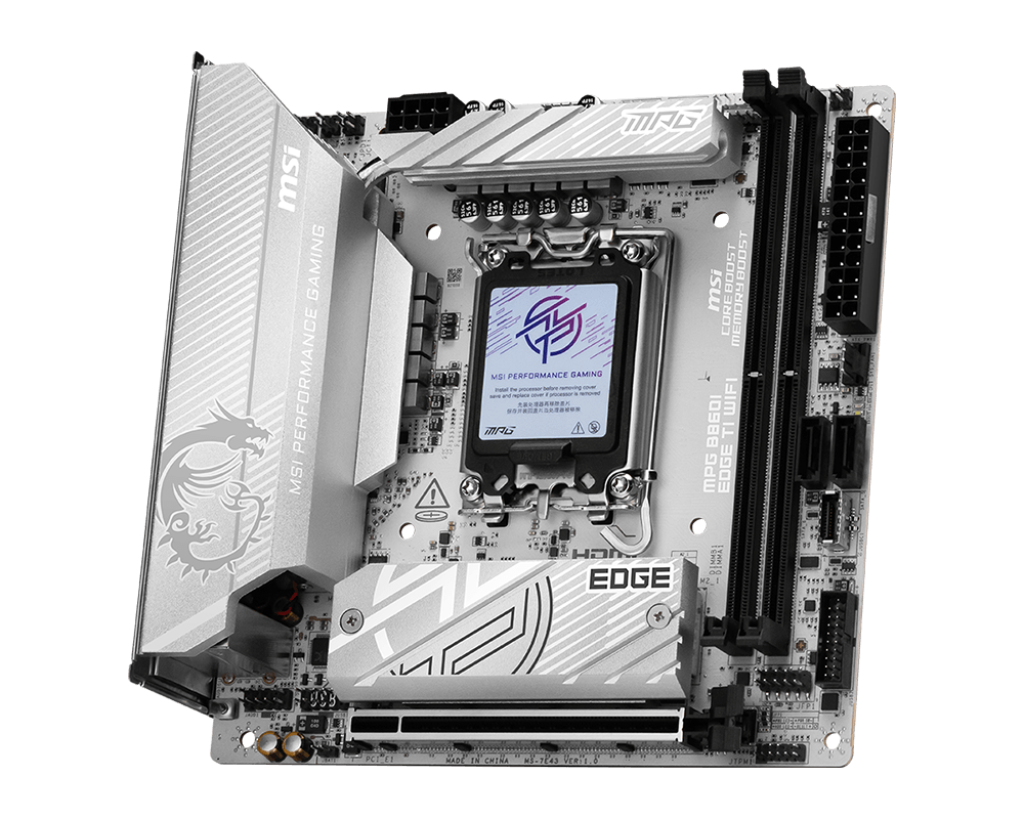

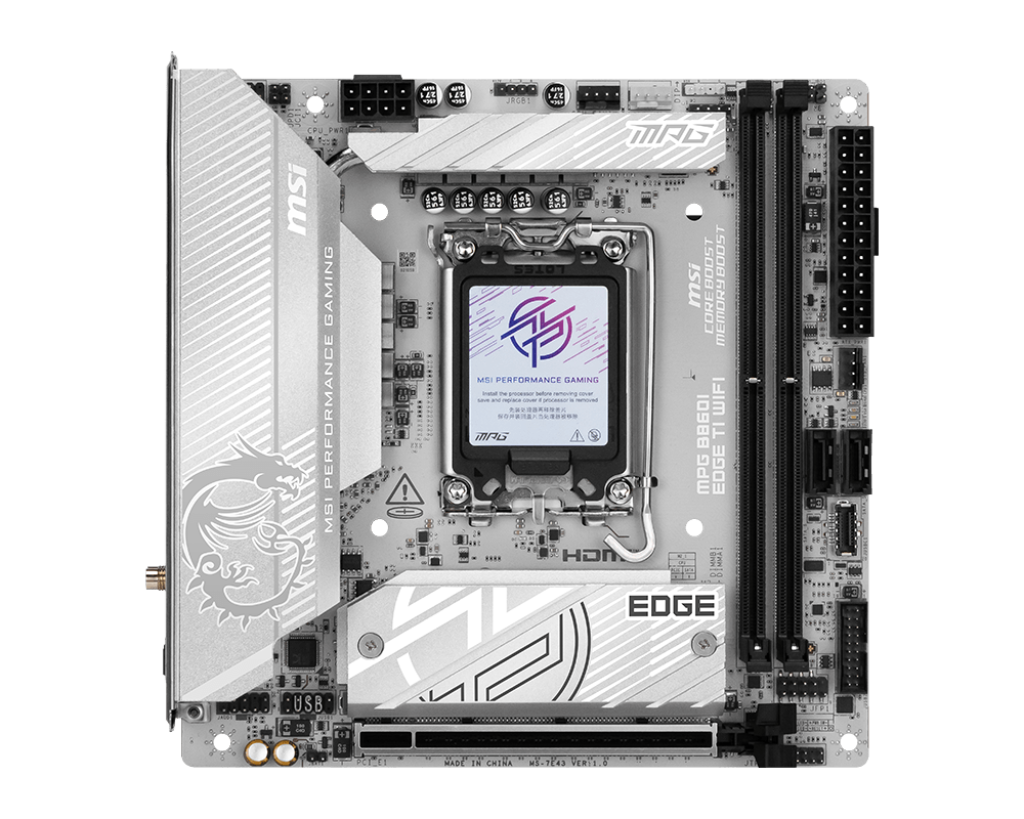

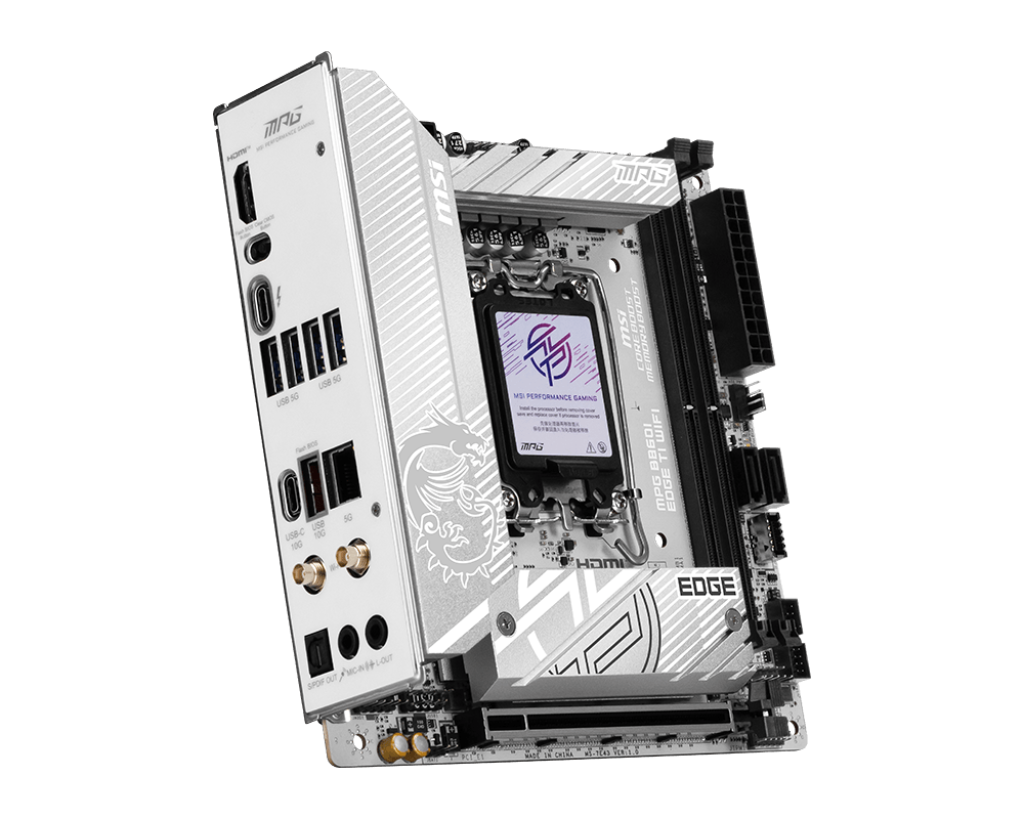

MSI MPG B860I EDGE TI WIFI Motherboard
  • Model:MPG B860I EDGE TI WIFI
  • Supports Intel Core Ultra processors (LGA 1851)
  • Intel B860 Chipset, Mini-ITX form factor
  • Supports DDR5 memory up to 8600+ MT/s
  • Features PCIe 5.0, WiFi 7, Thunderbolt 4
  • 3 Years Warranty from MSI
₹ 23,300
Next Day Dispatch
1
Chipset
INTEL B860
CPU
Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s Supports Intel POR Speed and JEDEC Speed Supports Memory Overclocking and Intel XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM _• The DIMM slots on this motherboard have single-sided latches._ _• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/._
Onboard Graphics
1x HDMI™ Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 1x Type-C DisplayPort ThundeboltTM 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* _*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Storage
2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices 2x SATA 6G
RAID
•Supports RAID 0 and RAID 1 for SATA storage devices
Onboard Thunderbolt
Thunderbolt Resource CPU 1x Thunderbolt4 ports (Rear) Supports up to 40Gbps transfer rate with Thunderbolt devices Supports up to 20Gbps transfer rate with USB4 devices Supports up to 10Gbps transfer rate with USB 3.2 devices Supports up to 5V/3A,15W power charging Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices Supports up to 8K display
USB
2x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
LAN
1x Intel® Killer™ E5000B 5G LAN
Internal IO
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Intel® Killer™ BE1750x Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM _\* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2._ _\*\* The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2._
LED FEATURE
4x EZ Debug LED 1x EZ Memory Detection LED

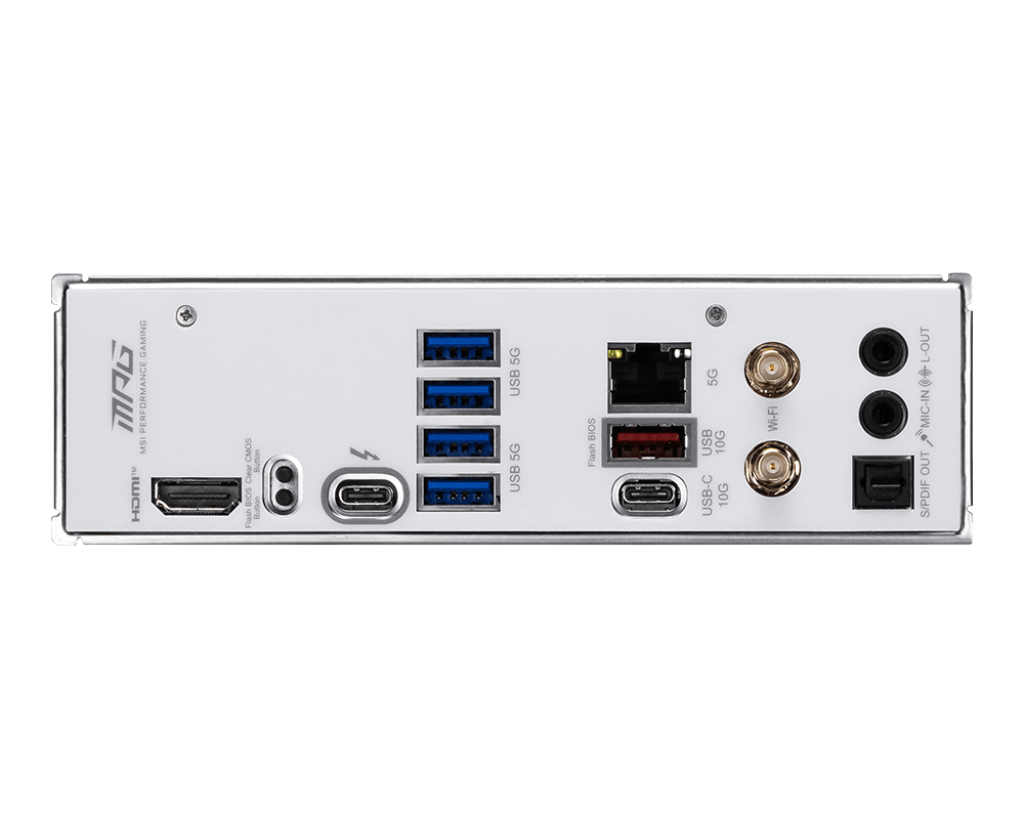

BACK PANEL PORTS
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B860/mpg-b860i-edge-ti-wifi/datasheet/msi-mpg-b860i-edge-ti-wifi-io.png) 01. Clear CMOS Button 02. USB 5Gbps Type-A 03. 5G LAN 04. Wi-Fi / Bluetooth 05. Audio Connectors 06. HDMI™ 07. Flash BIOS Button 08. Thunderbolt 4 09. USB 10Gbps Type-C 10. USB 10Gbps Type-A 11. Optical S/PDIF Out
OPERATING SYSTEM
Support for Windows® 11 64-bit
BOX CONTENT
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B860/mpg-b860i-edge-ti-wifi/msi-mpg-b860i-edge-ti-wifi-box-content.png)
PCB Info
Mini-ITX 170mmx170mm
