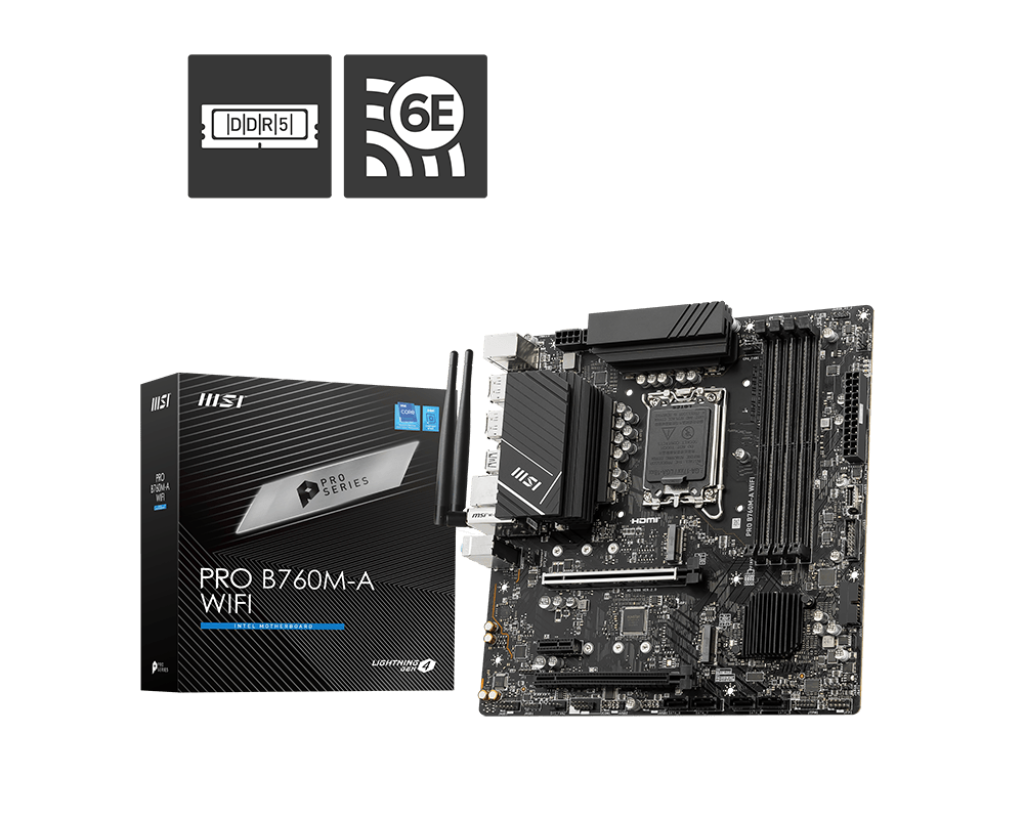

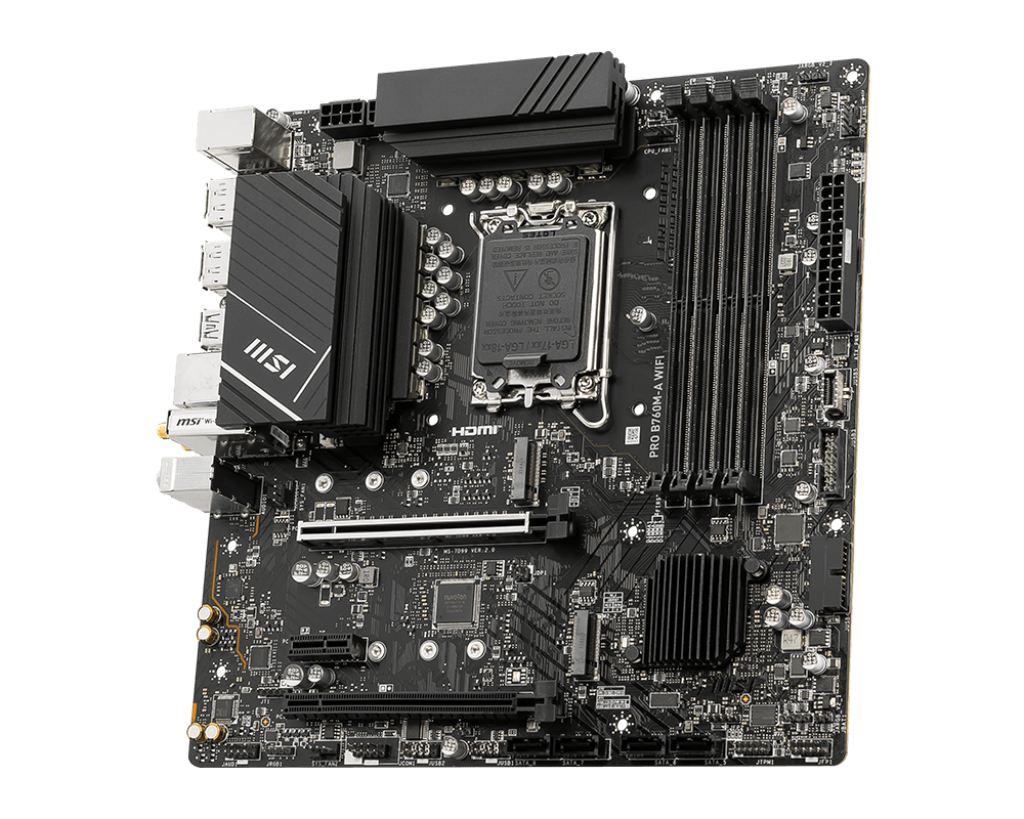

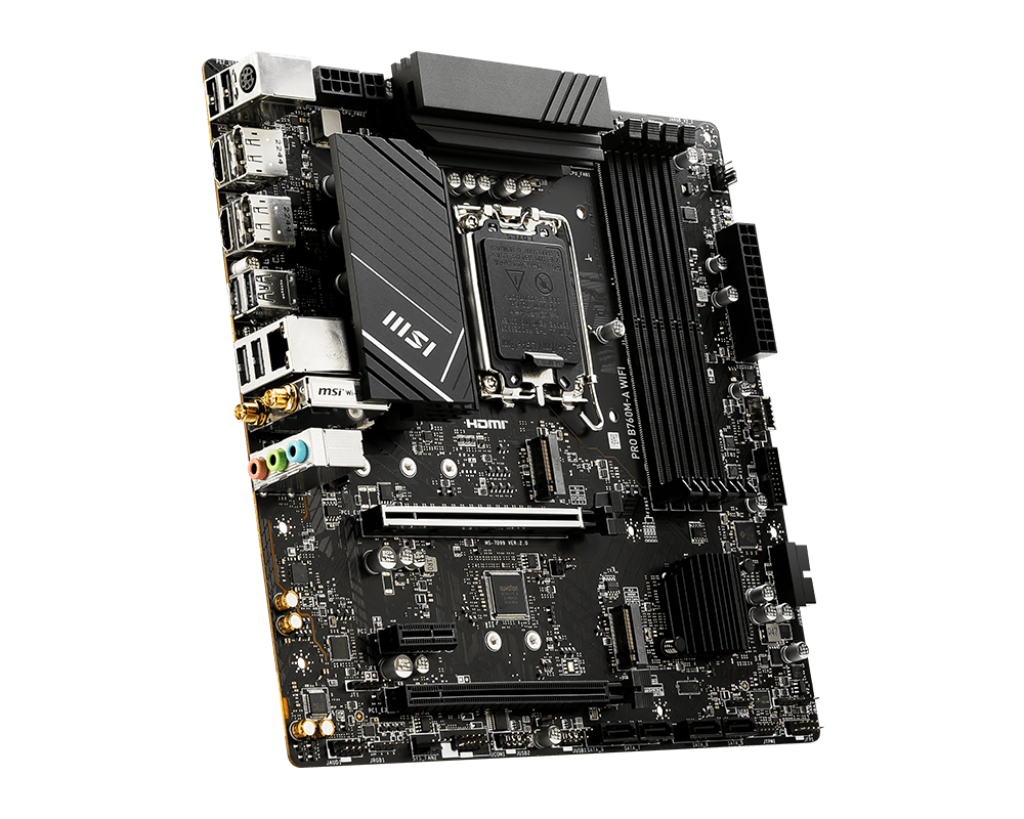

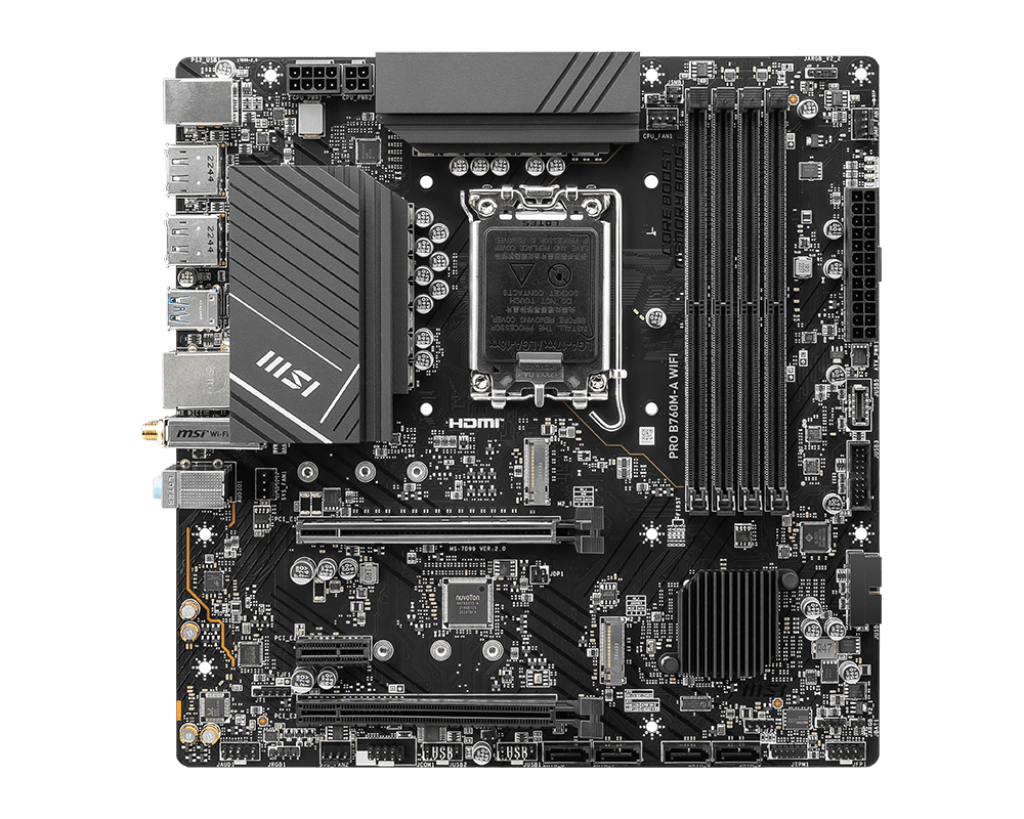

MSI PRO B760M-A WIFI Motherboard
  • Model:PRO B760M-A WIFI
  • 14th/13th/12th Gen Intel CPUs
  • Intel B760, LGA 1700, MATX
  • Dual Channel DDR5 6800+MHz
  • PCIe 4.0, Wi-Fi 6E, USB 3.2
  • 3 Years Warranty from MSI
₹ 15,300
In Stock
1
Chipset
INTEL B760
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700
Memory
4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory
Onboard Graphics
2x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*2x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)4x USB 5Gbps Type A (Front)1x USB 5Gbps Type C (Front)2x USB 10Gbps Type A (Rear)
LAN
Realtek® RTL8125BG 2.5G LAN
Internal IO
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.3, FIPS, FISMA* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
4x EZ Debug LED

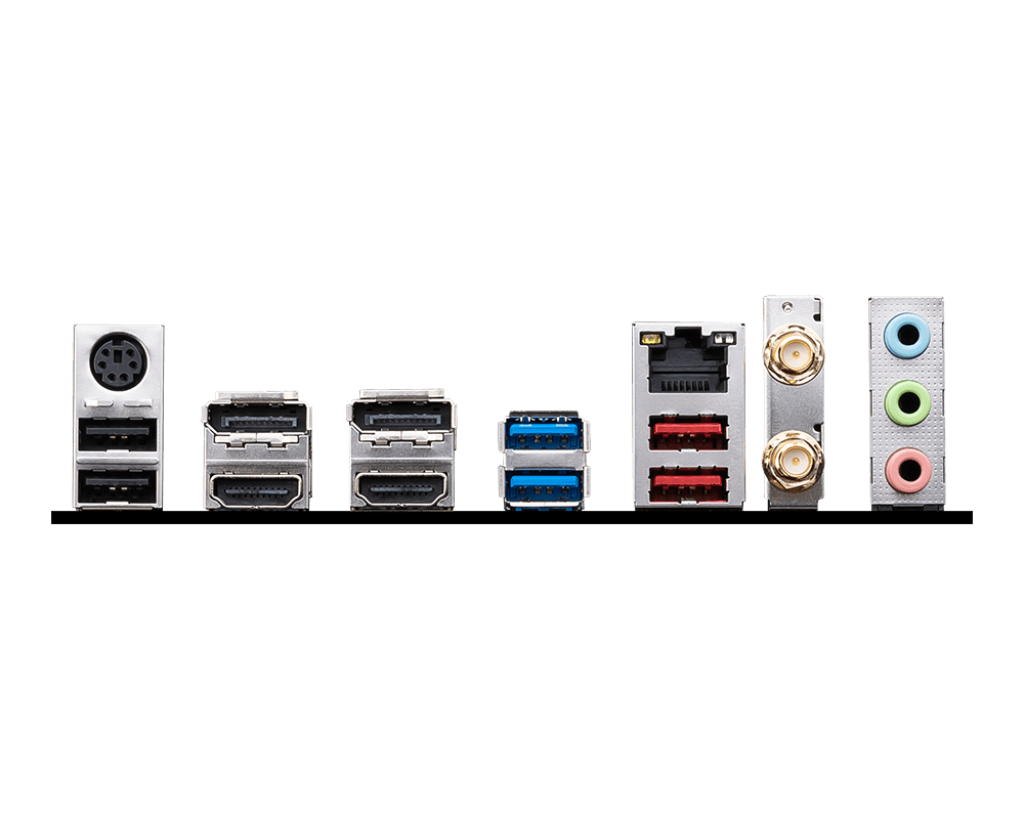

BACK PANEL PORTS
1. Keyboard / Mouse2. DisplayPort3. USB 3.2 Gen 1 5Gbps (Type-A)4. 2.5G LAN5. Wi-Fi / Bluetooth6. Audio Connectors7. USB 2.08. HDMI™9. USB 3.2 Gen 2 10Gbps (Type-A)
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX243.84mmx243.84mm
