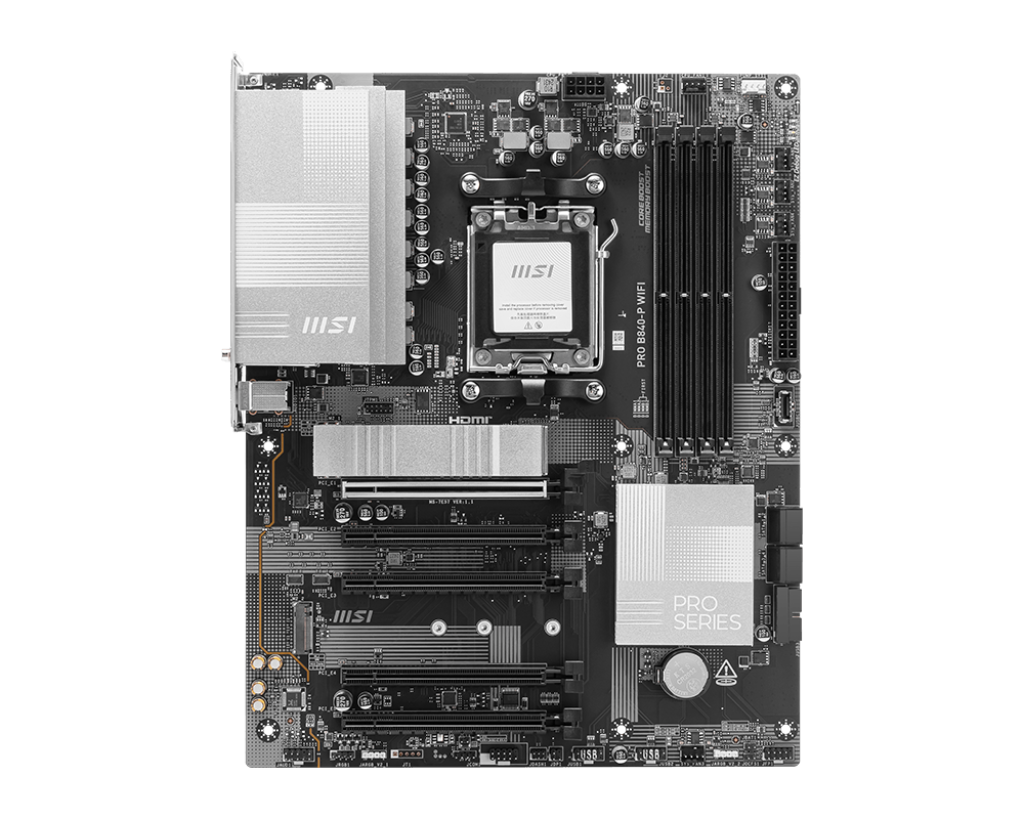

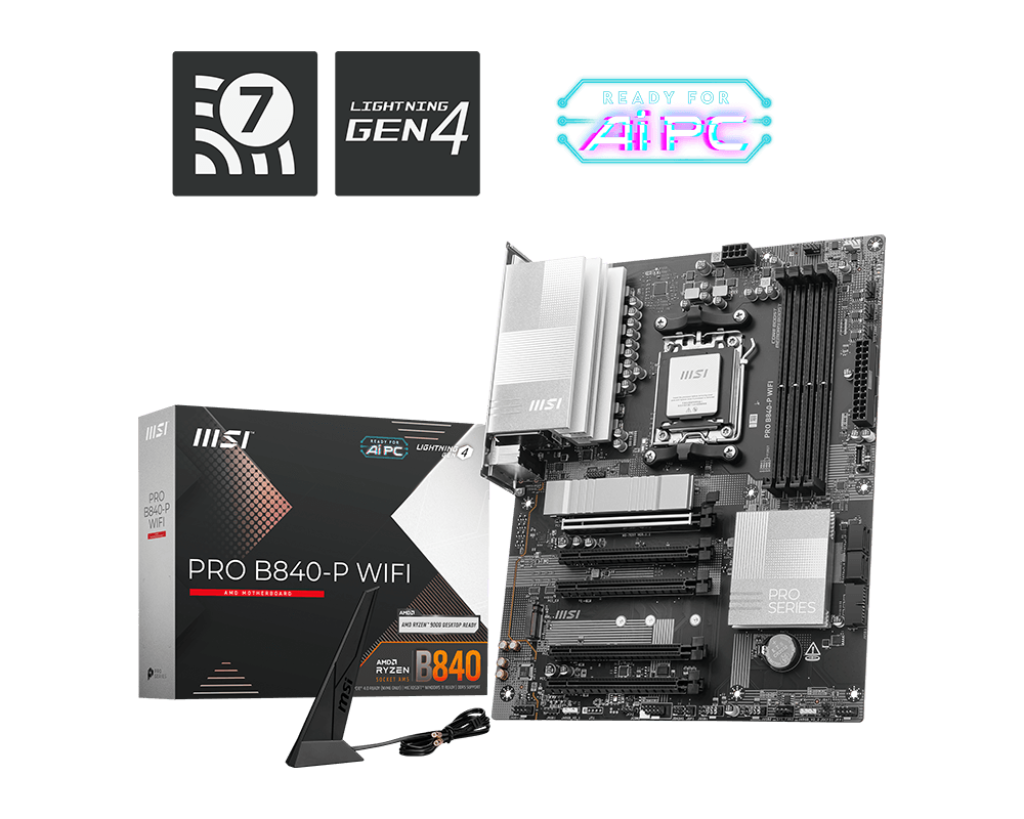

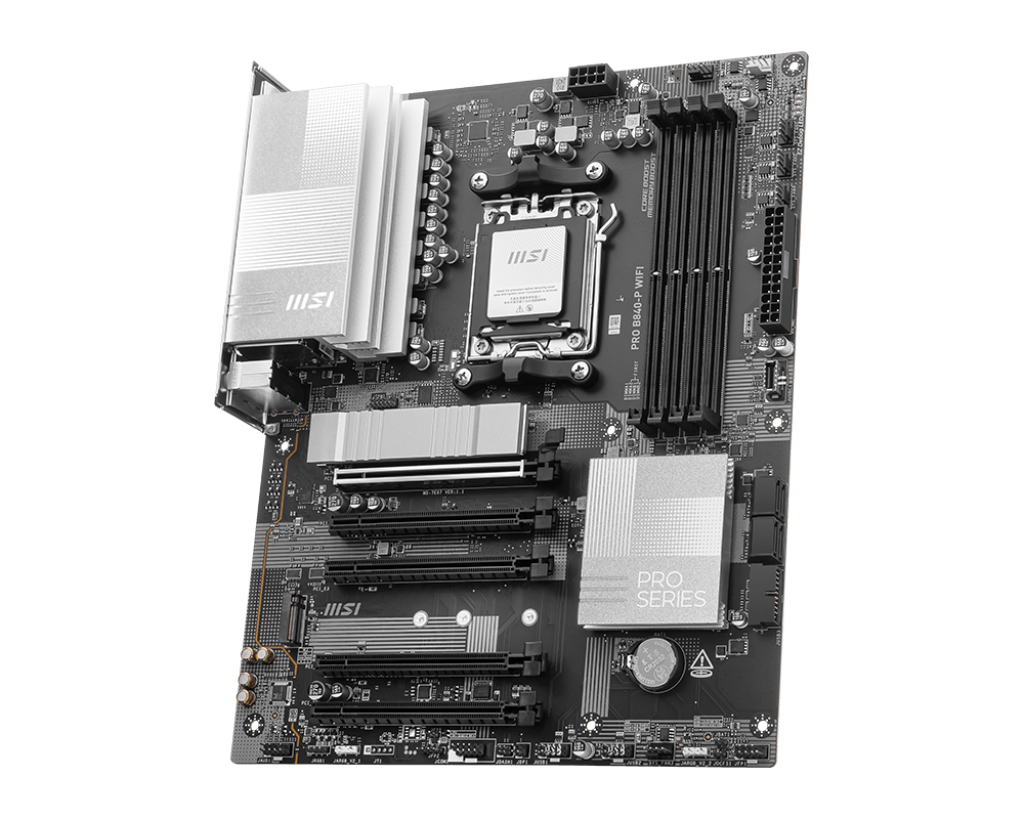

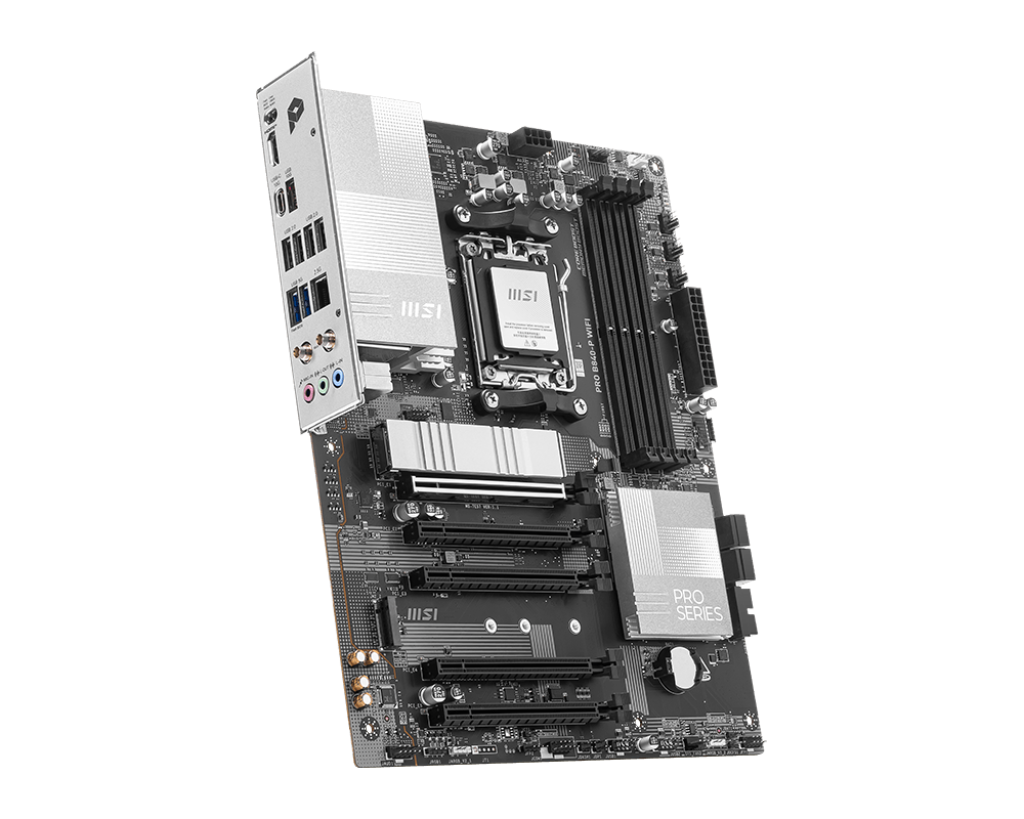

MSI PRO B840-P WIFI Motherboard
  • Model:PRO B840-P WIFI
  • Supports AMD Ryzen 9000 Series CPUs
  • B840 Chipset with AM5 Socket, ATX Form Factor
  • Dual Channel DDR5 8000+ MT/s (OC) Support
  • PCIe 4.0 M.2, WiFi 7, 2.5G LAN Connectivity
  • 3 Years Warranty from MSI
₹ 15,400
Next Day Dispatch
1
Chipset
AMD B840
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/sRyzen™ 9000 Series Processors max. overclocking frequency:• 1DPC 1R Max speed up to 8000+ MT/s• 1DPC 2R Max speed up to 6400+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 5600+ MT/sSupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOTMSupports Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM, Clock Driver bypass mode only*_* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.__• The DIMM slots on this motherboard have single-sided latches.__• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/._
Onboard Graphics
1x HDMI™Support HDMITM 2.1, maximum resolution of 4K 60Hz*_*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
5x PCI-E x16 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot• Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors)• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio
Realtek® ALC8977.1-Channel High Definition Audio
Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices 4x SATA 6GM2_2 slot• Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors)• Supports up to PCIe 3.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)• Supports up to PCIe 3.0 x2 (For Ryzen™ 8500/ 8300 Series processors)_*Please refer to the manual for M.2 SSD heatsink restrictions._
RAID
Supports RAID 0, RAID 1, and RAID 10 for SATA storage devicesSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 5Gbps Type C (Front)1x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)
LAN
Realtek® 8125D 2.5G LAN
Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Combo Fan (Pump_Sys Fan)4x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 5Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM_* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.__** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2._
LED FEATURE
4x EZ Debug LED1x EZ Memory Detection LED

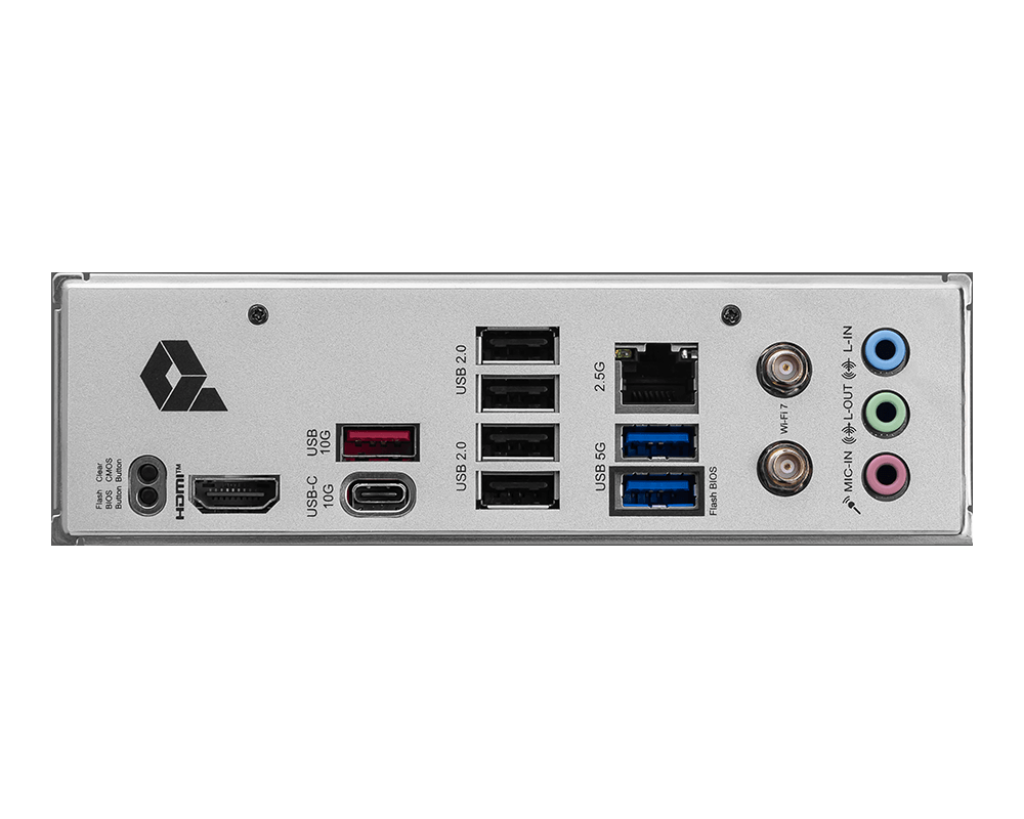

BACK PANEL PORTS
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B840/pro_b840_p_wifi/msi-pro_b840-p_wifi-io-hero.png)01. Clear CMOS Button02. USB 10Gbps Type-A03. USB 2.004. 2.5G LAN05. Wi-Fi / Bluetooth06. Audio connectors07. Flash BIOS Button08. HDMI™09. USB 10Gbps Type-C10. USB 5Gbps Type-A
OPERATING SYSTEM
Support for Windows® 11 64-bit
BOX CONTENT
![](https://storage-asset.msi.com/global/picture/image/feature/mb/B840/pro_b840_p_wifi/msi-pro_b840-p_wifi-accessory.png)
PCB Info
ATX243.84mmx304.8mm
