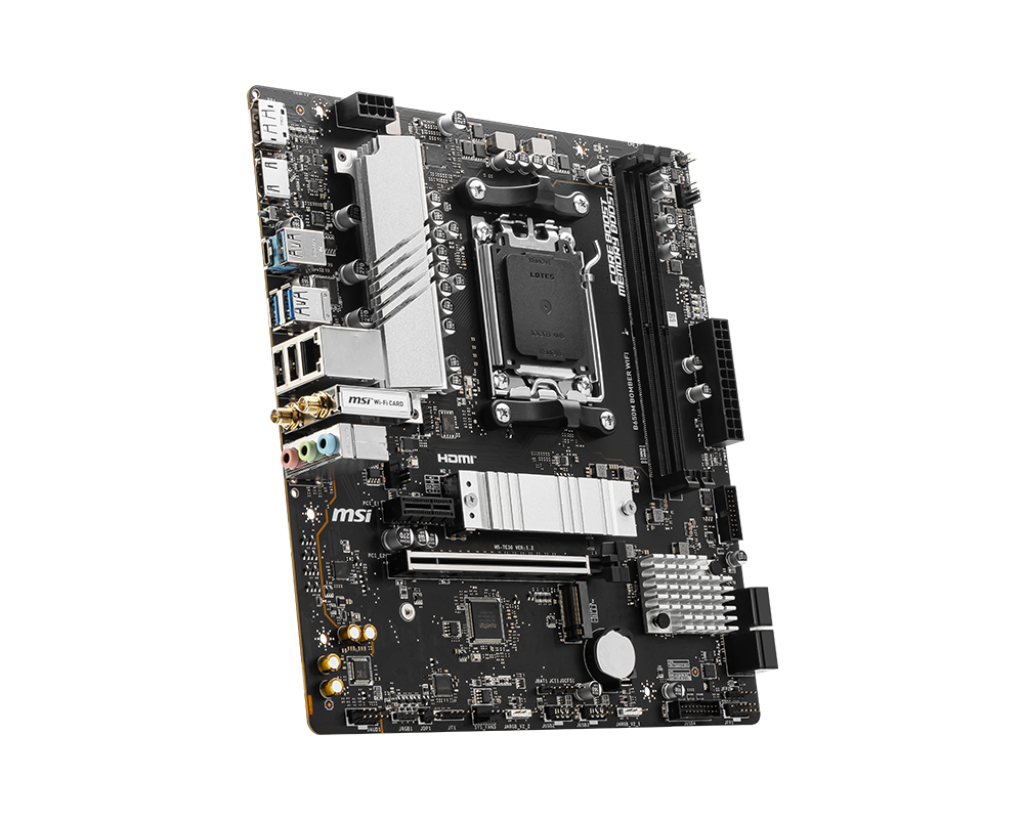

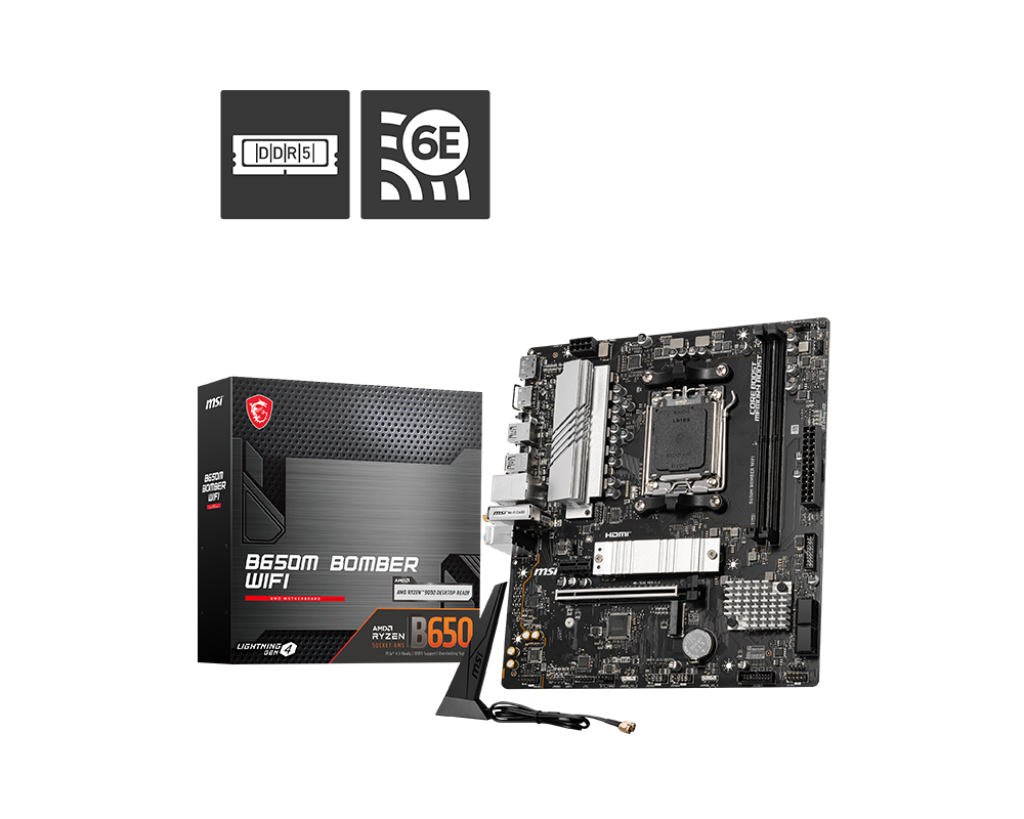

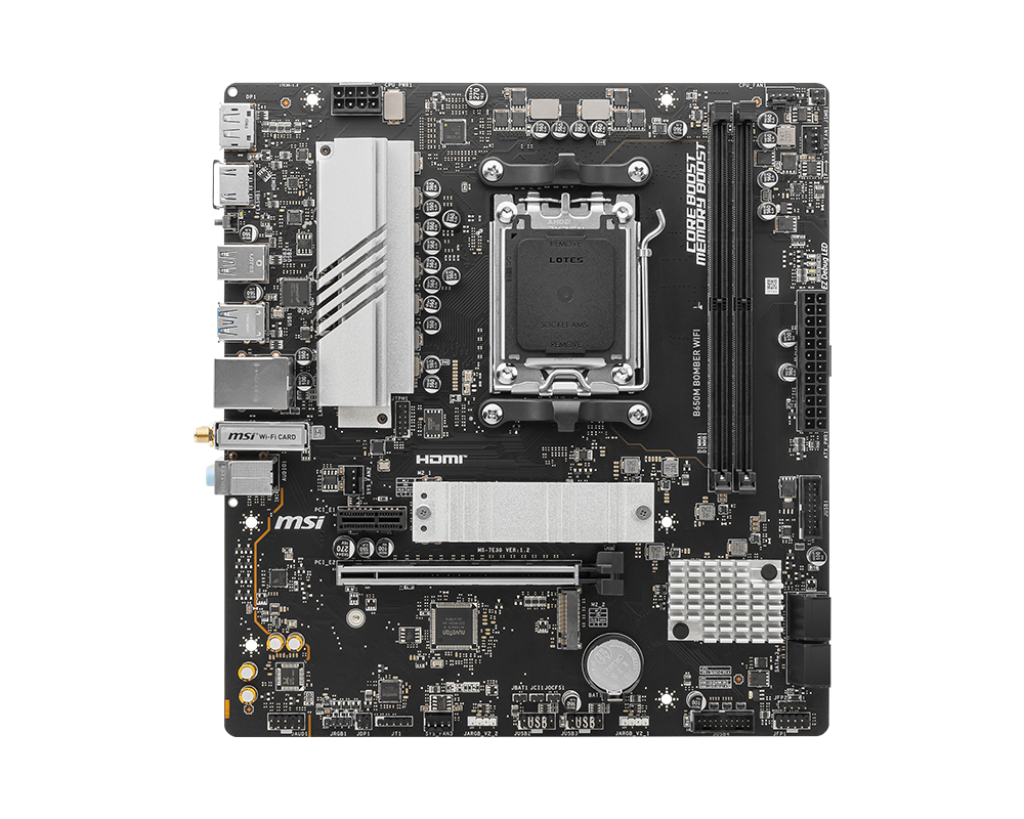

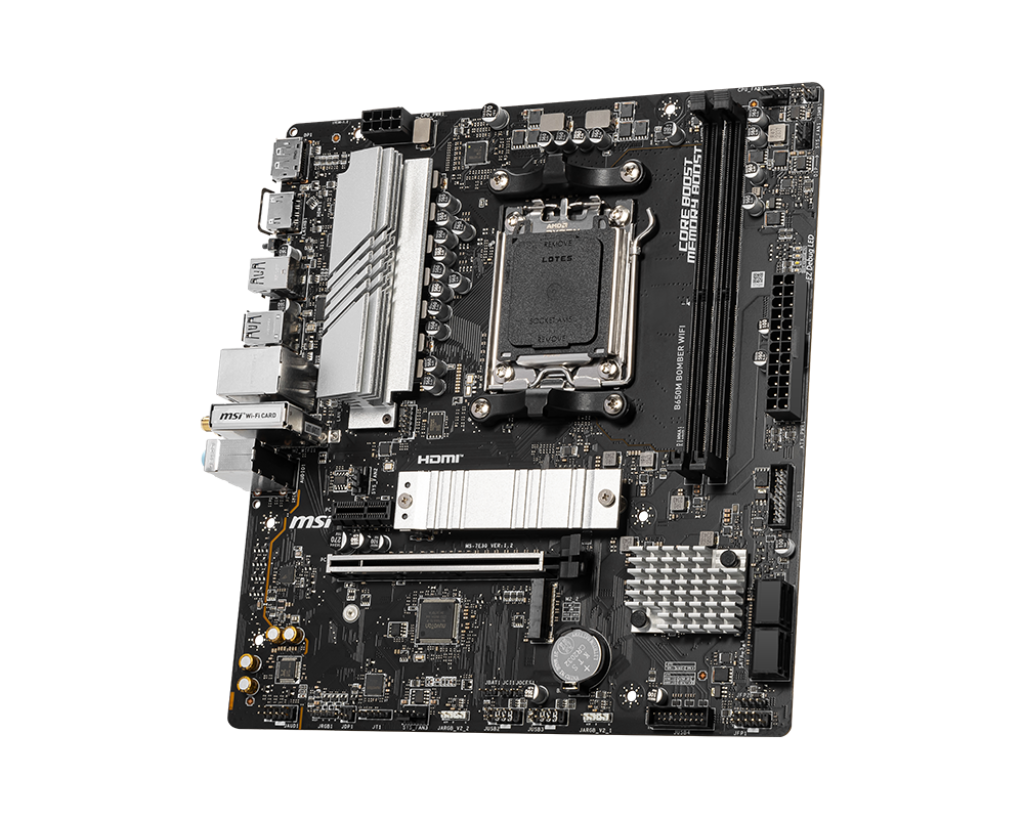

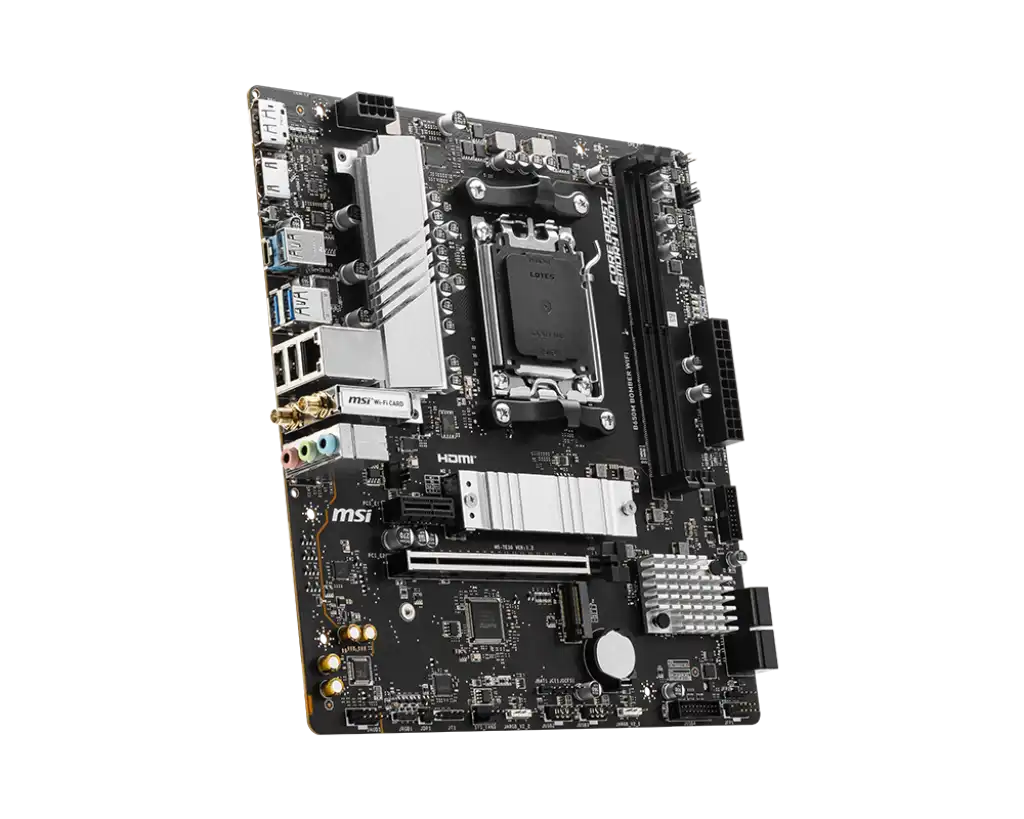

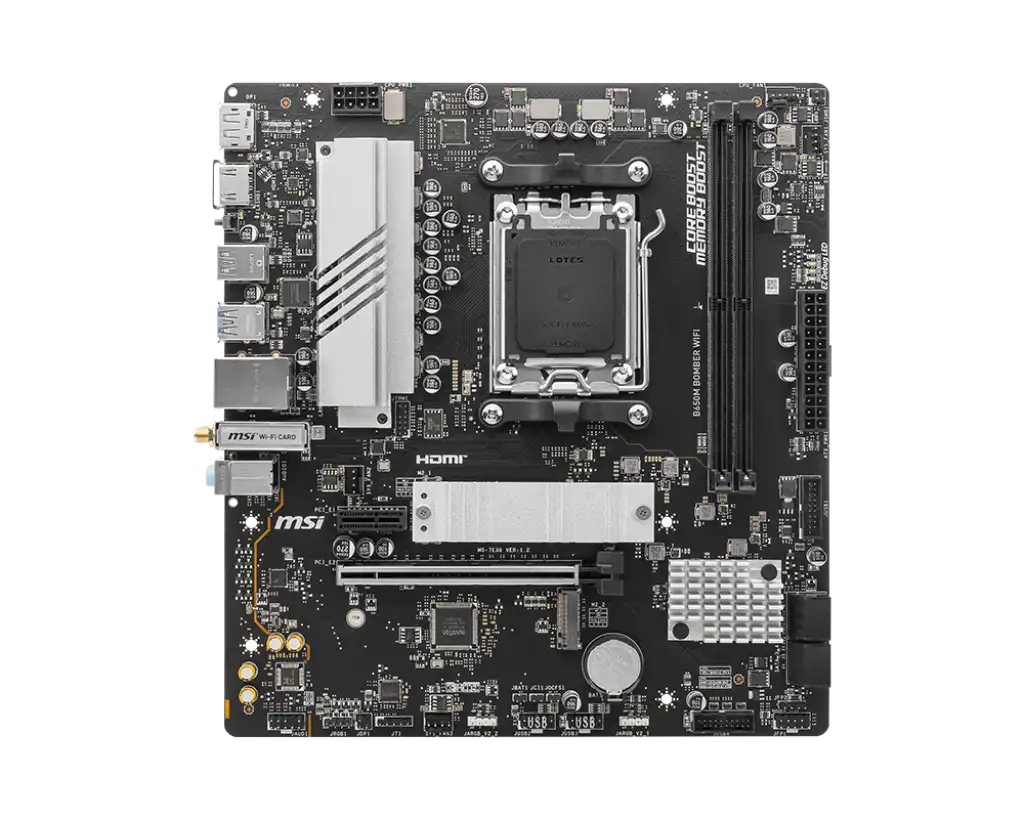

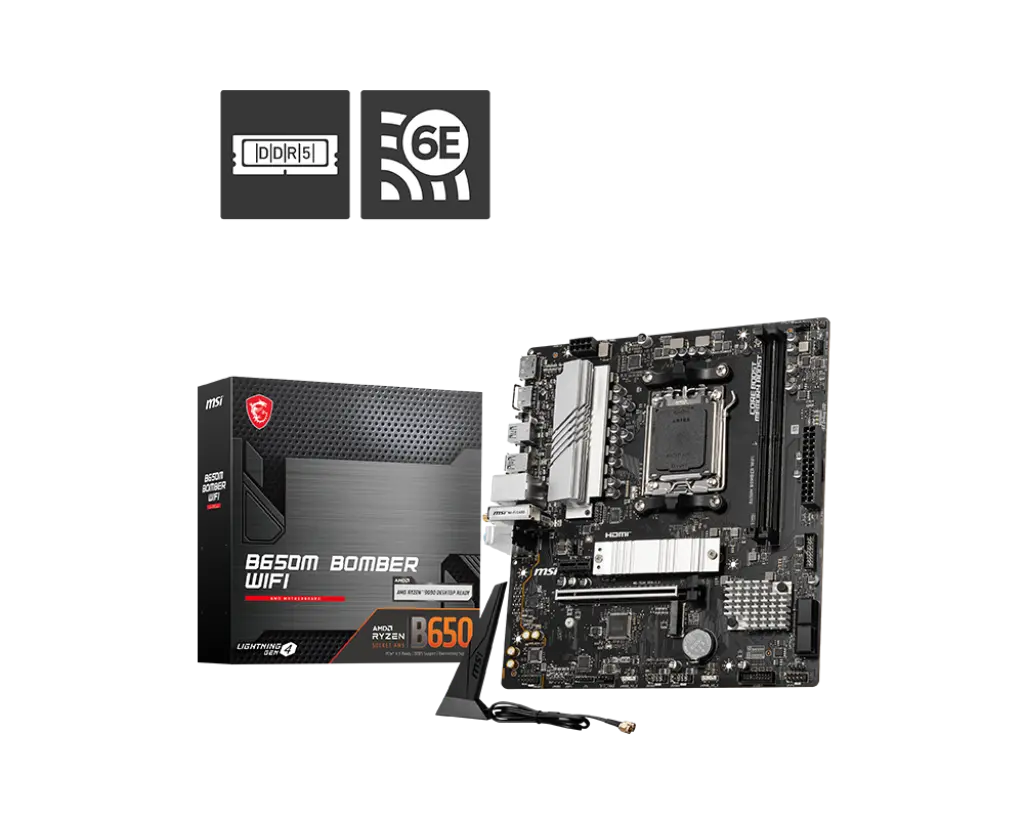

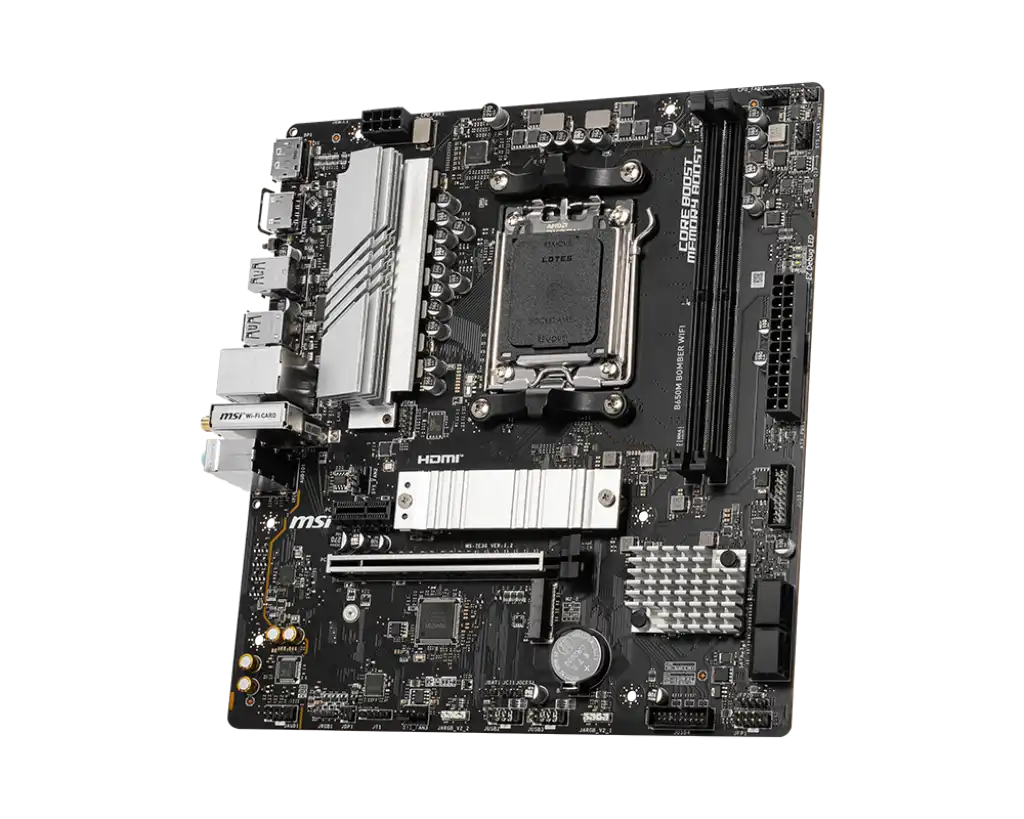

MSI B650M BOMBER WIFI Motherboard
- Model:B650M BOMBER WIFI
- Supports Ryzen 9000/8000/7000
- B650 chipset, DDR5 7800MHz
- PCIe 4.0, 2.5G LAN
- AUDIO BOOST, Steel Armor
- 3 Years Warranty from MSI
₹ 11,300
Next Day Dispatch
1
Specifications
- Chipset
- AMD B650
- CPU
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
- Memory
- 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 7800+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 1x PCI-E x16 slot Supports x16/x1 • Supports x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4 (For Ryzen™ 8500/ 8300 Series processors) 1x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices 4x SATA 6G • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
- RAID
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
- USB
- 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 1x USB 5Gbps Type C (Rear) 4x USB 5Gbps Type A (Front)
- LAN
- Realtek® RTL8125BG 2.5Gbps LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
- LED FEATURE
- 4x EZ Debug LED
- BACK PANEL PORTS

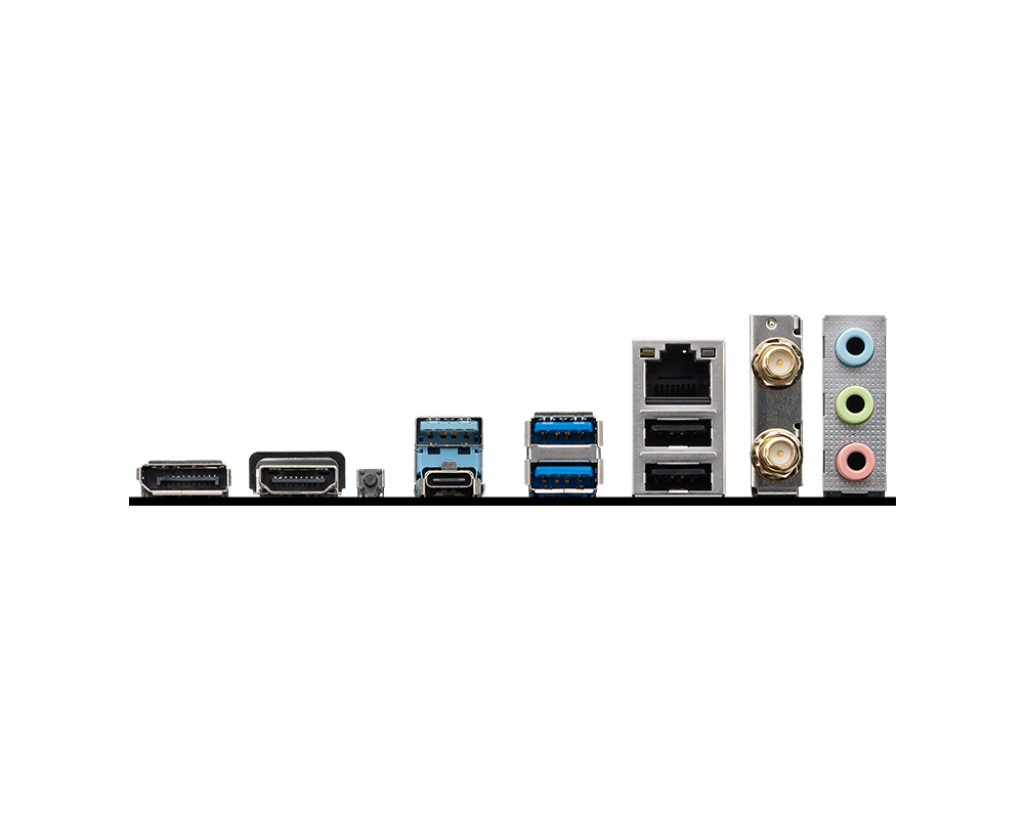

- 1. DisplayPort 2. HDMI™ 3. Flash BIOS Button 4. USB 5Gbps Type-A 5. 2.5G LAN 6. Wi-Fi / Bluetooth 7. Audio connectors 8. USB 5Gbps Type-C 9. USB 2.0
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- PCB Info
- mATX 226mmx243.84mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
