- Model:B760M GAMING PLUS WIFI DDR4
- Intel B760 chipset, LGA 1700 socket
- 4x DDR4 slots, up to 128GB memory
- PCIe 4.0 support, 2x M.2 slots
- WiFi 6E, 2.5G LAN, 7.1 audio
- 3 Years Warranty from MSI
Overview

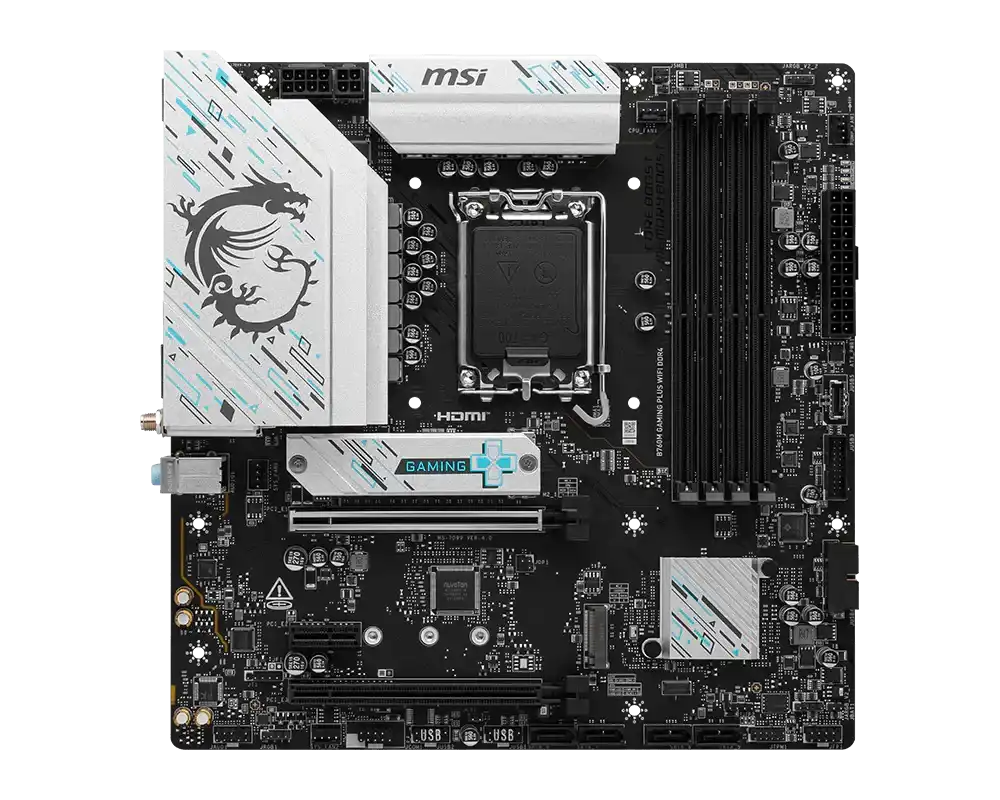

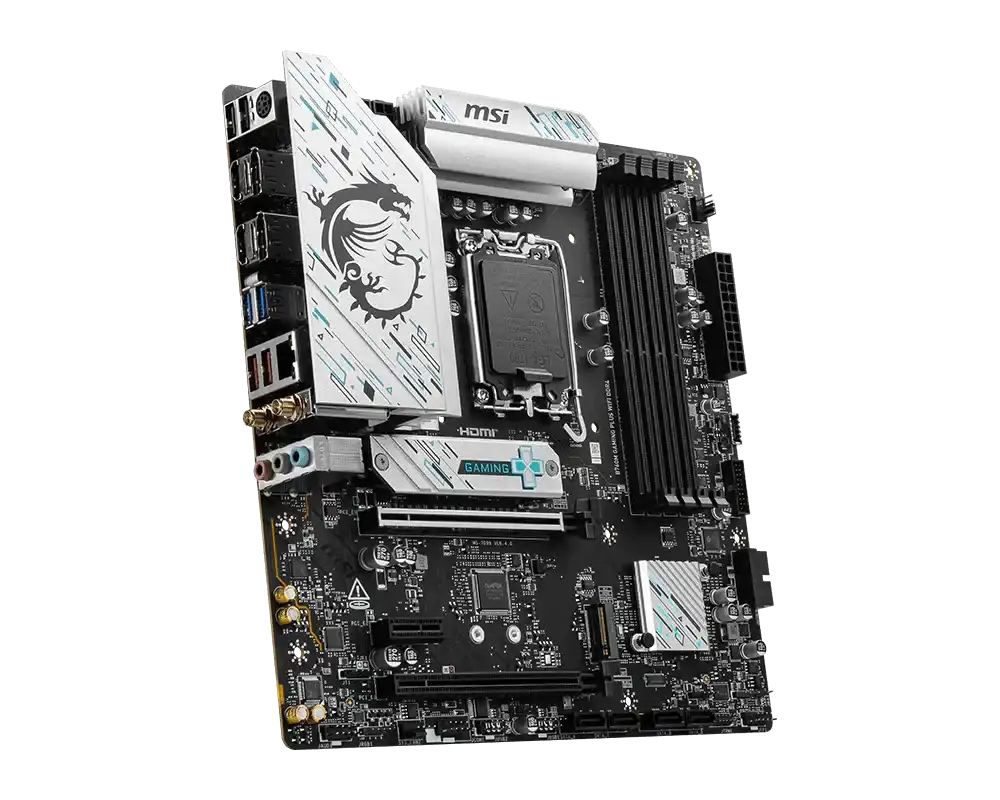

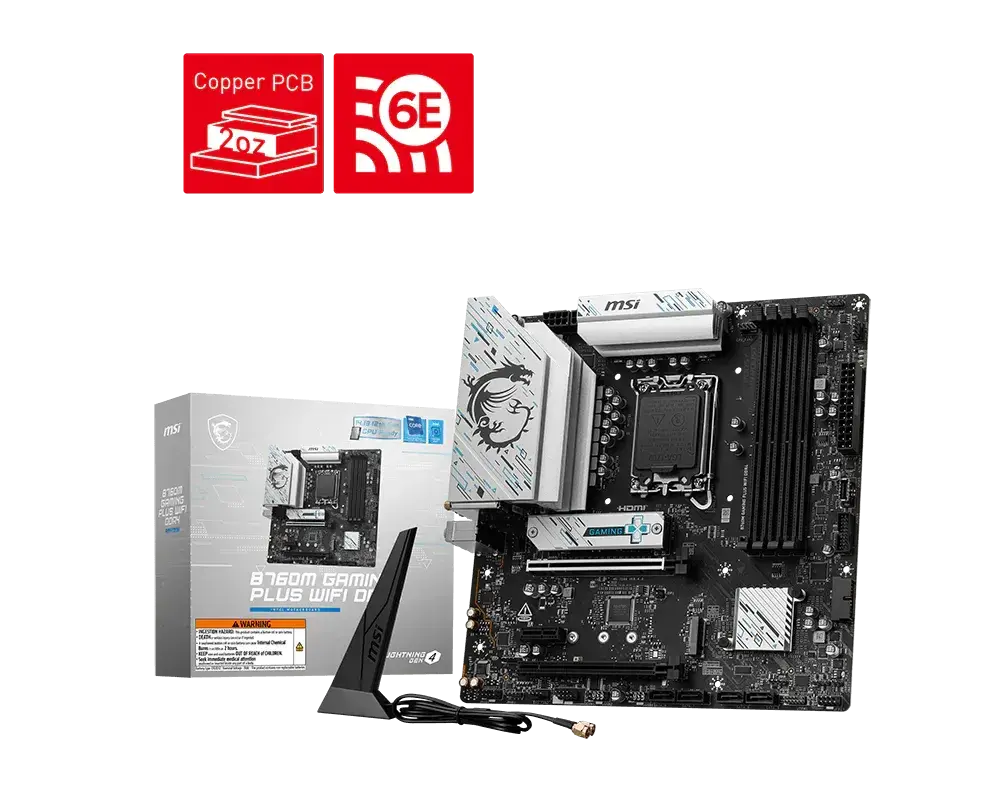

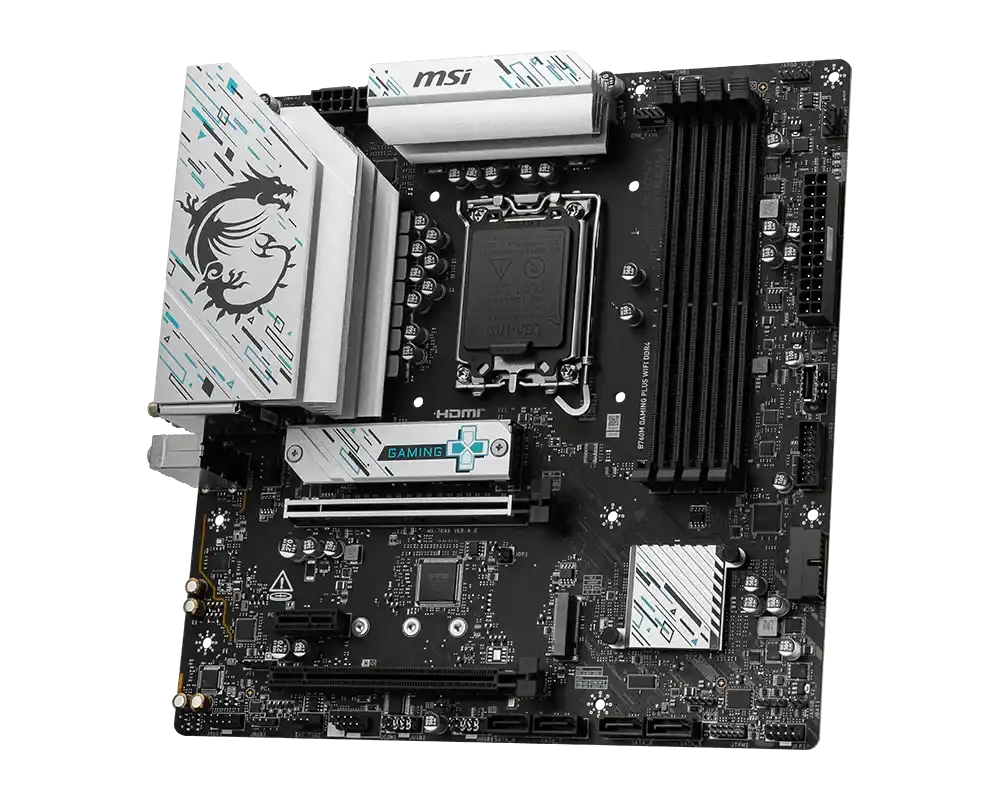

The MSI B760M GAMING PLUS WIFI DDR4 is a micro-ATX motherboard built on the Intel B760 chipset, supporting Intel Core 14th, 13th, and 12th Gen processors on the LGA 1700 socket. This board features 4 DDR4 DIMM slots with support for up to 128GB of memory at speeds up to 5333MHz (OC), with Intel XMP 3.0 support for easy overclocking.
Connectivity is robust with Intel WiFi 6E providing up to 2.4Gbps wireless speeds across 2.4GHz, 5GHz, and 6GHz bands, plus Bluetooth 5.3. The board includes a Realtek RTL8125BG 2.5G LAN port for wired networking. Storage options include 2x M.2 slots (both PCIe 4.0 capable) and 4x SATA 6G ports with RAID support.
The audio system features a Realtek ALC897 codec with 7.1-channel HD audio. Expansion slots include 2x PCIe x16 slots and 1x PCIe x1 slot, with the primary slot supporting PCIe 4.0 x16 from the CPU. USB connectivity includes 2x USB 10Gbps Type-A (rear), 4x USB 5Gbps Type-A (front), 1x USB 5Gbps Type-C (front), plus legacy USB 2.0 ports. Video output supports 2x HDMI 2.1 and 2x DisplayPort 1.4 for up to 4K 60Hz displays.
- Intel B760 chipset with LGA 1700 socket
- Supports Intel Core 14th/13th/12th Gen processors
- 4x DDR4 DIMM slots, up to 128GB capacity
- DDR4 speeds up to 5333MHz (OC) with Intel XMP 3.0
- 2x M.2 slots with PCIe 4.0 support
- 4x SATA 6G ports with RAID 0/1/5/10
- Intel WiFi 6E with 2.4Gbps throughput
- Bluetooth 5.3 support
- Realtek RTL8125BG 2.5G LAN
- Realtek ALC897 7.1-channel HD audio
- 2x HDMI 2.1 and 2x DisplayPort 1.4 outputs
- 2x PCIe x16 and 1x PCIe x1 expansion slots
- USB 10Gbps Type-A and USB 5Gbps connectivity
- Micro-ATX form factor (243.84 x 243.84mm)
- Windows 11/10 64-bit support
Specifications
- Chipset
- INTEL B760
- CPU
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
- Memory
- 4x DDR4, Maximum Memory Capacity 128GB Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 5333+ MHz • 1DPC 2R Max speed up to 4800+ MHz • 2DPC 1R Max speed up to 4400+ MHz • 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
- Onboard Graphics
- 2x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 2x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear)
- LAN
- Realtek® RTL8125BG 2.5G LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
- LED FEATURE
- 4x EZ Debug LED
- BACK PANEL PORTS

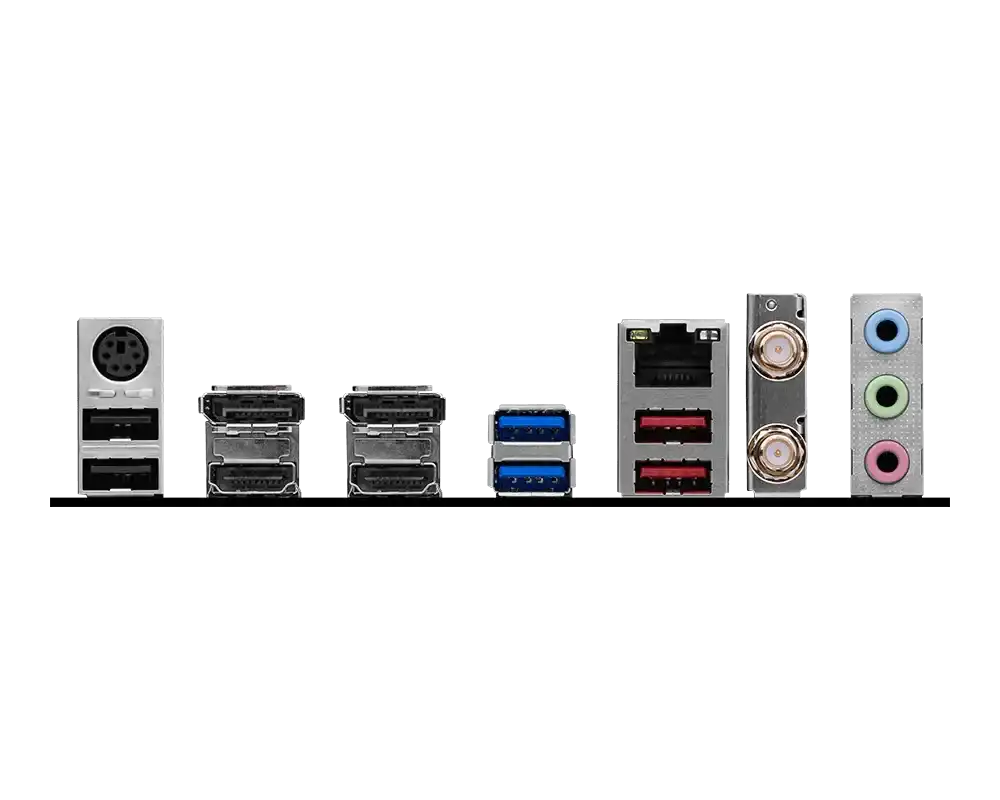

- 1. Keyboard / Mouse 2. DisplayPort 3. USB 5Gbps Type A ports 4. 2.5G LAN 5. Wi-Fi / Bluetooth 6. USB 2.0 7. HDMI™ 8. USB 10 Gbps Type A ports 9. Audio Connectors
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- PCB Info
- mATX 243.84mmx243.84mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
