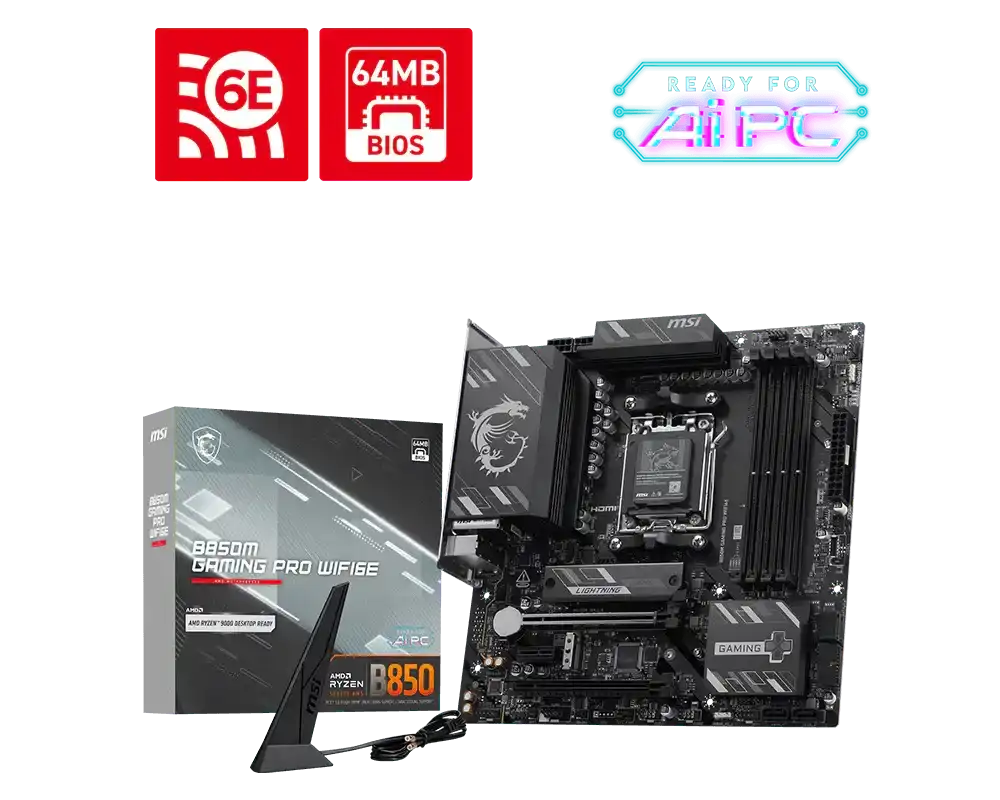

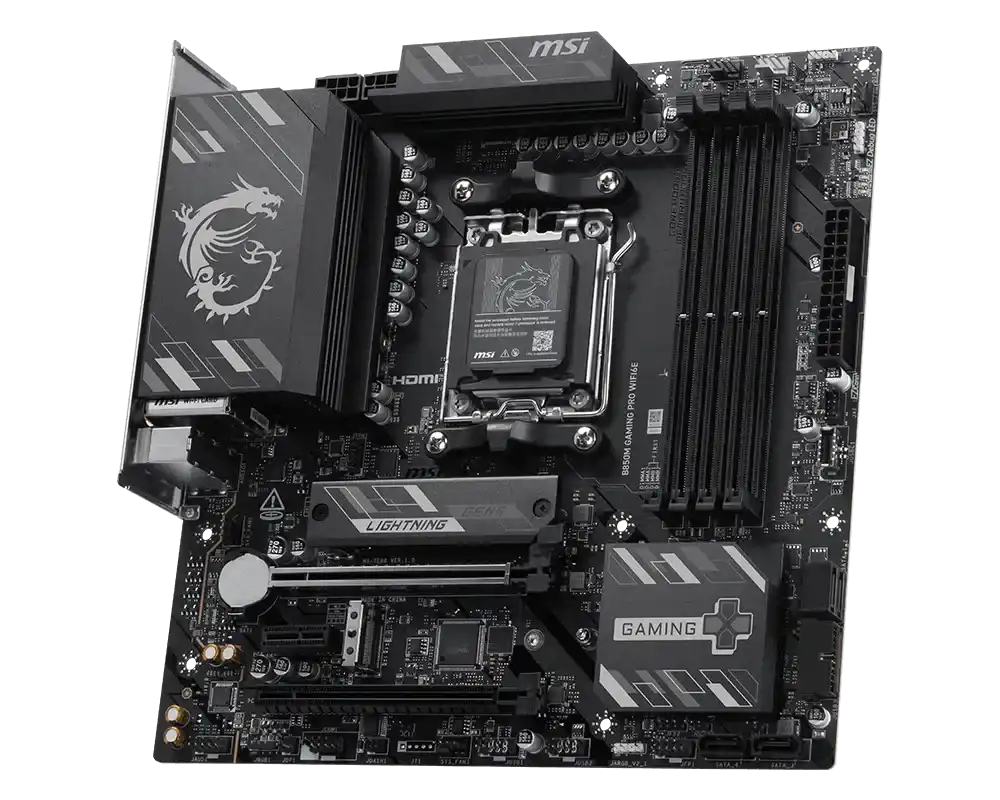

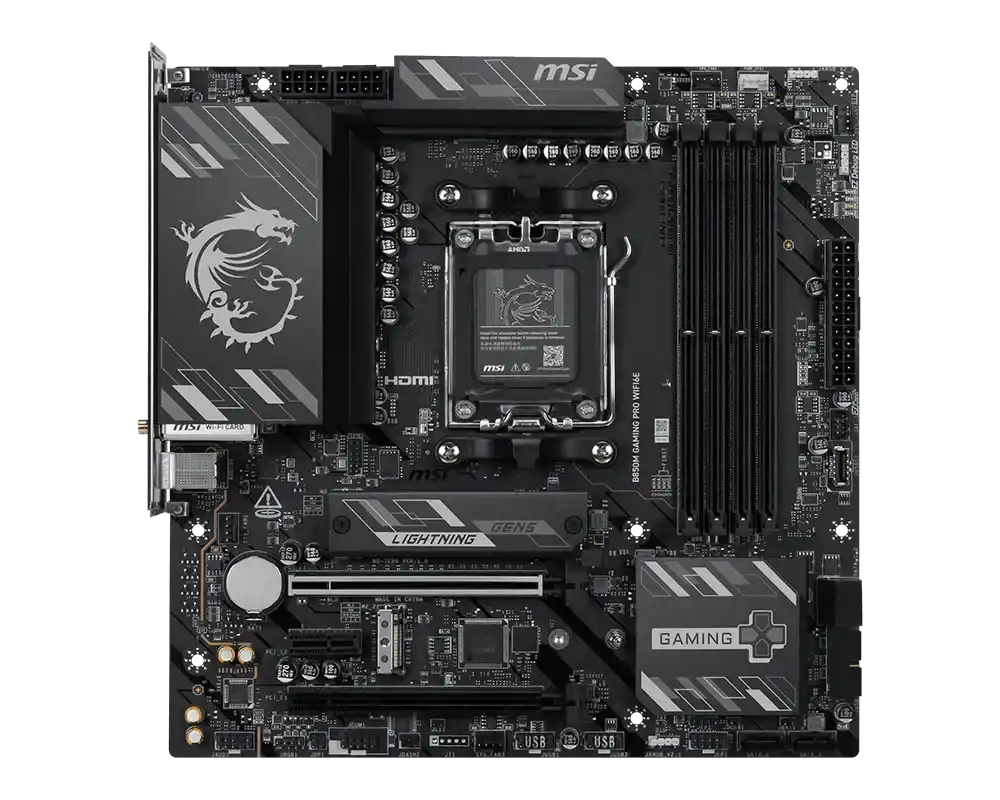

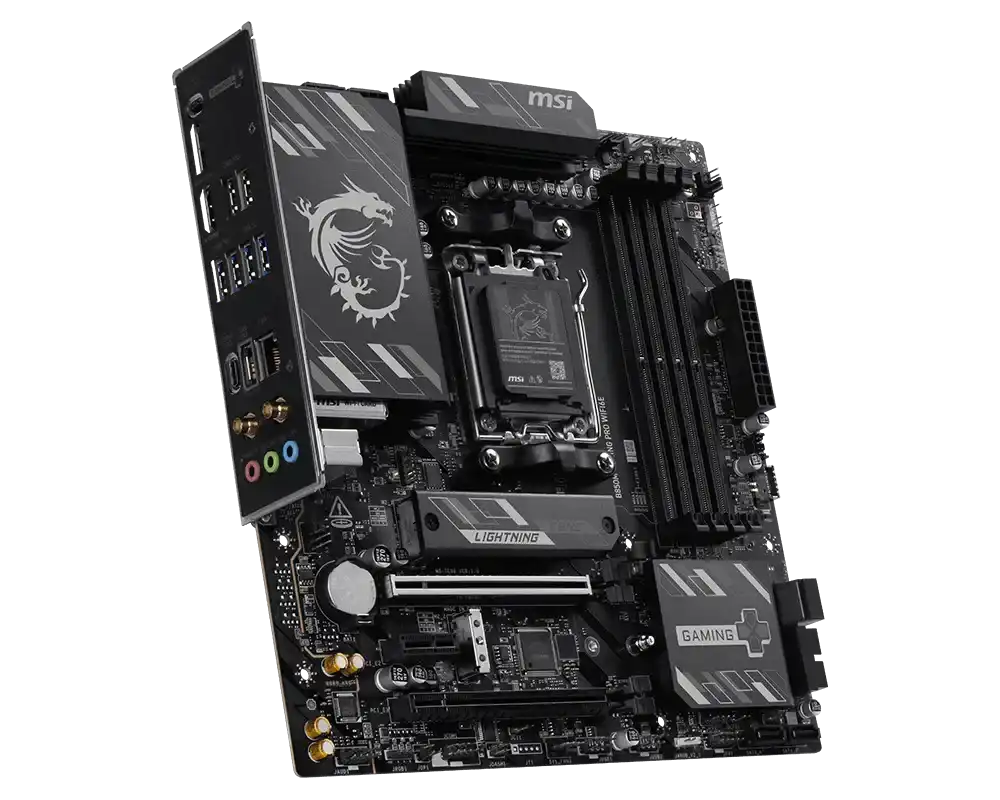

MSI B850M GAMING PRO WIFI6E Motherboard
- Model:B850M GAMING PRO WIFI6E
- AMD B850 chipset, Socket AM5, mATX form factor
- Supports AMD Ryzen 9000/8000/7000 series processors
- DDR5 memory support up to 8200+ MT/s (OC)
- Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 slot
- 3 Years Warranty from MSI
₹ 16,550
Out of Stock
1
Overview
The MSI B850M GAMING PRO WIFI6E is a micro-ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors. It features a robust 8+2+1 phase power delivery system with 55A DrMOS and dual 8-pin CPU power connectors, ensuring stable performance for gaming and demanding workloads.
Connectivity is premium with Wi-Fi 6E, 2.5G LAN, PCIe 5.0 M.2 slot, and multiple USB ports including USB 10Gbps Type-C. The board supports DDR5 memory up to 8200+ MT/s with EXPO and A-XMP profiles for easy overclocking.
Thermal management includes extended heatsinks, M.2 Shield Frozr, and 7W/mK thermal pads. EZ DIY features like EZ M.2 Clip II, EZ PCIe Clip II, and pre-installed I/O shield simplify assembly. The Click BIOS X interface offers intuitive one-click overclocking with Game Boost and AI Boost.
- Direct 8+2+1 Power System with 55A DrMOS
- Dual 8-pin CPU power connectors with Core Boost technology
- Wi-Fi 6E and 2.5G LAN for high-speed connectivity
- PCIe 5.0 x4 M.2 slot for ultra-fast storage
- DDR5 memory support up to 8200+ MT/s (OC)
- Extended heatsink design with 7W/mK thermal pads
- EZ DIY features: EZ M.2 Clip II, EZ PCIe Clip II, pre-installed I/O shield
- Click BIOS X with Game Boost and AI Boost
- 4x SATA 6G ports and dual M.2 connectors
- Multiple USB ports including USB 10Gbps Type-C
Specifications
- Chipset
- AMD B850
- CPU
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
- Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Audio
- Realtek® ALC897 7.1-Channel High Definition Audio
- Storage
- 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot** • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions. **The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processors.
- RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- USB
- 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front)
- LAN
- Realtek® 8125D 2.5G LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 3x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
- LED FEATURE
- 4x EZ Debug LED 1x EZ Memory Detection LED
- BACK PANEL PORTS

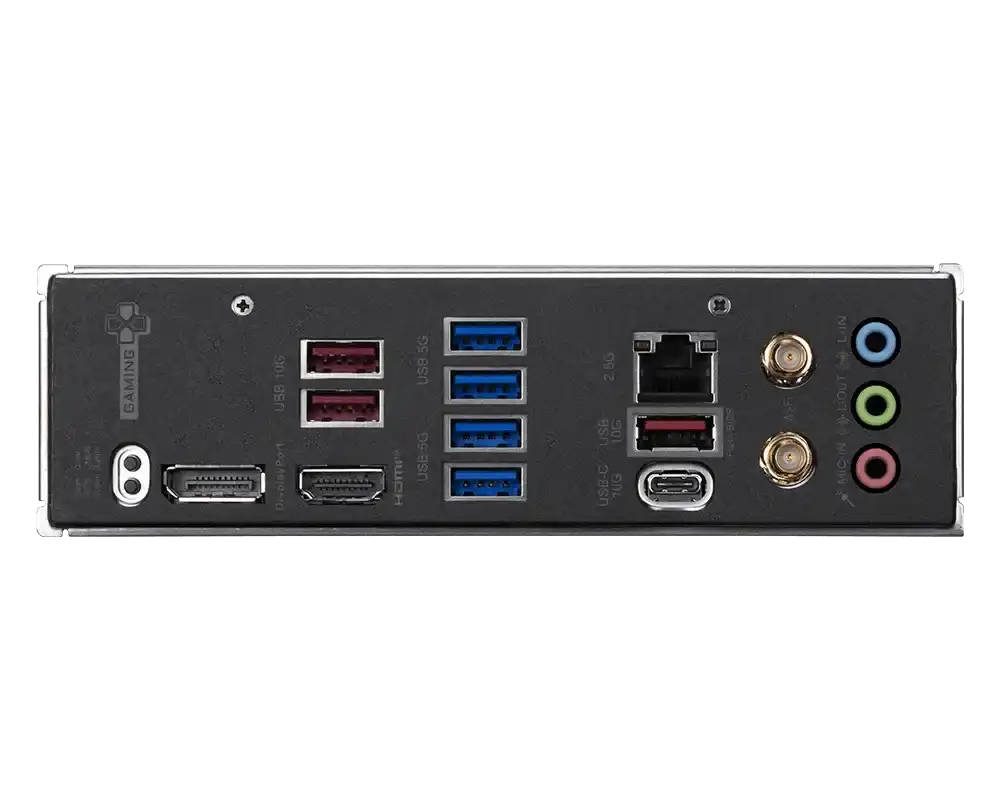

- 01. Clear CMOS Button 02. USB 10Gbps (Type-A) 03. USB 5Gbps (Type-A) 04. 2.5G LAN 05. Wi-Fi / Bluetooth 06. Audio Connectors 07. Flash BIOS Button 08. DisplayPort 1.4 09. HDMI™ 10. USB 10Gbps (Type-C) 11. USB 10Gbps (Type-A)
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- mATX 243.84mmx243.84mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
