- Model:H410M-A PRO
- Intel H410 chipset, LGA 1200 socket
- Micro-ATX form factor with DDR4 support
- Up to 64GB DDR4 memory, dual channel
- PCIe 3.0, 4x SATA, M.2 NVMe slot
- 3 Years Warranty from MSI
Overview

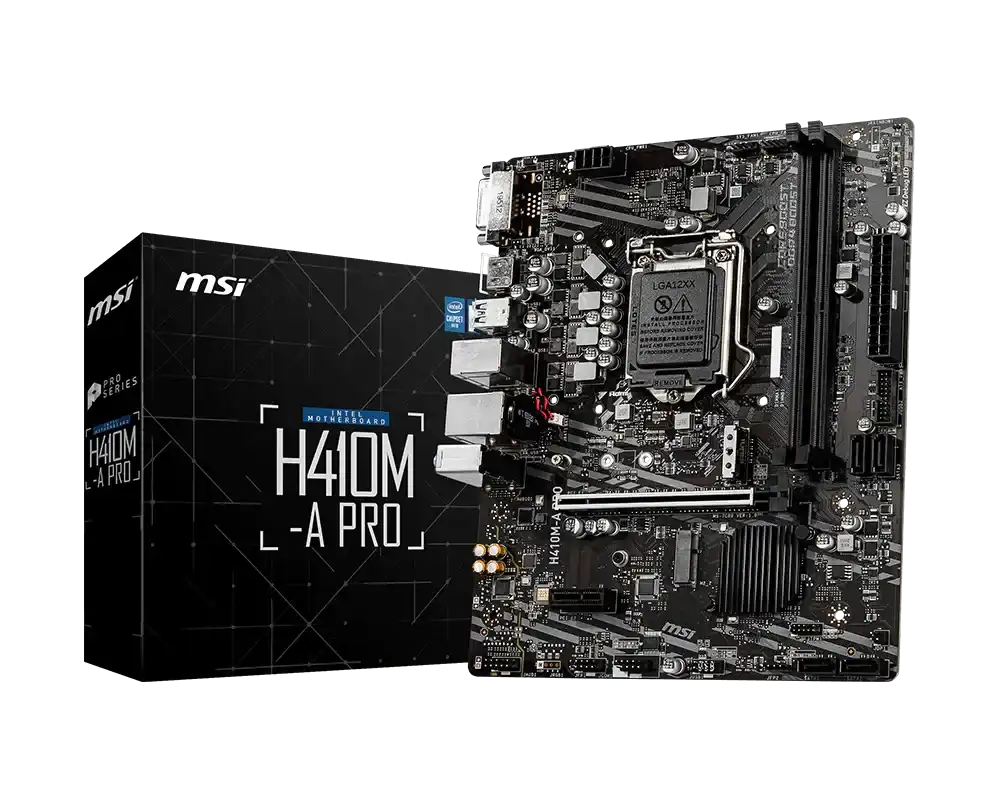

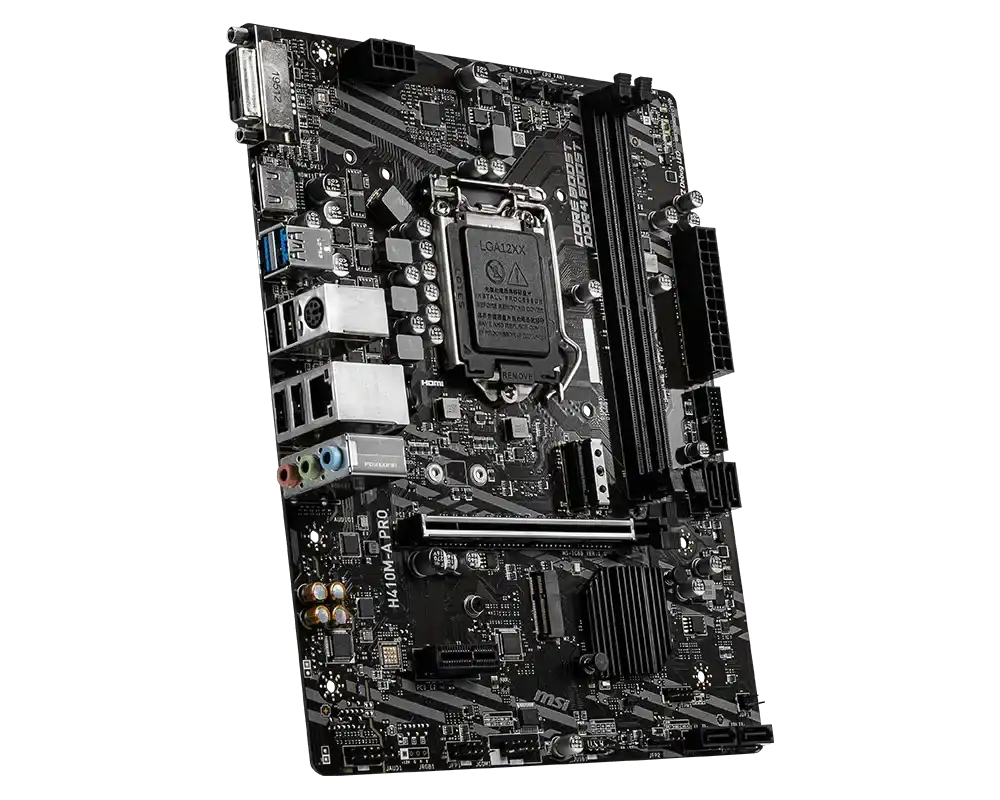

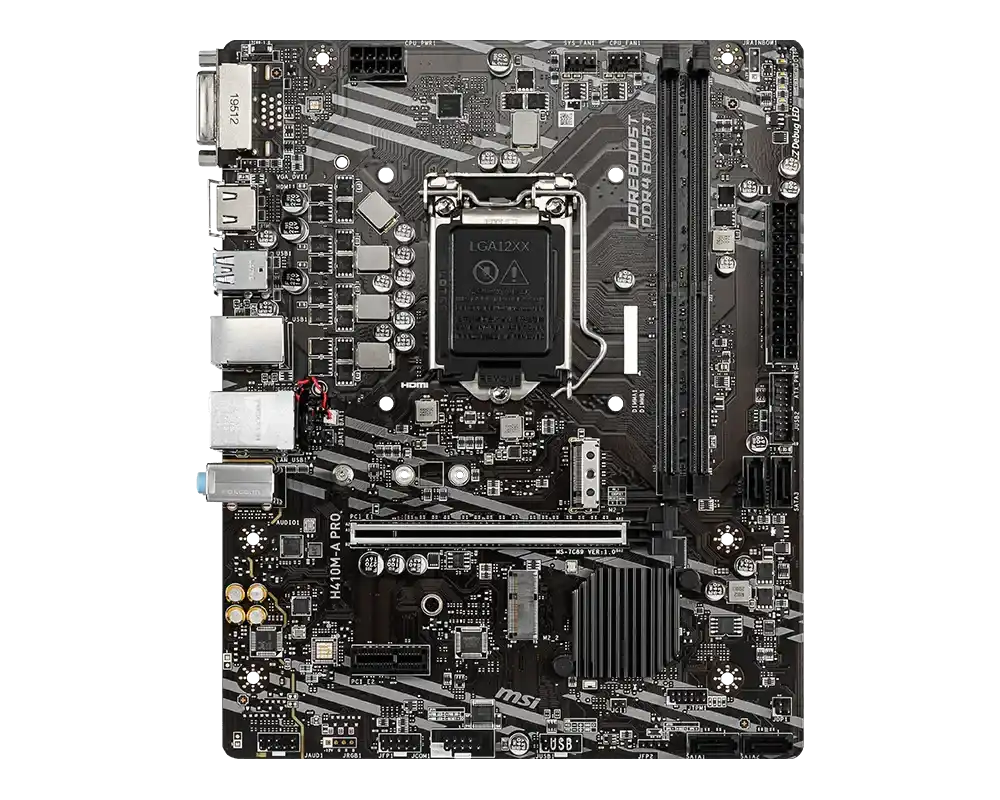

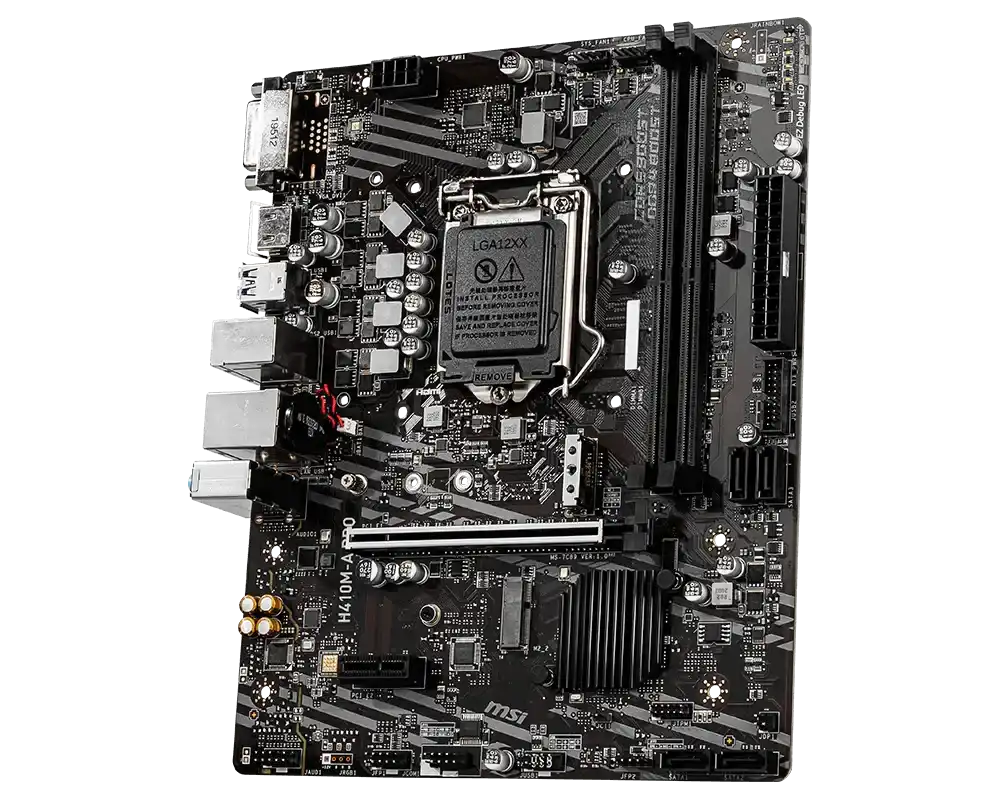

The MSI H410M-A PRO is a professional-grade Micro-ATX motherboard built on the Intel H410 chipset for 10th Gen Intel Core, Pentium, and Celeron processors. It delivers stable functionality and high-quality assembly ideal for efficient workflows and productivity.
This board supports up to 64GB of DDR4 memory in dual-channel configuration, with speeds up to DDR4 2933 MHz for Core i7/i9 processors. It features PCIe 3.0 expansion slots, 4 SATA 6Gb/s ports, and an M.2 slot supporting NVMe SSDs at PCIe 3.0 x4 speeds for maximum storage performance.
Connectivity includes Intel Gigabit LAN for stable networking, 4x USB 3.2 Gen 1 ports, 6x USB 2.0 ports, and comprehensive audio with Realtek ALC892/ALC897 codec. The board supports 4K output via HDMI 1.4 and includes onboard graphics support via DVI-D and HDMI ports.
- Intel H410 chipset with LGA 1200 socket for 10th Gen Intel processors
- Micro-ATX form factor (23.6 cm x 19.0 cm)
- Dual-channel DDR4 memory support up to 64GB (DDR4 2933 MHz max)
- 1x PCIe 3.0 x16 slot and 1x PCIe 3.0 x1 slot
- 4x SATA 6Gb/s ports and 1x M.2 NVMe slot (PCIe 3.0 x4)
- 4x USB 3.2 Gen 1 ports and 6x USB 2.0 ports
- Intel Gigabit LAN (I219V controller)
- 7.1-Channel High Definition Audio with Realtek codec
- 4K support via HDMI 1.4 and DVI-D output
- PCI-E Steel Armor for GPU protection
Specifications
- Chipset
- Intel® H410 Chipset
- Memory
- 2x DDR4 memory slots, support up to 64GB Intel® Core™ i7/ i9 Supports up to DDR4 2933 MHz Intel® Core™ i5 and below Supports up to DDR4 2666 MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)Please refer www.msi.com for more information on compatible memory.
- Onboard Graphics
- 1x DVI-D port, supports a maximum resolution of 1920x1200 @60Hz 1x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz
- Slot
- 1x PCIe 3.0 x16 slot (From CPU) 1x PCIe 3.0 x1 slot (From PCH) 1x M.2 slot with E key for WiFi module only
- Audio
- Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 4x SATA 6Gb/s ports 1x M.2 slot (Key M) M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
- USB
- 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 2.0 connector)
- LAN
- 1x Intel® I219V Gigabit LAN controller
- Internal IO
- 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x USB 2.0 connector (supports additional 2 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x TPM module connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED
- BACK PANEL PORTS

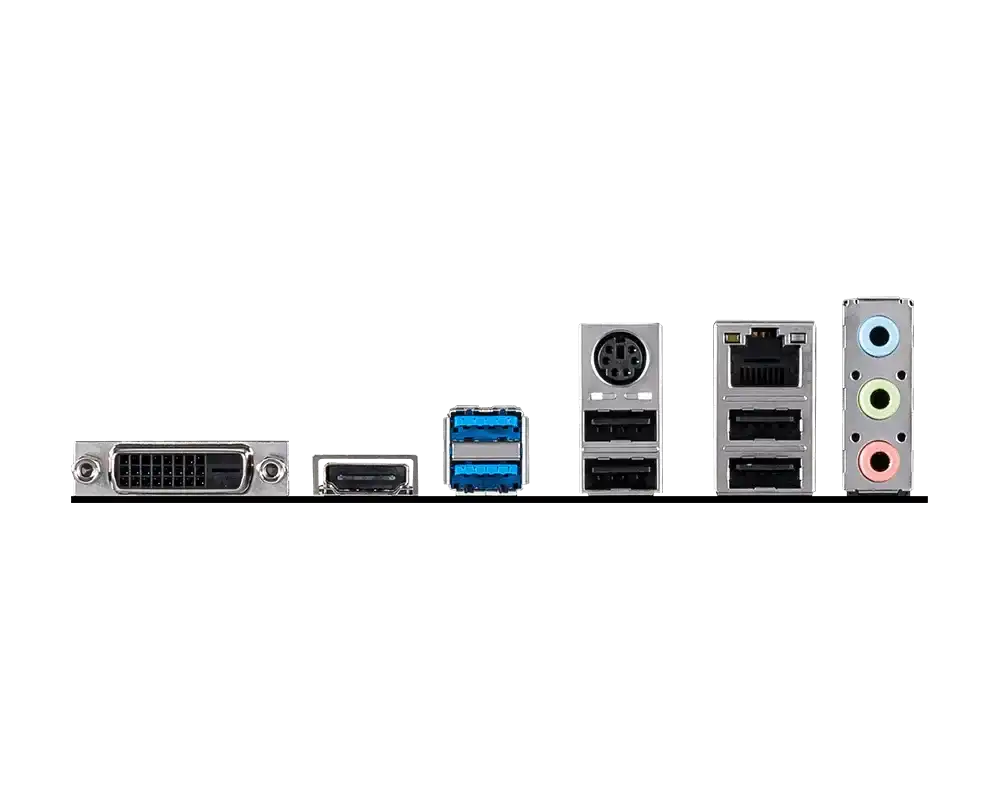

- 1. Keyboard / Mouse 2. LAN 3. DVI-D 4. HDMI™ 5. USB 3.2 Gen 1 5Gbps Type-A 6. USB 2.0 7. USB 2.0 8. Audio Connectors
- OPERATING SYSTEM
- Support for Windows® 10 64-bit
- Dimensions
- Mirco-ATX Form Factor 9.3 in. x 7.5 in. (23.6 cm x 19.0 cm)
- Mounting
- 6 mounting holes
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
