- Model:MAG B850 TOMAHAWK WIFI
- AMD B850 chipset, Socket AM5, ATX form factor
- Supports AMD Ryzen 9000/8000/7000 series processors
- DDR5 memory up to 8200+ MT/s (OC), 4 DIMM slots
- PCIe 5.0 slot, Wi-Fi 7, 5G LAN, USB 20Gbps
- 3 Years Warranty from MSI
Overview

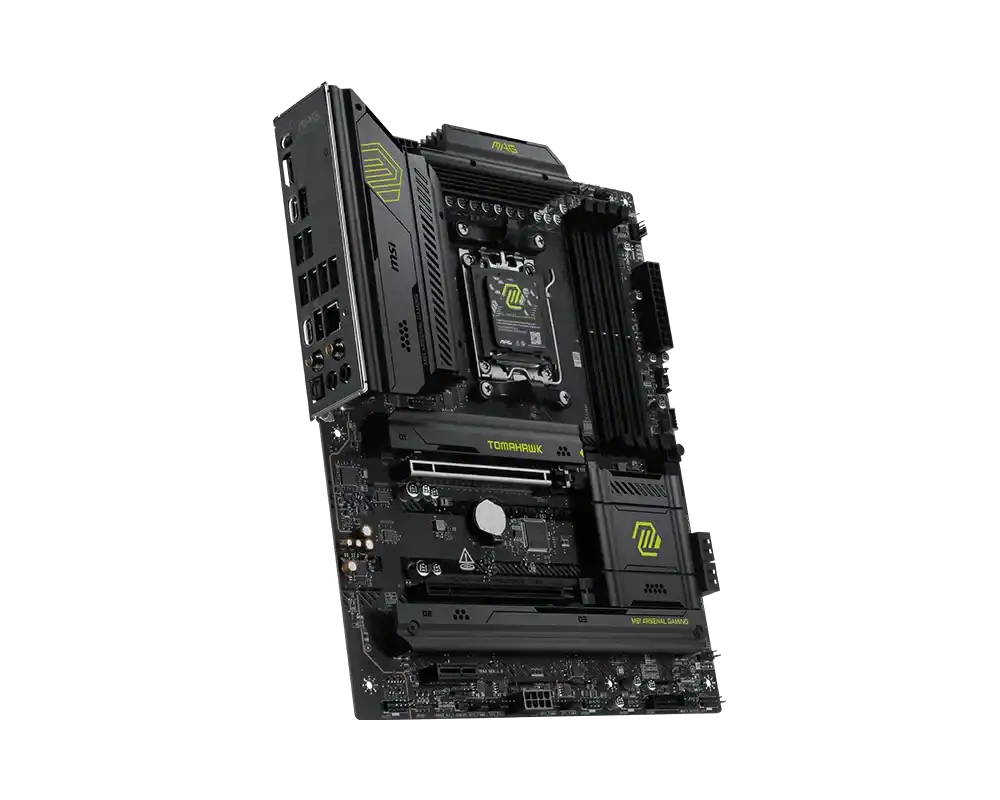

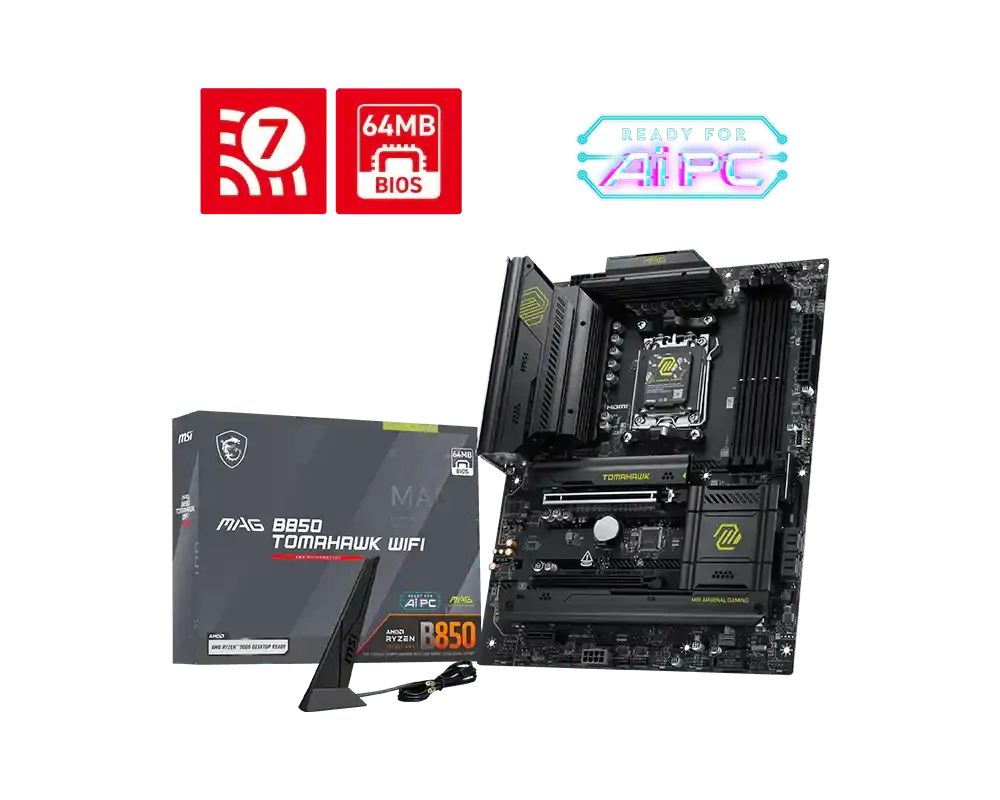

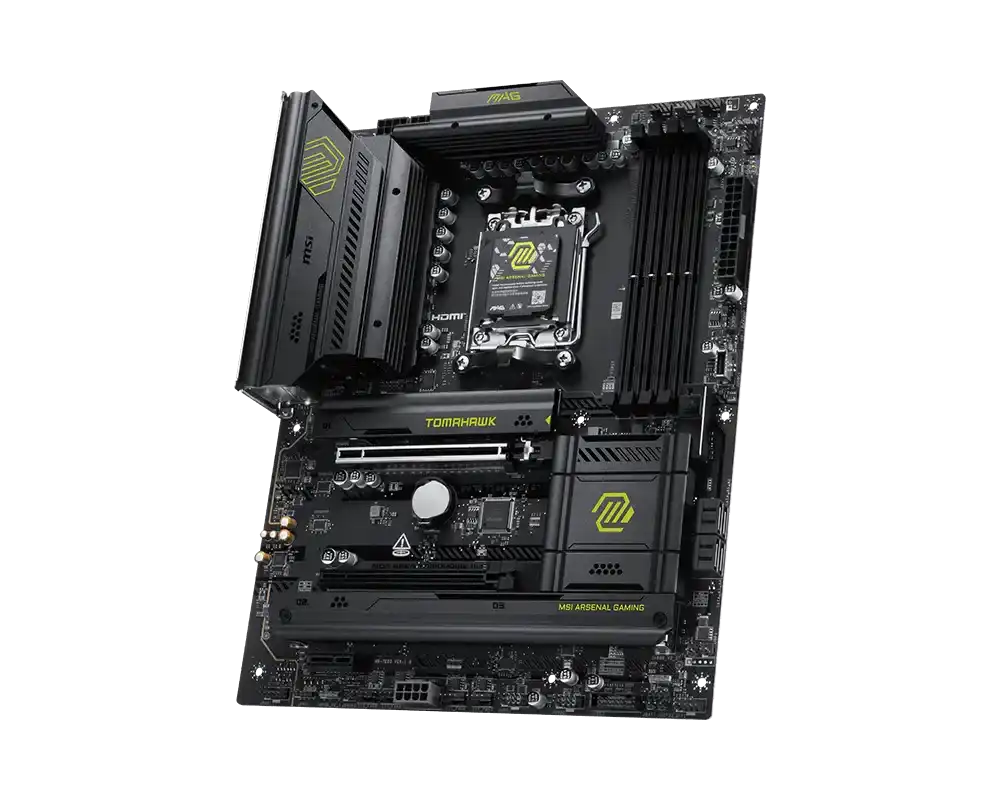

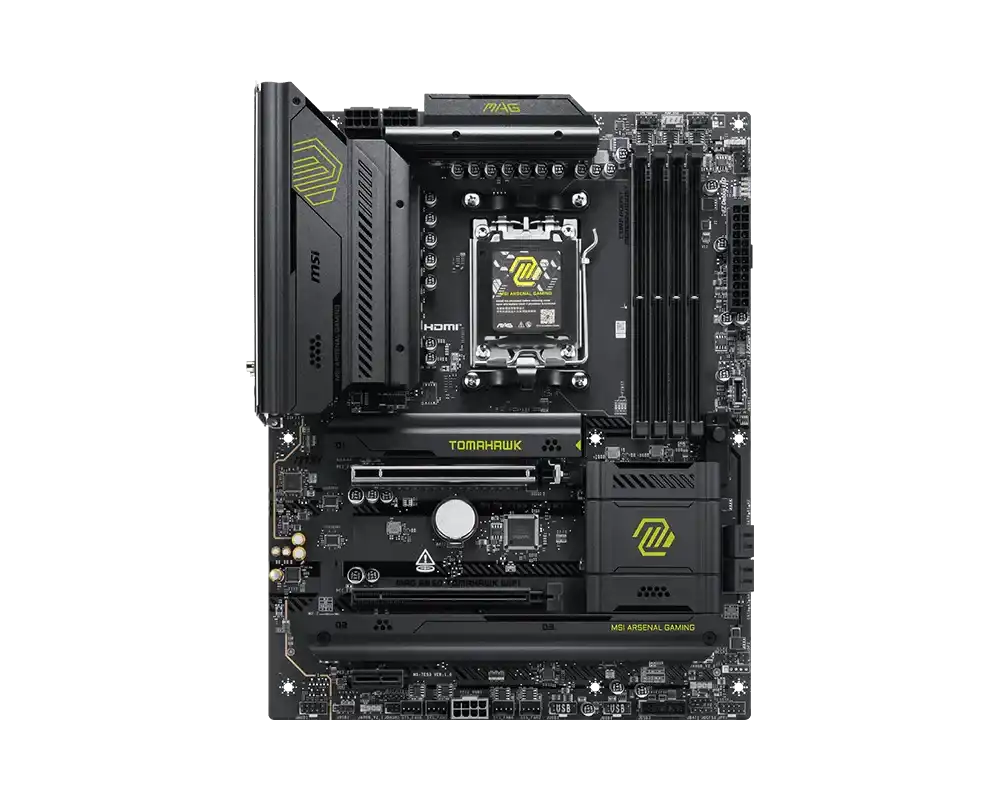

The MSI MAG B850 TOMAHAWK WIFI is a high-performance ATX motherboard designed for gamers and enthusiasts building systems around AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD B850 chipset with Socket AM5 compatibility, this board delivers stability and durability with a robust 14+2+1 Duet Rail Power System featuring 80A Smart Power Stages and dual 8-pin CPU power connectors.
The motherboard excels in connectivity with Wi-Fi 7 support, 5G LAN, PCIe 5.0 slot, and USB 20Gbps Type-C connectivity. Memory support includes four DDR5 UDIMM slots supporting speeds up to 8200+ MT/s (OC) with EXPO and A-XMP profiles. Storage options feature one PCIe Gen 5 M.2 slot and two PCIe Gen 4 M.2 slots for ultra-fast NVMe drives.
Thermal management is handled by an extended heatsink design, EZ M.2 Shield Frozr II, 7W/mK thermal pads, and a 6-layer server-grade PCB with 2oz copper. The board includes numerous DIY-friendly features such as EZ M.2 installation without screws, EZ PCIe Release, Clear CMOS button, and Flash BIOS button for hassle-free assembly and troubleshooting.
Audio quality is enhanced with the Realtek ALC4080 codec, Audio Boost 5, and isolated audio signal design. The Click BIOS X interface provides intuitive access to overclocking features including Game Boost, AI Boost, and Performance Preset options.
- AMD B850 chipset with Socket AM5 for Ryzen 9000/8000/7000 series
- 14+2+1 Duet Rail Power System with 80A SPS and dual 8-pin CPU power
- DDR5 memory support up to 8200+ MT/s (OC) with EXPO/A-XMP
- PCIe 5.0 x16 slot with Steel Armor II protection
- Wi-Fi 7 and 5G LAN for high-speed networking
- USB 20Gbps Type-C front connector
- Triple M.2 slots (1x Gen5, 2x Gen4) with EZ M.2 Shield Frozr II
- Extended heatsink with 7W/mK thermal pads
- EZ DIY features: EZ M.2 installation, EZ PCIe Release, Clear CMOS, Flash BIOS
- Realtek ALC4080 audio codec with Audio Boost 5
- Click BIOS X with Game Boost, AI Boost, and overclocking profiles
- Pre-installed I/O Shield and EZ Antenna with magnetic stand
- Supports PCIe Supplemental Power for high-end GPUs
Specifications
- Chipset
- AMD B850
- CPU
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
- Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Audio
- Realtek® ALC4080 Codec 7.1-Channel USB High Performance Audio Supports up to 32-bit/384kHz playback on front panel Supports S/PDIF output
- Storage
- 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) M2_3 slot • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) * Please refer to the manual for M.2 SSD heatsink restrictions
- Multi-GPU
- AMD MULTI-GPU Support
- RAID
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
- USB
- 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
- LAN
- Realtek® 8126VB 5G LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
- LED FEATURE
- 4x EZ Debug LED 1x EZ Memory Detection LED

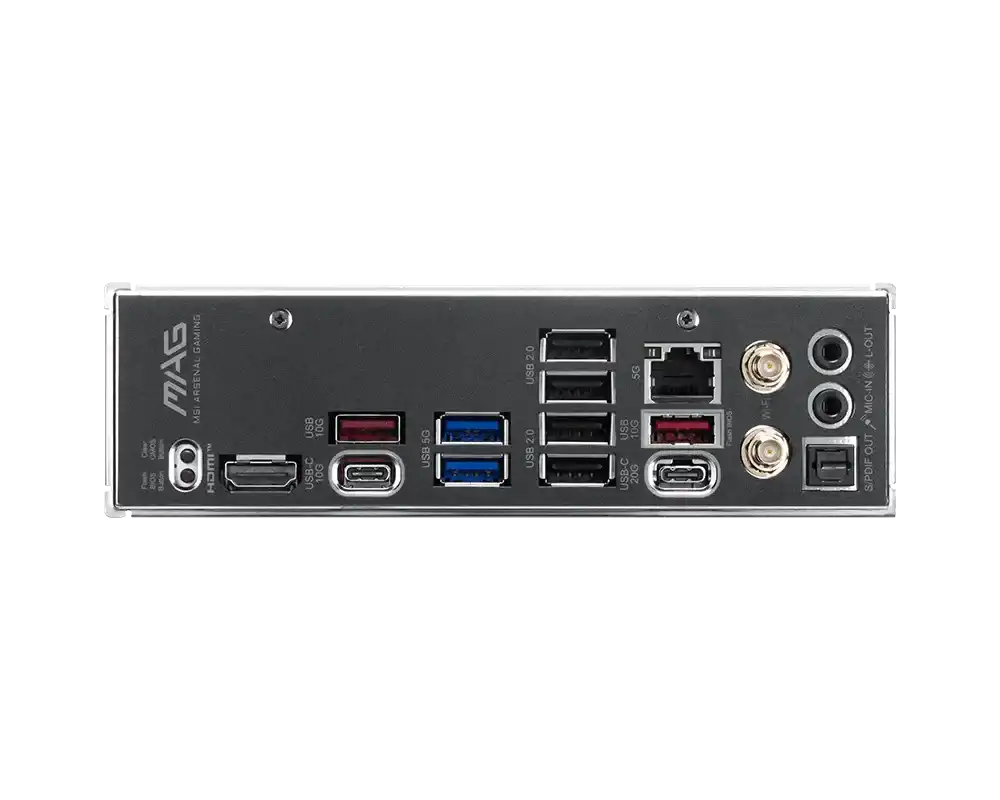

- BACK PANEL PORTS
- 01. Clear CMOS Button 02. USB 10Gbps Type-A 03. USB 5Gbps Type-A 04. USB 2.0 05. 5G LAN 06. Wi-Fi / Bluetooth 07. Audio Connectors 08. Flash BIOS Button 09. HDMI™ 10. USB 10Gbps Type-C 11. USB 20Gbps Type-C 12. USB 10Gbps Type-A 13. Optical S/PDIF Out
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- ATX 243.84mmx304.8mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
