- Model:MAG X870E GAMING PLUS MAX WIFI
- AMD X870E chipset, AM5 socket, ATX form factor
- DDR5 memory support up to 8200+ MT/s (OC)
- PCIe 5.0 slot, USB4 40Gbps, Wi-Fi 7, 5G LAN

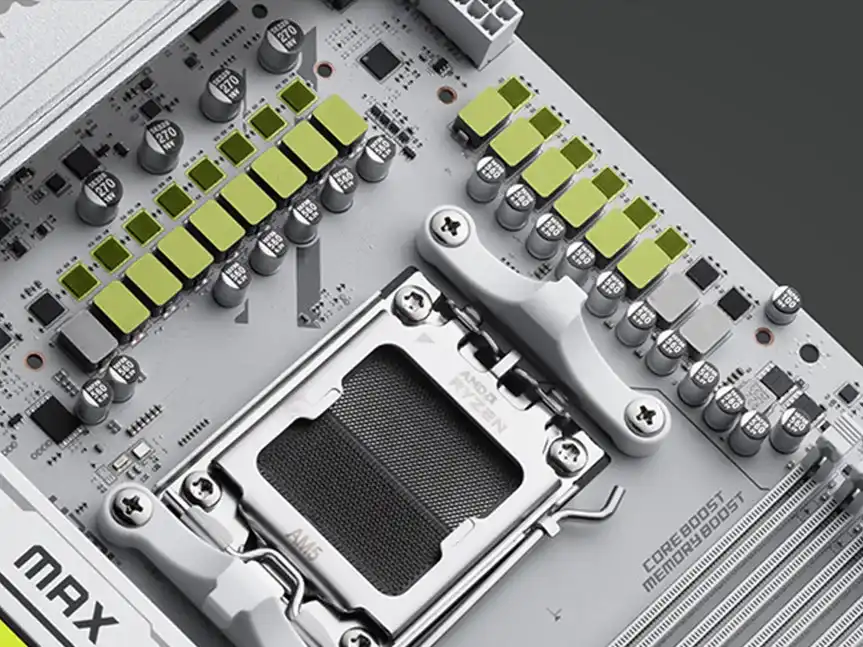

- 14+2+1 Duet Rail Power System 60A, extended heatsink
- 3 Years Warranty from MSI

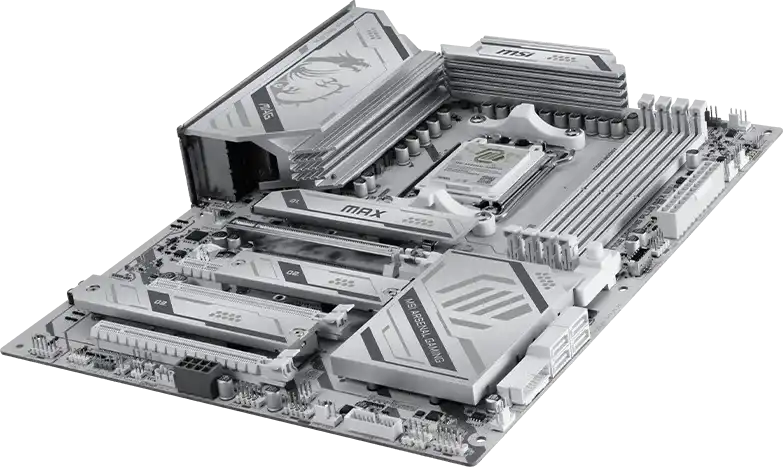

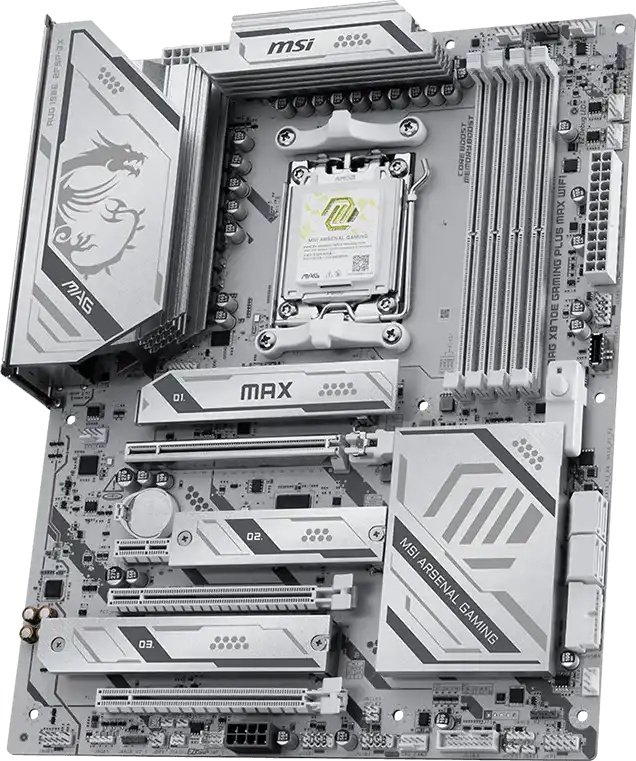

Overview
The MSI MAG X870E GAMING PLUS MAX WIFI is a premium ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. It features an all-white aesthetic with robust construction and advanced thermal solutions including an extended heatsink, 7W/mK thermal pads, and EZ M.2 Shield Frozr II for optimal cooling performance.

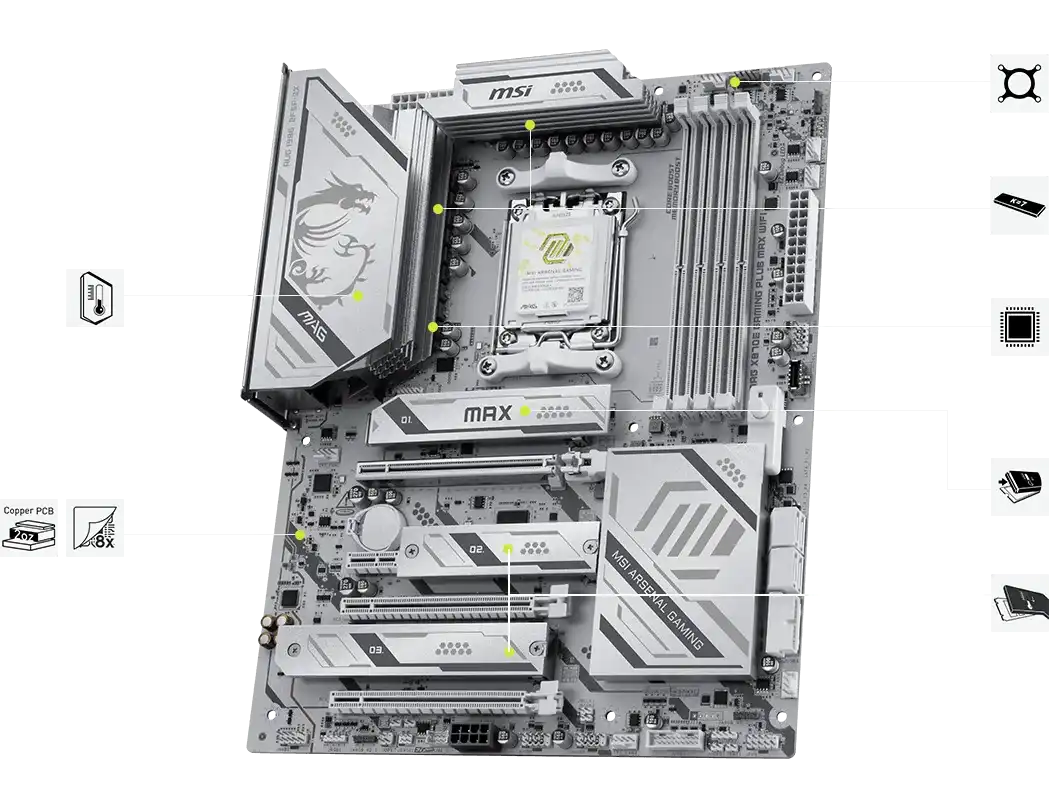

This motherboard delivers exceptional performance with a 14+2+1 Duet Rail Power System rated at 60A SPS, dual 8-pin CPU power connectors, and an 8-layer server-grade PCB with 2oz copper. It supports the latest DDR5 memory at speeds up to 8200+ MT/s with EXPO and A-XMP profiles for easy overclocking.

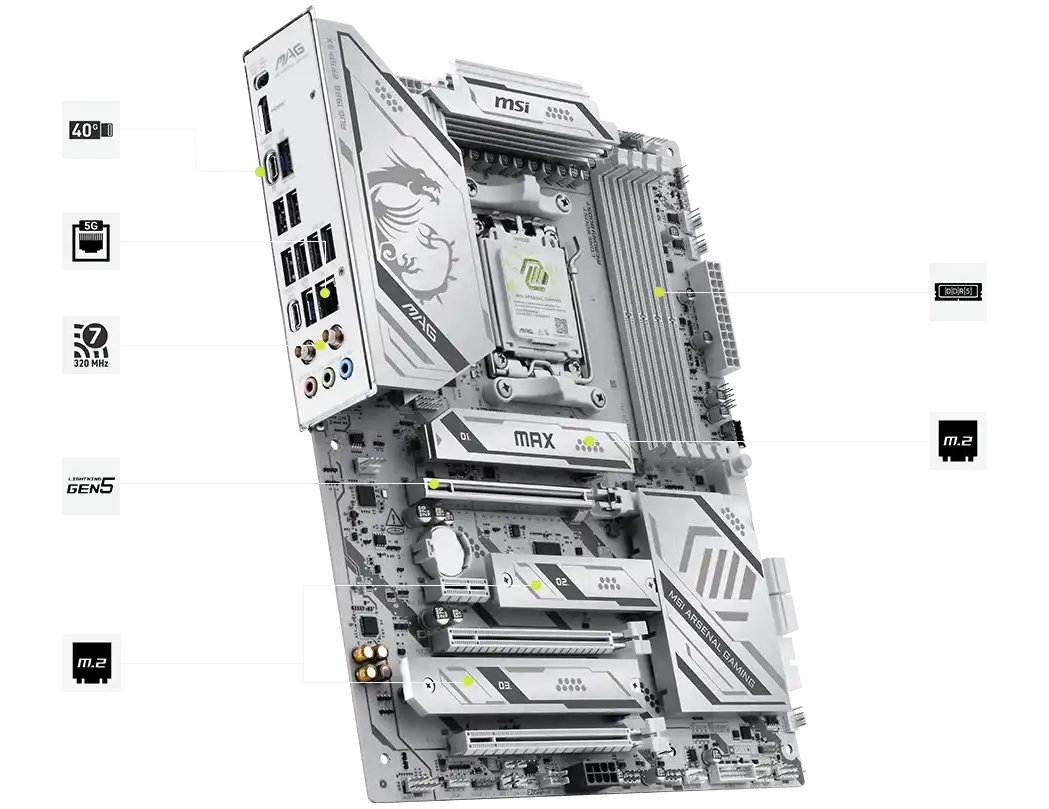

Connectivity is top-tier with Wi-Fi 7 (5.8 Gbps), 5G LAN, USB4 (40Gbps), PCIe 5.0 support for both GPU and NVMe storage, and comprehensive USB ports. The board includes extensive EZ DIY features such as EZ M.2 installation without screws, EZ PCIe Release, and pre-installed I/O shield for hassle-free assembly.
Advanced features include AI Engine for automatic optimization, Frozr AI Cooling for intelligent fan management, Click BIOS X with one-click overclocking, and MSI Center software for unified system control. The board is ready for AI PC applications with dedicated AI boost capabilities.
- AMD X870E chipset with AM5 socket for Ryzen 9000/8000/7000 series
- 14+2+1 Duet Rail Power System 60A SPS with dual 8-pin CPU power
- DDR5 memory support up to 8200+ MT/s (OC) with EXPO/A-XMP
- PCIe 5.0 x16 slot and PCIe 5.0 x4 M.2 slot with optimized lane bifurcation
- Wi-Fi 7 (802.11be) with 5.8 Gbps max speed and 5G LAN
- USB4 with 40Gbps transfer rate and multiple device connectivity
- Extended heatsink design with 7W/mK thermal pads and EZ M.2 Shield Frozr II
- 8-layer server-grade PCB with 2oz copper for superior signal integrity

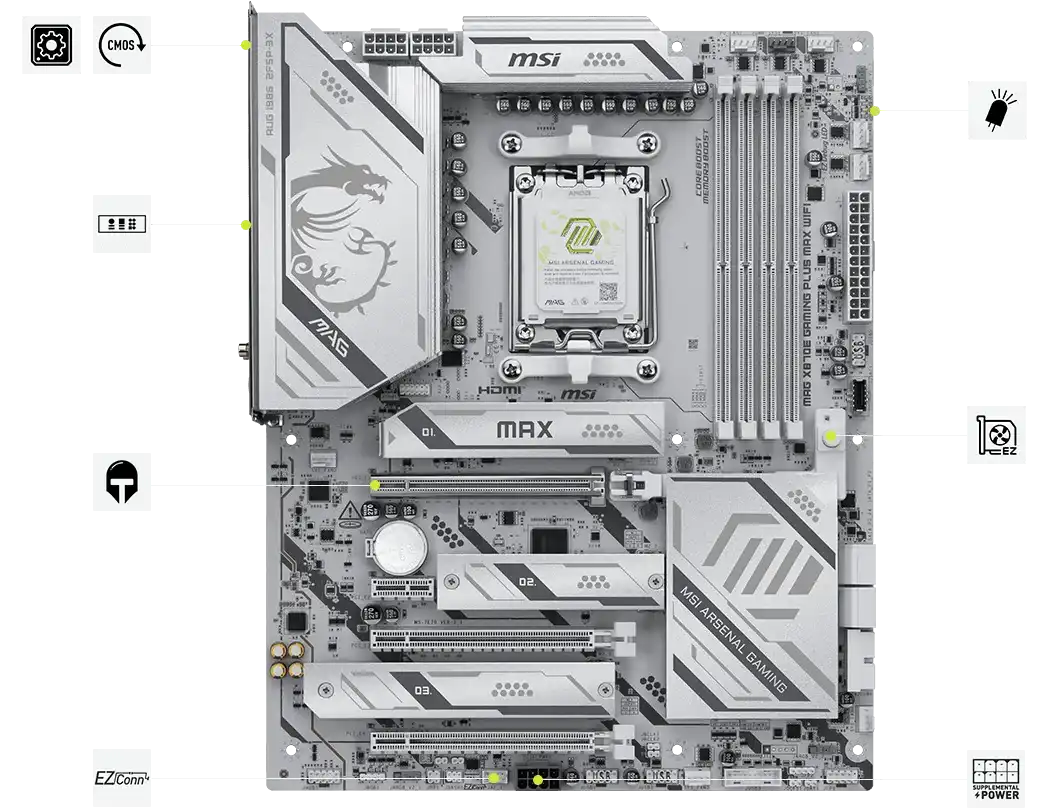

- EZ DIY features: EZ M.2 installation, EZ PCIe Release, pre-installed I/O shield
- AI Engine, Frozr AI Cooling, and Click BIOS X with Game Boost and AI Boost
- Audio Boost with isolated analog structure and high-quality audio components
- Mystic Light RGB with A-Rainbow V2 and ARGB Gen2 support
- All-white aesthetic covering heatsink, PCB, slots, and connectors
- OC Engine dedicated chip for independent BCLK control and up to 15% performance boost
- PCIe Supplemental Power for high-power GPU demands
- Steel Armor II with 1.2x weight endurance improvement
- 64MB BIOS ROM for complete feature-rich BIOS interface
Specifications
- Chipset
- AMD X870E
- CPU
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
- Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 2.1 TMDS, maximum resolution of 4K 60Hz** 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz** *Available only on processors featuring integrated graphics **Graphics specifications may vary depending on the CPU installed
- Slot
- 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Audio
- Realtek® ALC897 7.1-Channel High Definition Audio
- Storage
- 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From CPU) • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) M.2_3 slot (From CPU) • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
- RAID
- •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
- USB
- 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
- LAN
- 1x Realtek® 8126 5G LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
- LED FEATURE
- 4x EZ Debug LED 1x EZ Memory Detection LED

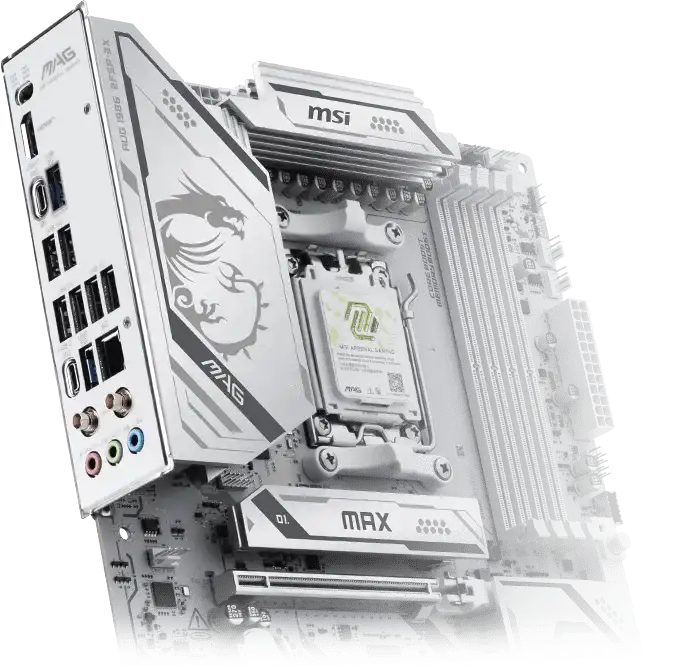

- BACK PANEL PORTS
- 01. Clear CMOS Button 02. USB 5Gbps Type-A 03. USB 2.0 04. 5G LAN 05. Wi-Fi / Bluetooth 06. Audio connectors 07. Flash BIOS Button 08. HDMI™ 09. USB 40Gbps Type-C 10. USB 10Gbps Type-A 11. USB 20Gbps Type-C 12. USB 5Gbps Type-A
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- ATX 243.84mmx304.8mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
