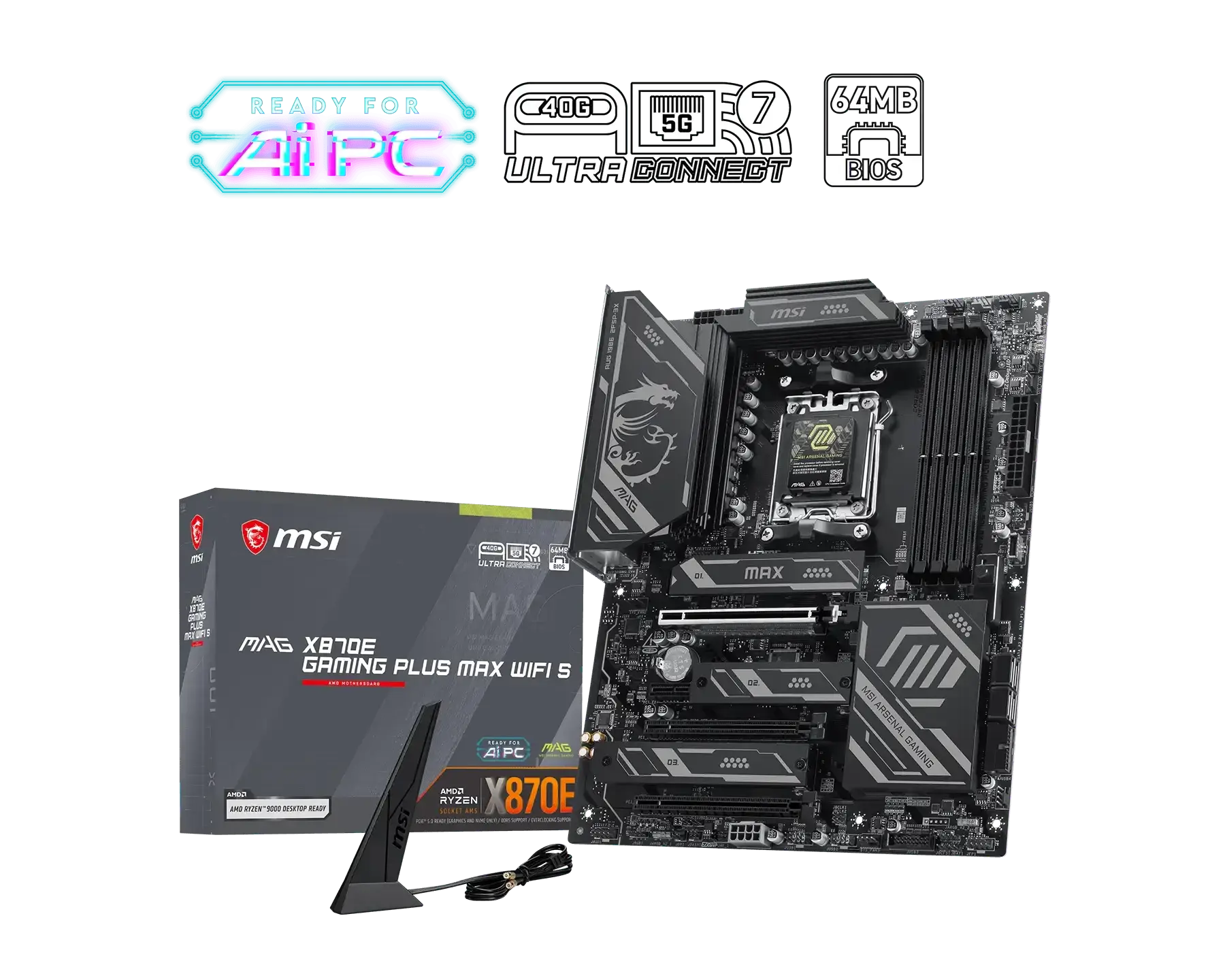

- Model:MAG X870E GAMING PLUS MAX WIFI S
- AMD Ryzen 9000/8000/7000, X870E chipset, AM5 socket
- DDR5 memory support up to 8200+ MT/s (OC)
- PCIe 5.0 slot, USB4 40Gbps, Wi-Fi 7, 5G LAN
- 14+2+1 VRM, extended heatsink, EZ DIY features
- 3 Years Warranty from MSI
Overview

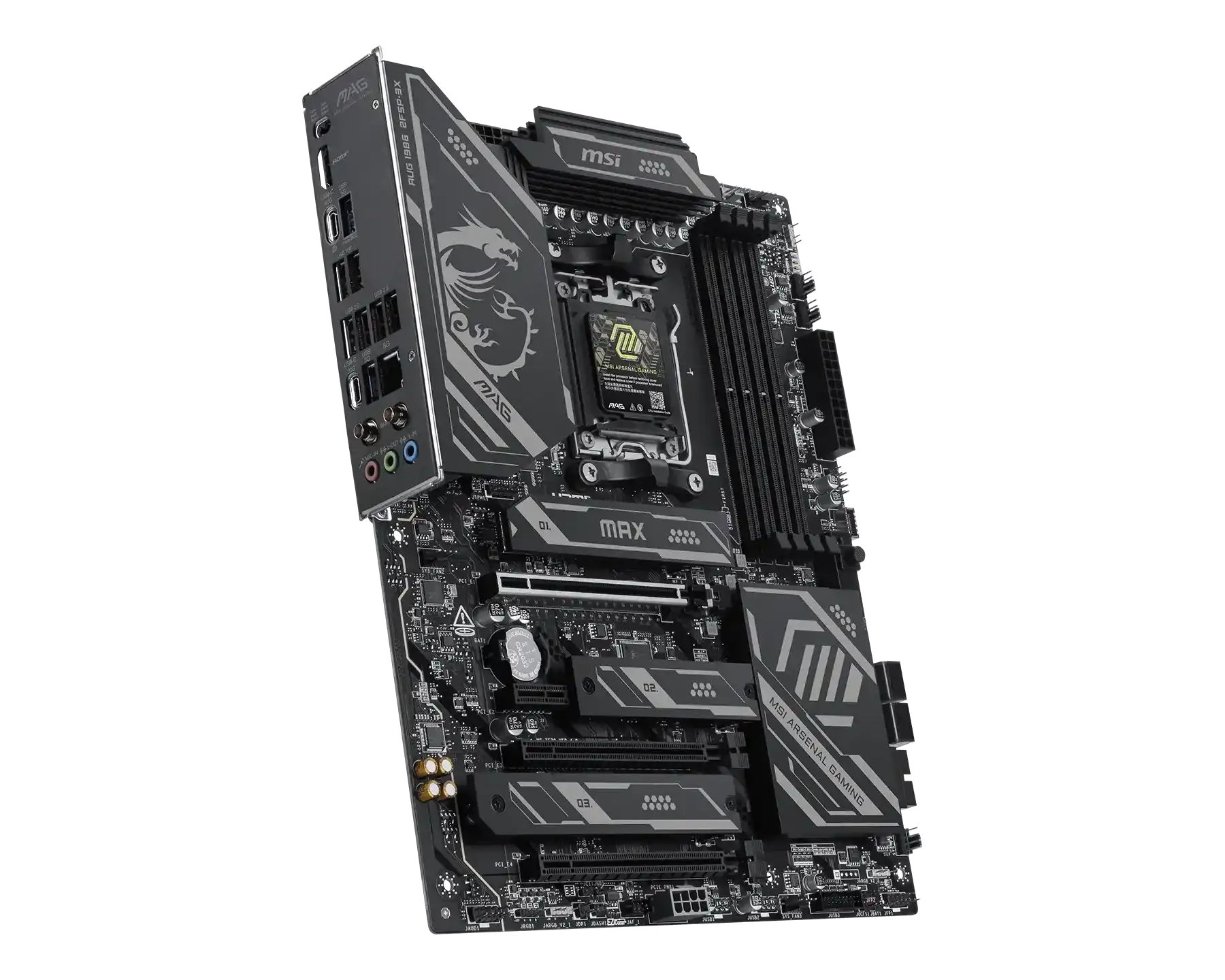

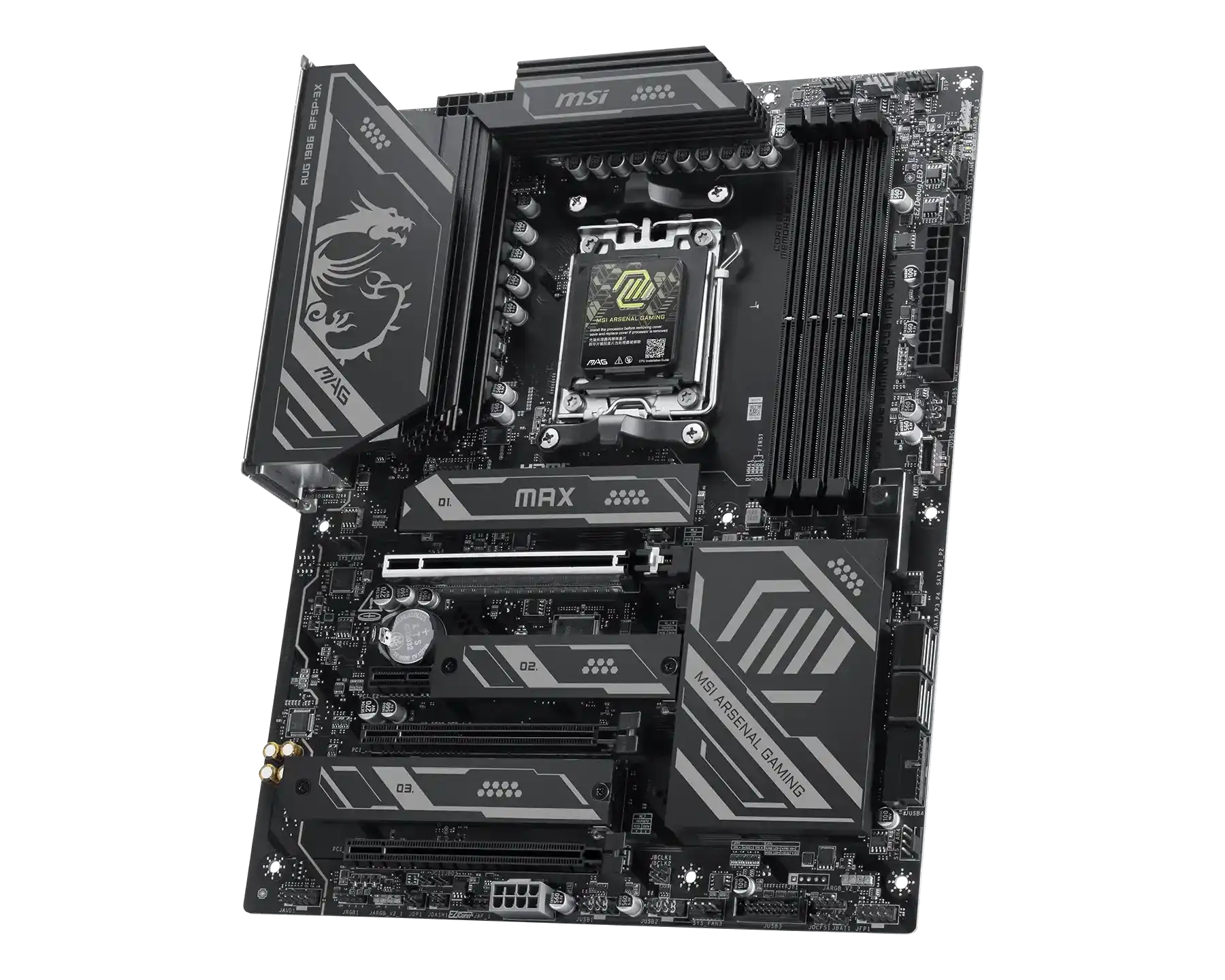

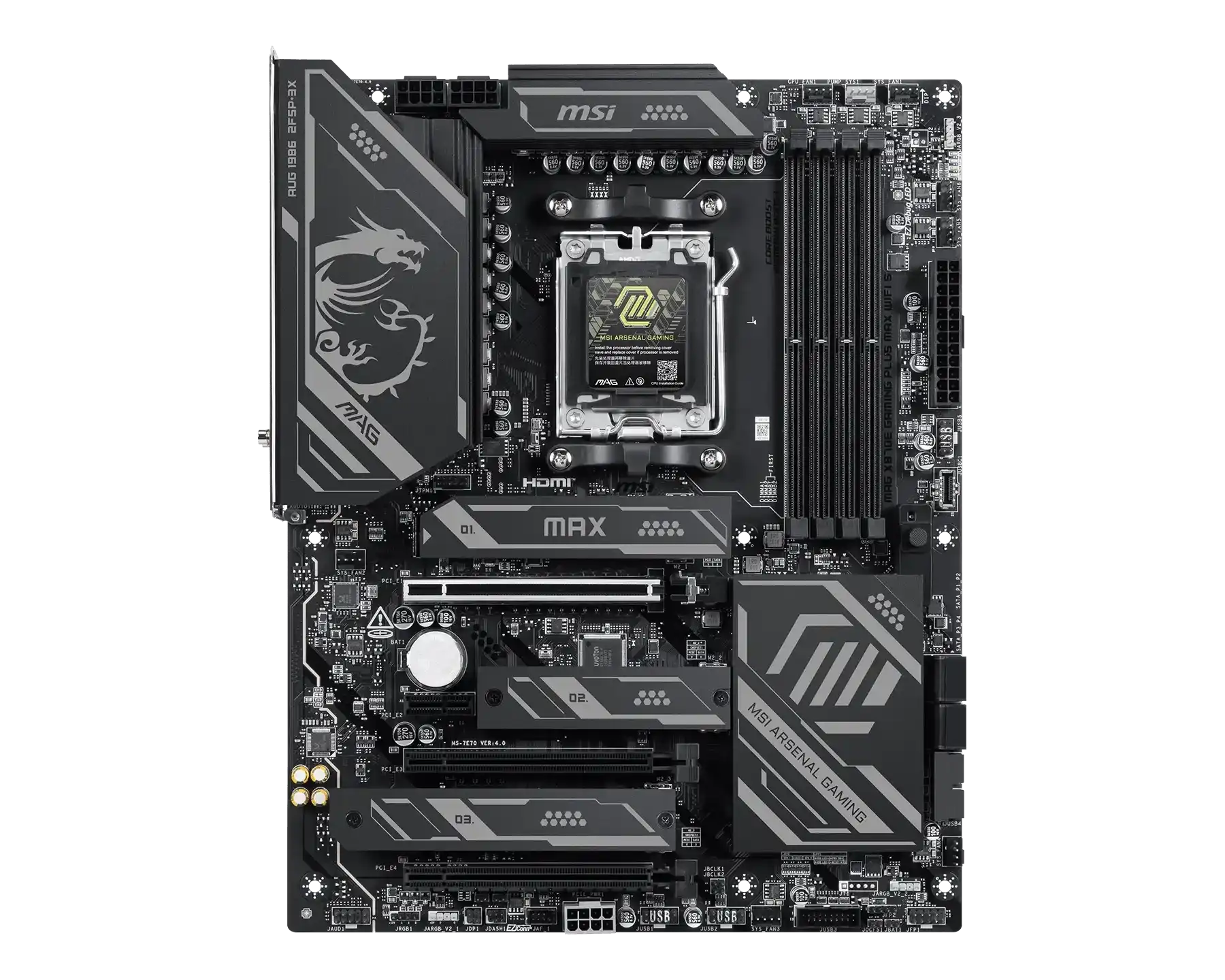

The MSI MAG X870E GAMING PLUS MAX WIFI S is a premium ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. Built with an X870E chipset, it delivers exceptional performance and stability for gaming and content creation.
This motherboard features a robust 14+2+1 Duet Rail Power System with 60A Smart Power Stage, dual 8-pin CPU power connectors, and an 8-layer server-grade PCB with 2oz copper for superior power delivery. The extended heatsink design with 7W/mK thermal pads ensures optimal thermal management during intensive workloads.
Connectivity is exceptional with Wi-Fi 7 (up to 5.8 Gbps), 5G LAN, USB4 (40Gbps), PCIe 5.0 support for both GPU and NVMe storage, and comprehensive USB expansion. The board supports DDR5 memory up to 8200+ MT/s with EXPO and A-XMP profiles for easy overclocking.
MSI's EZ DIY features include tool-free M.2 installation, one-click PCIe release, pre-installed I/O shield, and dedicated buttons for BIOS flashing and CMOS clearing. The Click BIOS X interface provides intuitive access to advanced overclocking tools including Game Boost, AI Boost, and comprehensive cooling controls through Frozr AI Cooling technology.
- Supports AMD Ryzen 9000/8000/7000 series processors
- X870E chipset with AM5 socket
- DDR5 memory support, dual channel, up to 8200+ MT/s (OC)
- 14+2+1 Duet Rail Power System 60A SPS
- PCIe 5.0 x16 slot and PCIe 5.0 x4 M.2 slot
- Wi-Fi 7 (802.11be) with 5.8 Gbps max speed
- 5G LAN connectivity
- USB4 with 40Gbps transfer rate
- 8-layer server-grade PCB with 2oz copper
- Extended heatsink with 7W/mK thermal pads
- EZ M.2 Shield Frozr II with tool-free installation
- Pre-installed I/O shield
- Steel Armor II PCIe slot protection
- PCIe Supplemental Power for high-end GPUs
- Audio Boost with isolated audio structure
- Mystic Light RGB with A-Rainbow V2 support
- Click BIOS X with Game Boost and AI Boost
- MSI Center software suite
- Frozr AI Cooling with auto-detect fans
- OC Engine for independent BCLK control
Specifications
- Chipset
- AMD X870E
- CPU
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
- Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 2.1 TMDS, maximum resolution of 4K 60Hz** 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz** *Available only on processors featuring integrated graphics **Graphics specifications may vary depending on the CPU installed
- Slot
- 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
- Audio
- Realtek® ALC897 7.1-Channel High Definition Audio
- Storage
- 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From CPU) • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) M.2_3 slot (From CPU) • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)
- RAID
- •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
- USB
- 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
- LAN
- 1x Realtek® 8126 5G LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x Direct OC Jumper (JBCLK) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
- LED FEATURE
- 4x EZ Debug LED 1x EZ Memory Detection LED
- BACK PANEL PORTS

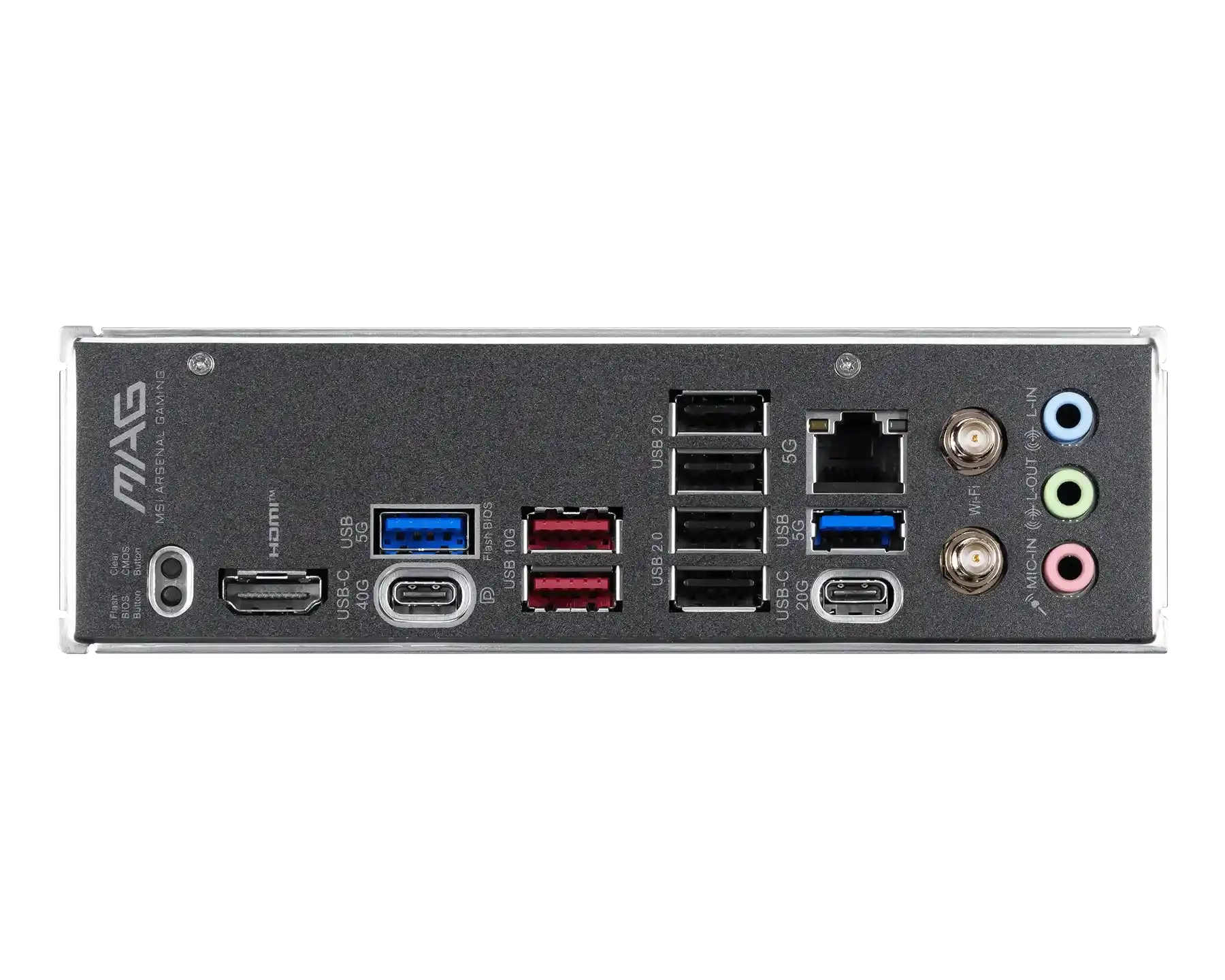

- 01. Clear CMOS Button 02. USB 5Gbps Type-A 03. USB 2.0 04. 5G LAN 05. Wi-Fi / Bluetooth 06. Audio connectors 07. Flash BIOS Button 08. HDMI™ 09. USB 40Gbps Type-C 10. USB 10Gbps Type-A 11. USB 20Gbps Type-C 12. USB 5Gbps Type-A
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- ATX 243.84mmx304.8mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
