MSI MPG X870E CARBON MAX WIFI Motherboard
1 / 5

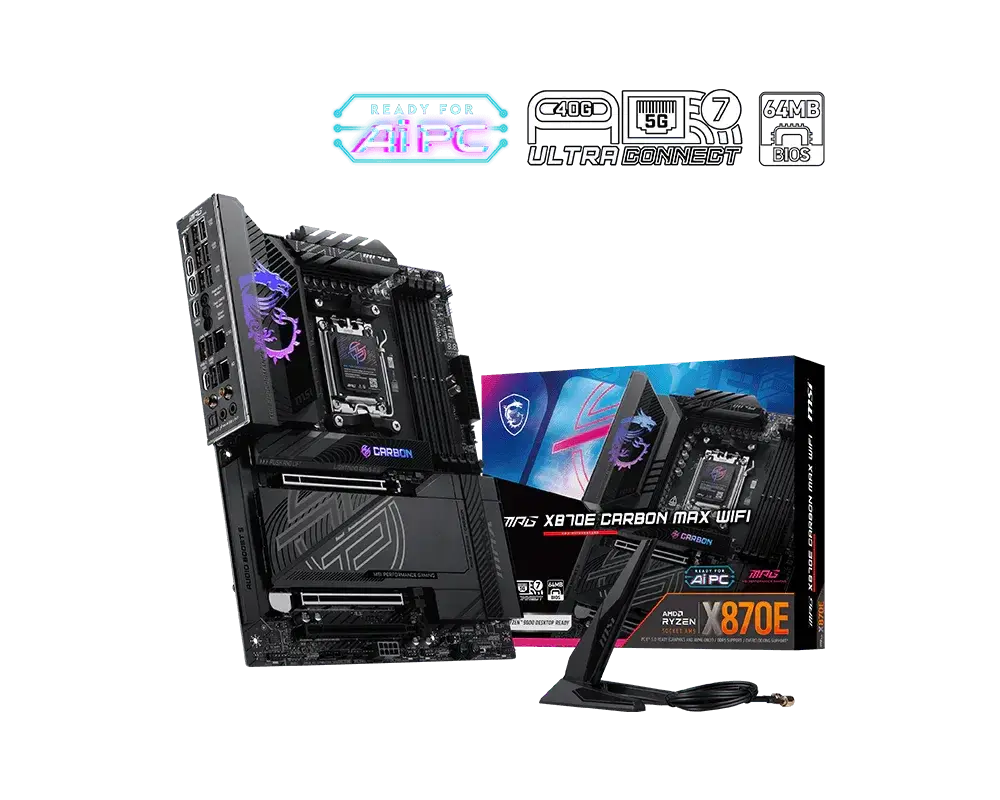

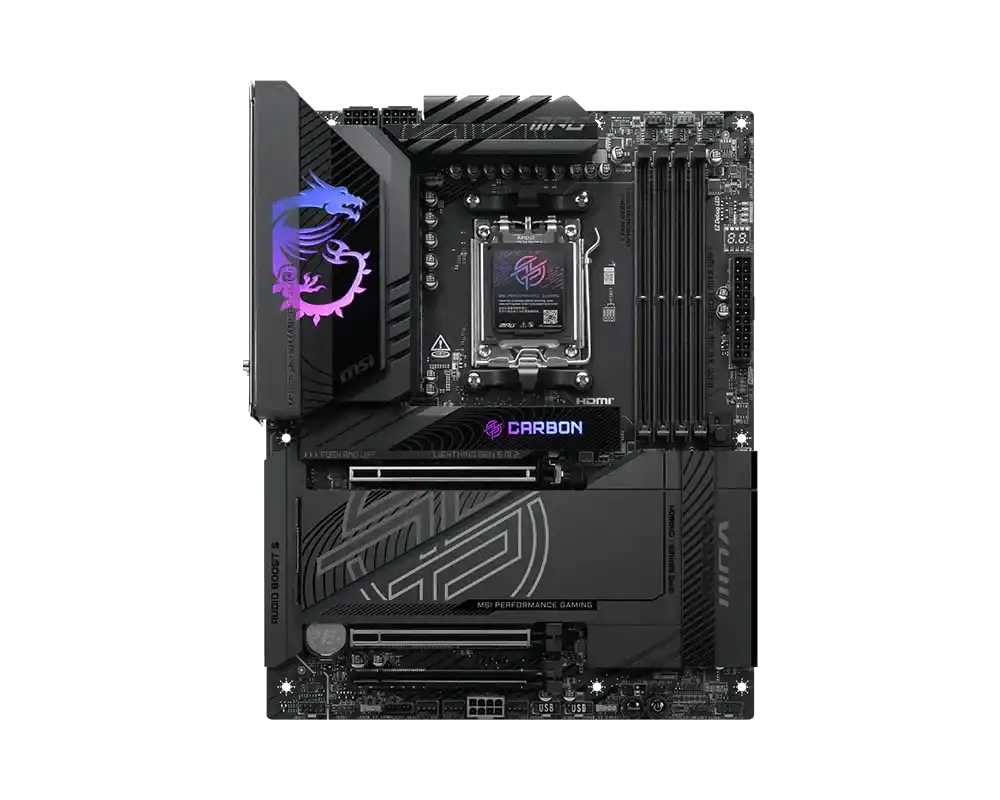

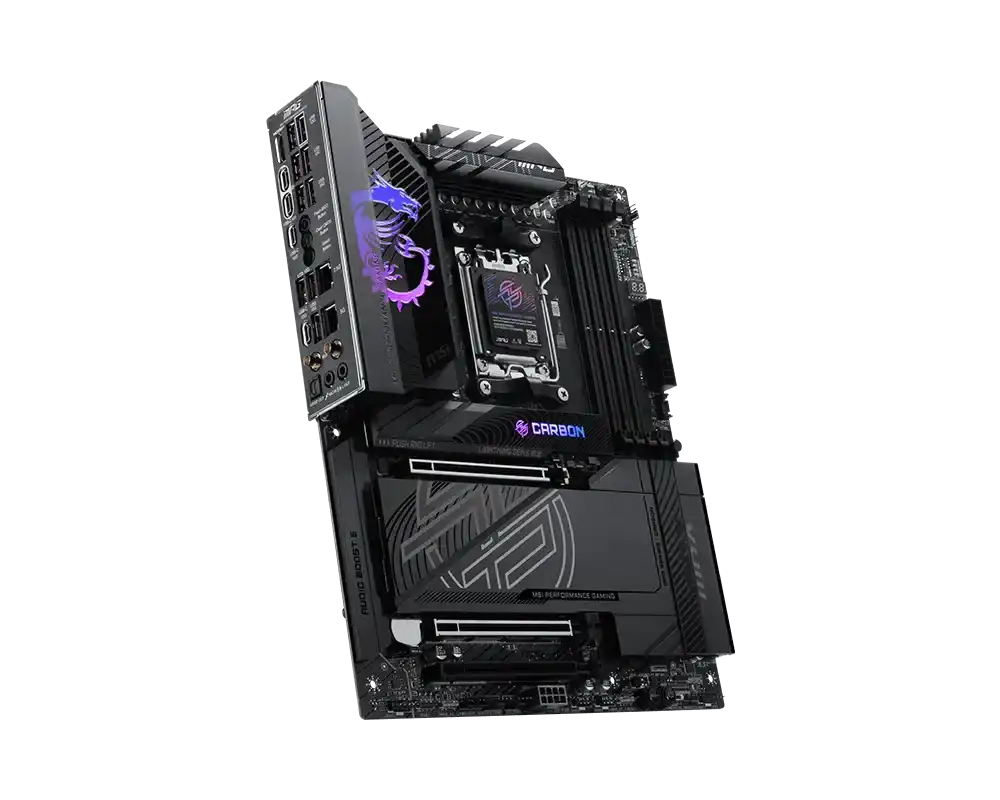

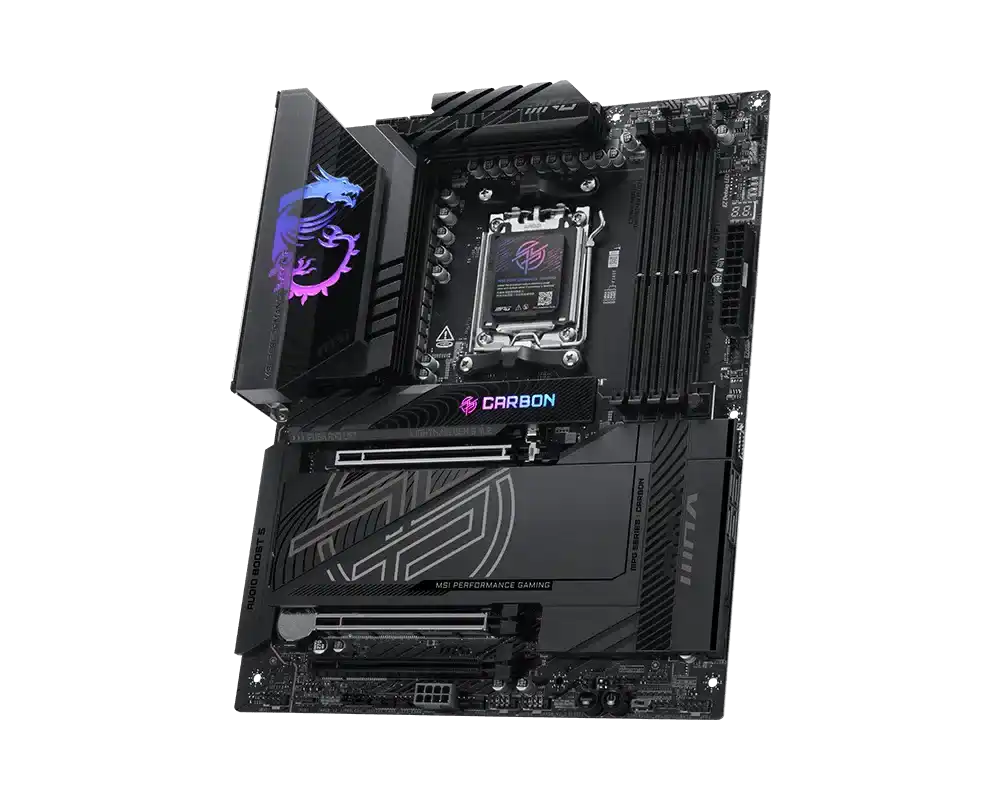

MSI MPG X870E CARBON MAX WIFI Motherboard
  • Model:MPG X870E CARBON MAX WIFI
  • AMD X870E chipset, Socket AM5, ATX form factor
  • DDR5 memory support up to 256GB, 9000+ MT/s (OC)
  • PCIe 5.0 M.2 slots, USB4 40Gbps, Wi-Fi 7
  • 18+2+1 VRM, OC Engine, premium thermal design
  • 3 Years Warranty from MSI
₹ 53,800
Out of Stock
1

Overview

The MSI MPG X870E CARBON MAX WIFI is a premium ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. Featuring the AMD X870E chipset, this board delivers exceptional performance with an 18+2+1 Duet Rail Power System, OC Engine for independent BCLK control, and robust thermal management through extended heatsinks with heat-pipes and 7W/mK MOSFET thermal pads.

Connectivity is exceptional with Wi-Fi 7 (up to 5.8 Gbps), dual LAN (5G + 2.5G), USB4 with 40Gbps transfer rates, and multiple USB ports. Storage options include 4x M.2 slots (2x PCIe 5.0, 2x PCIe 4.0) and 4x SATA ports. The board supports DDR5 memory up to 256GB with speeds reaching 9000+ MT/s in overclocking mode.

EZ DIY features simplify assembly with EZ M.2 Shield Frozr II, EZ PCIe Release, and pre-installed I/O Shield. The 64MB BIOS ROM ensures future compatibility with upcoming processors. Premium audio with Realtek ALC4080 codec and Mystic Light RGB lighting complete the gaming-focused feature set.

  • AMD X870E chipset with Socket AM5 support for Ryzen 9000/8000/7000 Series
  • 18+2+1 Duet Rail Power System with OC Engine for independent BCLK control
  • DDR5 memory support up to 256GB, 9000+ MT/s (OC)
  • 2x PCIe 5.0 M.2 slots, 2x PCIe 4.0 M.2 slots with EZ Shield Frozr II
  • Wi-Fi 7 (802.11be) up to 5.8 Gbps with Bluetooth 5.4
  • Dual LAN: 5G + 2.5G with AI LAN Manager
  • USB4 with 40Gbps transfer rate, 2x USB 40Gbps Type-C rear ports
  • Premium thermal design with extended heatsinks and heat-pipes
  • Realtek ALC4080 audio codec with 7.1-channel support
  • 64MB BIOS ROM with Click BIOS X interface
  • EZ DIY features: EZ M.2 Shield Frozr II, EZ PCIe Release, Smart Button
  • Mystic Light RGB with A-Rainbow V2 support
  • 8-layer PCB with 2oz thickened copper, server-grade materials

Specifications

Chipset
AMD X870E
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
3x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 PCI_E1 & PCI_E2 slots • Supports PCIe 5.0 x16/x0 or x8/x8 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot • Supports up to PCIe 4.0 x4
Audio
Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
Storage
4x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M.2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2*/** slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors M.2_3 slot • Supports up to PCIe 4.0 x4 M.2_4 slot • Supports up to PCIe 4.0 x4 *The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series. ** USB 40Gbps Type-C ports & M2_2 share the bandwidth. USB 40Gbps Type-C ports will run at x2 speed when installing device in the M2_2 slot. You can switch M2_2 to x4 in the BIOS, but this will disable the USB 40Gbps Type-C ports.
RAID
•Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1, RAID 5* and RAID 10** for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. ** RAID 10 configuration is only supported by Ryzen™ 9000/7000 series processors.
USB
4x USB 2.0 (Front) 4x USB 5Gbps Type A (Front) 9x USB 10Gbps Type A (Rear) 2x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
LAN
1x Realtek® 8126 5G LAN 1x Realtek® 8125 2.5G LAN
Internal IO
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 5x System Fan 1x ARGB+FAN+USB2.0 Header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Thermal Sensor connectors(T_SEN) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE
4x EZ Debug LED 1x EZ Digit Debug LED

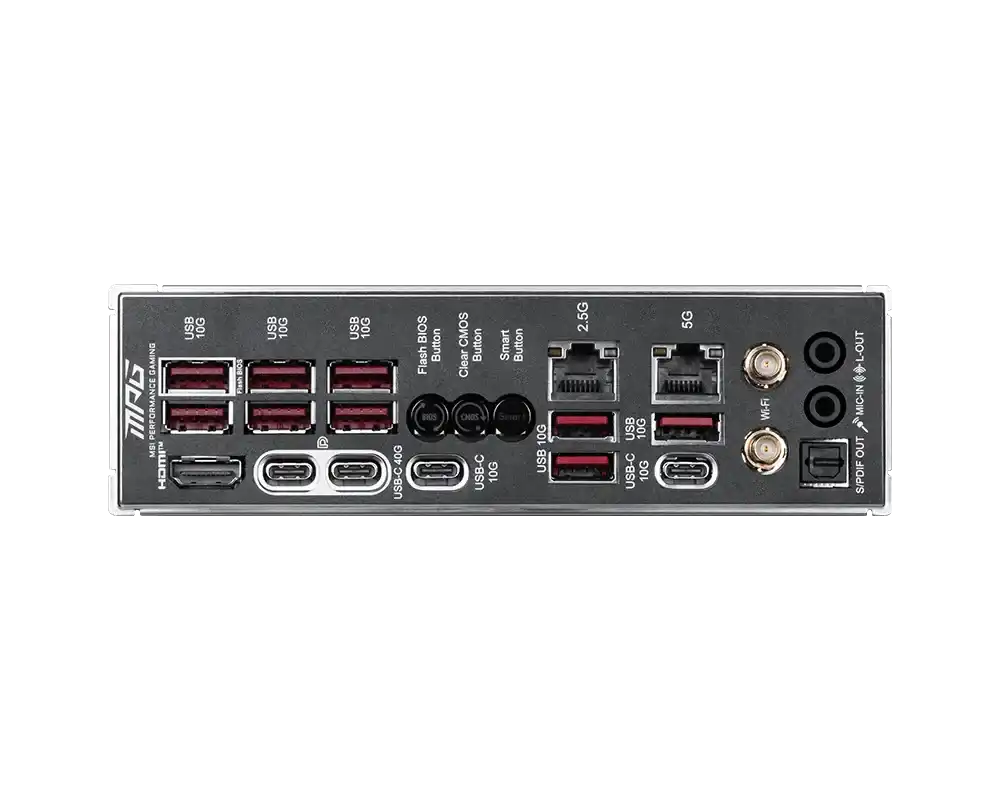

BACK PANEL PORTS
01. USB 10Gbps Type-A 02. Flash BIOS Button 03. Clear CMOS Button 04. Smart Button 05. 2.5G LAN 06. 5G LAN 07. Audio Connectors 08. HDMI™ 09. USB 40Gbps Type-C 10. USB 10Gbps Type-C 11. USB 10Gbps Type-A 12. USB 10Gbps Type-C 13. Wi-Fi / Bluetooth 14. Optical S/PDIF Out
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
ATX 243.84mmx304.8mm
UPC
0824142451267

Warranty

3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
