- Model:MPG X870I EDGE TI EVO WIFI
- AMD X870 chipset, Socket AM5, Mini-ITX
- Supports Ryzen 9000/8000/7000 series processors
- DDR5 memory up to 128GB, speeds to 10000+ MT/s
- PCIe 5.0 M.2, USB4, 5G LAN, Wi-Fi 7
- 3 Years Warranty from MSI
Overview

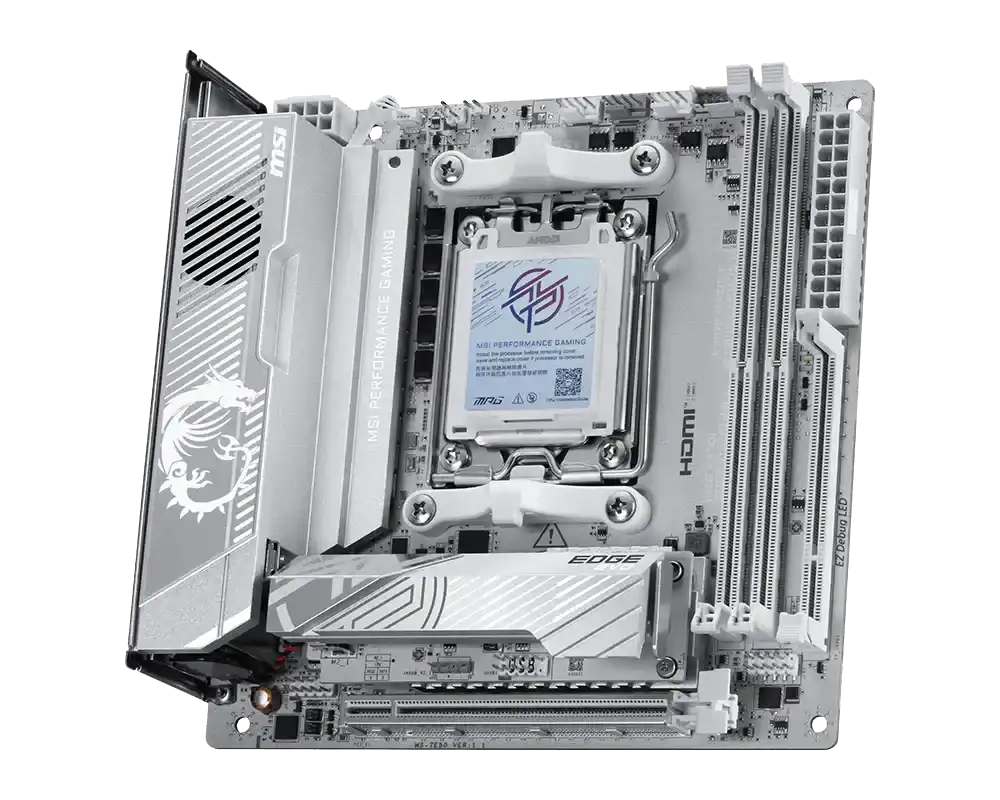

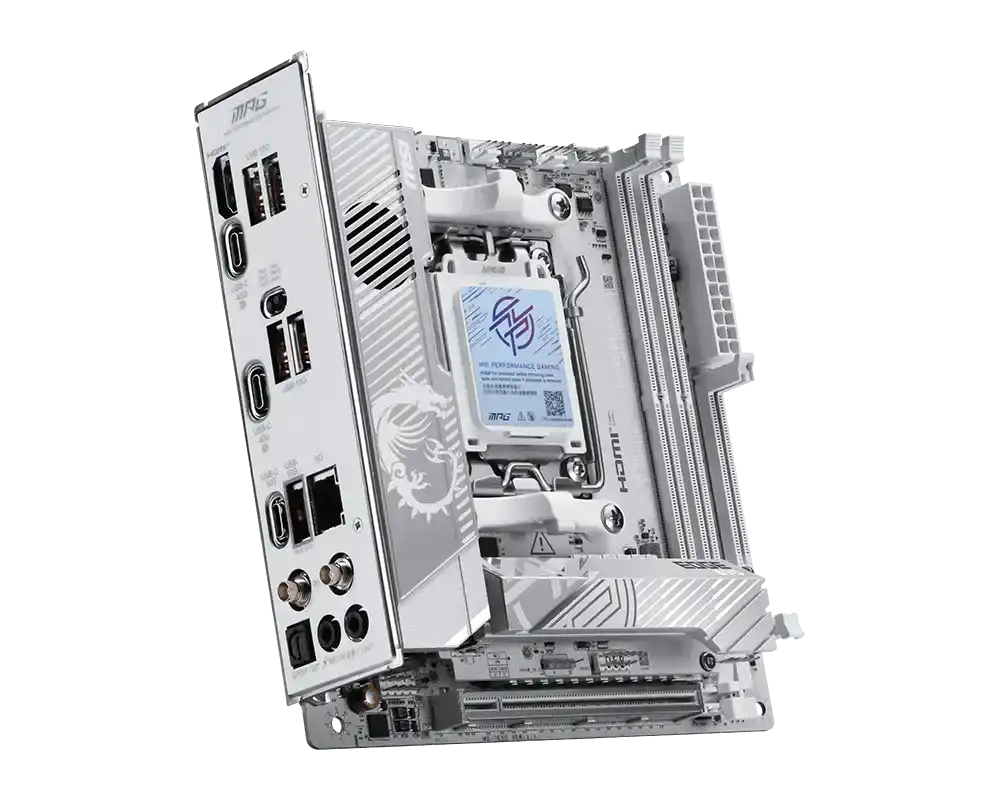

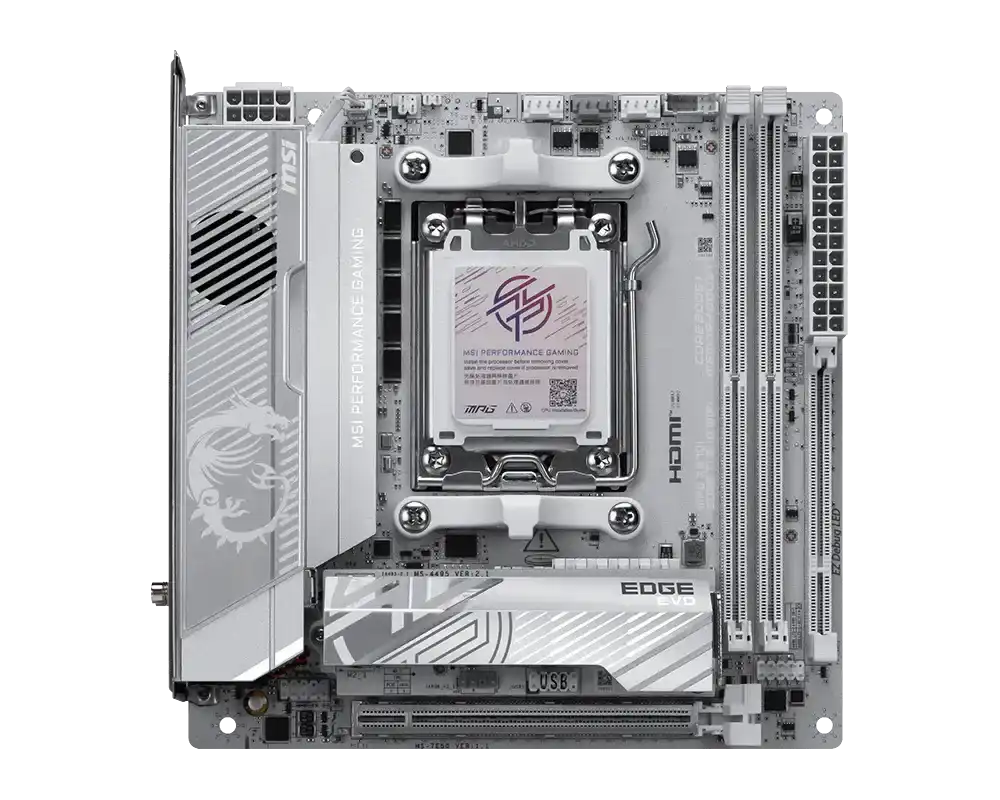

The MSI MPG X870I EDGE TI EVO WIFI is a premium Mini-ITX motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 socket. Built with the X870 chipset, it delivers exceptional performance with an 8+2+1 Duet Rail Power System featuring 110A Smart Power Stages and a 12-layer server-grade PCB with 1oz thickened copper.
This white-themed ITX board combines cutting-edge connectivity with the latest Wi-Fi 7 solution, 5G LAN, USB4, and PCIe 5.0 support for both GPU and NVMe storage. The Frozr thermal design includes extended heatsinks, M.2 Shield Frozr, and 7W/mK MOSFET thermal pads to maintain peak performance during demanding gaming and workloads.
EZ DIY features streamline assembly with pre-installed I/O shield, EZ M.2 installation without screws, EZ Antenna with magnetic stand, and EZ Conn-Design for simplified cable management. The board supports DDR5 memory up to 128GB with EXPO/A-XMP profiles and includes comprehensive AI-driven features through MSI Center for cooling, networking, and performance optimization.
- 8+2+1 Duet Rail Power System with 110A Smart Power Stages
- PCIe 5.0 x16 GPU slot and PCIe 5.0 x4 M.2 slot from CPU
- Wi-Fi 7 (802.11be) up to 5.8 Gbps with 5G LAN
- USB4 and dual USB 40Gbps Type-C ports
- DDR5 memory support up to 128GB, 10000+ MT/s (OC)
- 12-layer server-grade PCB with 1oz thickened copper
- M.2 Shield Frozr and 7W/mK MOSFET thermal pads
- Pre-installed I/O Shield and EZ M.2 installation
- Audio Boost 5 with Realtek ALC4080 codec
- Mystic Light RGB with A-Rainbow V2 support
Specifications
- Chipset
- AMD X870
- CPU
- Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
- Memory
- 2x DDR5, Maximum Memory Capacity 128GB Memory Support DDR5 10000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8400+ MT/s • 1DPC 2R Max speed up to 8000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * The DIMM slots on this motherboard only have single-sided latches. ** CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. *** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMI™ Support HDMITM 2.1 with TMDS port, supporting a maximum resolution of 4K 60Hz* 2x Type-C DisplayPort *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E1 slot (From CPU) • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) 1x FP card slot • Supports the installation of MSI 5-in-1 XPANDER card only.
- Audio
- Realtek® ALC4080 Codec 7.1-Channel USB High-Performance Audio Supports up to 32-Bit/384 kHz playback on front panel Supports S/PDIF output
- Storage
- 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From X870 chipset) • Supports up to PCIe 4.0 x4 • Supports 2280 storage devices • Supports single sieded M.2 SSD only 5-in-1 XPANDER Card M.2_3 slot (From X870 chipset) • Supports up to PCIe 4.0 x4 • Supports 2280 storage devices • Supports single sided M.2 SSD only
- RAID
- • Supports RAID 0, and RAID 1 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5* for M.2 NVMe storage devices * RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
- USB
- 2x USB 2.0 (Front) 2x USB 5Gbps Type A (Front) 5x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front) 2x USB 40Gbps Type C (Rear)
- LAN
- 1x Realtek® 8126 5G LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x EZ Conn-header (JAF_2) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 2x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
- LED FEATURE
- 4x EZ Debug LED

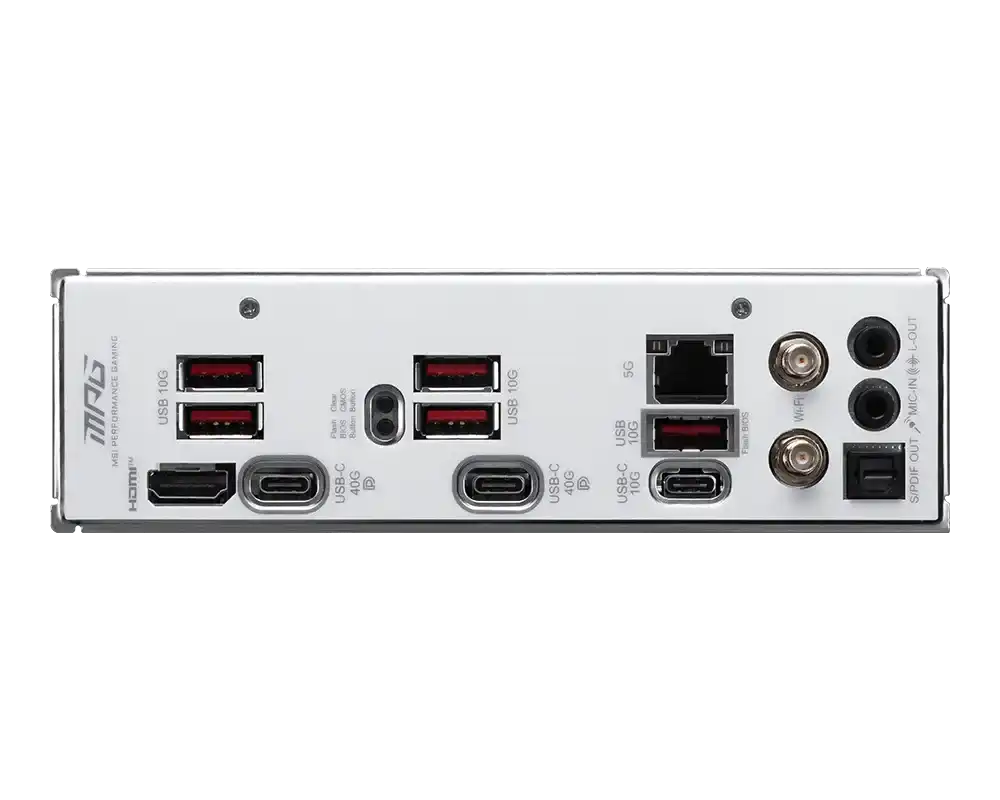

- BACK PANEL PORTS
- 01. USB 10Gbps Type-A 02. Clear CMOS Button 03. USB 10Gbps Type-A 04. 5G LAN 05. Wi-Fi / Bluetooth 06. Audio Connectors 07. HDMI™ 08. USB 40Gbps Type-C 09. Flash BIOS Button 10. USB 10Gbps Type-C 11. Optical S/PDIF Out
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- Mini-ITX 170mmx170mm
