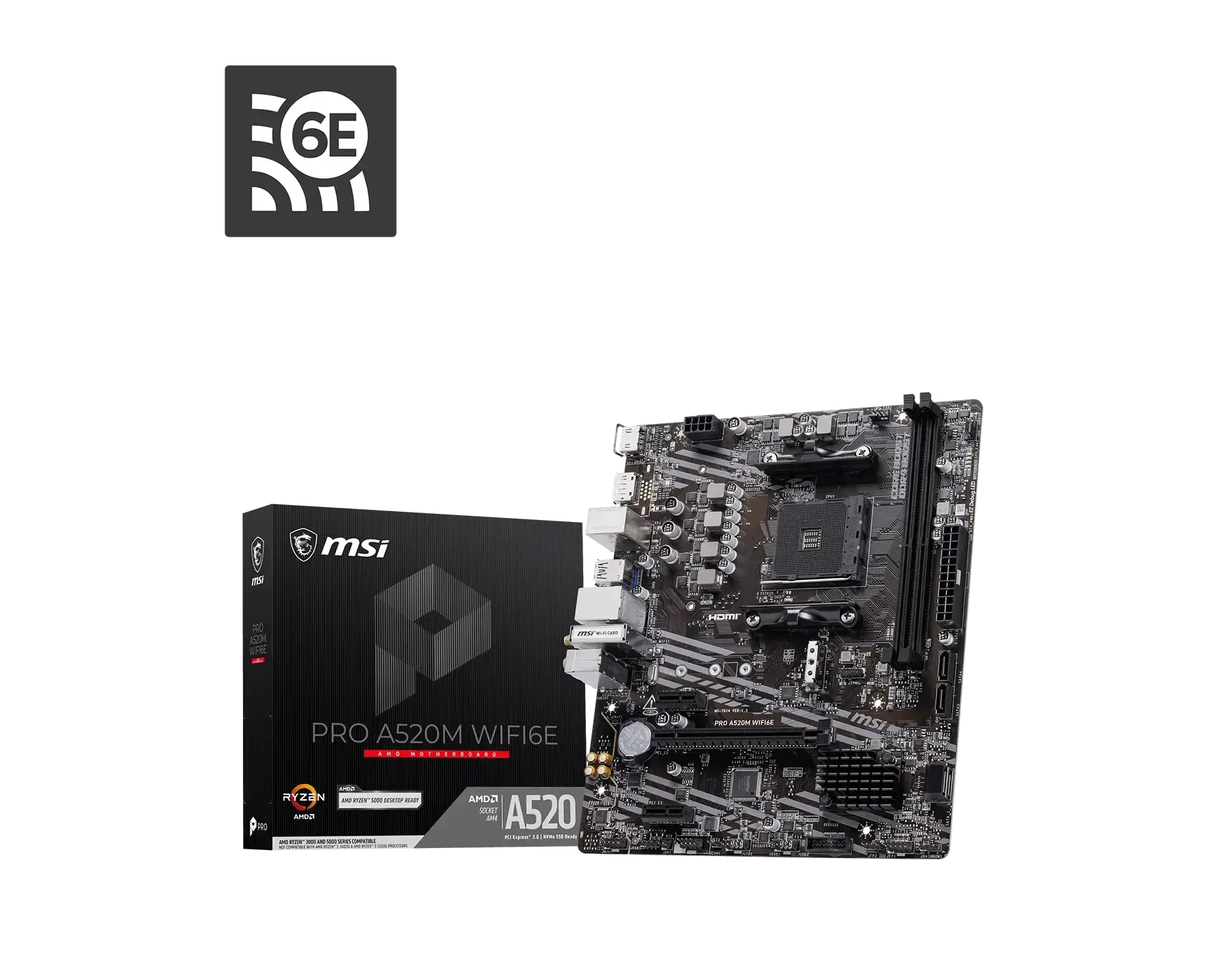

- Model:PRO A520M WIFI6E
- AMD A520 chipset, Socket AM4
- Supports AMD Ryzen 5000/4000/3000 series
- DDR4 up to 4600+ MT/s (OC), 2 DIMM slots
- PCIe 3.0, Wi-Fi 6E, USB 5Gbps, HDMI 2.1
- 3 Years Warranty from MSI
Overview

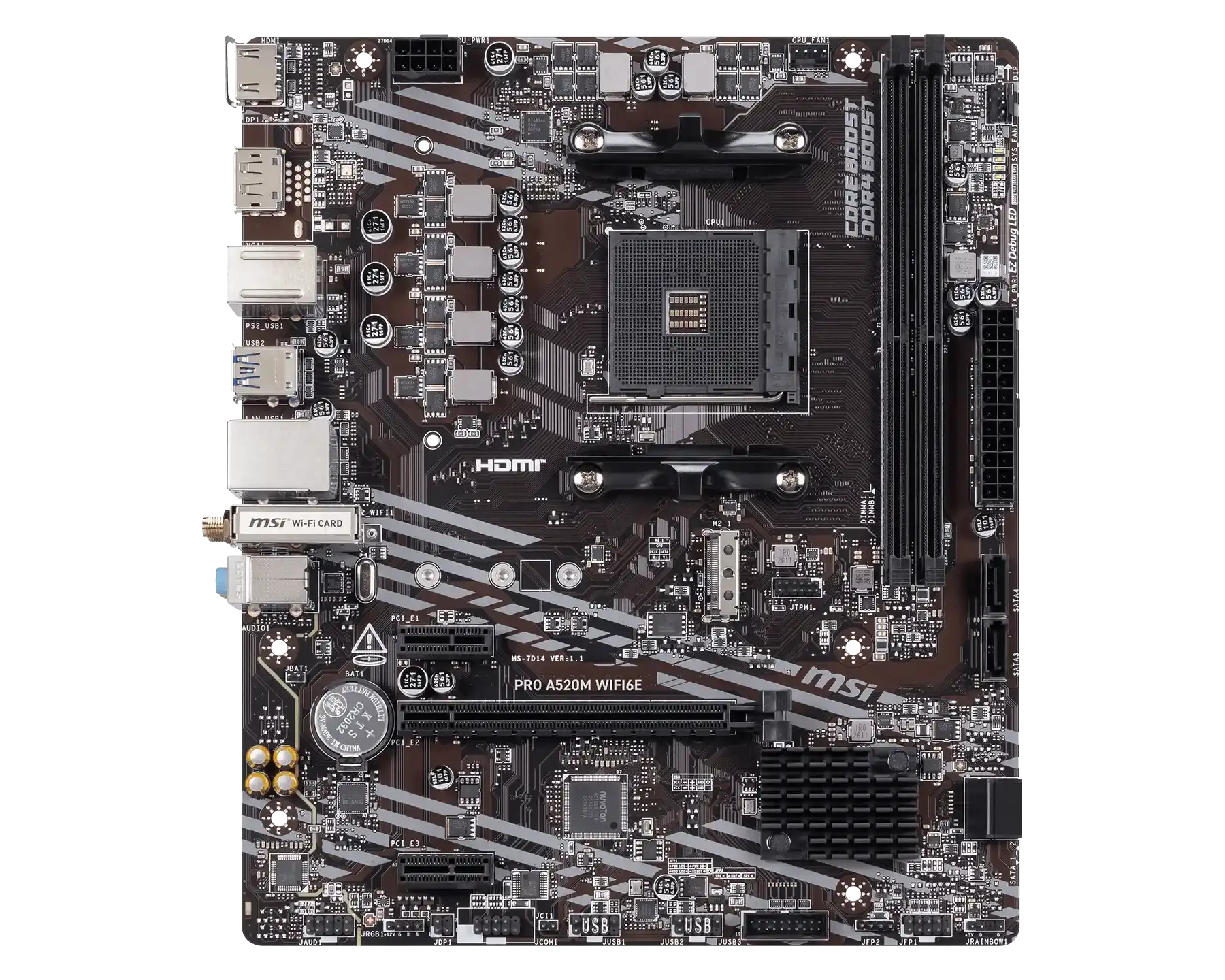

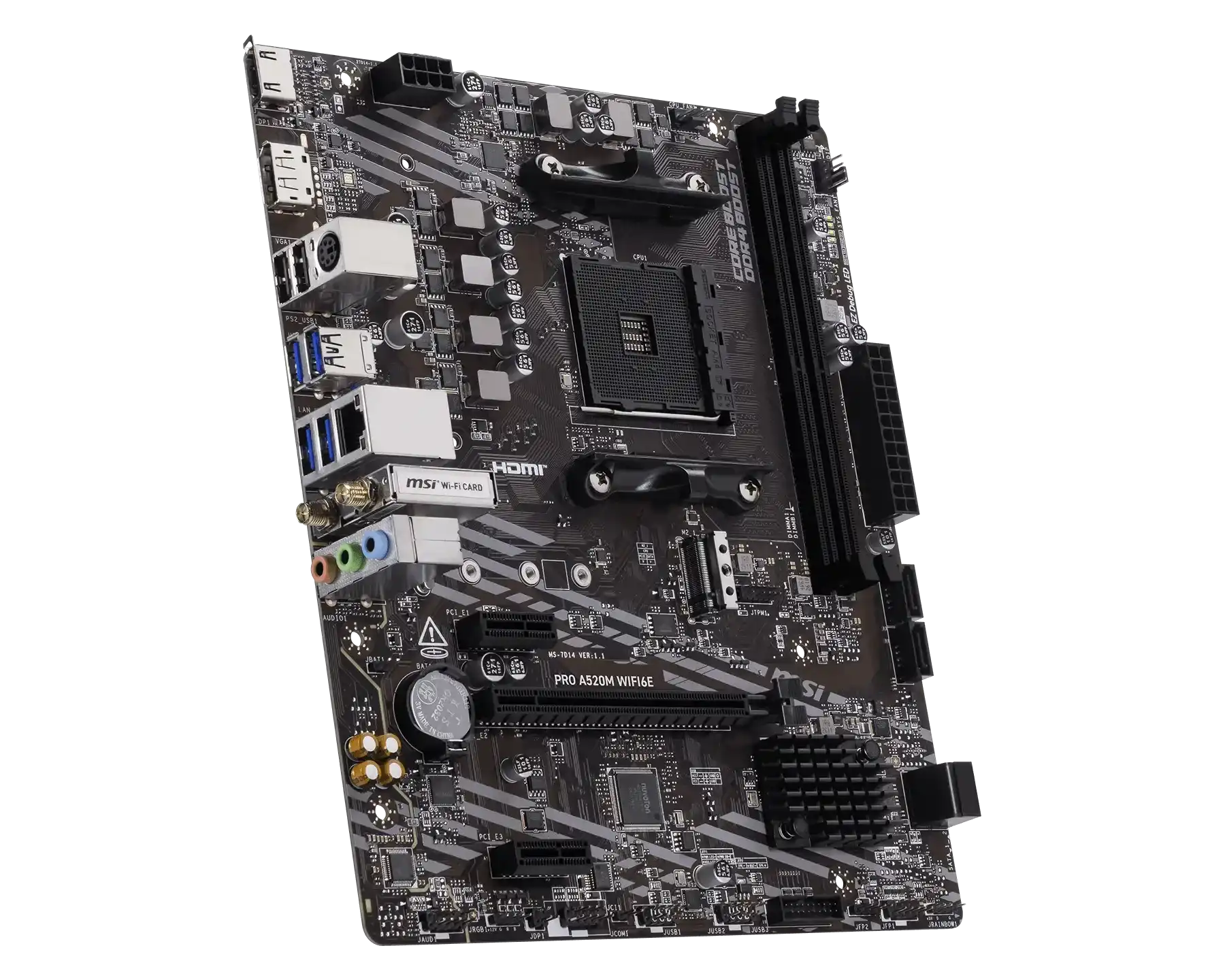

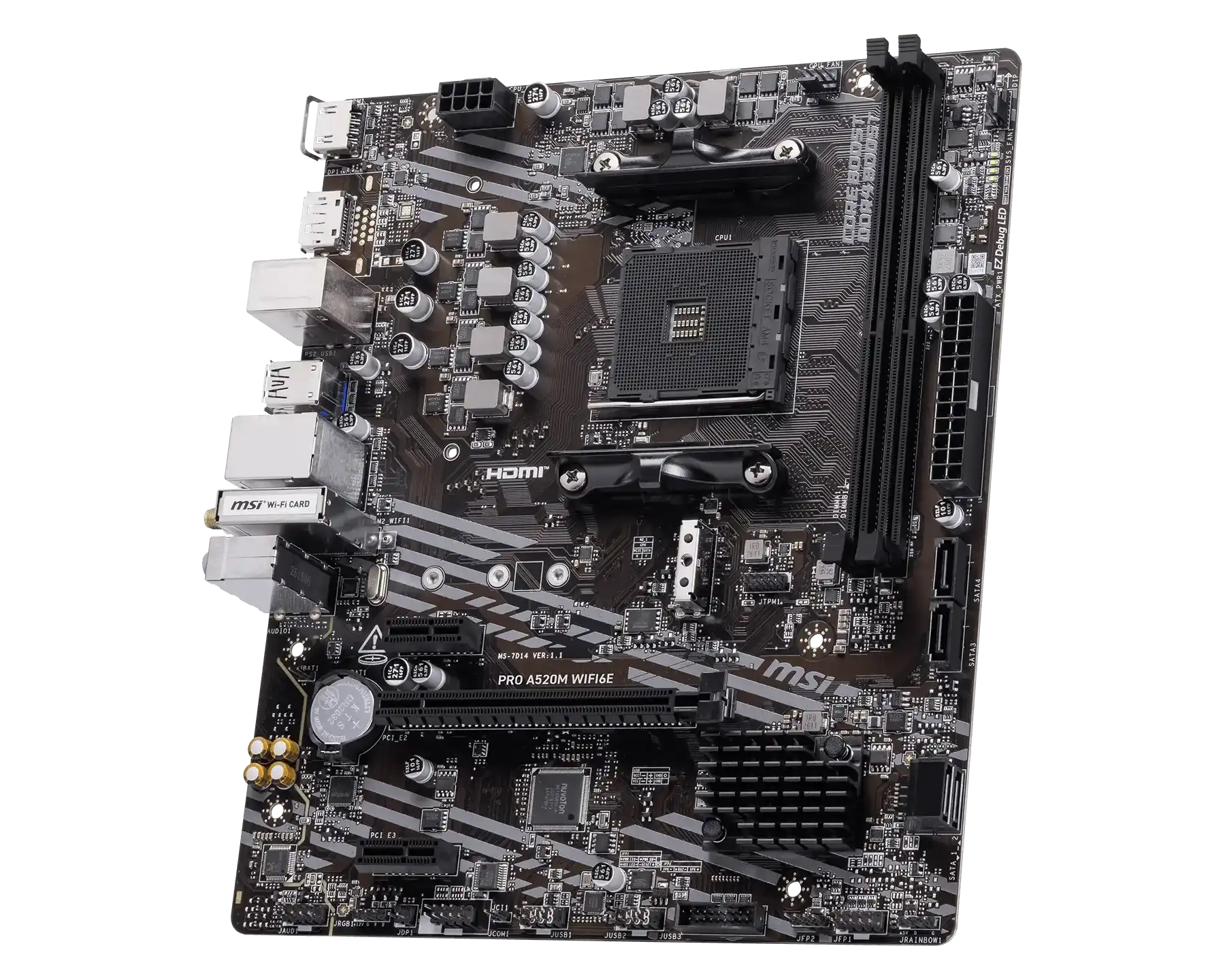

The MSI PRO A520M WIFI6E is a micro-ATX motherboard engineered for AMD Ryzen 5000 series processors and earlier generations. It features PCIe 3.0 M.2 storage, Wi-Fi 6E connectivity, USB 5Gbps ports, and HDMI 2.1 support for 4K displays. The board combines professional-grade performance with user-friendly features like EZ Debug LED and EZ Mounting technology.
Built with Audio Boost technology for studio-grade sound quality and MSI Center software integration, this motherboard delivers stable performance through Core Boost technology, Load-Line Calibration, and comprehensive protection features including Overcurrent Protection and Transient Voltage Suppressors.
- AMD A520 Chipset with Socket AM4 support
- Supports AMD Ryzen 5000, 4000 G-Series, and 3000 series processors
- 2x DDR4 DIMM slots, up to 64GB, 4600+ MT/s (OC)
- 1x PCIe 3.0 x16 slot, 2x PCIe 3.0 x1 slots
- 1x M.2 PCIe 3.0 x4 slot, 4x SATA 6Gb/s ports
- Wi-Fi 6E with Bluetooth 5.2
- 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort
- 4x USB 5Gbps Type-A ports, 6x USB 2.0 ports
- Realtek ALC897 7.1-Channel Audio Boost
- Micro-ATX form factor (243.84mm x 210mm)
- EZ Debug LED, EZ Mounting, Core Boost technology
- MSI Center software with AI Engine and Cooling Wizard
Specifications
- Chipset
- AMD A520
- CPU
- Supports AMD Ryzenâ„¢ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series and 3000 G-Series desktop processors Socket AM4
- Memory
- 2x DDR4, Maximum Memory Capacity 64GB Memory Support 4600(OC)/ 4533(OC)/ 4500(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3 Ryzen™ 5000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 4600+ MT/s • 1DPC 2R Max speed up to 3866+ MT/s Supports JEDEC Speed Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Memory Overclocking by A-XMP OC mode • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMIâ„¢ Support HDMITM 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 3.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) *The supported specification depends on installed processor.
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 1x M.2 M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280 devices 4x SATA 6G
- RAID
- Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
- USB
- 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
- LAN
- Realtek® RTL8111H 1Gbps LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
- LED FEATURE
- 4x EZ Debug LED

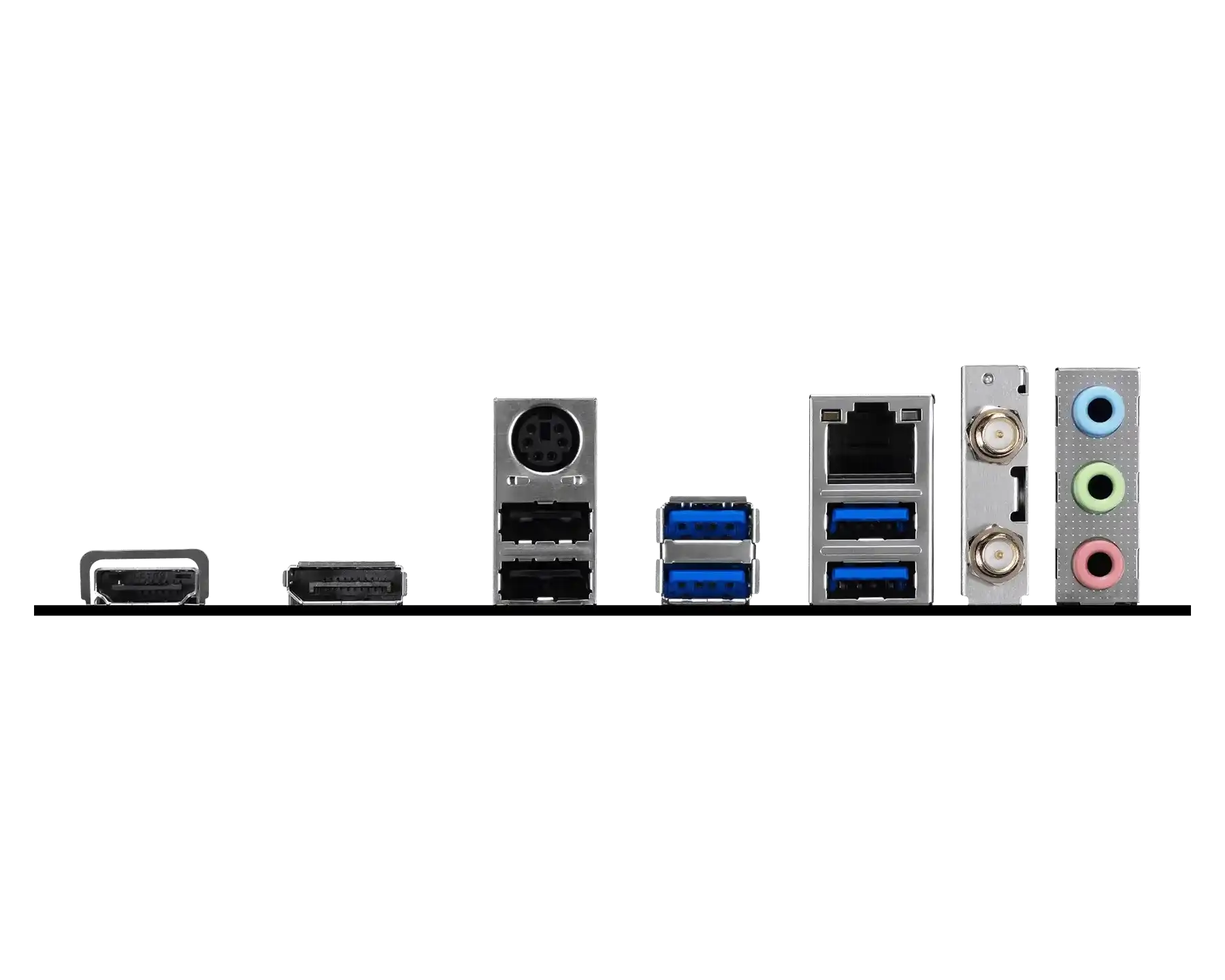

- BACK PANEL PORTS
- 1. HDMIâ„¢ 2. DispalyPort 3. Keyboard / Mouse 4. USB 5Gbps Type-A 5. LAN Port 6. Audio connectors 7. USB 2.0 8. USB 5Gbps Type-A 9. Wi-Fi / Bluetooth
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- mATX 243.84mmx210mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
