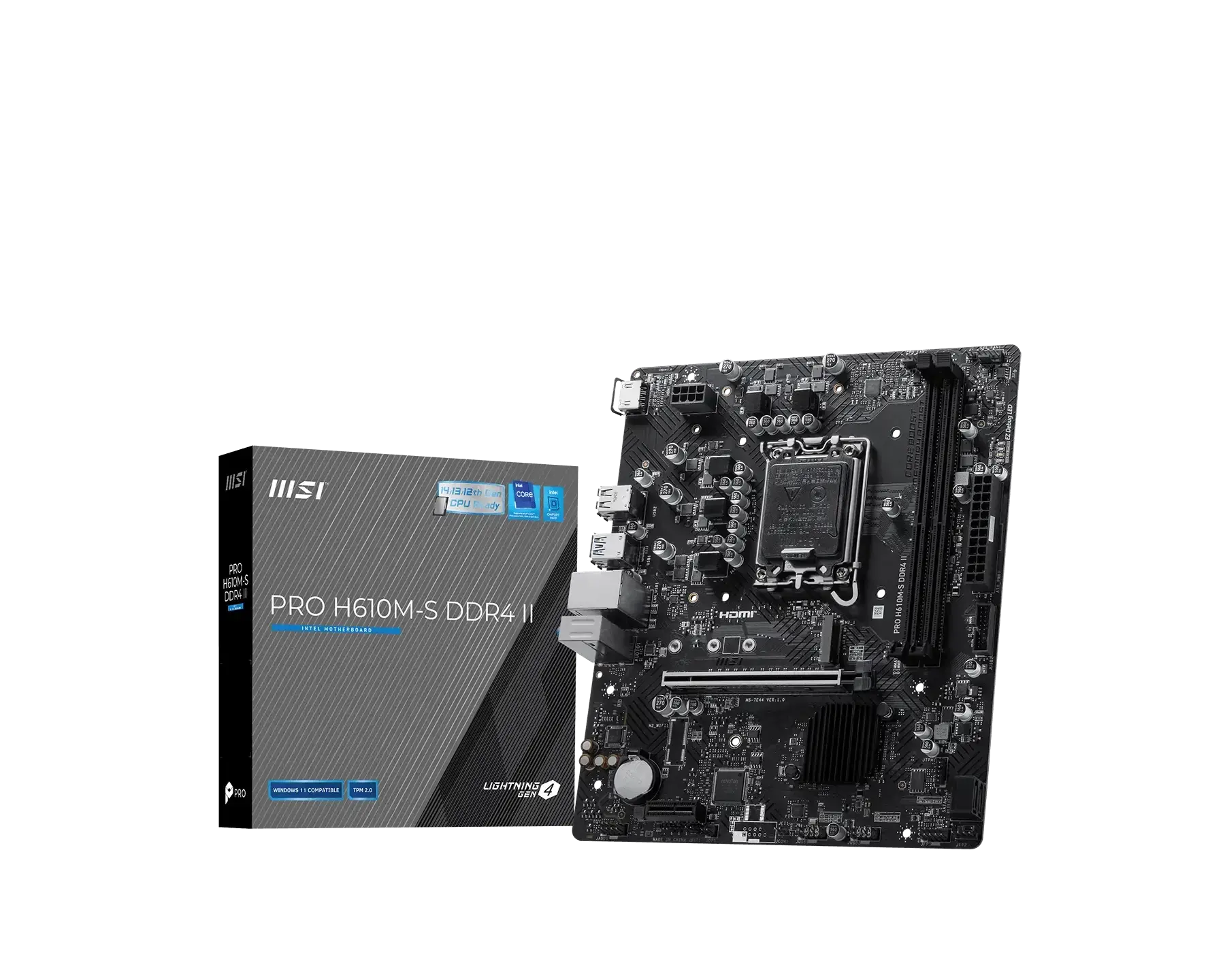

- Model:PRO H610M-S DDR4 II
- Intel H610 chipset, LGA 1700 socket
- Supports Intel Core 14th/13th/12th Gen
- DDR4 memory up to 3200 MHz, 64GB max
- PCIe 4.0, 1x M.2, 2x SATA, 1Gbps LAN
- 3 Years Warranty from MSI
Overview
The MSI PRO H610M-S DDR4 II is a micro-ATX motherboard engineered for Intel's 12th, 13th, and 14th generation processors on the LGA 1700 socket. It features the Intel H610 chipset and supports DDR4 memory up to 3200 MHz with a maximum capacity of 64GB, delivering reliable performance for professional and productivity-focused builds.
This motherboard is equipped with PCIe 4.0 support for fast storage connectivity, including 1x M.2 slot and 2x SATA ports. The board includes a 1Gbps Realtek LAN controller for stable networking, along with comprehensive audio features via the Realtek ALC897 codec supporting 7.1-channel high-definition audio. Additional features include EZ Debug LED indicators, Core Boost technology for optimized power delivery, and Memory Boost for enhanced DDR4 signal integrity.
The PRO H610M-S DDR4 II combines business elegance with practical functionality, offering a harmonious silver color scheme suitable for both white and black PC builds. It comes with comprehensive software support including MSI Center for system optimization and monitoring.
- Intel H610 chipset with LGA 1700 socket support
- Supports Intel Core 14th/13th/12th Gen processors
- 2x DDR4 DIMM slots, up to 64GB capacity, 3200 MHz support
- PCIe 4.0 x16 slot for graphics cards
- 1x M.2 slot (PCIe 3.0 x4) and 2x SATA 6Gb/s ports
- 1Gbps Realtek RTL8111H LAN controller
- Realtek ALC897 codec with 7.1-channel audio
- Core Boost and Memory Boost technologies
- EZ Debug LED for troubleshooting
- Micro-ATX form factor (23.6cm x 20cm)
- HDMI and VGA video outputs
- Multiple USB 2.0 and USB 5Gbps ports
Specifications
- Chipset
- INTEL H610
- CPU
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
- Memory
- 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices 2x SATA 6G
- USB
- 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
- LAN
- Realtek® RTL8111H Gigabit LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
- LED FEATURE
- 4x EZ Debug LED
- BACK PANEL PORTS
- 1. HDMI™ 2. USB 2.0 3. USB 5Gbps Type-A 4. LAN port 5. Audio Connectors 6. USB 2.0
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- PCB Info
- mATX 200mmx236.16mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
