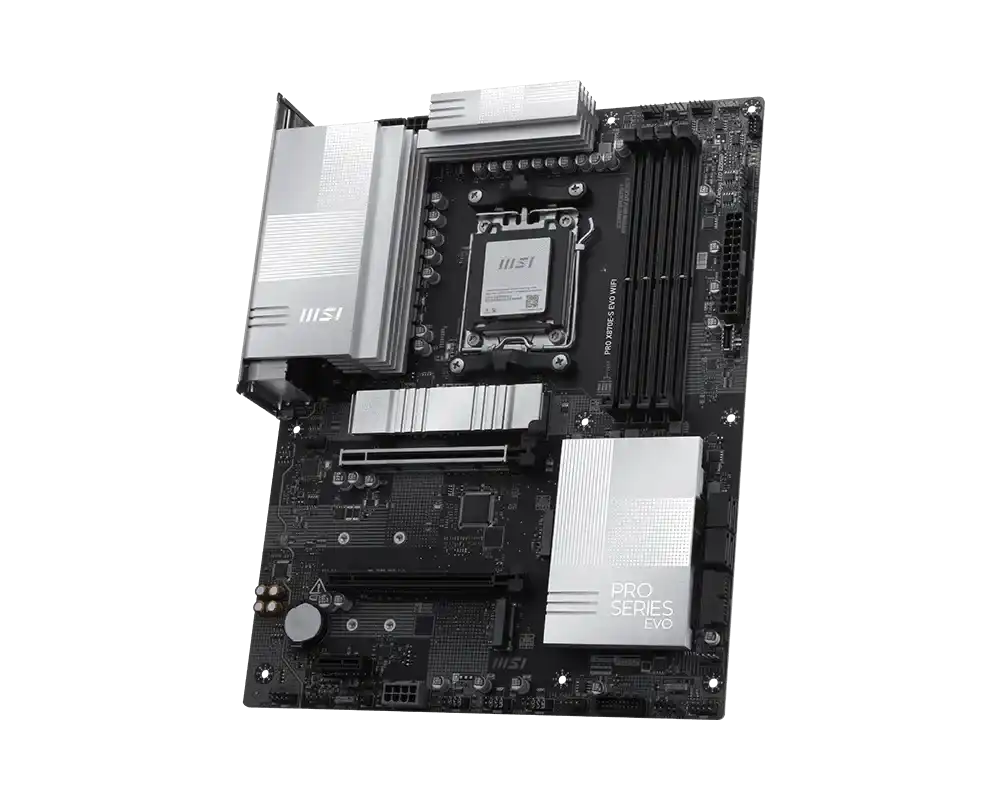

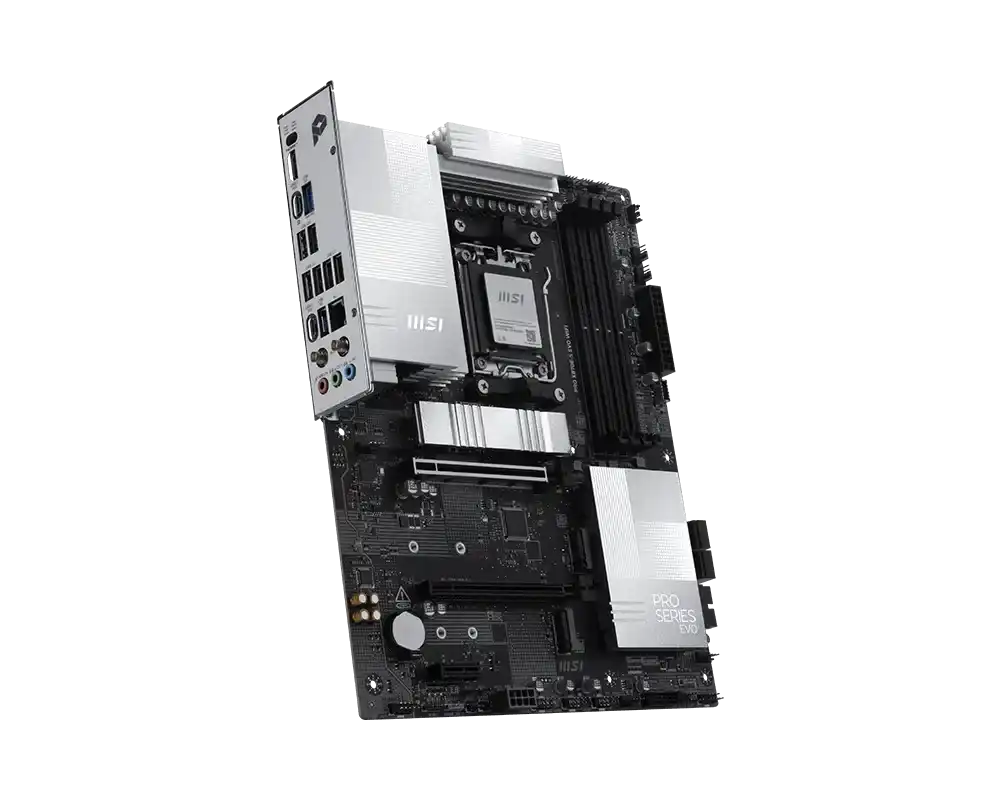

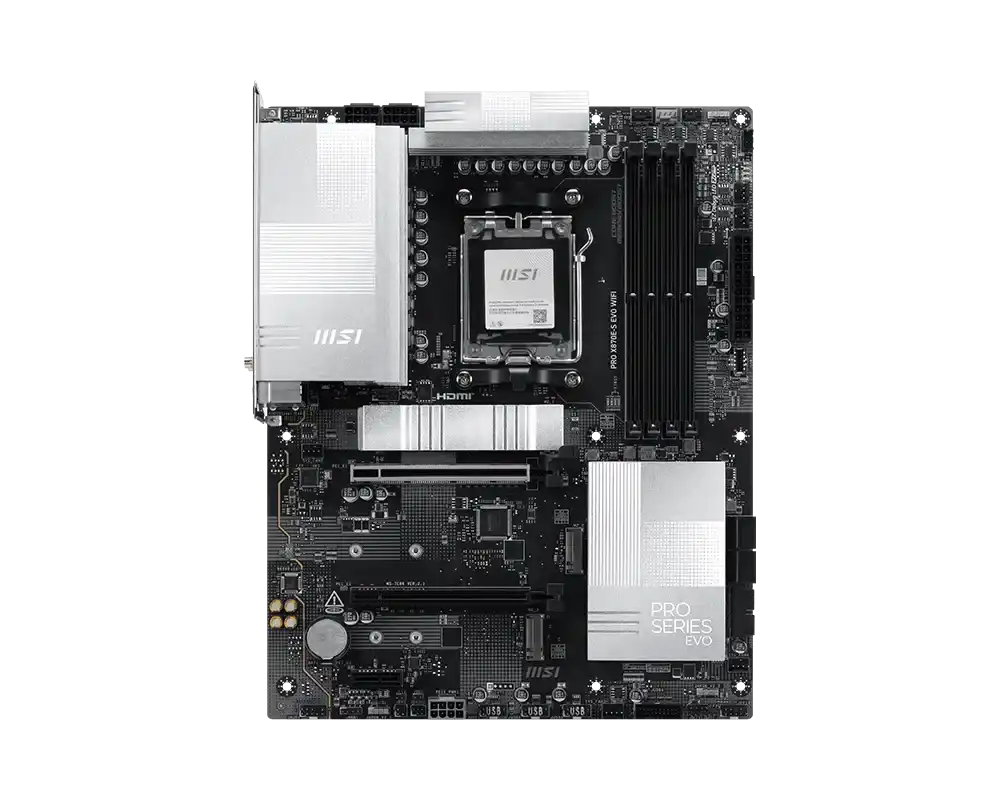

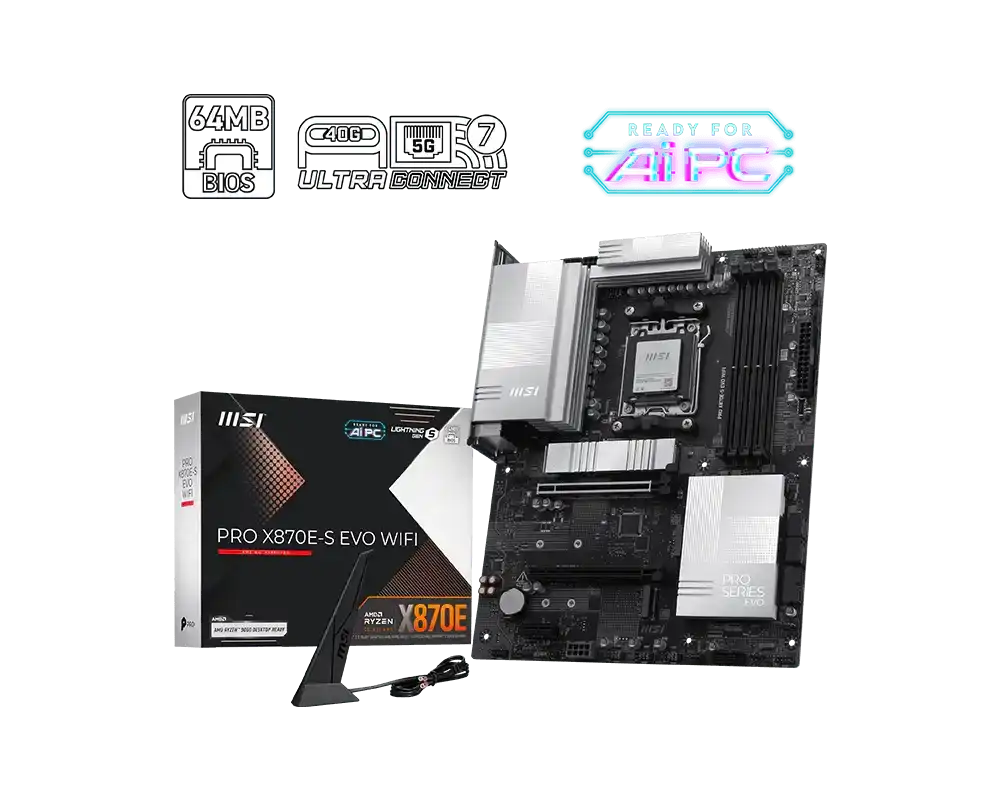

MSI PRO X870E-S EVO WIFI Motherboard
1 / 5
MSI PRO X870E-S EVO WIFI Motherboard
  • Model:PRO X870E-S EVO WIFI
  • AMD X870E chipset, Socket AM5, ATX form factor
  • Supports AMD Ryzen 9000/8000/7000 Series processors
  • DDR5 memory support up to 8200+ MT/s (OC)
  • PCIe 5.0, Wi-Fi 7, USB4, 5G LAN connectivity
  • 3 Years Warranty from MSI
₹ 23,550
Out of Stock
1

Overview

The MSI PRO X870E-S EVO WIFI is a professional-grade ATX motherboard built on the AMD X870E chipset, engineered for AMD Ryzen 9000, 8000, and 7000 Series processors. It features a sophisticated silver color scheme that complements both white and black PC builds, combining aesthetic appeal with exceptional performance.

This motherboard delivers ultra-performance through its 12+2+1 Duet Rail Power System with dual 8-pin CPU power connectors, 60A Smart Power Stage, and a 6-layer server-grade PCB with 2oz thickened copper. The Frozr Guard thermal solution includes extended heatsinks, 7W/mK MOSFET thermal pads, and the innovative EZ M.2 Shield Frozr II for optimal cooling during demanding workloads.

Connectivity is premium with Wi-Fi 7, 5G LAN, USB4 (40Gbps), and PCIe 5.0 support for both GPU and NVMe storage. The board supports DDR5 memory up to 8200+ MT/s with EXPO and A-XMP profiles, while the EZ DIY features—including EZ M.2 Clip II, EZ PCIe Clip II, and EZ Antenna—make installation effortless. Advanced features include AI Engine, Frozr AI Cooling, and Click BIOS X for intuitive system optimization.

  • AMD X870E chipset with Socket AM5 for Ryzen 9000/8000/7000 Series
  • 12+2+1 Duet Rail Power System with dual 8-pin connectors and 60A Smart Power Stage
  • 6-layer server-grade PCB with 2oz thickened copper and PCB Fabric Peak
  • DDR5 memory support up to 8200+ MT/s (OC) with EXPO/A-XMP
  • PCIe 5.0 x16 slot and PCIe 5.0 x4 M.2 with optimized lane bifurcation
  • Wi-Fi 7 with EZ Antenna and 5G LAN for premium connectivity
  • USB4 with 40Gbps transfer rate and multiple device connectivity
  • Extended Heatsink and EZ M.2 Shield Frozr II thermal solution
  • EZ DIY features: EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna, Flash BIOS Button
  • AI Engine, Frozr AI Cooling, and Click BIOS X with Creation Boost and AI Boost
  • Audio Boost with isolated analog structure and high-quality audio components
  • Mystic Light RGB with A-Rainbow V2 and ARGB Gen2 support
  • Pre-installed I/O Shield and EZ Mounting design
  • Supplemental PCIe Power connector for high-power GPU support
  • 64MB BIOS ROM for future CPU compatibility

Specifications

Chipset
AMD X870E
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard only have single-sided latch. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
1x HDMI™ Support HDMITM 2.1 with TMDS port, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
2x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Audio
Realtek® ALC897 7.1-Channel High Definition Audio
Storage
3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0 , RAID 1, RAID 5, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000/ 7000 series processors.
USB
4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear)
LAN
Realtek® 8126VB 5G LAN
Internal IO
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE
4x EZ Debug LED 1x EZ Memory Detection LED

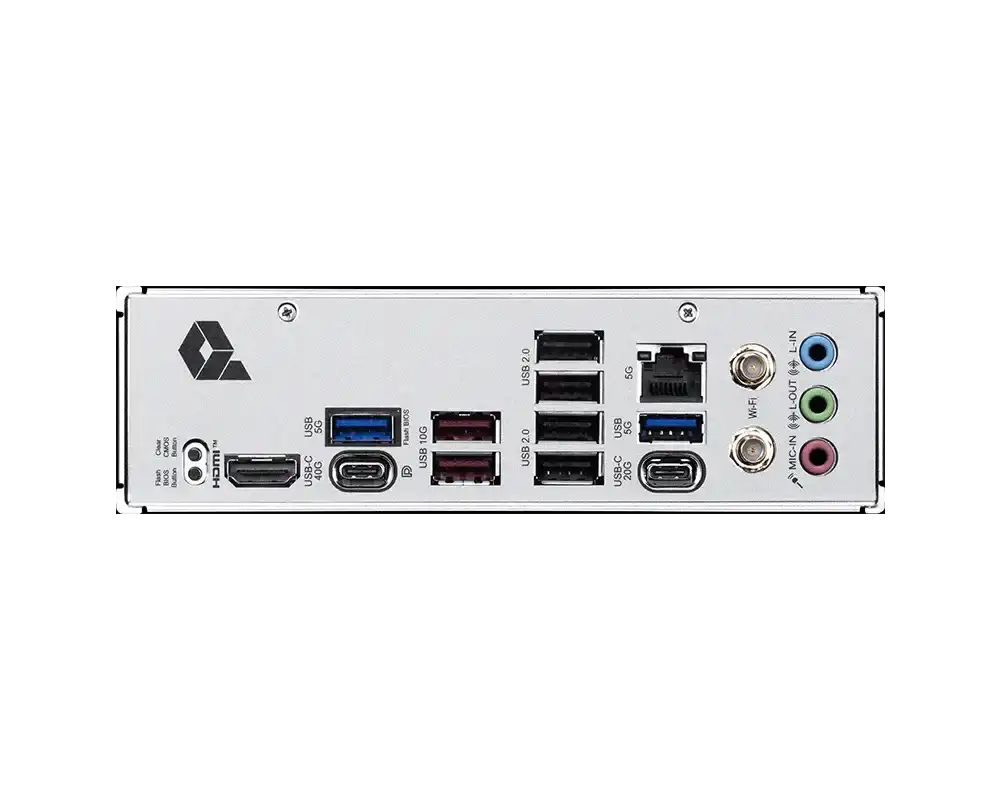

BACK PANEL PORTS
01. Clear CMOS Button 02. USB 5Gbps Type-A 03. USB 2.0 04. 5G LAN 05. Wi-Fi / Bluetooth 06. Audio connectors 07. Flash BIOS Button 08. HDMI™ 09. USB 40Gbps Type-C 10. USB 10Gbps Type-A 11. USB 20Gbps Type-C 12. USB 5Gbps Type-A
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
ATX 304.8mmx243.84mm

Warranty

3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
