- Model:PRO Z890-P WIFI6E
- Intel Z890 chipset, LGA 1851 socket
- DDR5 support up to 9200+ MT/s (OC)
- PCIe 5.0 M.2 slot, 5G LAN, WiFi 6E
- 14+1+1+1 DRPS VRM, dual 8-pin power
- 3 Years Warranty from MSI
Overview

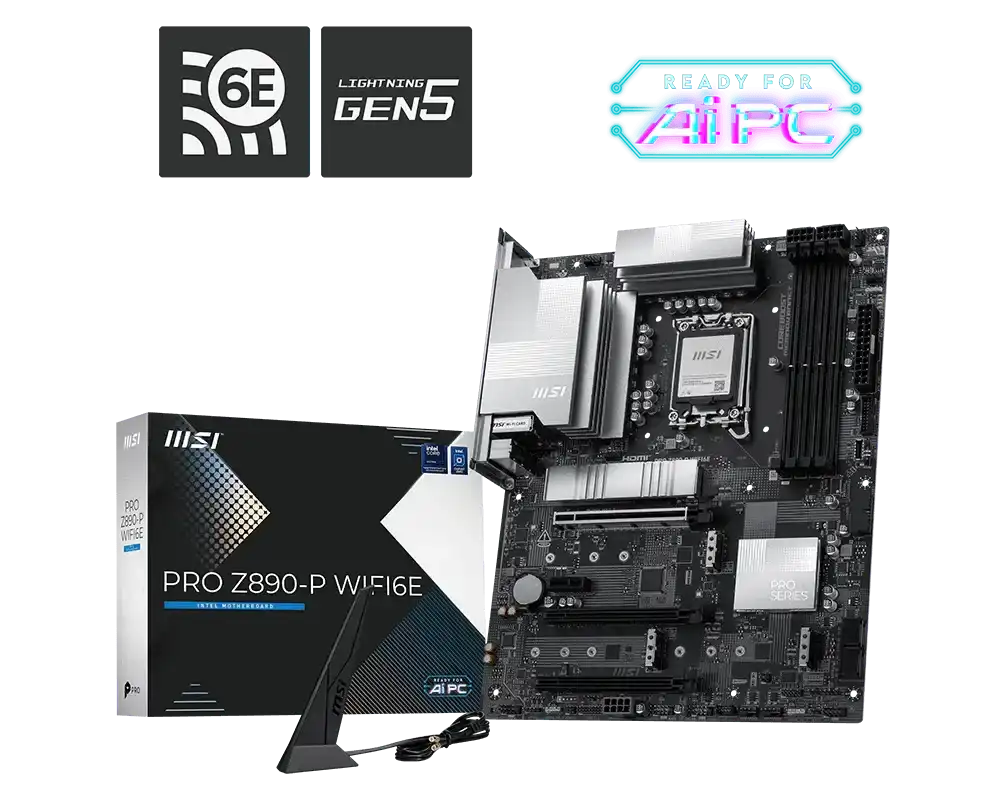

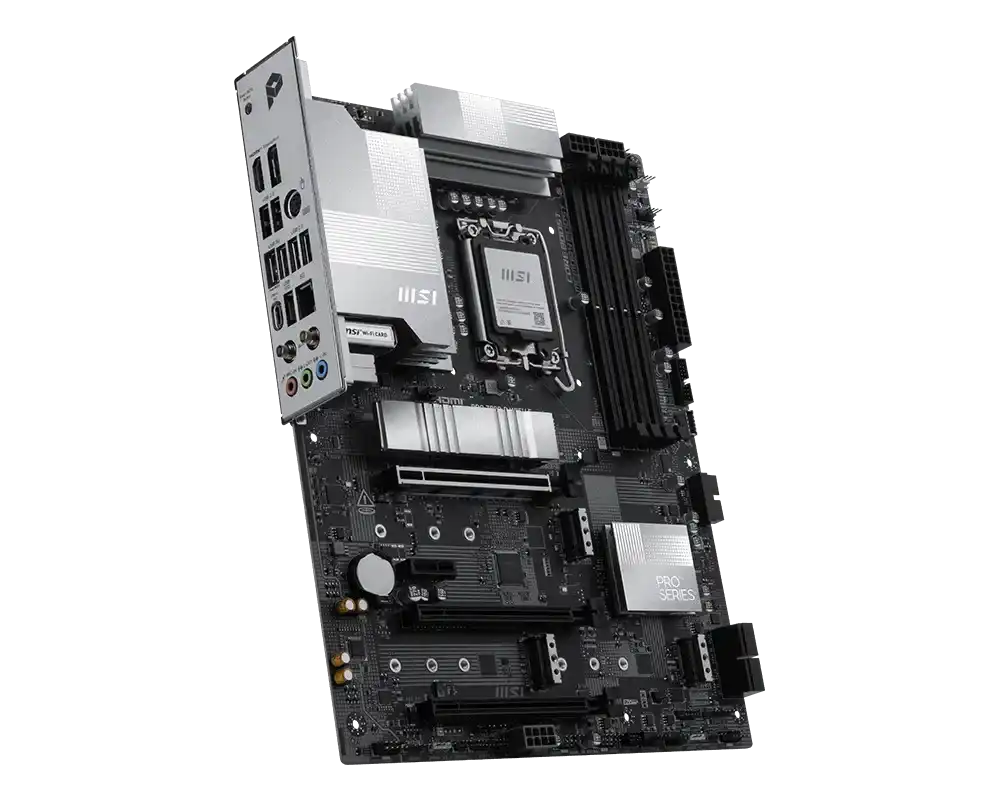

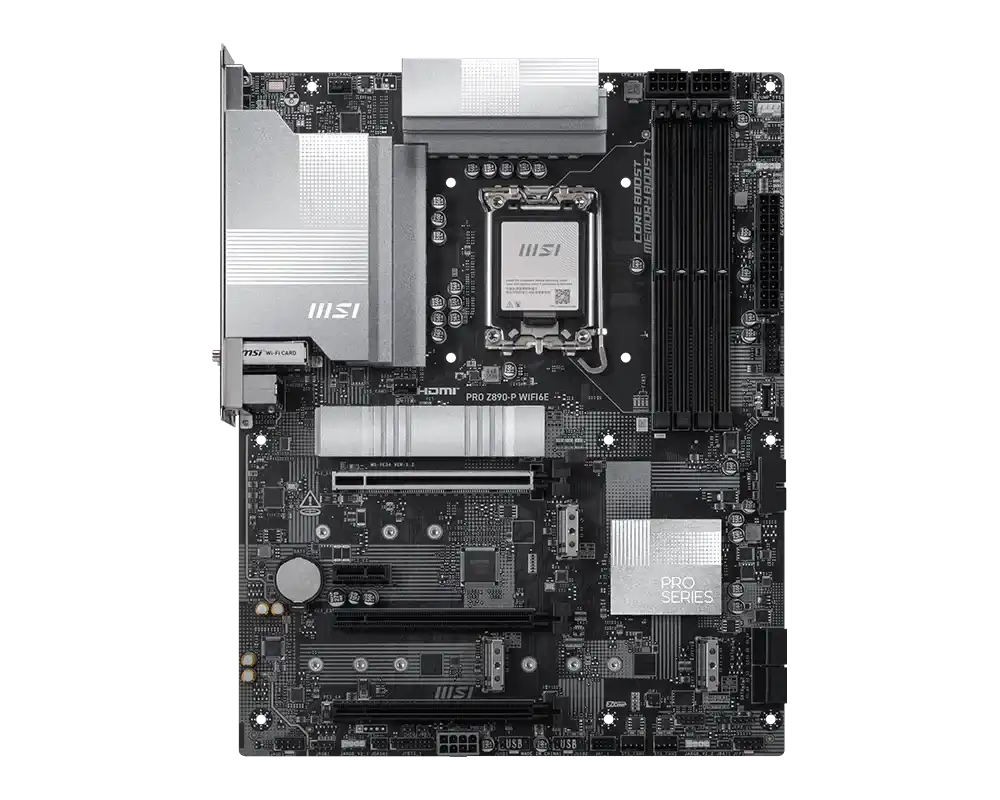

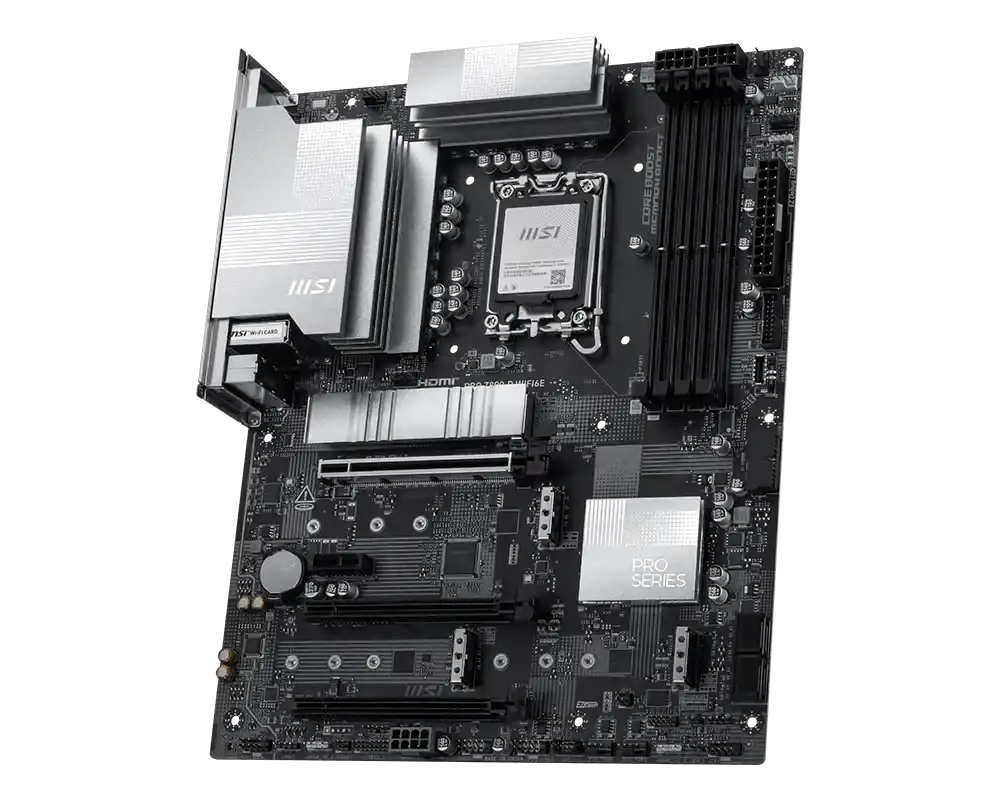

The MSI PRO Z890-P WIFI6E is a professional-grade ATX motherboard engineered for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. It combines business elegance with impressive performance, featuring a harmonious silver color scheme that complements both white and black PC builds.
This motherboard delivers ultra-performance with a 14+1+1+1 Duet Rail Power System using 55A DrMOS and dual 8-pin CPU power connectors. It supports DDR5 memory up to 9200+ MT/s (OC) with Memory Boost technology and features PCIe 5.0 connectivity with Lightning Gen 5 x4 M.2 support for blazing-fast storage speeds.
Connectivity is premium with 5G LAN and Wi-Fi 6E, complemented by comprehensive USB support including USB 20Gbps Type-C. The Frozr Guard thermal solution includes extended heatsinks, 7W/mK MOSFET thermal pads, and the EZ M.2 Shield Frozr II for optimal cooling. DIY-friendly features like EZ M.2 Shield Frozr II, EZ PCIe Clip II, and EZ Antenna make installation effortless.
- Intel Z890 chipset with LGA 1851 socket support
- DDR5 memory support up to 9200+ MT/s (OC)
- PCIe 5.0 M.2 slot with 128 Gbps bandwidth
- 5G LAN and Wi-Fi 6E connectivity
- 14+1+1+1 DRPS VRM with 55A DrMOS
- Extended Heatsink and EZ M.2 Shield Frozr II
- USB 20Gbps Type-C front connector
- Click BIOS X with AI Boost and Creation Boost
- MSI Center software with AI Engine
- Pre-installed I/O Shield and EZ Mounting
Specifications
- Chipset
- INTEL Z890
- CPU
- Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
- Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
- USB
- 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
- LAN
- Realtek® 8126 5Gbps LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
- LED FEATURE
- 4x EZ Debug LED

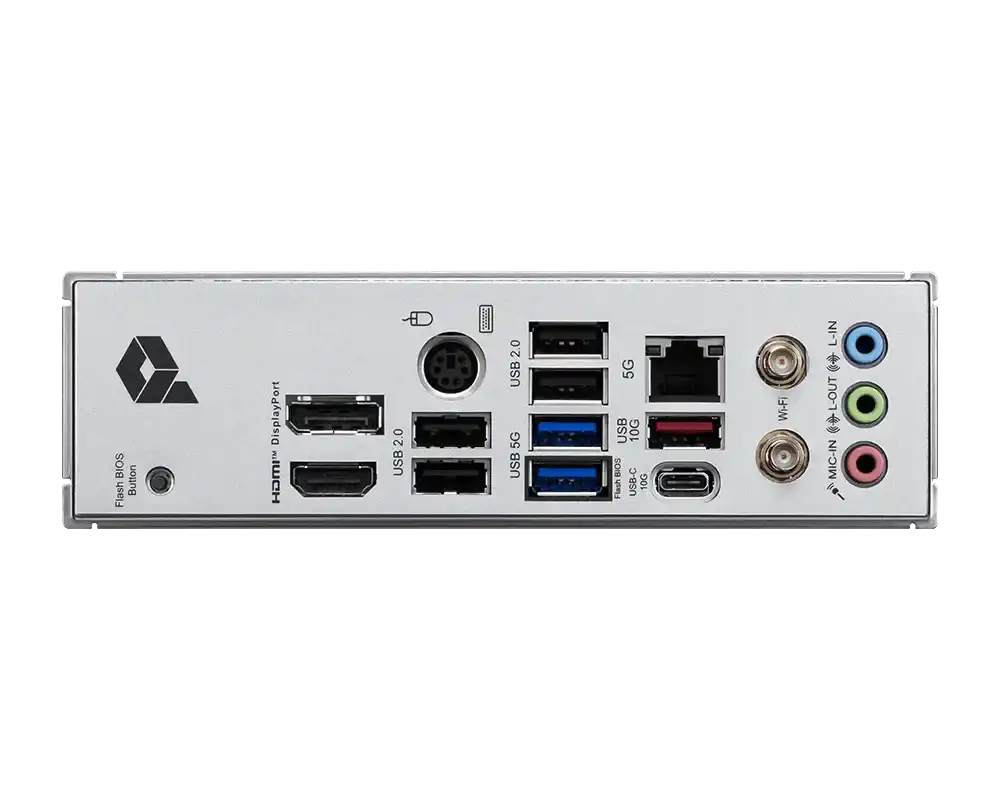

- BACK PANEL PORTS
- 01. DisplayPort 02. Mouse / Keyboard 03. USB 2.0 04. 5G LAN 05. Wi-Fi / Bluetooth 06. Audio Connectors 07. Flash BIOS Button 08. HDMI™ 09. USB 2.0 10. USB 5Gbps Type-A 11. USB 10Gbps Type-C 12. USB 10Gbps Type-A
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- ATX 243.84mmx304.8mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
