- Model:PRO Z890-S WIFI6E WHITE
- Intel Z890 chipset, LGA 1851 socket
- DDR5 memory support up to 8800+ MT/s
- PCIe 5.0 M.2 and Wi-Fi 6E connectivity
- 12+1+1+1 power phases with dual 8-pin connectors
- 3 Years Warranty from MSI
Overview

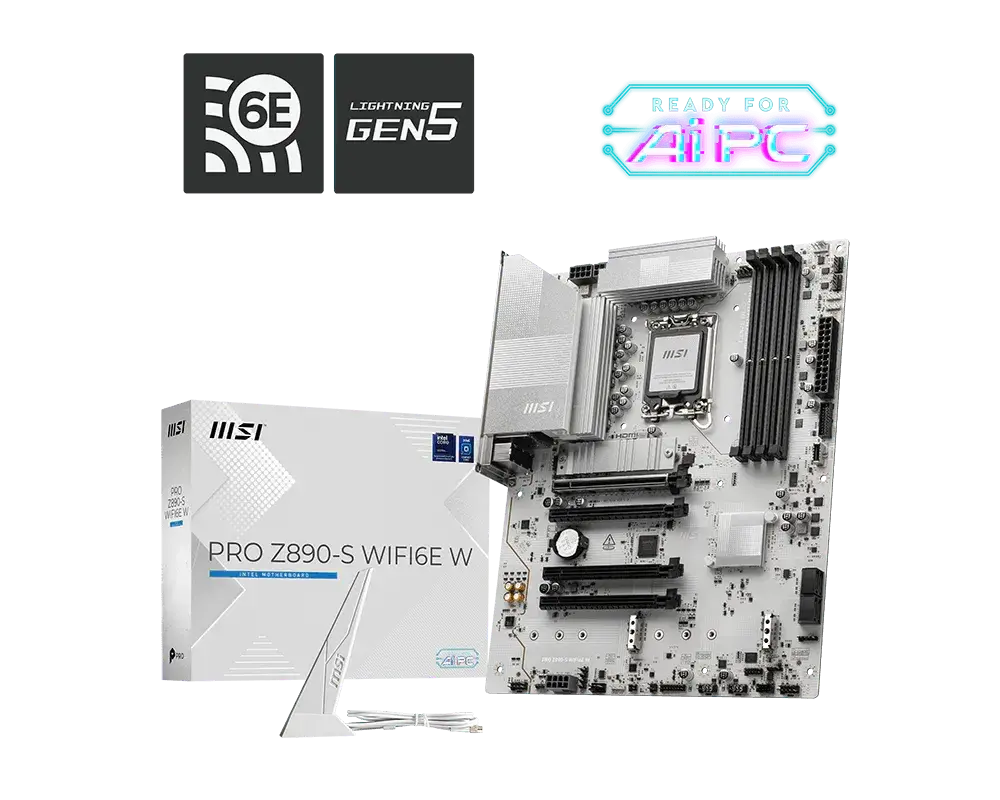

The MSI PRO Z890-S WIFI6E W is a professional-grade ATX motherboard engineered for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. Featuring a harmonious silver-white color scheme, it combines business elegance with high performance, supporting DDR5 memory up to 8800+ MT/s and delivering exceptional connectivity through Wi-Fi 6E and 2.5G LAN.
Built with a robust 12+1+1+1 digital power design and dual 8-pin CPU power connectors, this motherboard handles demanding workloads with ease. The extended heatsink design, M.2 Shield Frozr, and 7W/mK MOSFET thermal pads ensure optimal thermal performance. Storage options include one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots, plus four SATA ports for comprehensive expansion.
MSI's EZ DIY features simplify building with the EZ PCIe Clip II, EZ Antenna, and pre-installed I/O Shield. The Click BIOS X interface offers intuitive control with one-click overclocking, AI Boost for NPU performance, and XMP support for memory optimization. Integrated audio features Realtek ALC897 codec with isolated audio structure for studio-grade sound quality.
- Intel Z890 chipset with LGA 1851 socket support
- DDR5 memory support up to 8800+ MT/s (OC)
- PCIe 5.0 x16 slot with Steel Armor reinforcement
- Wi-Fi 6E and 2.5G LAN for high-speed connectivity
- 12+1+1+1 DRPS power design with dual 8-pin connectors
- Extended heatsink and M.2 Shield Frozr thermal solutions
- USB 20Gbps Type-C ports (rear and front)
- Realtek ALC897 7.1-channel audio with Audio Boost
- EZ DIY features: EZ PCIe Clip II, EZ Antenna, pre-installed I/O Shield
- Click BIOS X with Creation Boost, AI Boost, and XMP support
Specifications
- Chipset
- INTEL Z890
- CPU
- Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
- Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard have double-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 4x PCI-E x16 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU)
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 3x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) *Please refer to the manual for M.2 SSD heatsink restrictions.
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
- USB
- 4x USB 2.0 (Front) 6x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 20Gbps Type C (Rear) 1x USB 20Gbps Type C (Front)
- LAN
- Realtek® 8125D 2.5Gbps LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x PUMP_SYS Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 20Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 6E module The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
- LED FEATURE
- 4x EZ Debug LED
- BACK PANEL PORTS
- 1. DisplayPort 2. USB 5Gbps Type-A 3. 2.5G LAN 4. Wi-Fi / Bluetooth 5. Audio Connectors 6. HDMI™ 7. USB 20Gbps Type-C 8. USB 5Gbps Type-A
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- ATX 243.84mmx304.8mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
