MSI B860 Motherboards

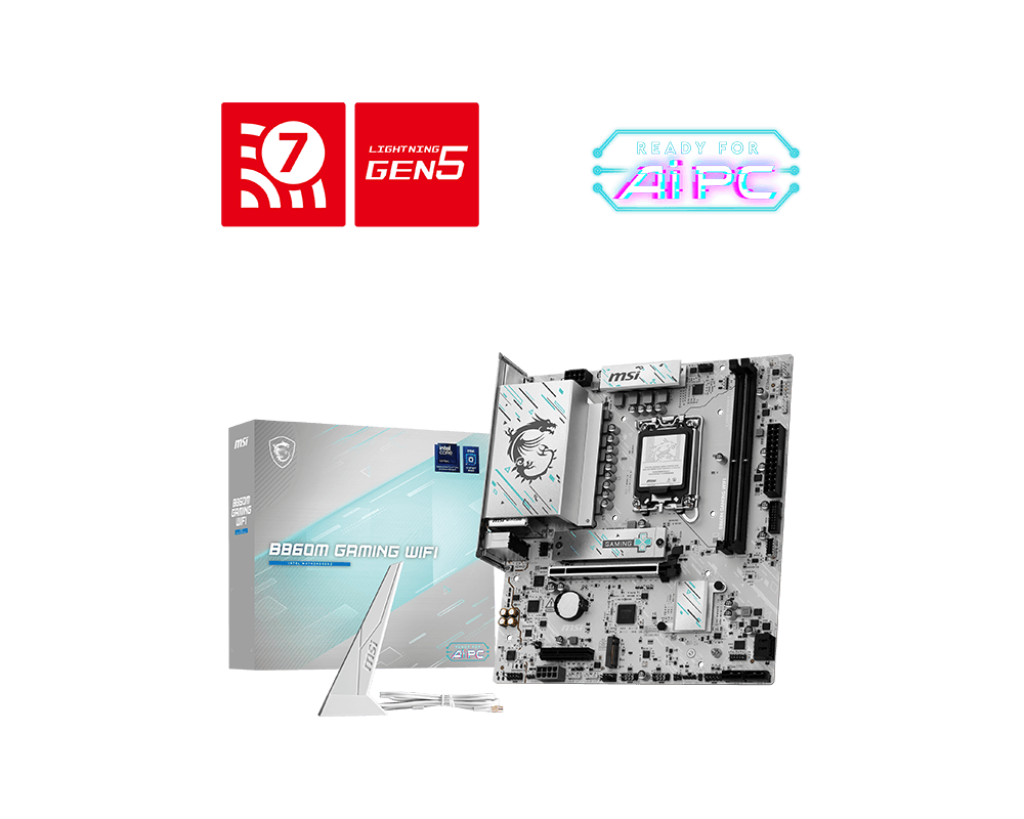

MSI B860M GAMING WIFI Motherboard

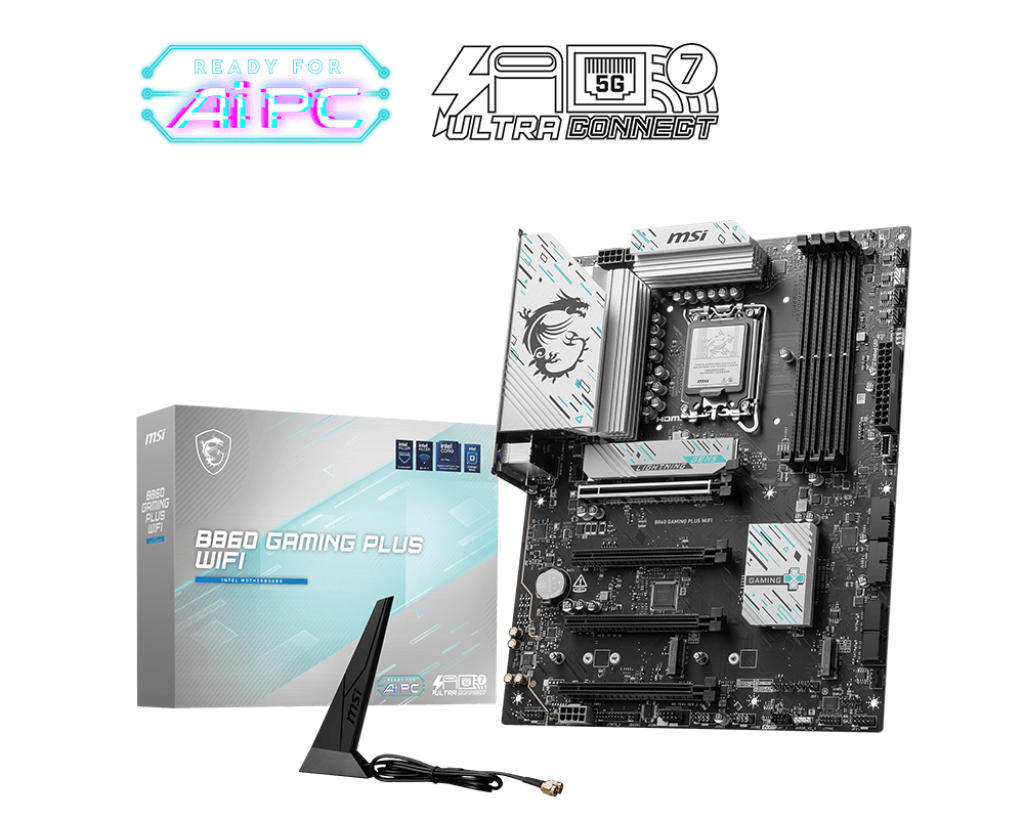

MSI B860 GAMING PLUS WIFI Motherboard

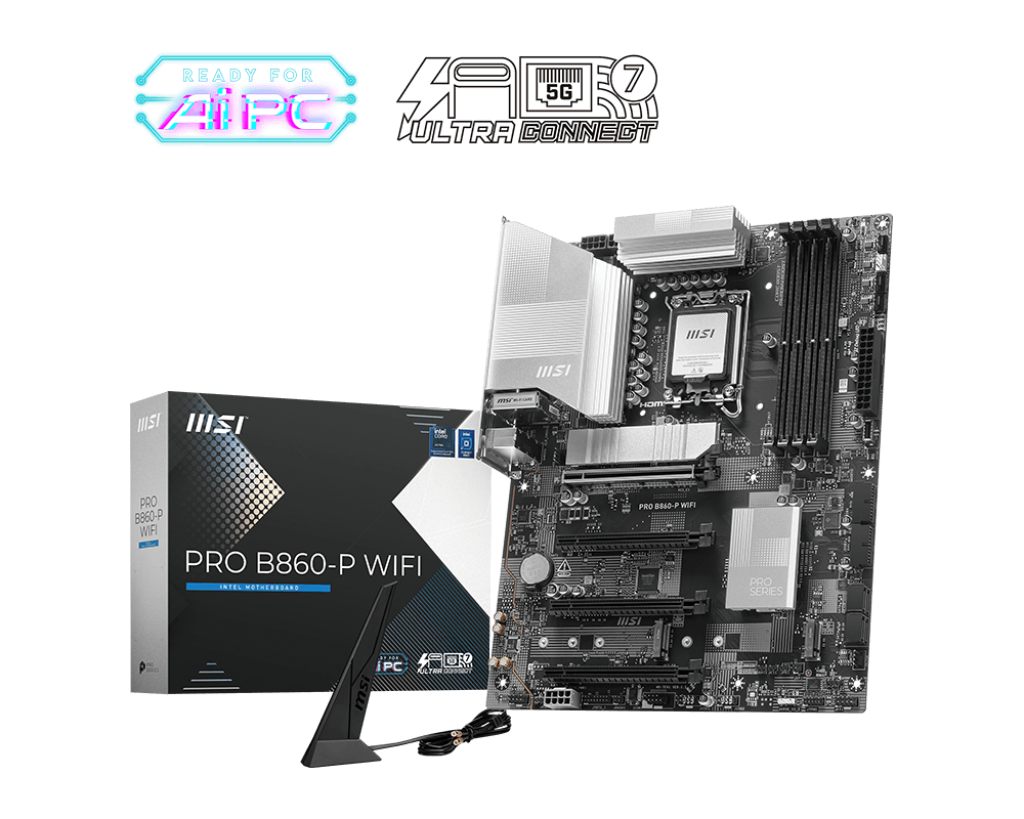

MSI PRO B860-P WIFI Motherboard

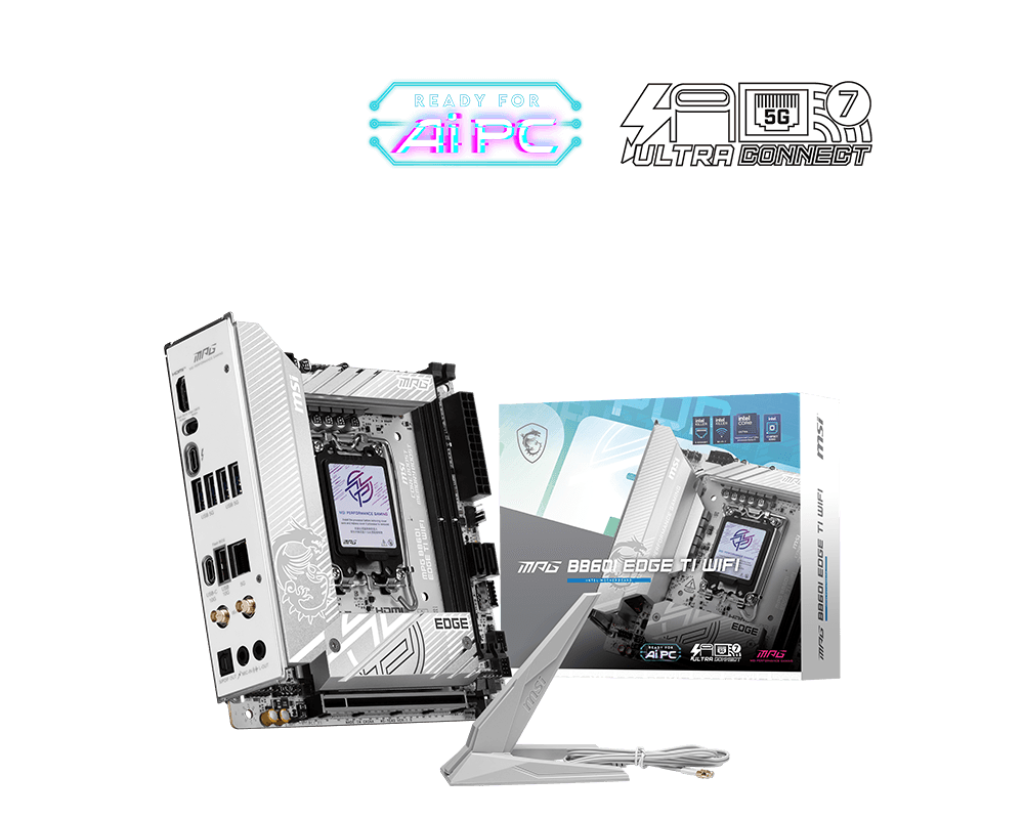

MSI MPG B860I EDGE TI WIFI Motherboard

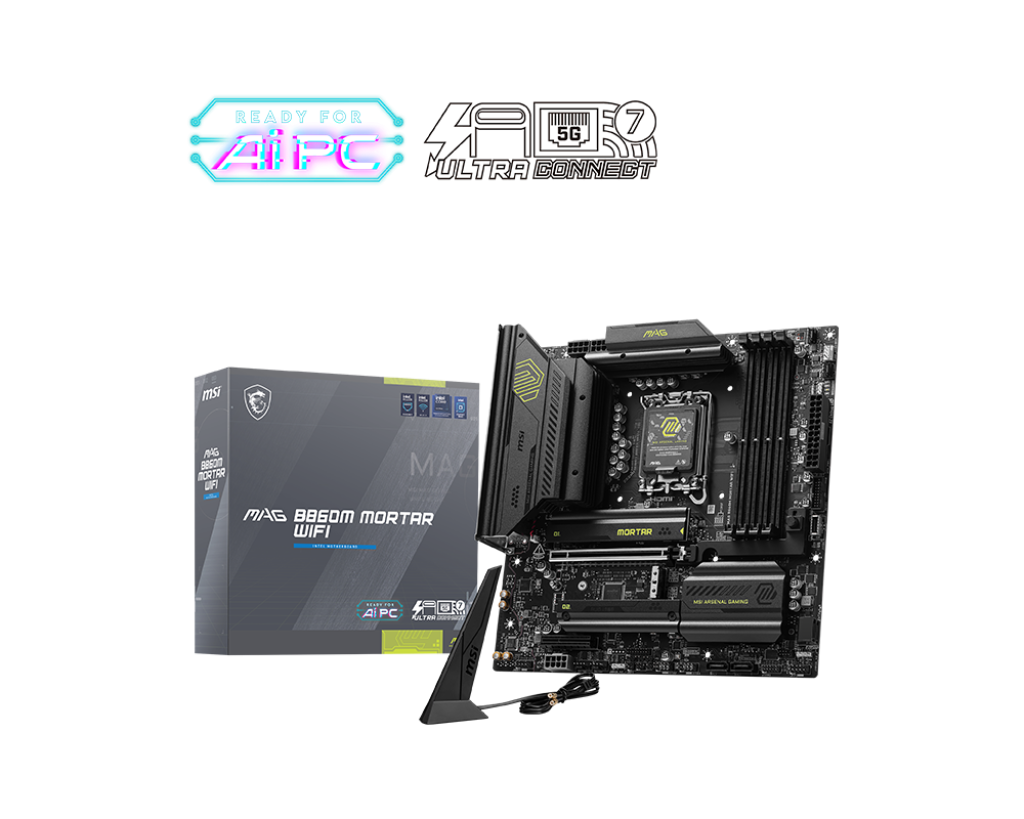

MSI MAG B860M Mortar WIFI Motherboard

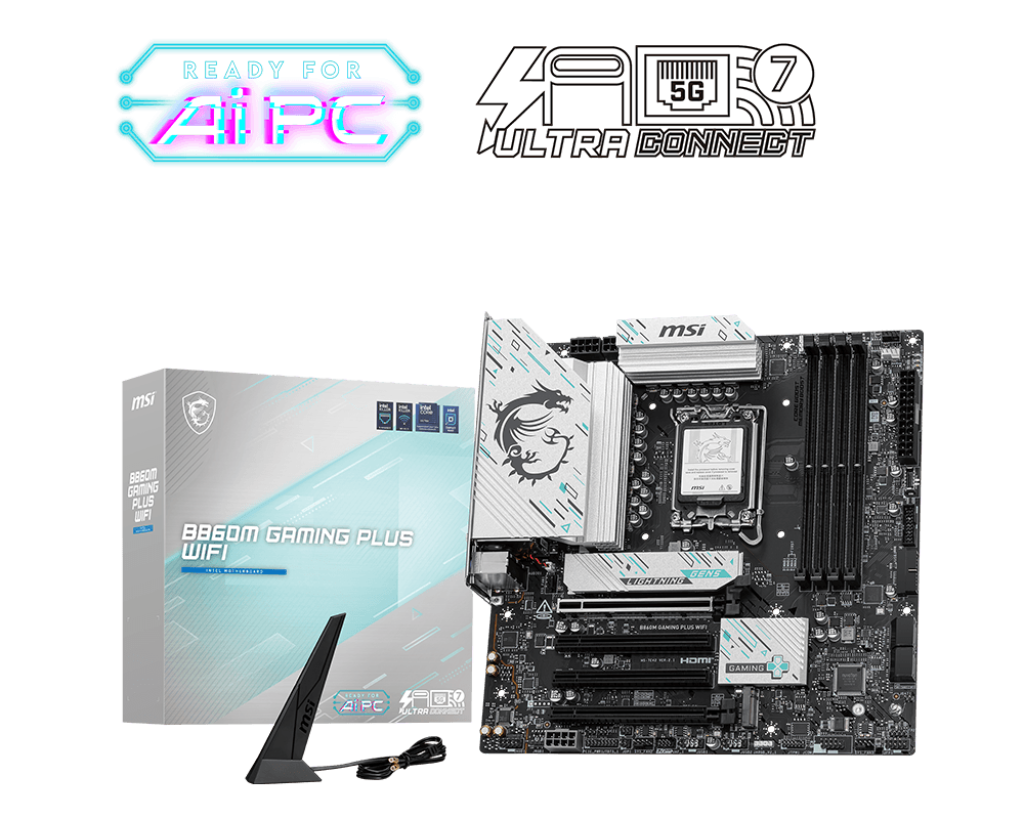

MSI B860M GAMING PLUS WIFI Motherboard

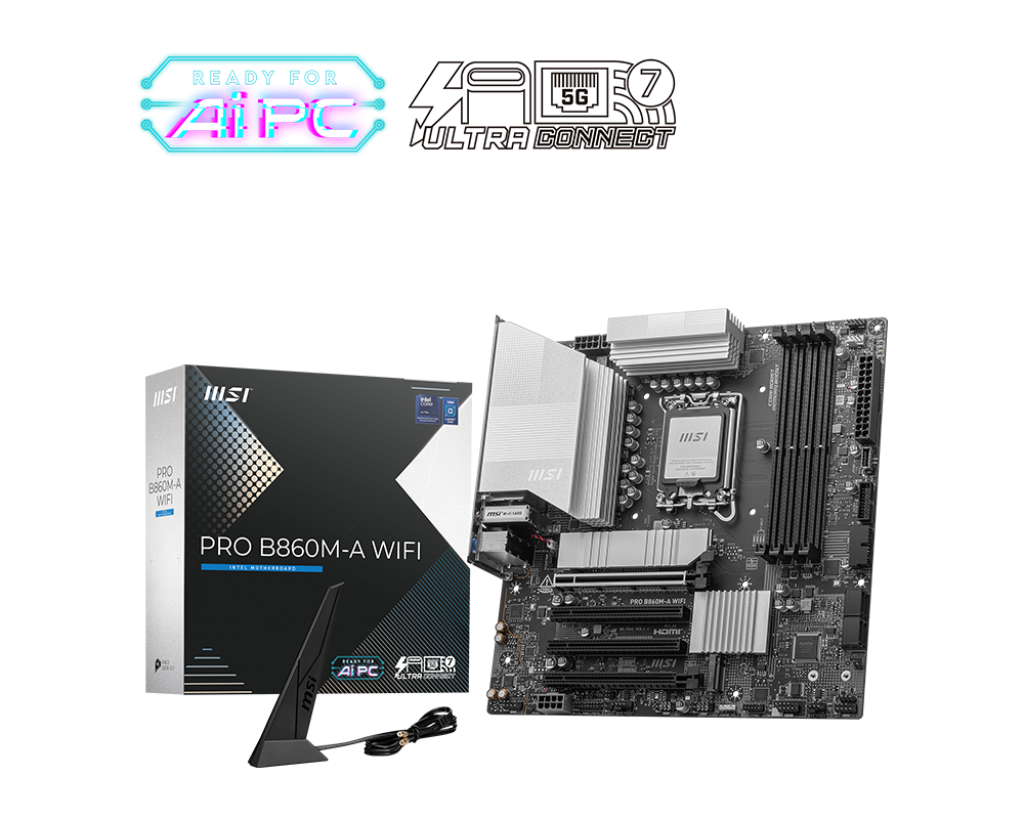

MSI PRO B860M-A WIFI Motherboard

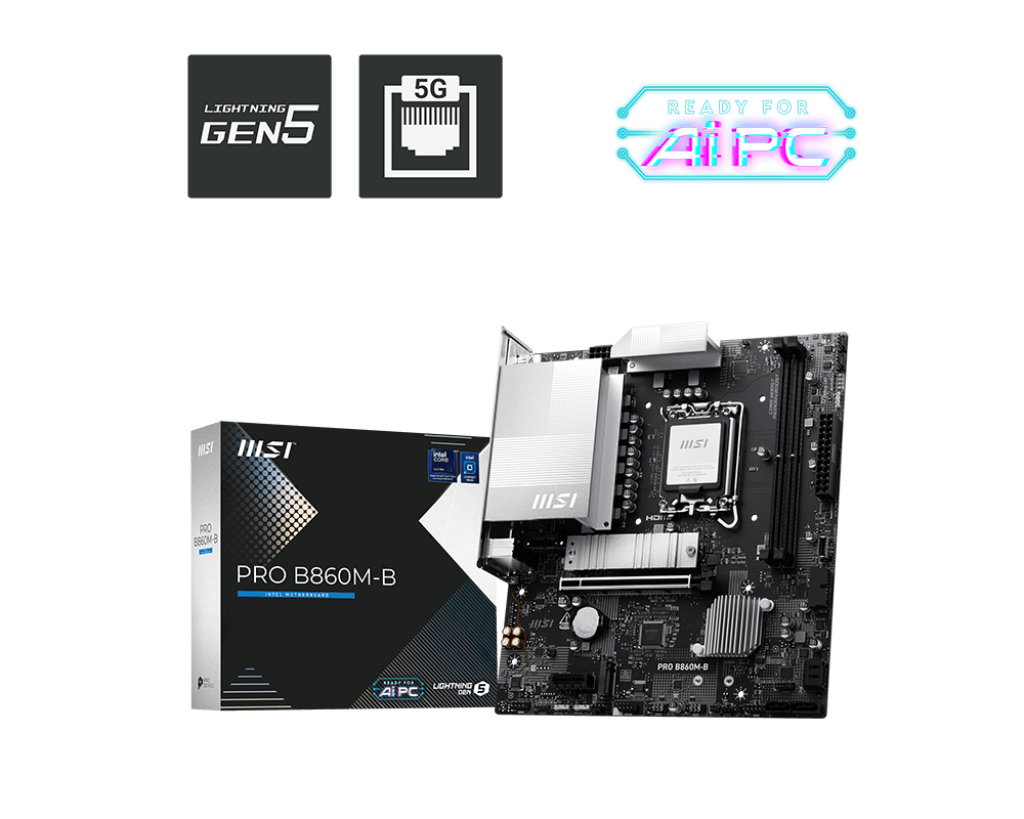

MSI PRO B860M-B Motherboard
MSI PRO B860M-P WIFI6E Motherboard
MSI PRO B860M-B WIFI Motherboard
MSI PRO B860M-S Motherboard
MSI PRO B860M-A WIFI6E Motherboard
MSI PRO B860M-E Motherboard
MSI B860M GAMING PLUS WIFI6E Motherboard
The MSI B860 boards here are LGA 1851 motherboards for Intel Core Ultra desktop processors, and all of them take DDR5 memory only. They run from the Mini-ITX MPG B860I EDGE TI WIFI and the micro-ATX PRO B860M-B, the one model without Wi-Fi, through the B860M GAMING PLUS WIFI and MAG B860M MORTAR WIFI, to the full ATX B860 GAMING PLUS WIFI and PRO B860-P WIFI. MSI covers them with a 3 year warranty.
Start with the case: ATX boards need a mid tower, the micro-ATX models fit most compact towers, and the B860I EDGE TI WIFI is for small Mini-ITX builds. Next, check memory and storage room. The four-slot boards, such as the PRO B860M-A WIFI and MAG B860M MORTAR WIFI, take up to 256 GB of RAM and three M.2 drives. The B860M GAMING WIFI, PRO B860M-B and B860I EDGE TI WIFI have two RAM slots (up to 128 GB) and two M.2 slots. The B860 chipset allows memory overclocking but not CPU overclocking, so a K-series Core Ultra chip runs at stock speeds on these boards.
Frequently asked questions
Will an older Intel processor fit these boards? No. B860 boards use the LGA 1851 socket and support Intel Core Ultra processors only, so chips made for earlier Intel sockets do not fit.
Can DDR4 RAM be used on an MSI B860 board? No. Every board on this page supports DDR5 only.
What is the difference between the B860M GAMING PLUS WIFI and the B860M GAMING WIFI? The GAMING PLUS WIFI has four RAM slots for up to 256 GB and three M.2 slots. The GAMING WIFI has two RAM slots for up to 128 GB and two M.2 slots.
