- Model:PRO B860M-P WIFI6E
- Intel B860 chipset, LGA 1851 socket
- DDR5 memory support up to 8800+ MT/s
- PCIe 5.0 M.2 and 2x PCI-E slots
- Wi-Fi 6E, 2.5G LAN, Audio Boost
- 3 Years Warranty from MSI
Overview

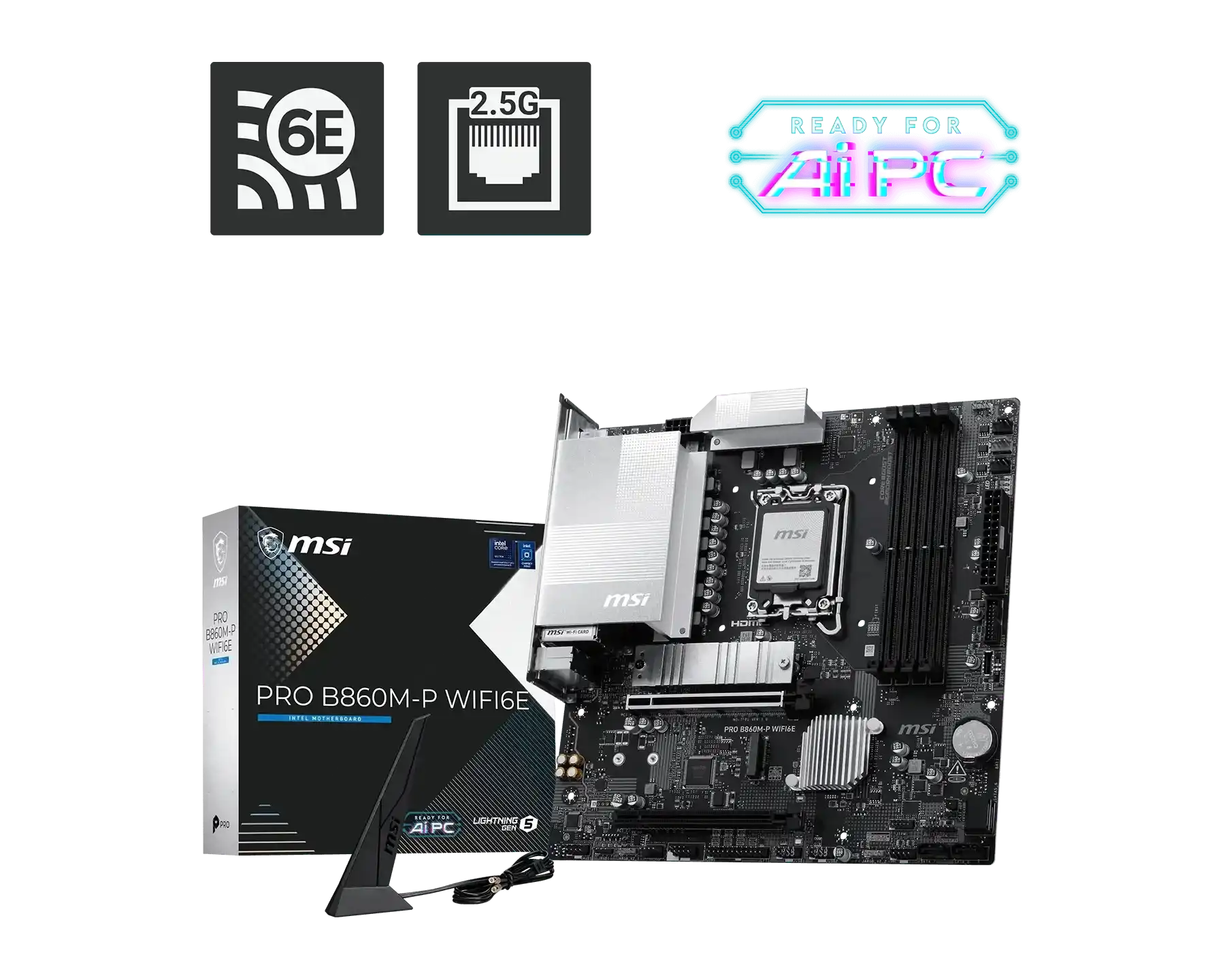

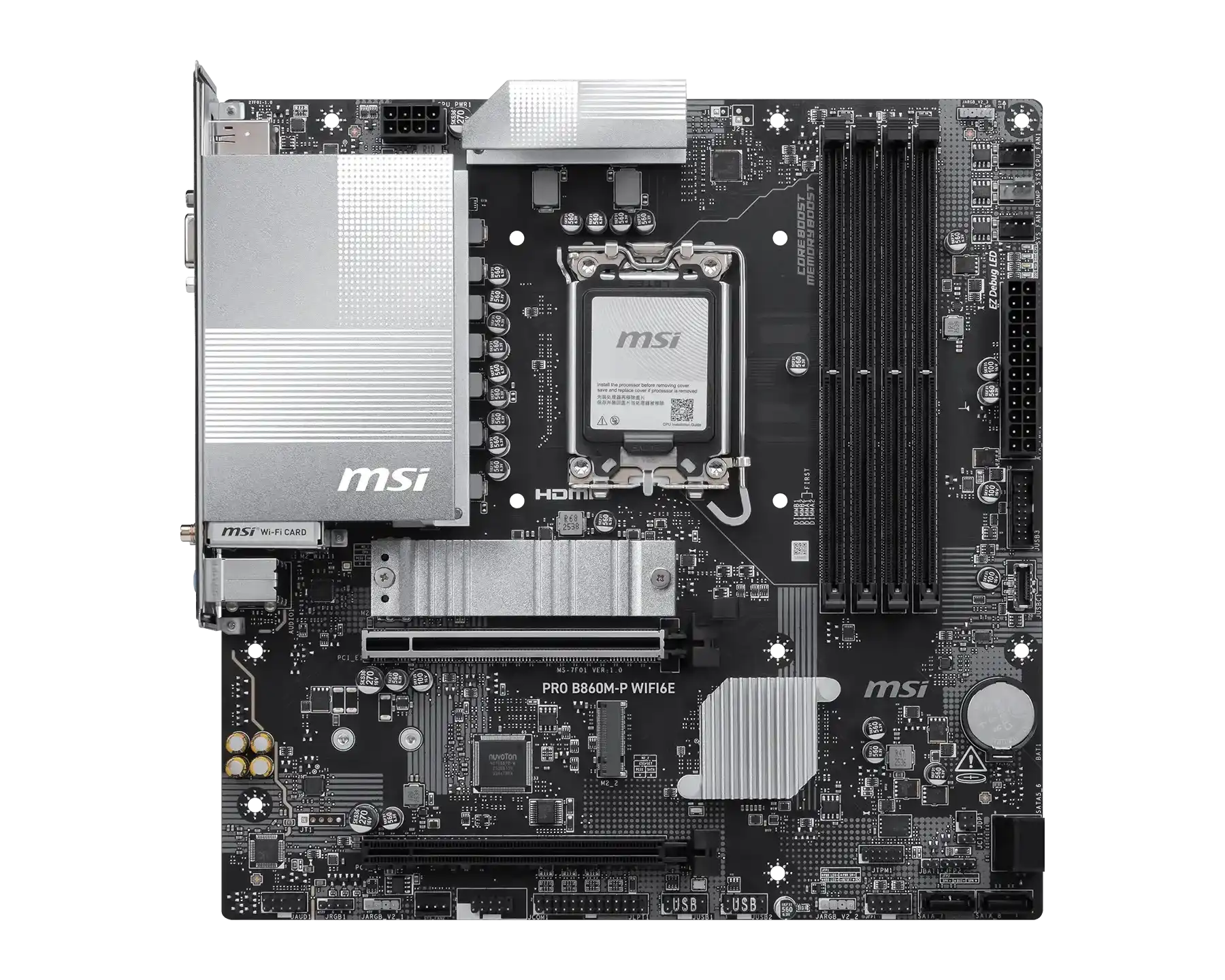

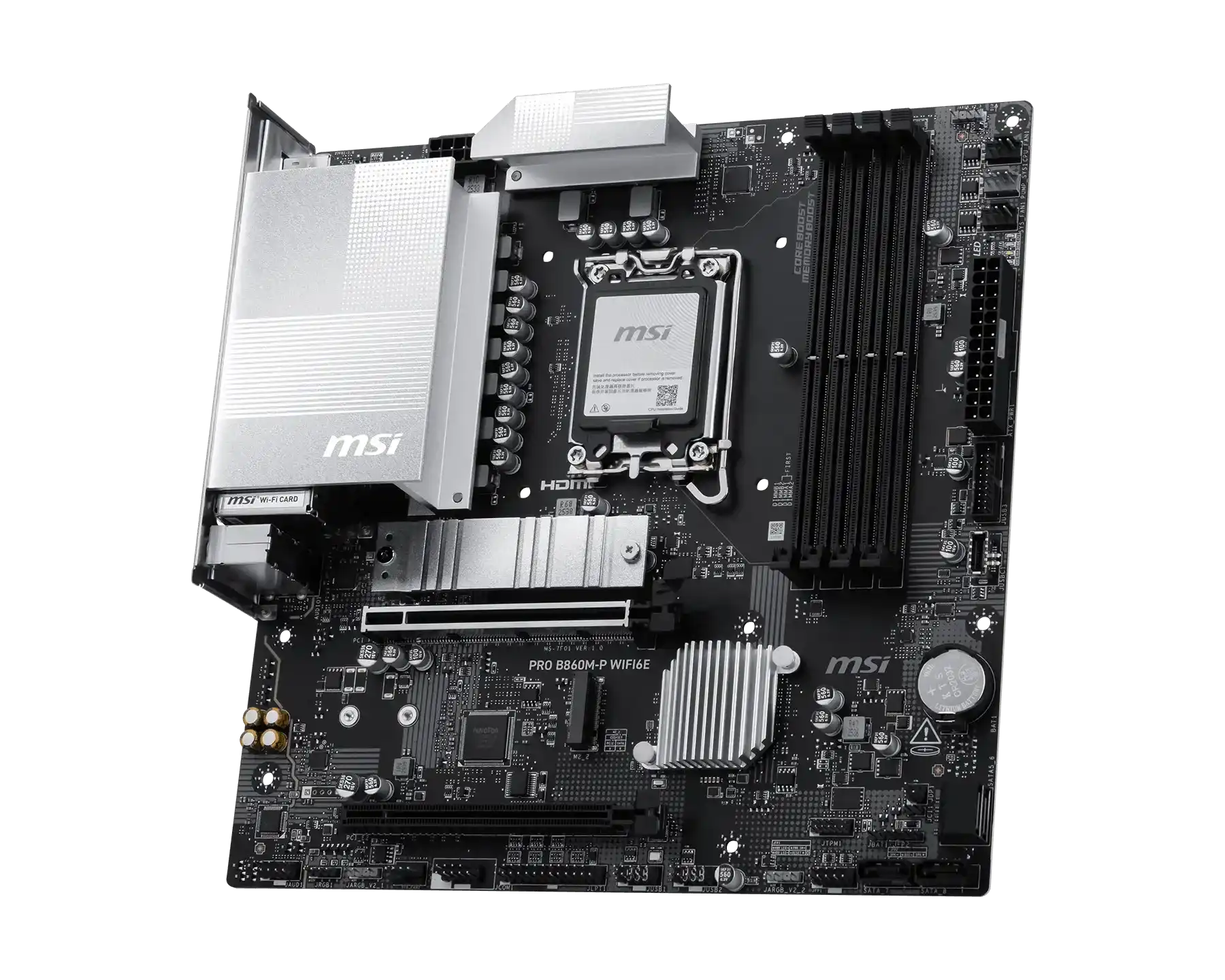

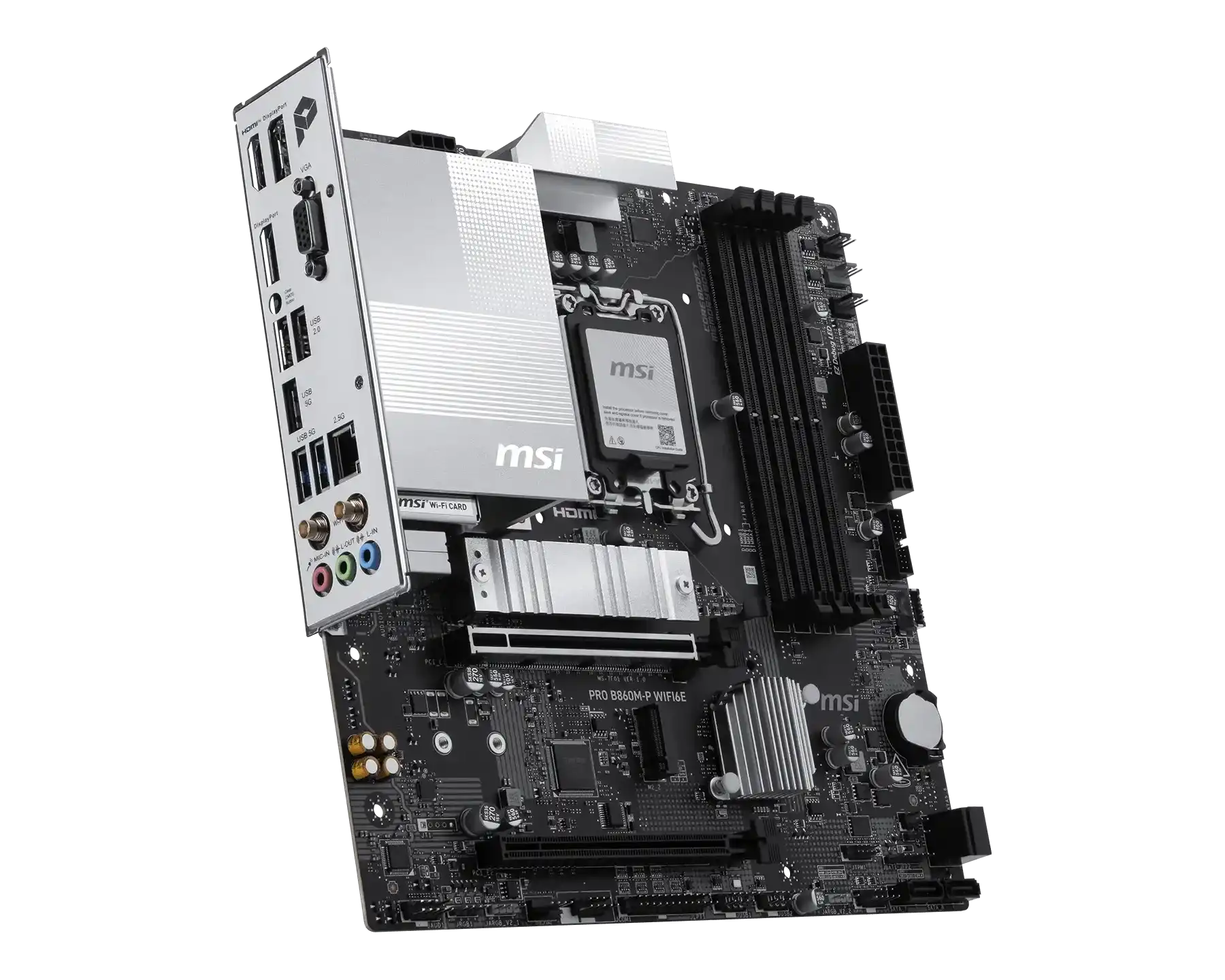

The MSI PRO B860M-P WIFI6E is a micro-ATX motherboard engineered for Intel Core Ultra Processors (Series 2) on the LGA 1851 socket. It features a harmonious silver color scheme designed to complement both white and black PC builds, combining professional-grade performance with user-friendly design.
This motherboard delivers premium thermal solutions with extended heatsinks, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr technology. The ultra-performance power design includes a 6+1+1+1 digital power phase configuration with an 8-pin CPU power connector, ensuring stable operation even under demanding workloads.
Connectivity is enhanced with Wi-Fi 6E, 2.5G LAN, and comprehensive USB support including USB 5Gbps Type-C. Storage options include one PCIe 5.0 x4 M.2 slot and one PCIe 4.0 x4 M.2 slot, plus four SATA 6G ports. The board supports DDR5 memory up to 256GB with speeds reaching 8800+ MT/s (OC).
Exclusive MSI features include EZ DIY technologies such as EZ PCIe Clip II for easy GPU installation, EZ Antenna for simplified Wi-Fi setup, and pre-installed I/O shield. The Click BIOS X interface provides both intuitive EZ Mode and advanced configuration options, while MSI Center software unifies system management with AI Engine, Mystic Light RGB control, and comprehensive hardware monitoring.
- Intel B860 chipset with LGA 1851 socket for Core Ultra Series 2
- DDR5 memory support: 4 DIMM slots, up to 256GB, 8800+ MT/s (OC)
- Ultra Performance: 6+1+1+1 digital power phases, 8-pin CPU power
- PCIe 5.0 x16 slot and Lightning Gen 5 x4 M.2 storage
- Wi-Fi 6E with 2.5G LAN and EZ Antenna
- Extended heatsinks, M.2 Shield Frozr, 7W/mK thermal pads
- EZ DIY: EZ PCIe Clip II, pre-installed I/O shield
- Click BIOS X with XMP 3.0 support
- Audio Boost with Realtek ALC897 codec
- Mystic Light RGB with ARGB headers
Specifications
- Chipset
- INTEL B860
- CPU
- Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
- Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking: • 1DPC 1R Max speed up to 8800+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM • The DIMM slots on this motherboard only have single-sided latches. • Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 2.1 port with TMDS, maximum resolution of 4K 60Hz* 2x DisplayPort Support DisplayPort 1.4 port with HBR2, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 2x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *Please refer to the manual for M.2 SSD heatsink restrictions.
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 3x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
- LAN
- Realtek® 8125 2.5Gbps LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
- WIRELESS LAN & BLUETOOTH
- Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3**, FIPS, FISMA * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details.
- LED FEATURE
- 4x EZ Debug LED 1x EZ Memory Detection LED

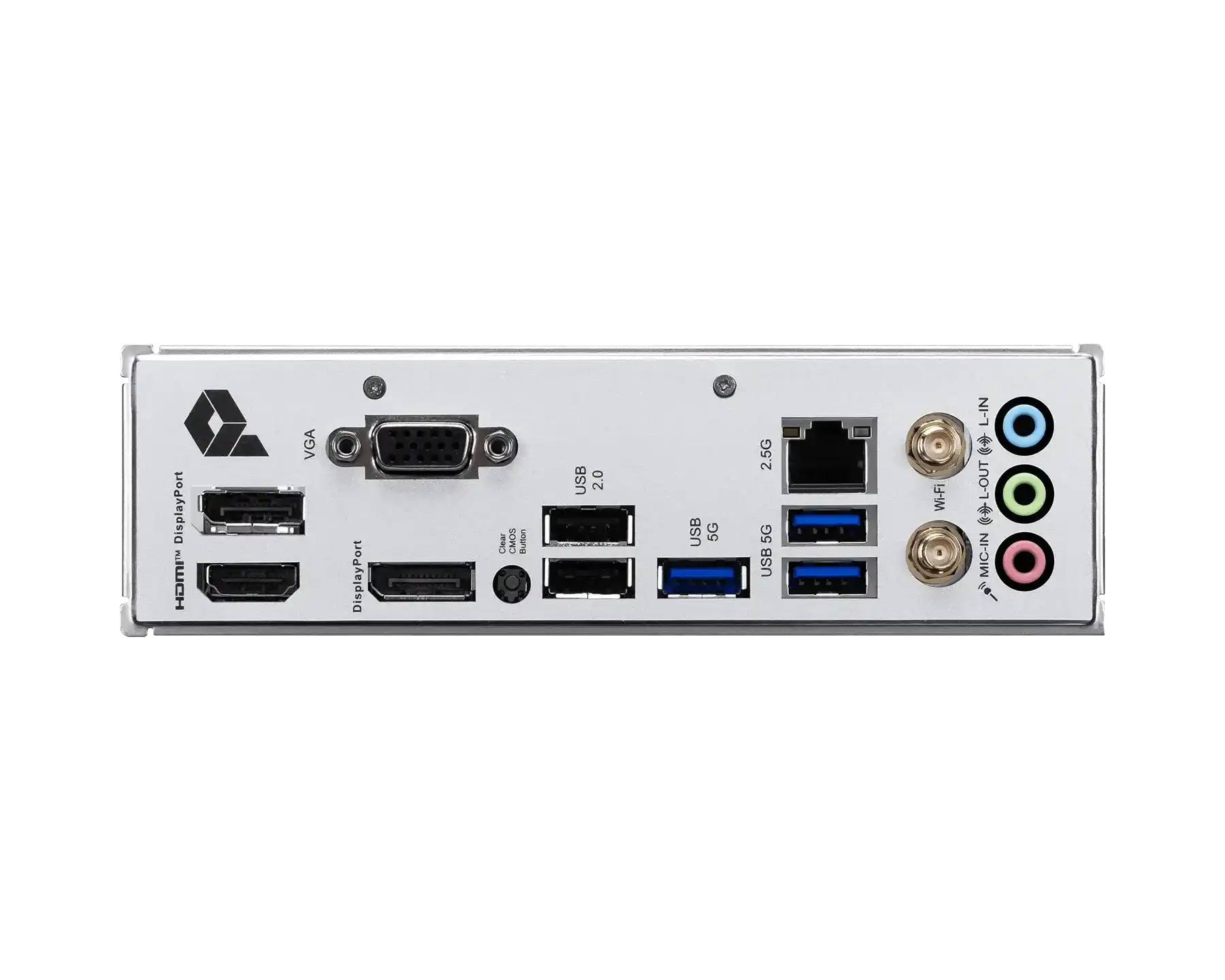

- BACK PANEL PORTS
- 01. DisplayPort 02. VGA 03. USB 2.0 04. USB 5Gbps Type-A 05. 2.5G LAN 06. Wi-Fi / Bluetooth 07. Audio Connectors 08. HDMI™ 09. DisplayPort 10. Clear CMOS Button 11. USB 5Gbps Type-A
- OPERATING SYSTEM
- Support for Windows® 11 64-bit
- PCB Info
- mATX 243.84mmx243.84mm
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
