- Model:MAG A750GN PCIES
- 750W 80 Plus Gold Certified
- ATX Form Factor PSU
- Non-Modular Cables
- PCIe 5.1 Ready Support
- 7 Years Warranty from MSI
Overview

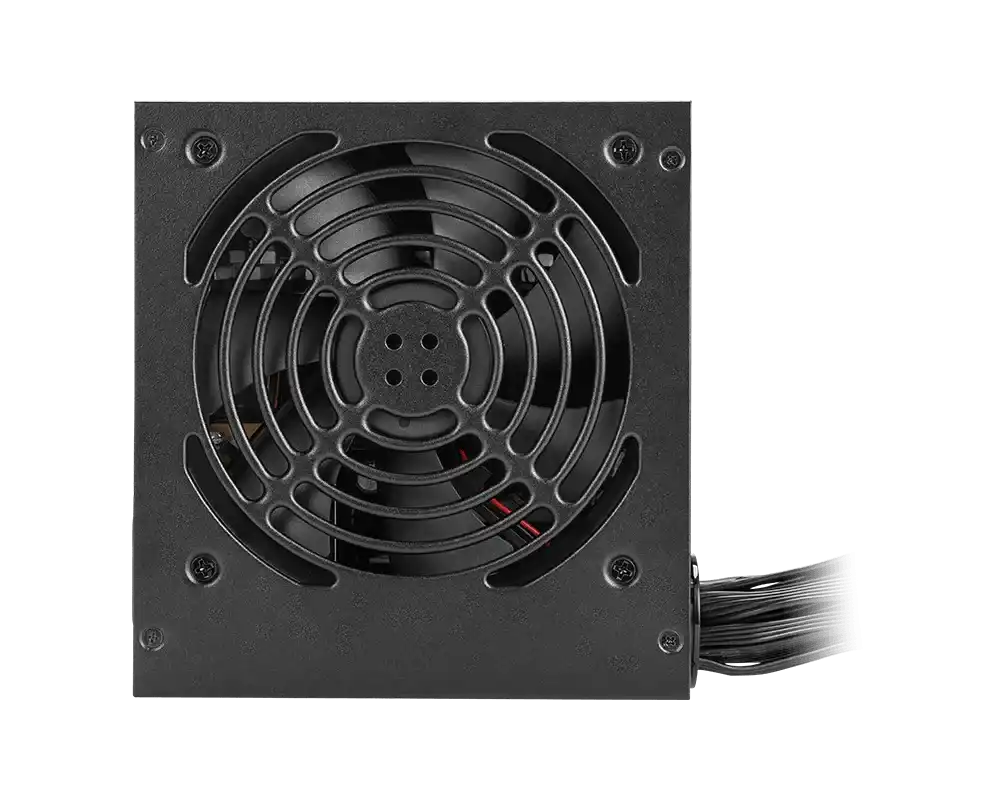

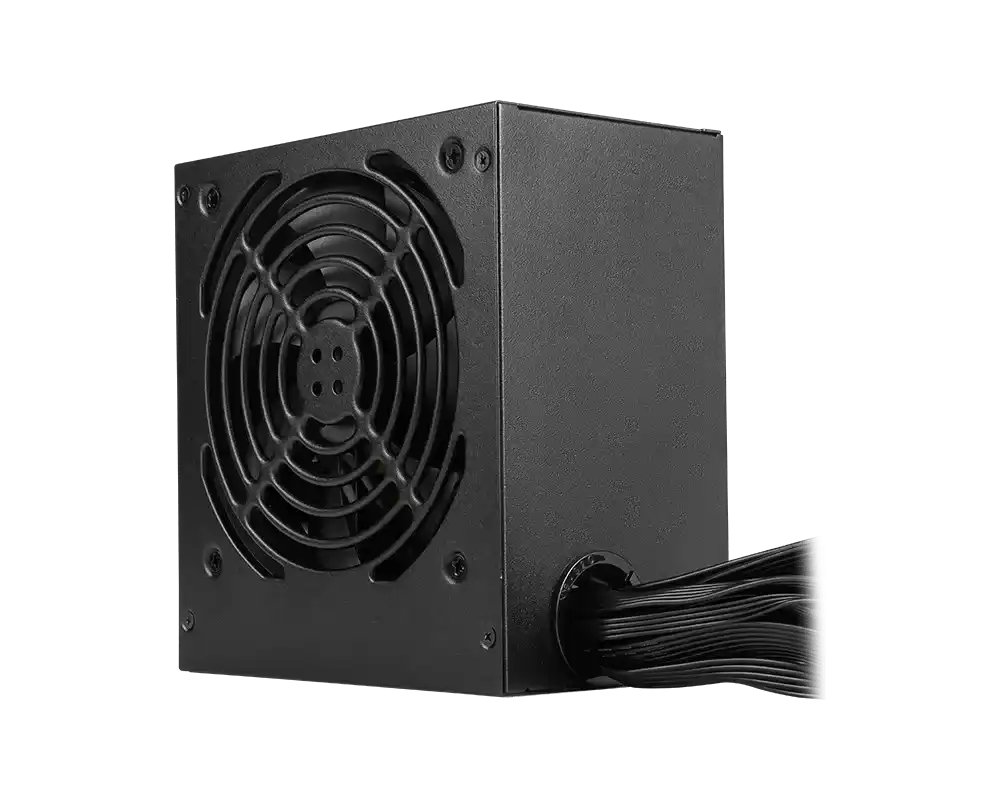

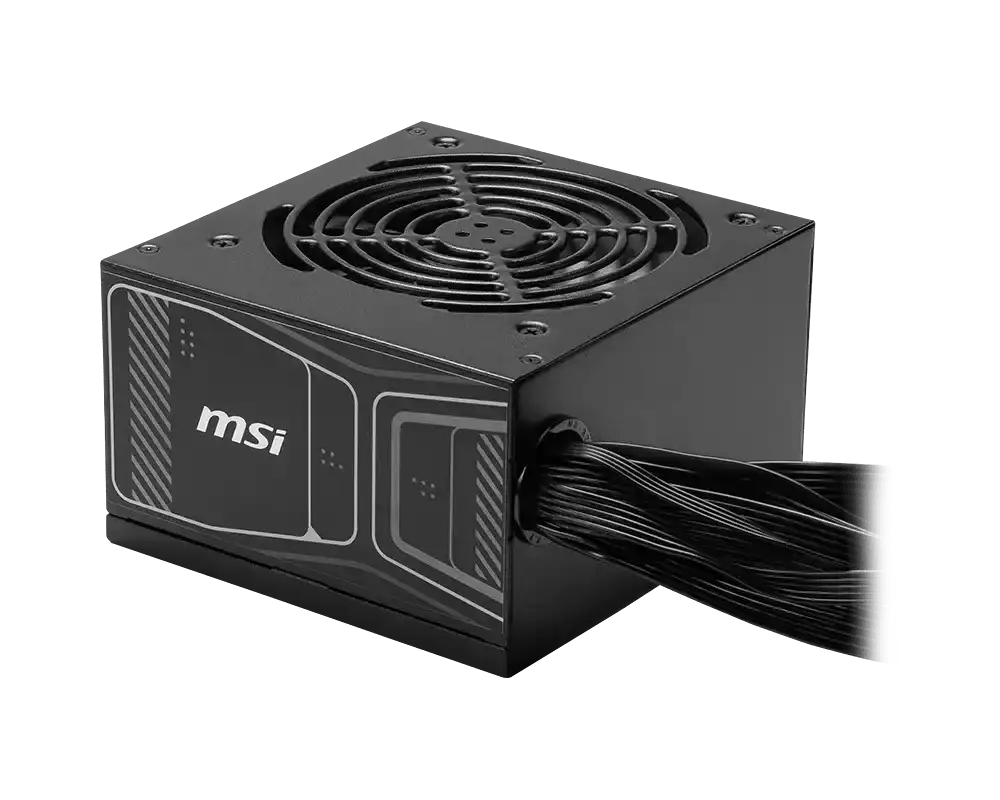

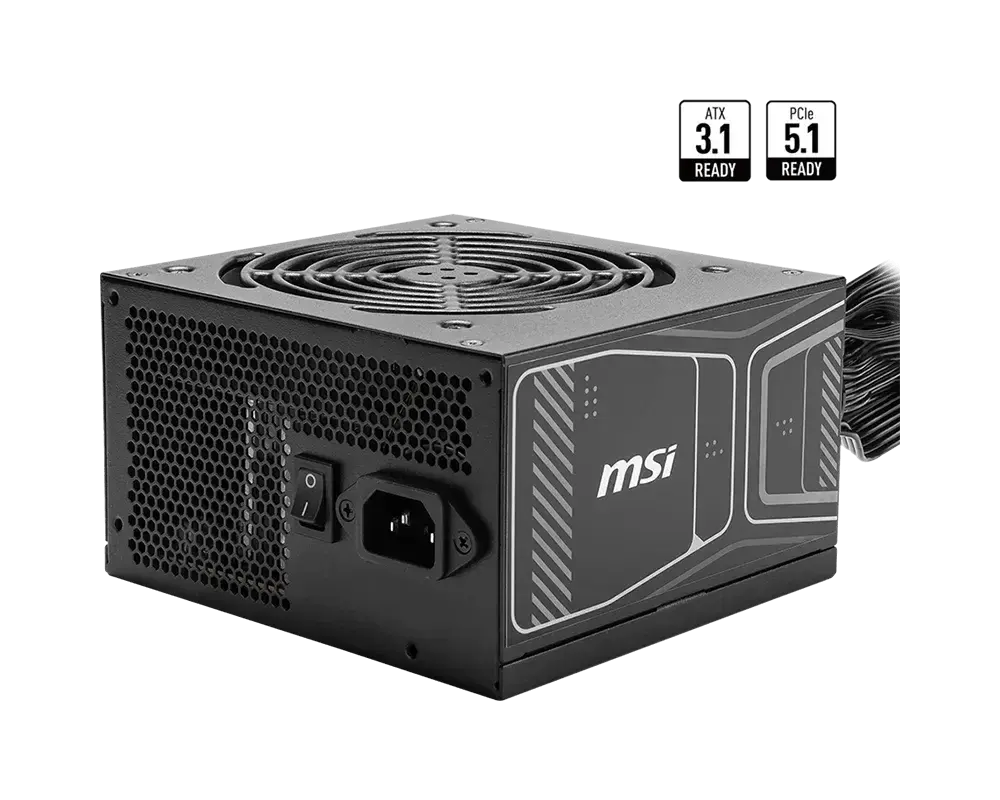

The MSI MAG A750GN-PCIE5 is a 750W power supply featuring 80 Plus Gold certification for high efficiency and lower energy consumption. This ATX form factor PSU is built with DC-to-DC construction and a single +12V rail design to deliver stable power to modern high-performance CPUs and graphics cards.
The power supply is ATX 3.1 ready and features a native PCIe 5.1 16-pin connector with 450W power capacity, providing secure power delivery for NVIDIA GeForce RTX 40 and 50 series graphics cards. It supports up to 2x total power excursion and 3x GPU power excursion for enhanced stability during peak loads.
Built with industrial-level protection mechanisms including OVP, OCP, OPP, OTP, and SCP, the MAG A750GN-PCIE5 ensures safe and stable operation. The 120mm sleeve bearing fan is designed to maintain low noise output below 20 dBA at 70% load, while the 105°C main capacitor provides reliable performance under high temperatures and voltage fluctuations.
The power supply comes equipped with certified copper alloy cable terminals and black flat cables for easy cable management. It includes dual 4+4-pin EPS connectors for CPU power, dual 6+2-pin PCIe connectors, and comprehensive peripheral connectivity.
- 750W 80 Plus Gold Certified for High Efficiency
- ATX 3.1 Ready with PCIe 5.1 Native 16-pin Connector
- Supports NVIDIA GeForce RTX 40/50 Series Graphics Cards
- DC-to-DC Construction with Single +12V Rail Design
- 2x Total Power Excursion and 3x GPU Power Excursion Support
- 105°C Main Capacitor for Reliable High-Temperature Performance
- Industrial-Level Protection: OVP, OCP, OPP, OTP, SCP
- 120mm Sleeve Bearing Fan with Low Noise Operation
- Full Bridge Topology with DC-DC Module Design
- Black Flat Cables with Copper Alloy Terminals
- Active PFC Design for Power Factor Correction
Specifications
- Efficiency Rating
- 80 PLUS Gold (up to 90%)
- Modular
- No (non modular)
- Fan Size
- 120 mm
- Fan Bearing
- Sleeve Bearing
- Dimensions (DxWxH)
- 140 x 150 x 86 mm
- PFC Type
- Active PFC
- Input Voltage Range
- 100~240 VAC
- Power Watt
- 750W
- Power Excursion
- 1500W (*up to 200% of the PSU's rated power for 100μs)
- Input Frequency Range
- 47-63Hz
- Protection
- OCP / OVP / OPP / OTP / SCP
- ATX (24 pin)
- 1
- EPS (4+4 pin)
- 2
- PCI-E 5.1 (16 pin)
- 1
- PCI-E (6+2 pin)
- 2
- SATA (15 pin)
- 4
- PERIPHERAL (4 pin)
- 2
Warranty
7 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
