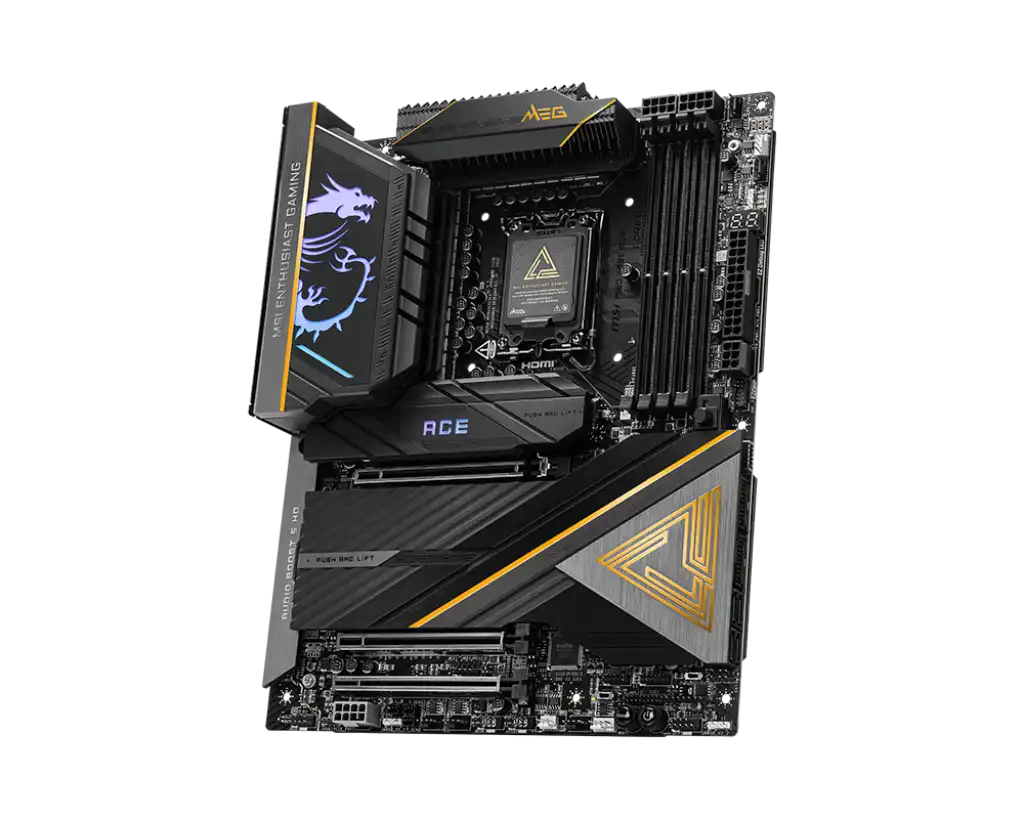

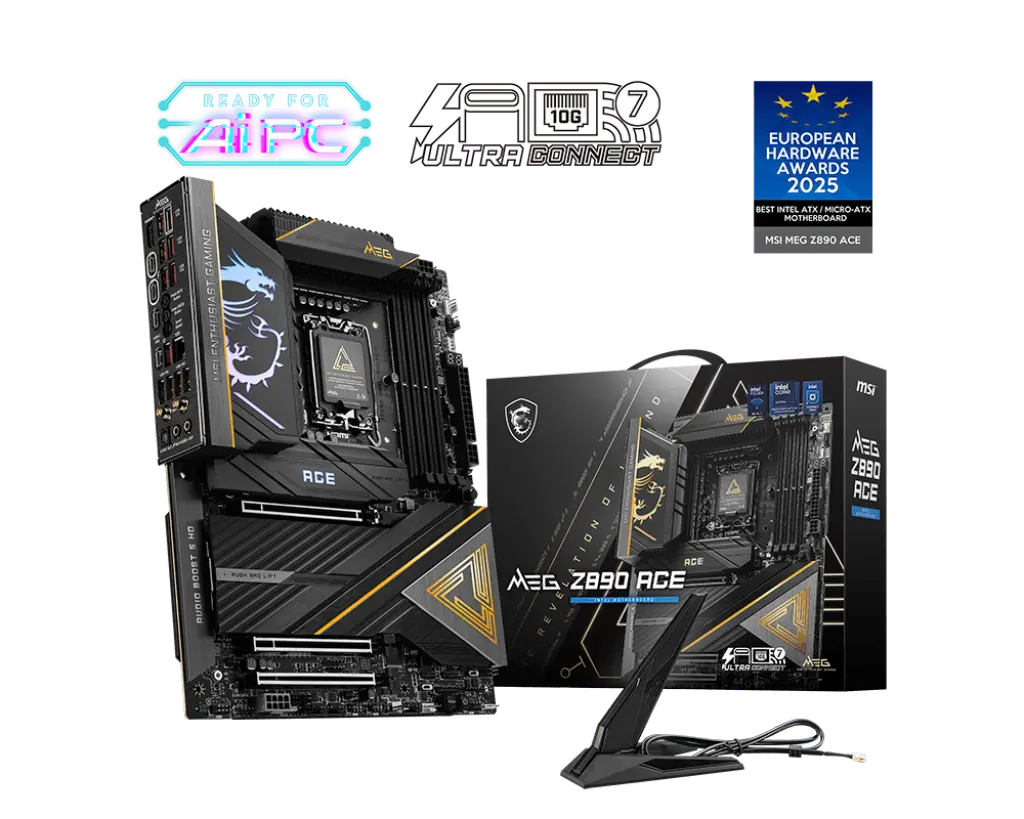

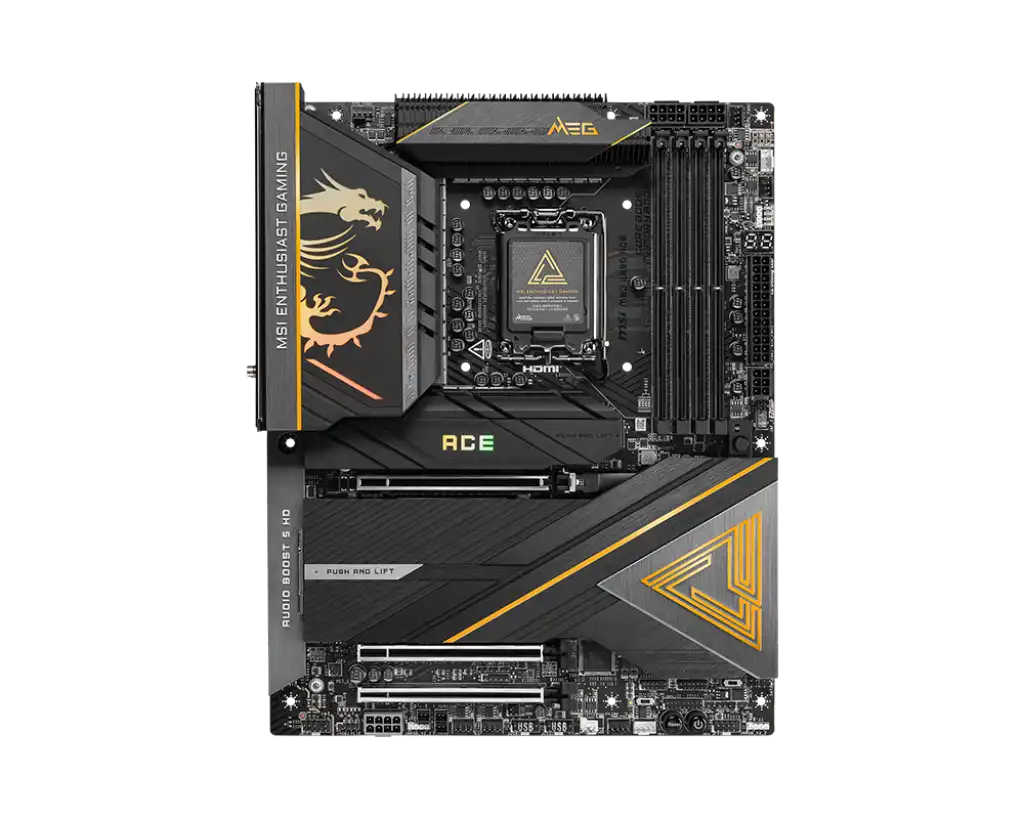

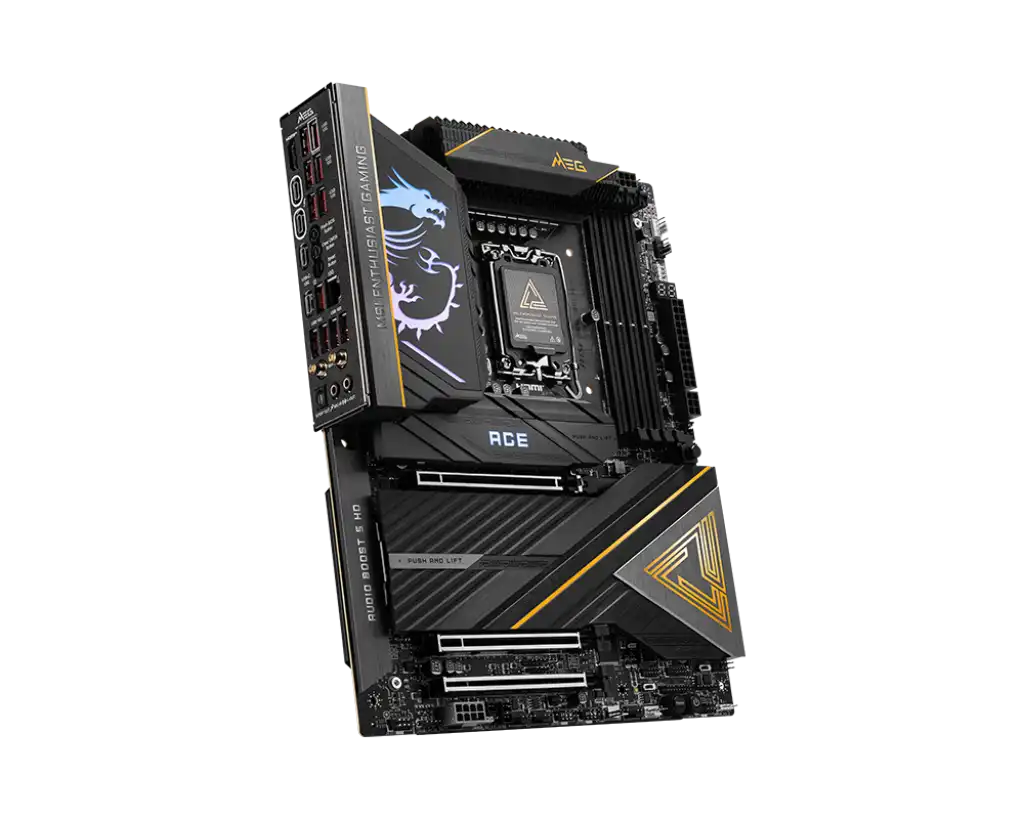

MSI MEG Z890 ACE Motherboard
  • Model:MEG Z890 ACE
  • Supports Intel Core Ultra CPUs
  • Z890 chipset, LGA 1851 socket
  • Supports DDR5 9200+ MT/s (OC)
  • 10G LAN, Thunderbolt 4, Wi-Fi 7
  • 3 Years Warranty from MSI
₹ 74,700
Next Day Dispatch
1
Chipset
INTEL Z890
CPU
Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 9200+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 5600+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM * The DIMM slots on this motherboard only have single-sided latches. ** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
1x HDMI™ Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* * Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
3x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) • PCI_E1 support manual BIOS adjustment to X8+X8/X8+X4+X4 • PCI_E2 support manual BIOS adjustment to X4+X4 * PCI_E1 slot will run at x8 speed when PCI_E2 slot installing device. ** PCI_E1 slot will run at x8 speed and PCI_E2 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in the M2_4 slot.
Audio
Realtek® ALC4082 Codec + ESS9219Q Combo DAC/HPA 7.1-Channel USB High-Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel
