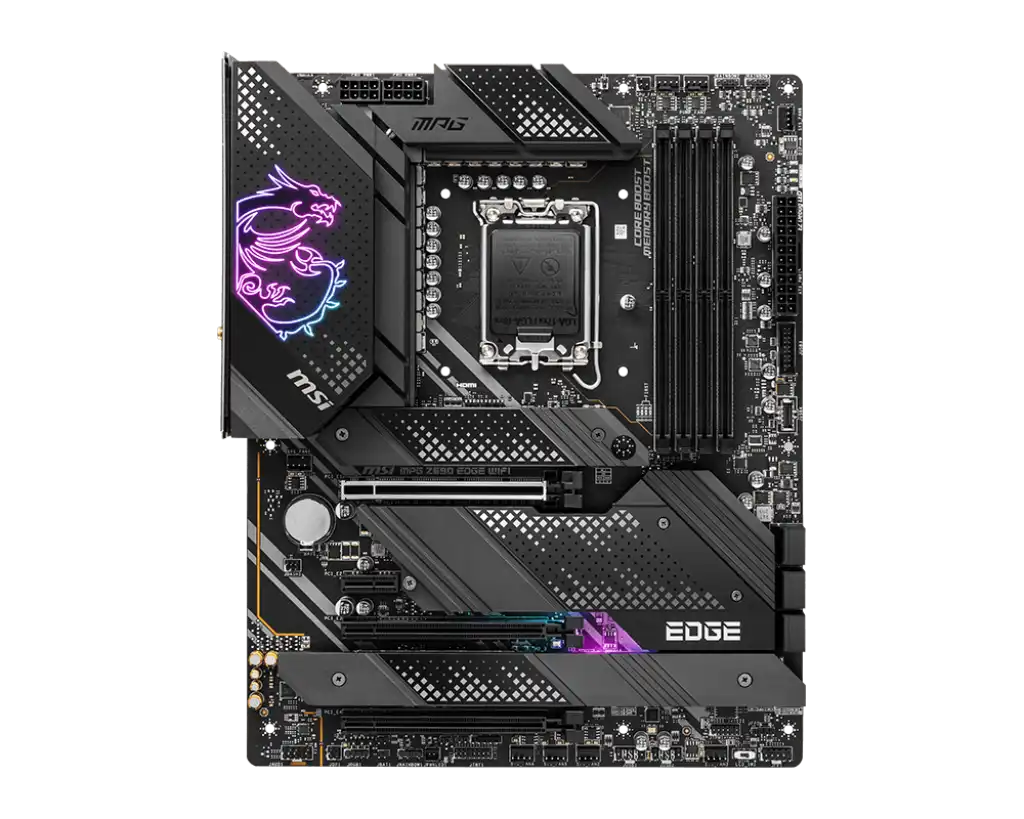

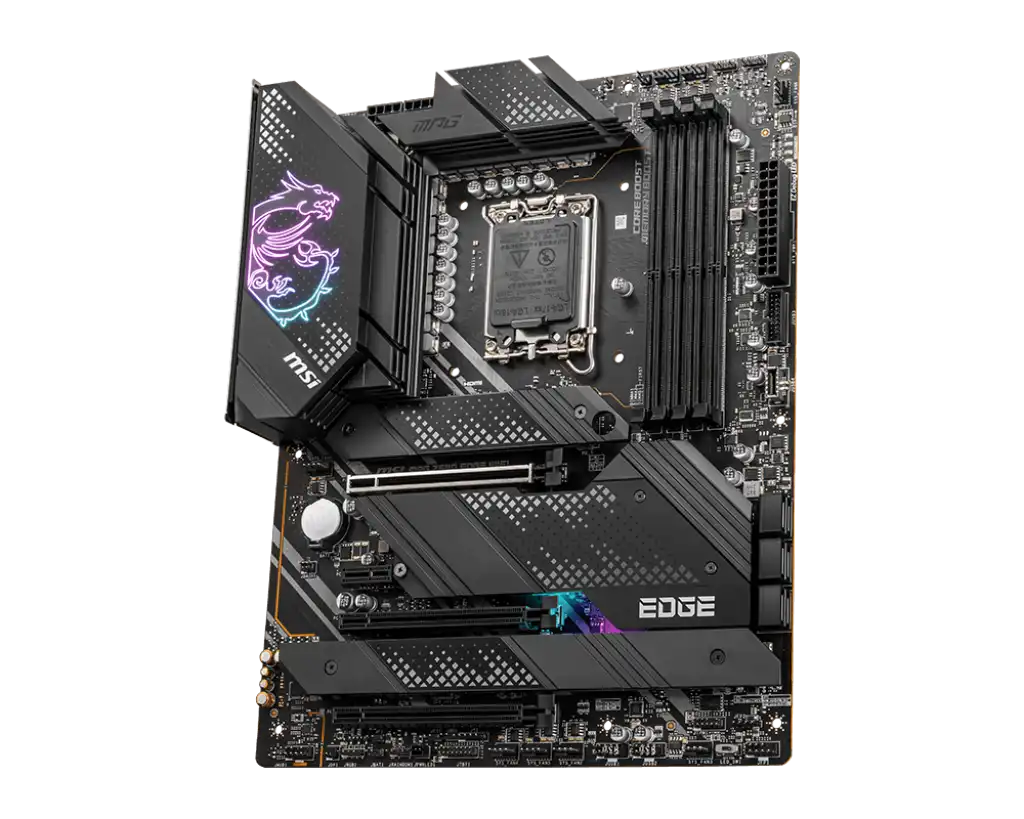

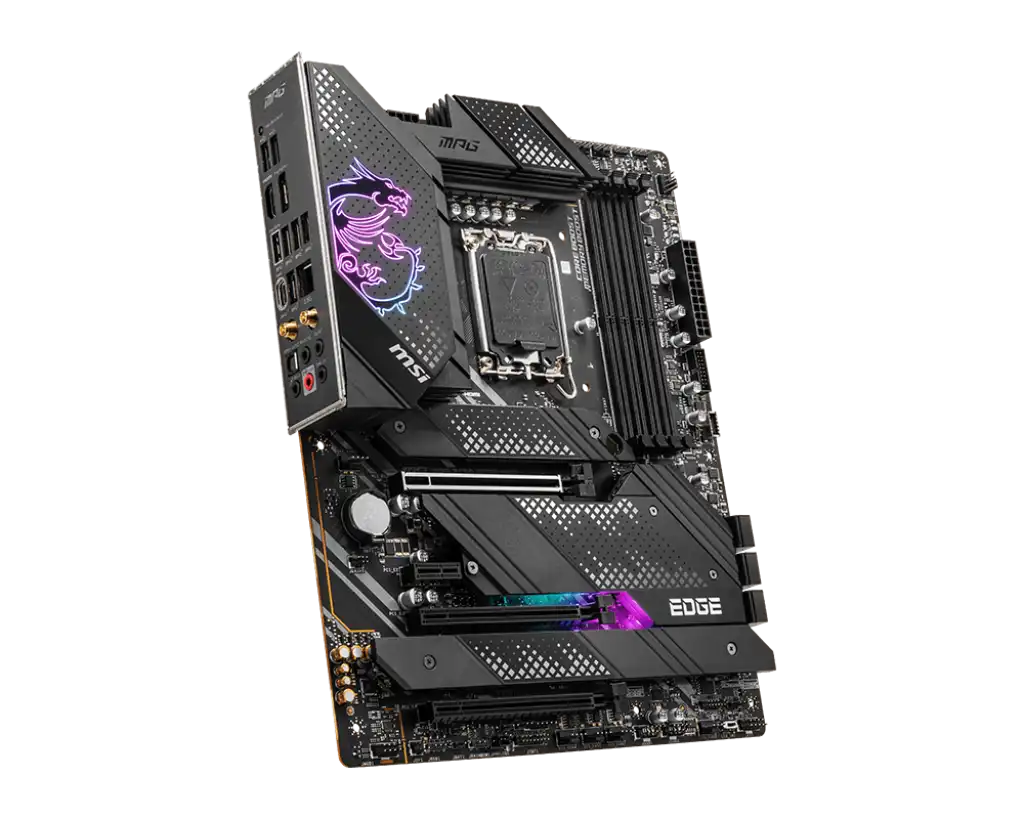

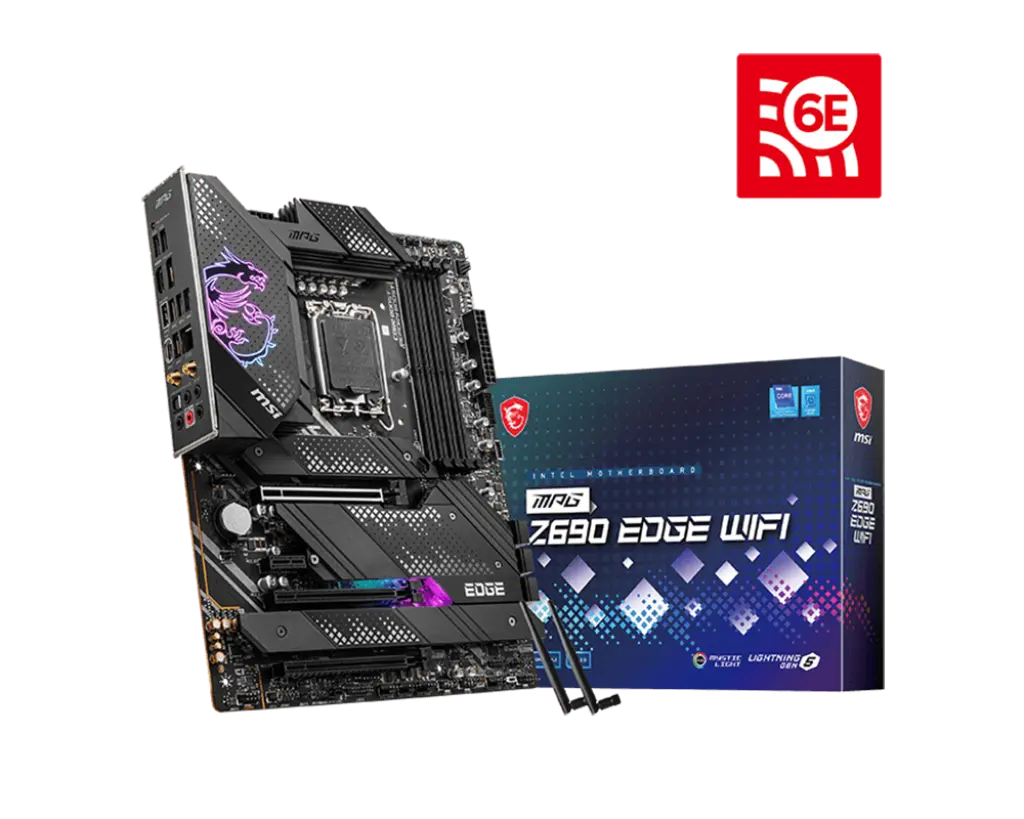

MSI MPG Z690 EDGE WIFI Motherboard
- Model:MPG Z690 EDGE WIFI
- Supports Intel 12th Gen CPUs
- Chipset: Z690, Socket: LGA 1700
- DDR5 Memory, up to 6400+(OC) MHz
- PCIe 5.0, USB 3.2 Gen 2x2
- 3 Years Warranty from MSI
₹ 32,400
Next Day Dispatch
1
Specifications
- Socket
- 1700
- CPU
- Support Intel ® Core™ 14th/ 13th/ 12th Gen Processors, Intel ® Pentium ® Gold and Celeron ® Processors 1
- Chipset
- Intel ® Z690 Chipset
- Memory
- 4x DDR5 memory slots, support up to 192GB 1 Supports 1R 5600 MHz (by JEDEC & POR) 1 Max. overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 6000+ MHz 2DPC 1R Max speed up to 6000+ MHz 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel ® Extreme Memory Profile (XMP)
- Onboard Graphics
- 1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1 / 2 1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz 1 / 2 Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 3x PCIe x16 slots PCI_E1 slot (From CPU) Supports PCIe 5.0 x16 PCI_E3 & PCI_E4 slots (From Z690 chipset) Supports PCIe 3.0 x4 1x PCIe 3.0 x1 slot (From Z690 chipset)
- Audio
- Realtek ® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
- Storage
- 6x SATA 6Gb/s ports SATA5~8 (From Z690 Chipset) SATAA~B (From ASMedia ASM1061) 2 x SATA 6Gb/s ports - SATAA & SATAB (From ASMedia ASM1061) 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports PCIe 4.0 x4 Supports 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports 2260/ 2280 storage devices M2_3 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 Chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_2~4 support Intel ® Optane™ Memory Supports Intel ® Smart Response Technology for Intel ® Core™ processors SATA8 will be unavailable when installing M.2 SATA SSD in the M2_4 slot.
- RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices 1 Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices SATAA & SATAB do not support RAID function.
- USB
- Intel ® Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 6x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 5 Type-A ports on the back panel) 2x USB 2.0 Type-A ports on the back panel 2x USB 3.2 Gen 1 5Gbps ports available through the internal USB connector USB Hub-GL850G 4x USB 2.0 ports available through internal connectors
- LAN
- 1x Intel ® I225V 2.5Gbps LAN controller
- Internal IO
- 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1xTPM module connector 1x Clear CMOS jumper 1x Tuning controller connector 1x TBT connector (Supports RTD3)
- WIRELESS LAN & BLUETOOTH
- Intel ® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz 1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth ® 5.3 2 , FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country's regulations and will be ready in Windows 11. Bluetooth 5.3 will be ready in WIN10 21H1 and Windows11.
- LED FEATURE
- 1x 4-pin RGB LED connector 3x 3-pin RAINBOW LED connectors 1x EZ LED Control switch 4x EZ Debug LED

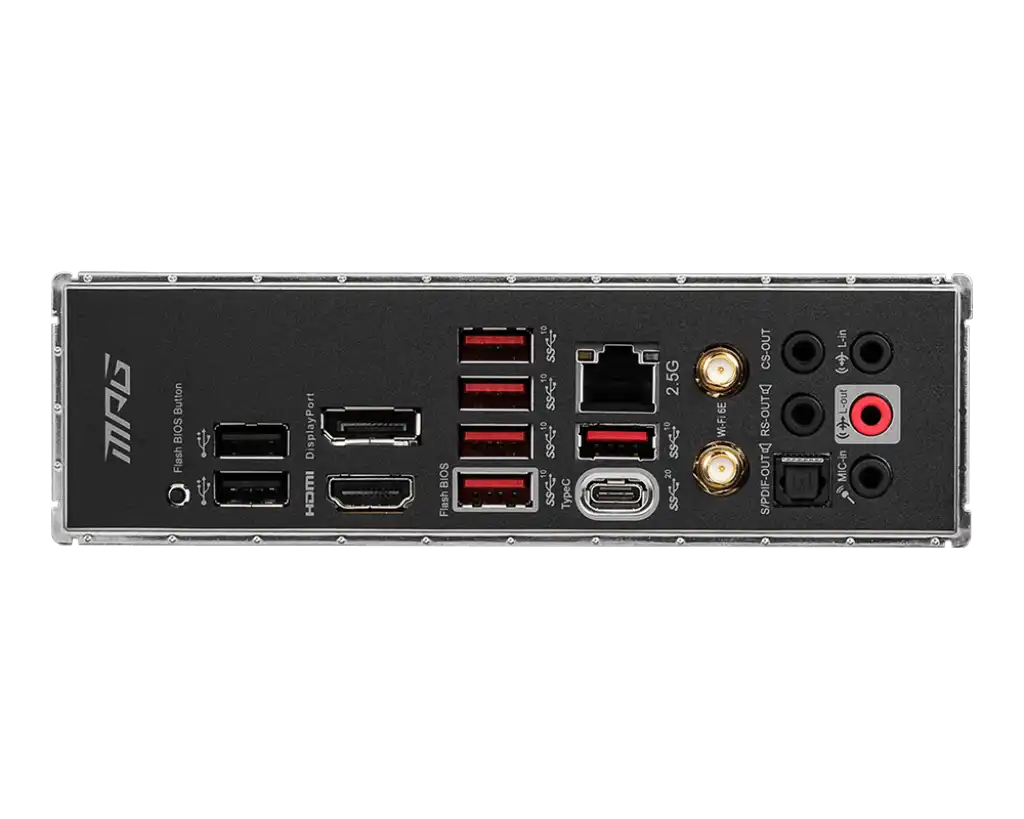

- BACK PANEL PORTS
- DisplayPort 2.5G LAN Wireless Antenna Audio Connectors Flash BIOS Button USB 2.0 HDMI™ USB 3.2 Gen 2 10Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C Optical S/PDIF Out
- OPERATING SYSTEM
- Support for Windows ® 11 64-bit, Windows ® 10 64-bit
- Dimensions
- ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
- Mounting
- 9 mounting holes
- Multi-GPU
- Supports AMD ® CrossFire ™ Technology
Warranty
3 Years manufacturer warranty from MSI. Warranty service is provided by the brand's authorised service centre under the brand's own terms; keep the original invoice and the serial number for any claim, and we will guide you through the process. Details are in our Warranty Policy.
