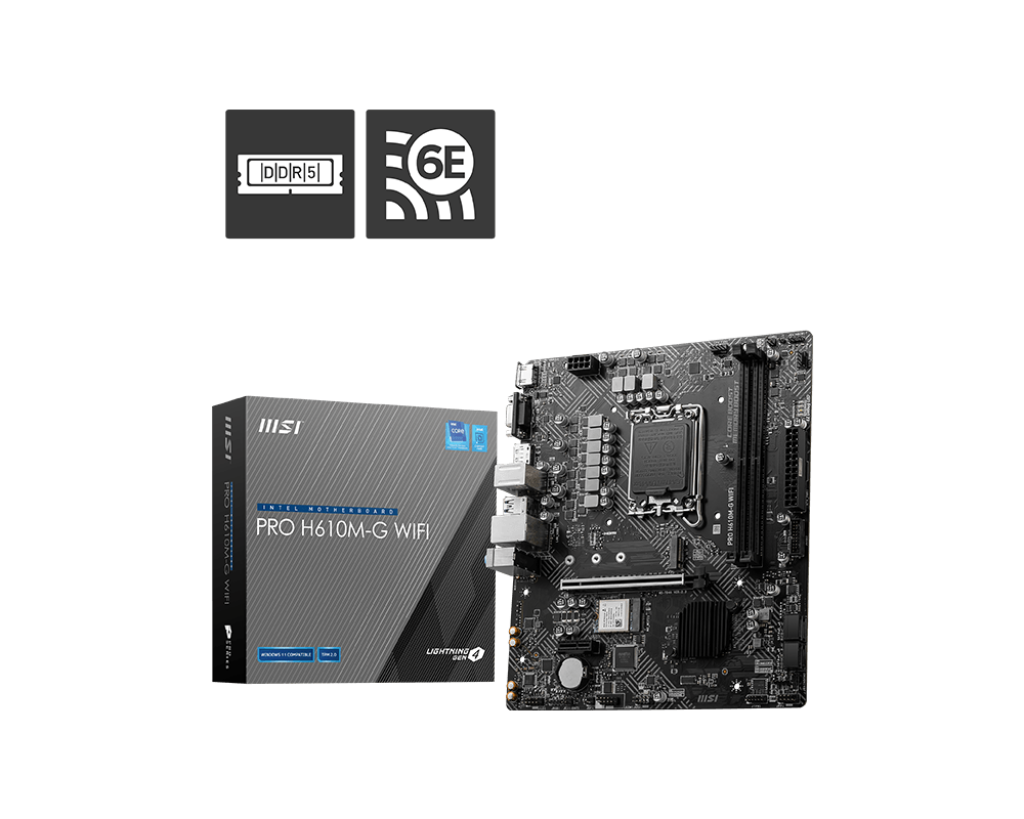

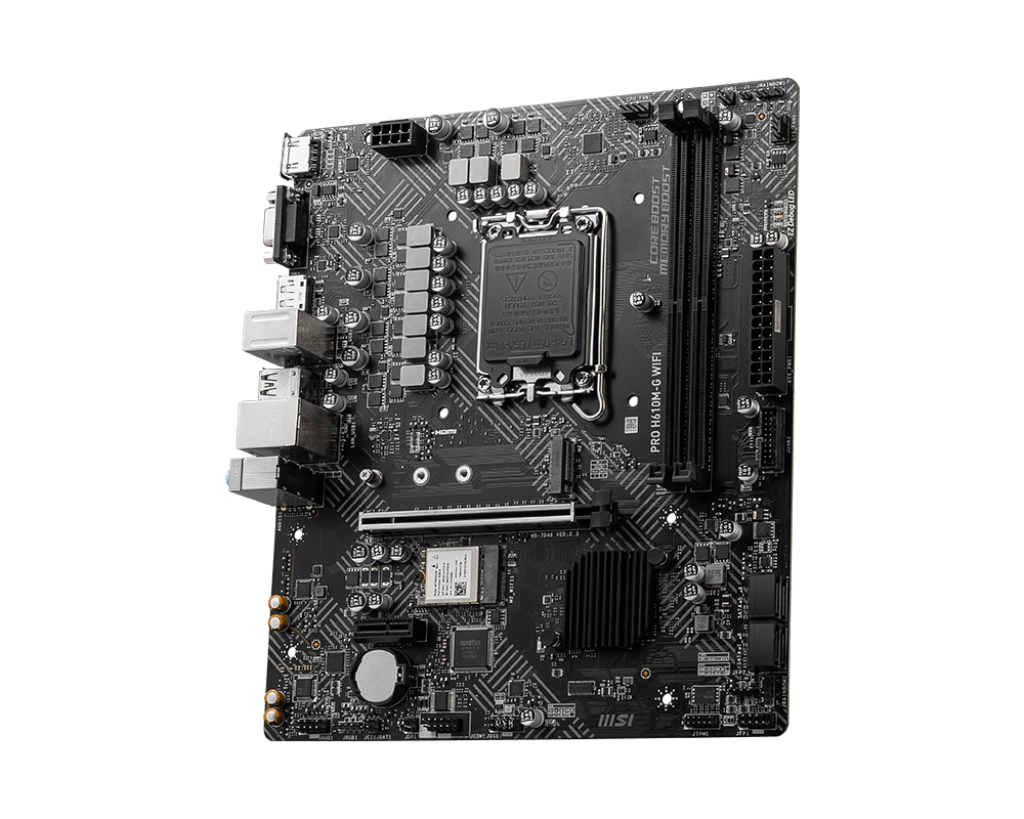

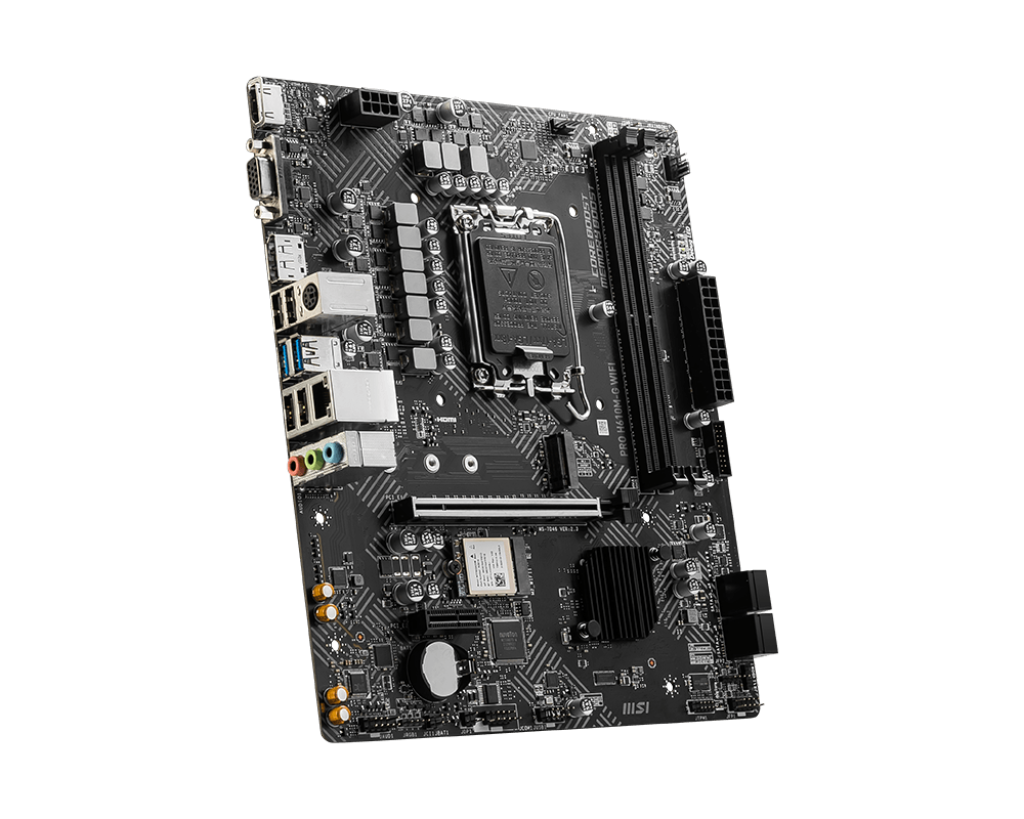

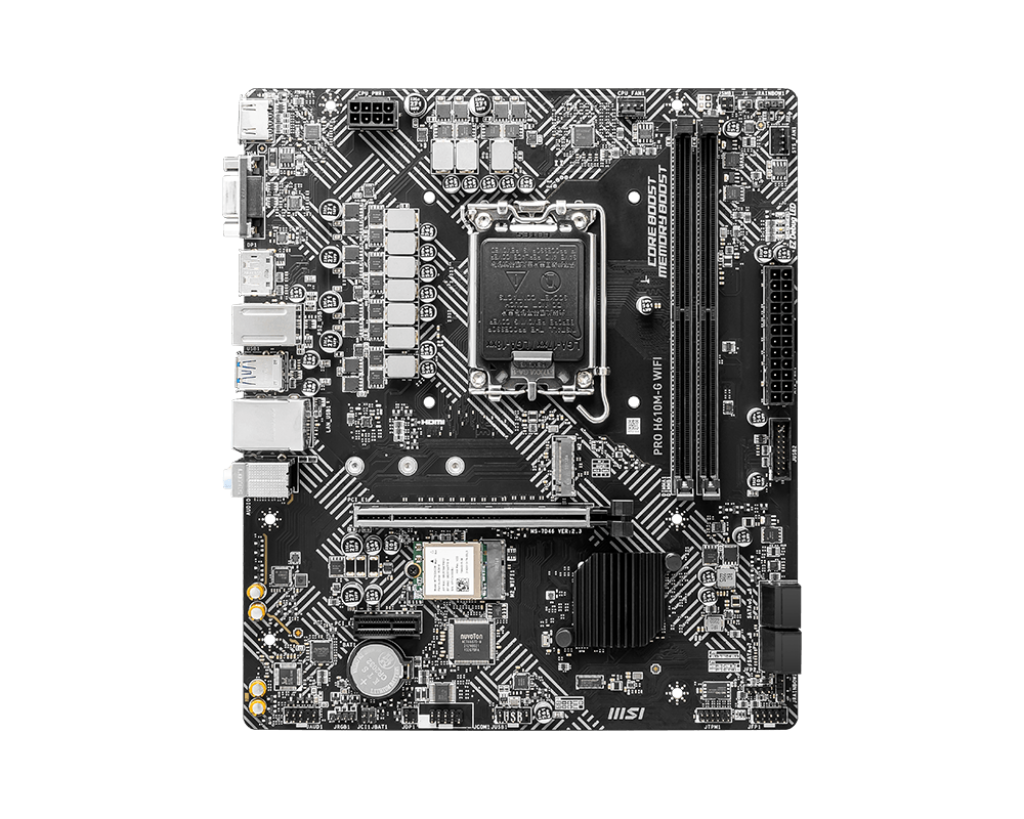

MSI PRO H610M-G WIFI Motherboard
  • Model:PRO H610M-G WIFI
  • Supports Intel 12th/13th/14th Gen CPUs
  • Intel H610 chipset, LGA 1700 socket, Micro-ATX
  • DDR5 memory support up to 5600 MHz
  • PCIe 4.0, Wi-Fi 6E, and Intel LAN
  • 3 Years Warranty from MSI
₹ 8,700
In Stock
1
Chipset
INTEL H610
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory
2x DDR5, Maximum Memory Capacity 96GB Memory Support DDR5 5600 MHz (by JEDEC & POR) Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Onboard Graphics
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz _*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G _\* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot._
USB
4x USB 2.0 (Rear) 2x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN
Intel® I219V 1Gbps LAN controller
Internal IO
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 2x USB 2.0 ports 2x USB 5Gbps Type A ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA _\* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11._ _\*\* Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11._
LED FEATURE
4x EZ Debug LED

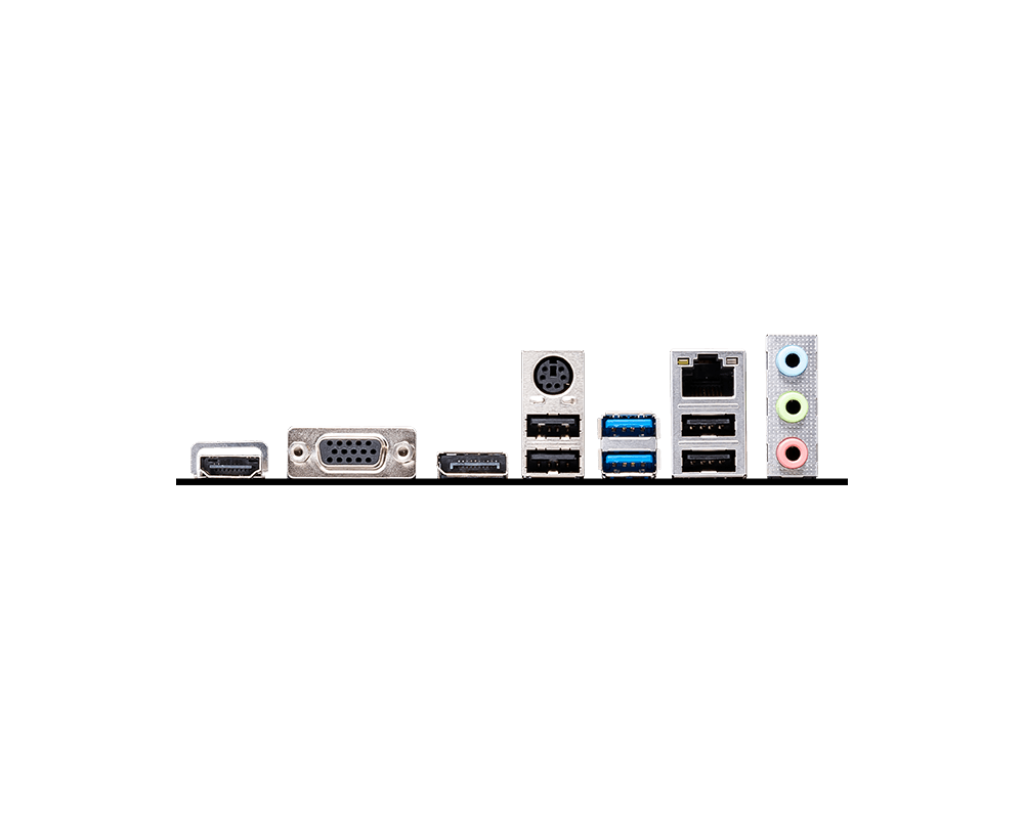

BACK PANEL PORTS
1. HDMI™ 2. VGA 3. DisplayPort 4. Keyboard / Mouse 5. USB 3.2 Gen 1 5Gbps (Type-A) 6. LAN port 7. Audio Connectors 8. USB 2.0
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX 211mmx243.84mm
