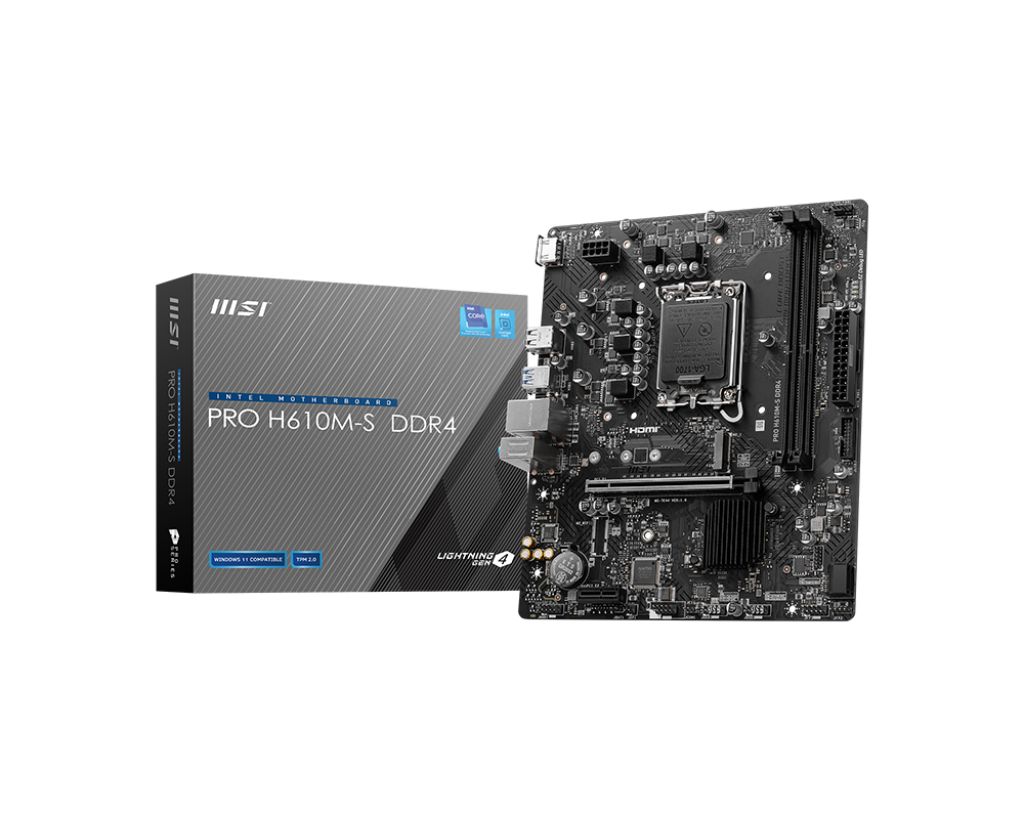

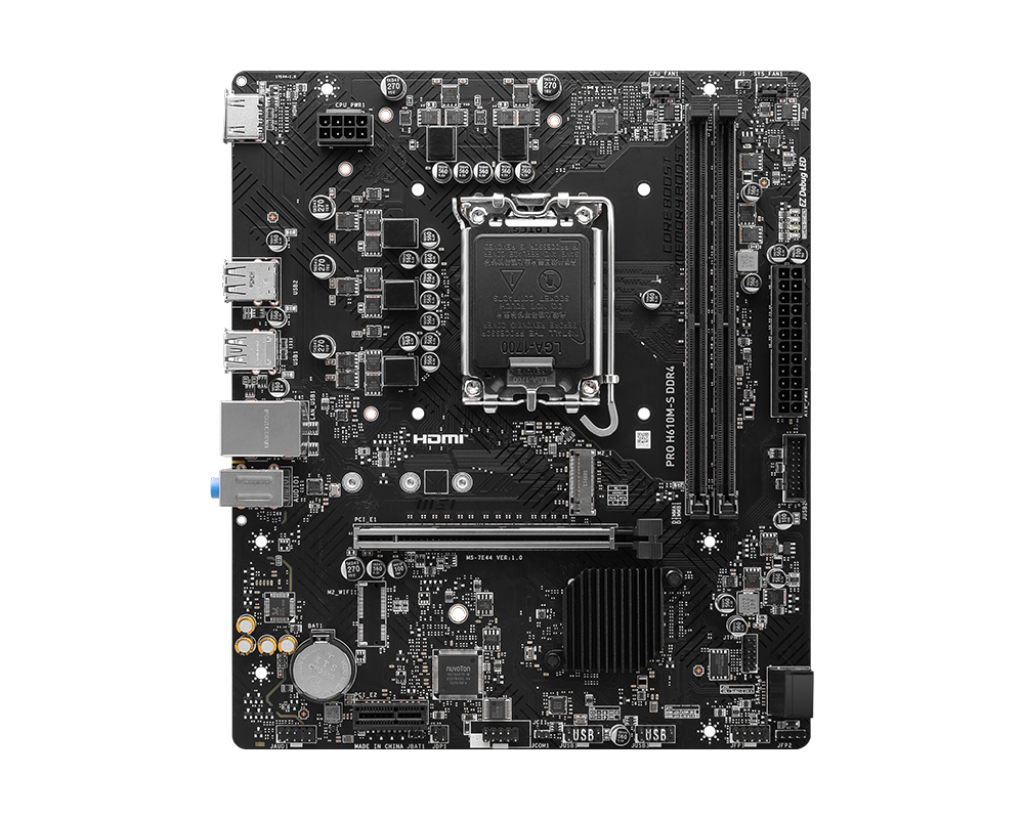

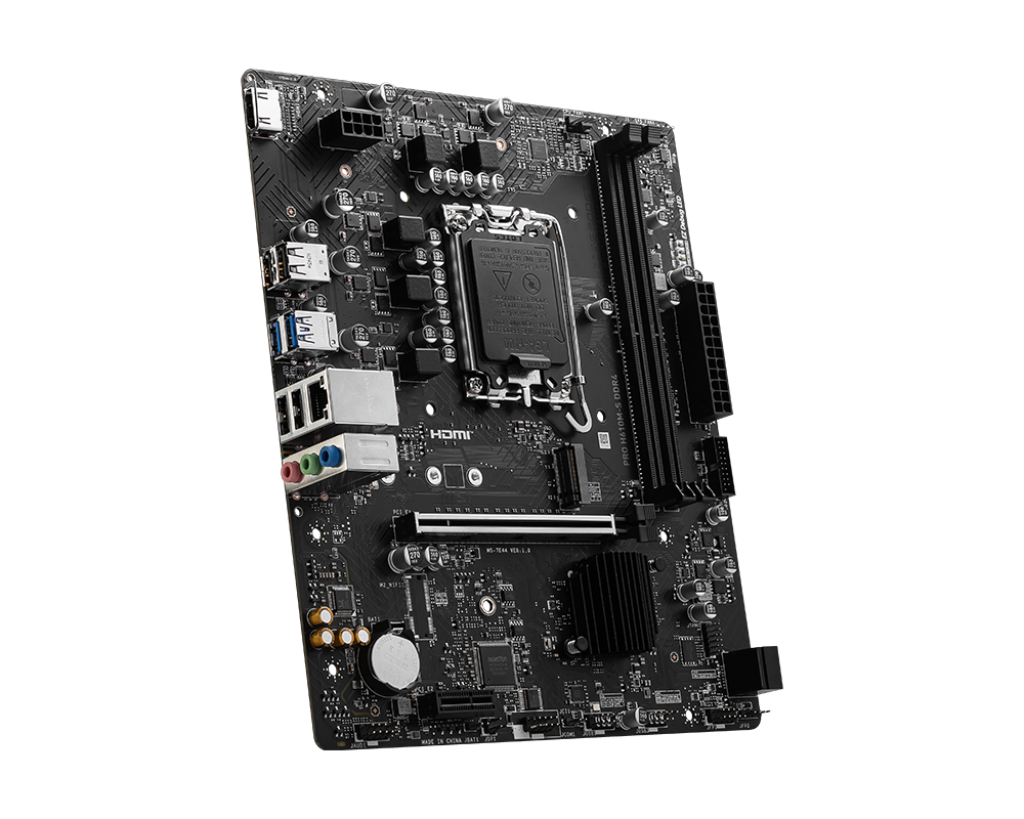

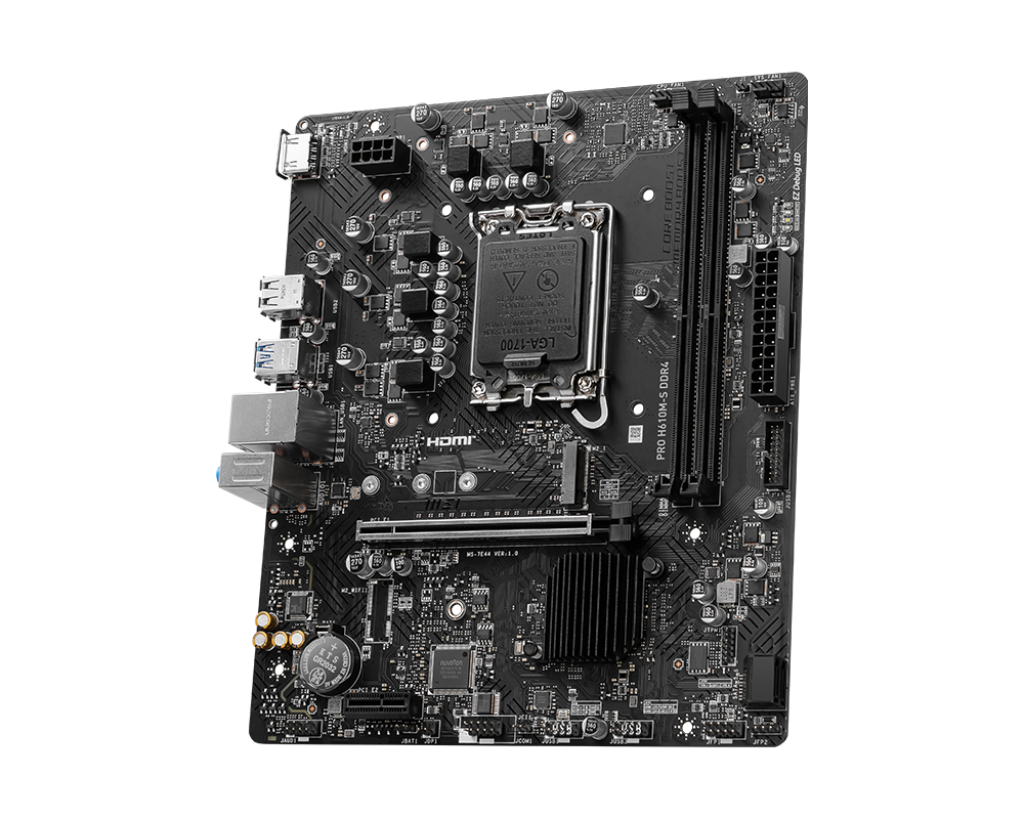

MSI PRO H610M-S DDR4 Motherboard
- Model:PRO H610M-S DDR4
- Supports LGA 1700 Intel CPUs
- H610 chipset, ATX form factor
- DDR4 Memory, up to 3200MHz
- Enhanced PCIe 4.0 support
- 3 Years Warranty from MSI
₹ 6,200
In StockFree Delivery
1
Related Products
Best Match Products
MSI PRO H610M-S DDR4 Motherboard
- Model:PRO H610M-S DDR4
- Supports LGA 1700 Intel CPUs
- H610 chipset, ATX form factor
- DDR4 Memory, up to 3200MHz
- Enhanced PCIe 4.0 support
- 3 Years Warranty from MSI
₹ 6,200
In StockFree Delivery
1
₹ 6,200
In Stock
1
- Chipset
- INTEL H610
- CPU
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
- Memory
- 2x DDR4, Maximum Memory Capacity 64GB Memory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports Dual-Channel mode Supports non-ECC, un-buffered memory
- Onboard Graphics
- 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- Storage
- 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4, supports 2280/2260/2242 devices 2x SATA 6G
- USB
- 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
- LAN
- Realtek® RTL8111H Gigabit LAN
- Internal IO
- 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports
- LED FEATURE
- 4x EZ Debug LED
- BACK PANEL PORTS
- 1. HDMI™ 2. USB 3.2 Gen 1 5Gbps (Type-A) 3. USB 2.0 4. LAN port 5. Audio Connectors 6. USB 2.0
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- PCB Info
- mATX 200mmx236.16mm
- Processor
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- Processor socket
- LGA1700
- Memory
- 2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR) Supports Dual-Channel mode Supports non-ECC, un-buffered memory
- Expansion Slot
- 1x PCIe x16 slot (From CPU) Supports up to PCIe 4.0 x16
- PCI-x1 slot
- From H610 chipset Supports PCIe 3.0 x1
- Onboard Graphics
- 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
- SATA Ports
- 4x SATA 6Gb/s ports (From H610 chipset)
- M.2 SSD Slot
- 1x M.2 slot (Key M) (from CPU) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices
- Audio
- Realtek® ALC897 Codec 7.1-Channel High Definition Audio
- LAN
- 1x Realtek® RTL8111H 1Gbps LAN controller
- Power Connectors
- 1x 24-pin ATX main power connector 1x 8-pin +12V power connector
- Internal USB Connectors
- 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports 2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports
- Fan Connectors
- 1x 4-pin CPU fan connector 2x 4-pin system fan connectors
- System Connectors
- 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x TPM module connector 1x Serial port connector
- Jumpers
- 1x Clear CMOS jumper
- LED Features
- 1x 4-pin RGB LED connector 4x EZ Debug LED

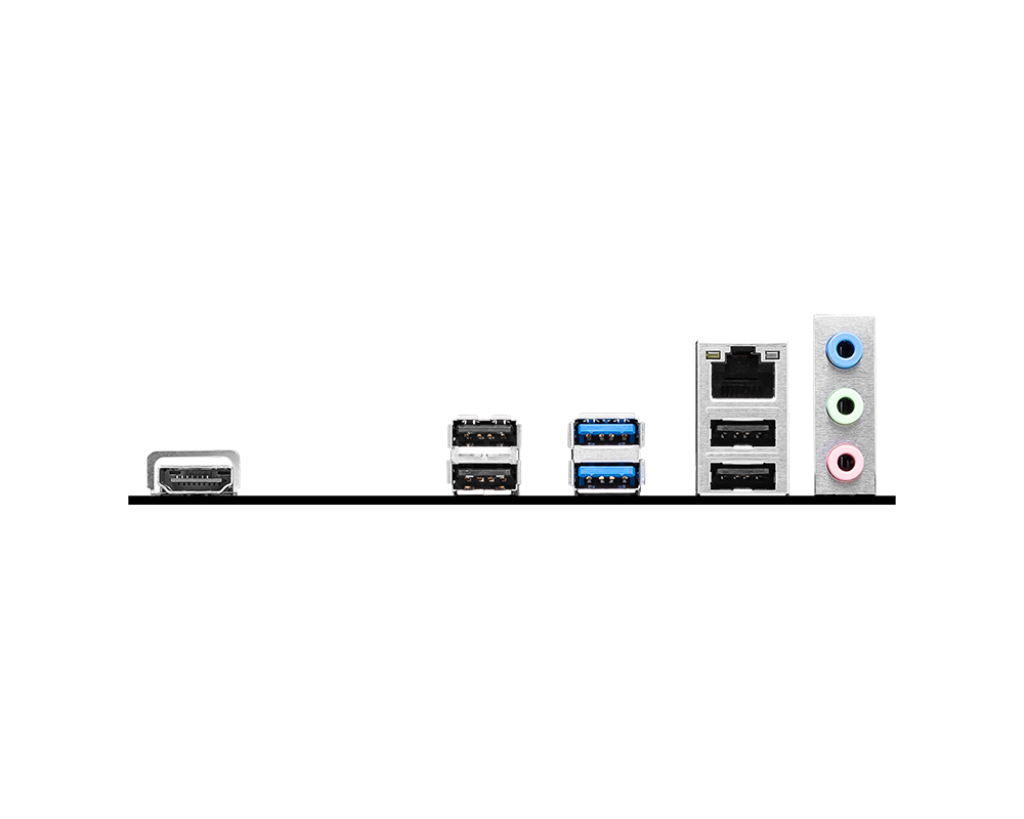

- Back panel ports
- 1. HDMI™ 2. VGA 3. Keyboard / Mouse 4. USB 3.2 Gen 1 5Gbps Type-A 5. LAN port 6. Audio connector 7. USB 2.0
- Dimensions
- M-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm)
