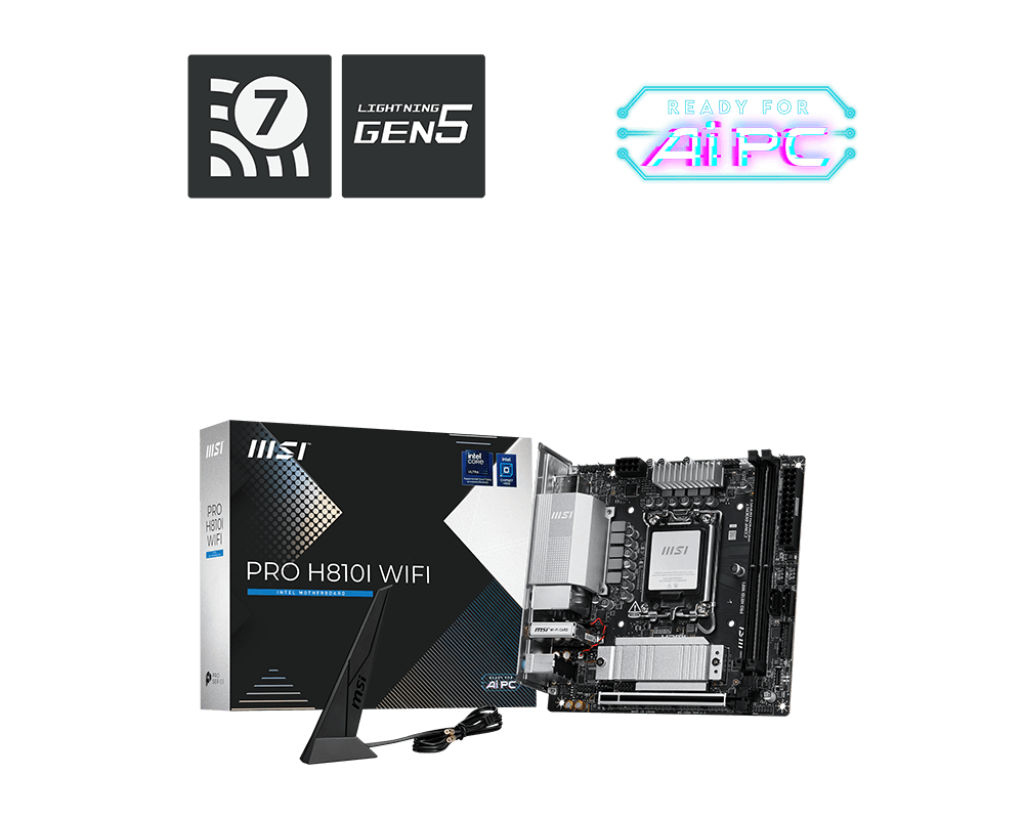

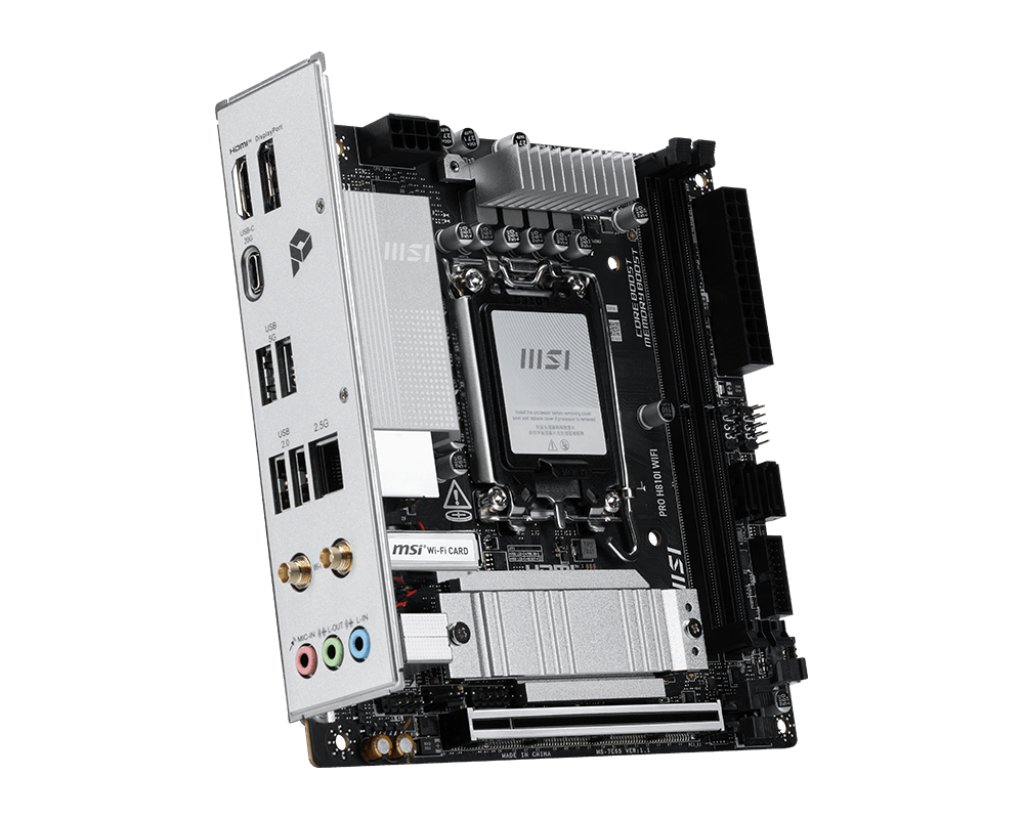

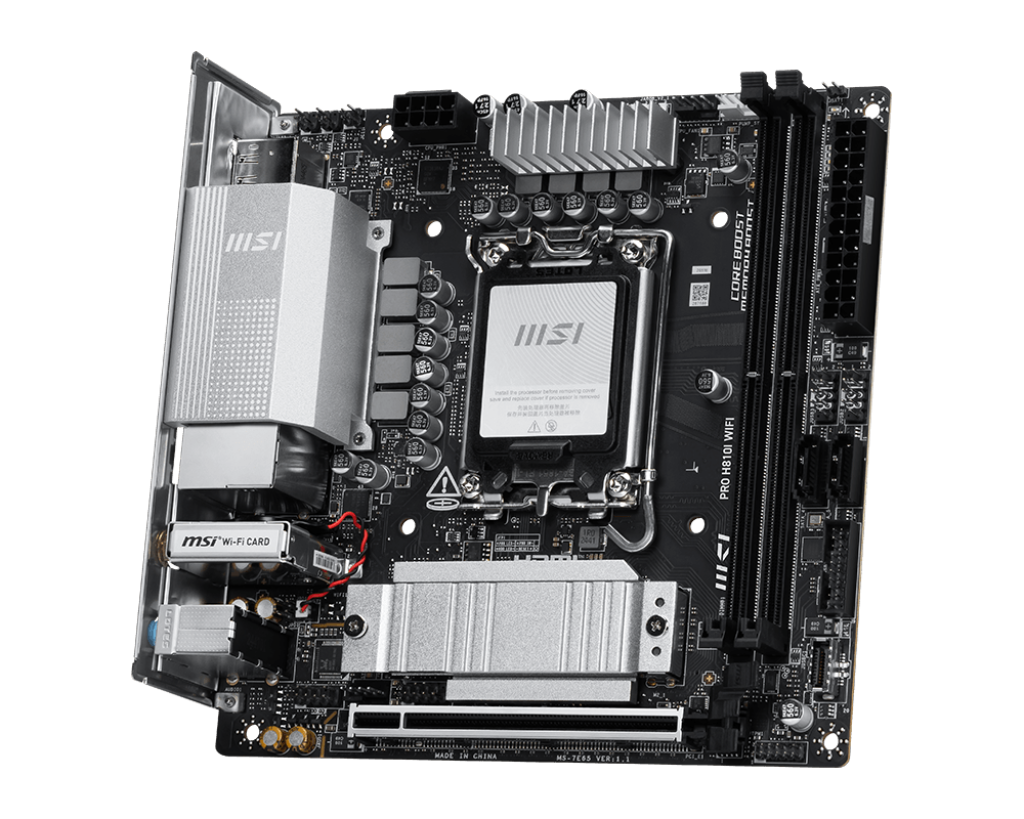

MSI PRO H810I WIFI Motherboard
  • Model:PRO H810I WIFI
  • Supports Intel Core Ultra processors
  • Intel H810 chipset, LGA 1851 socket, Micro-ATX
  • Supports Dual Channel DDR5 6400 MT/s memory
  • Features PCIe 5.0, WiFi 7, 2.5G LAN
  • 3 Years Warranty from MSI
₹ 15,050
Next Day Dispatch
1
Chipset
INTEL H810
CPU
Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel® POR Speed and JEDEC Speed Supports Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM _• The DIMM slots on this motherboard only have single-sided latches._ _• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/._
Onboard Graphics
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* _*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
1x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices _ *Please refer to the manual for M.2 SSD heatsink restrictions._
USB
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN
Intel® I226 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 1x System Fan 1x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM _\* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2._ _\*\* The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2._
LED FEATURE
4x EZ Debug LED 1x EZ Memory Detection LED

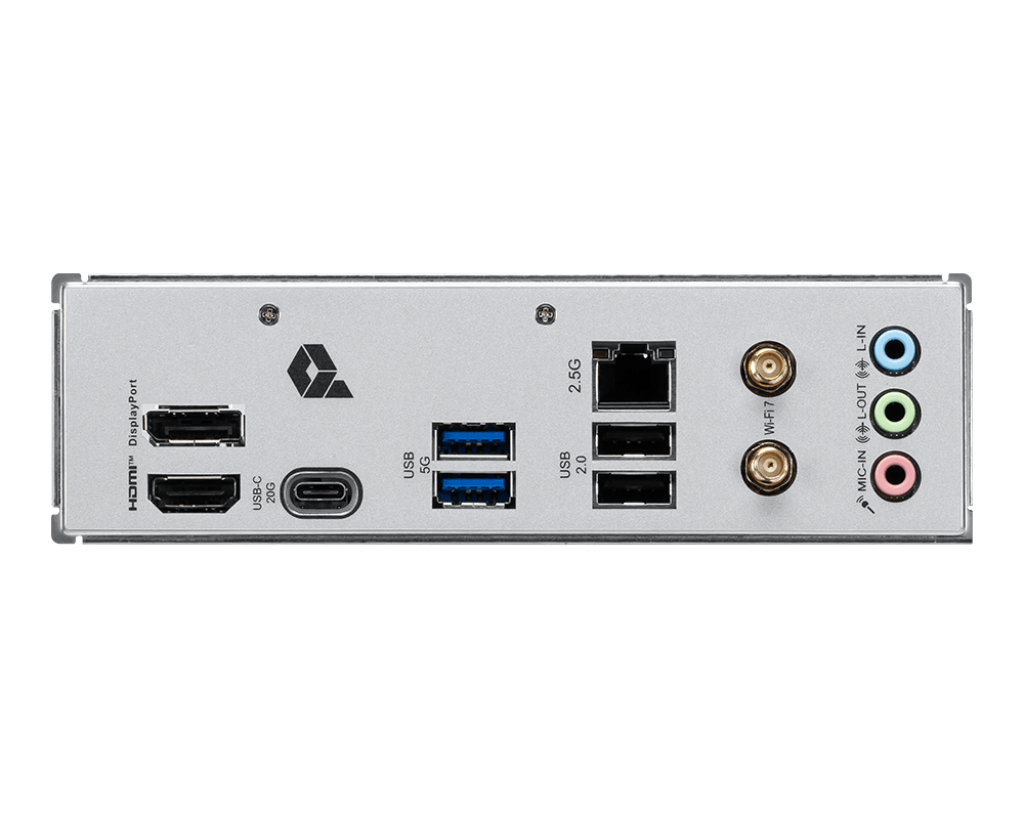

BACK PANEL PORTS
1. DisplayPort 2. USB 5Gbps Type-A 3. 2.5G LAN 4. Wi-Fi / Bluetooth 5. Audio Connectors 6. HDMITM 7. USB 20Gbps Type-C 8. USB 2.0
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
Mini-ITX 170mmx170mm
