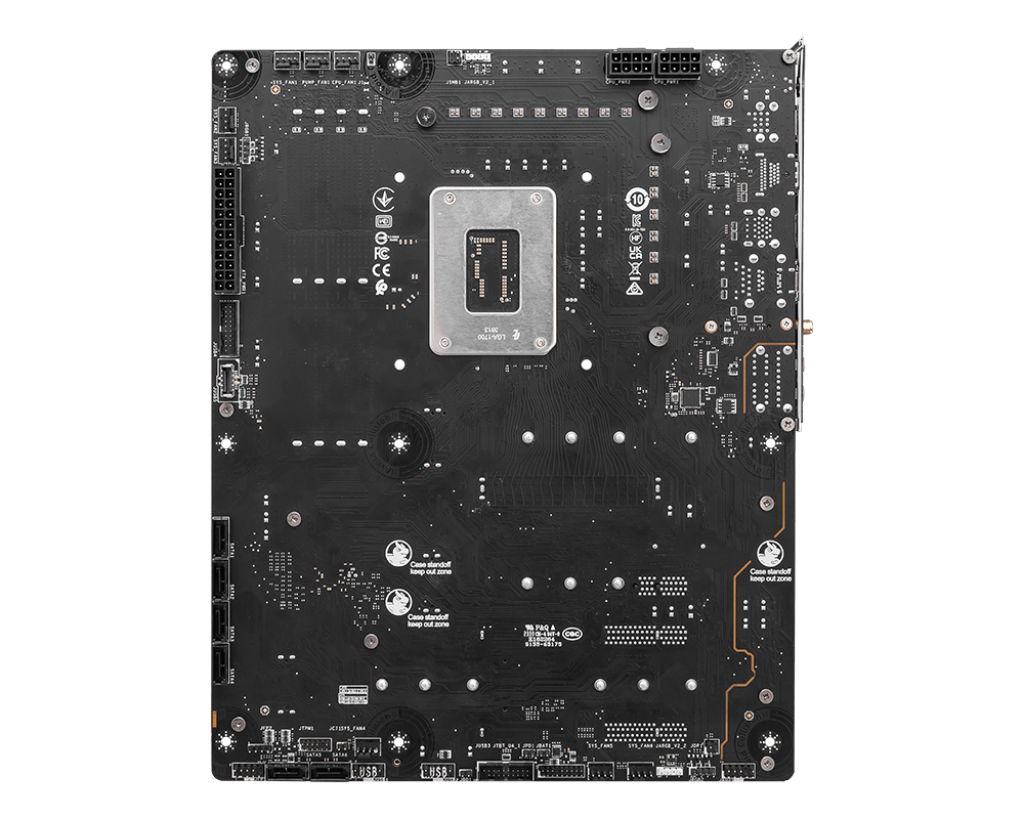

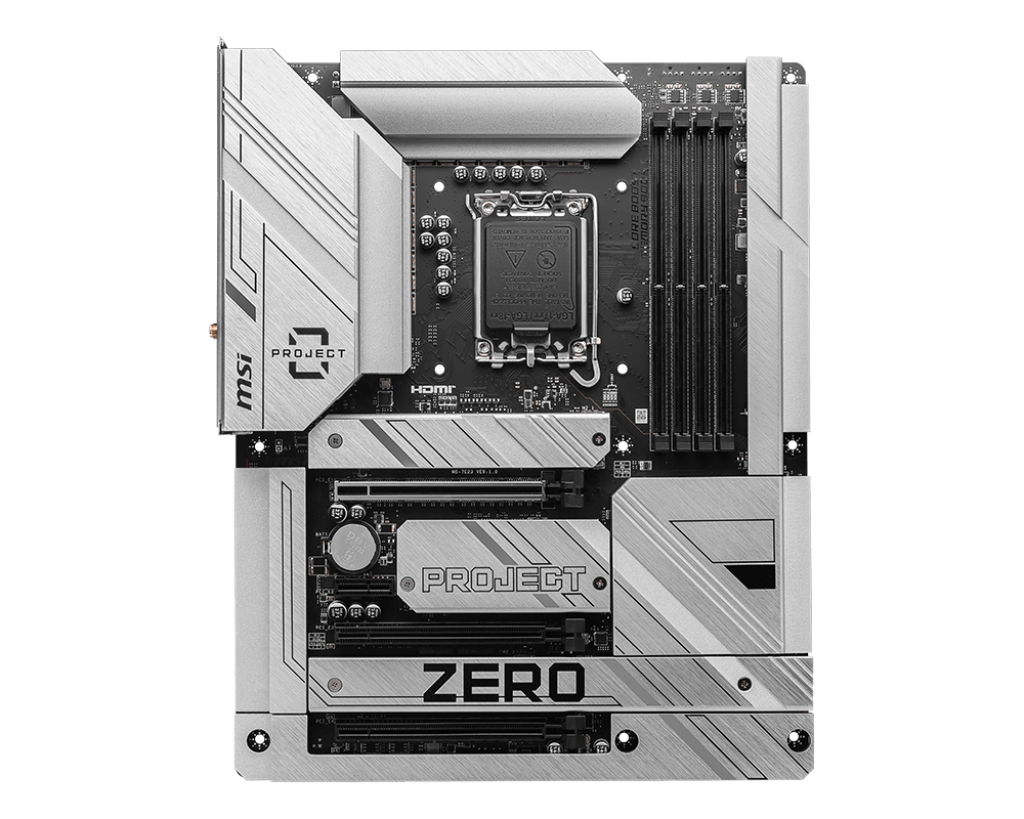

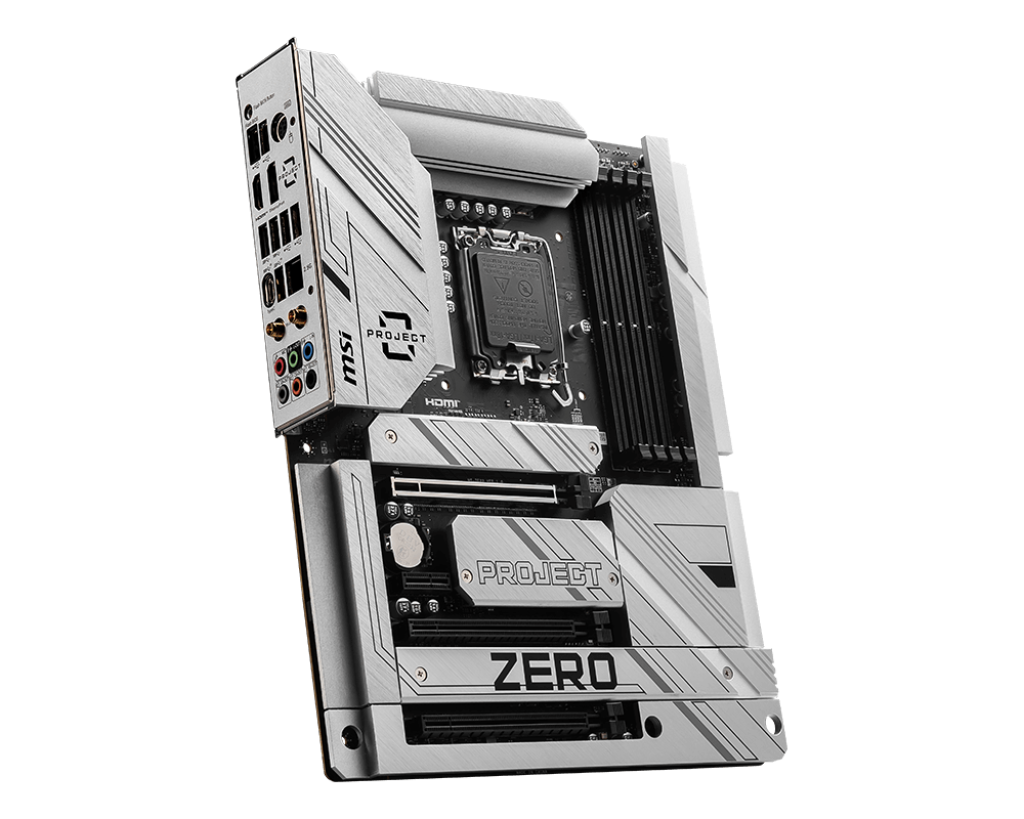

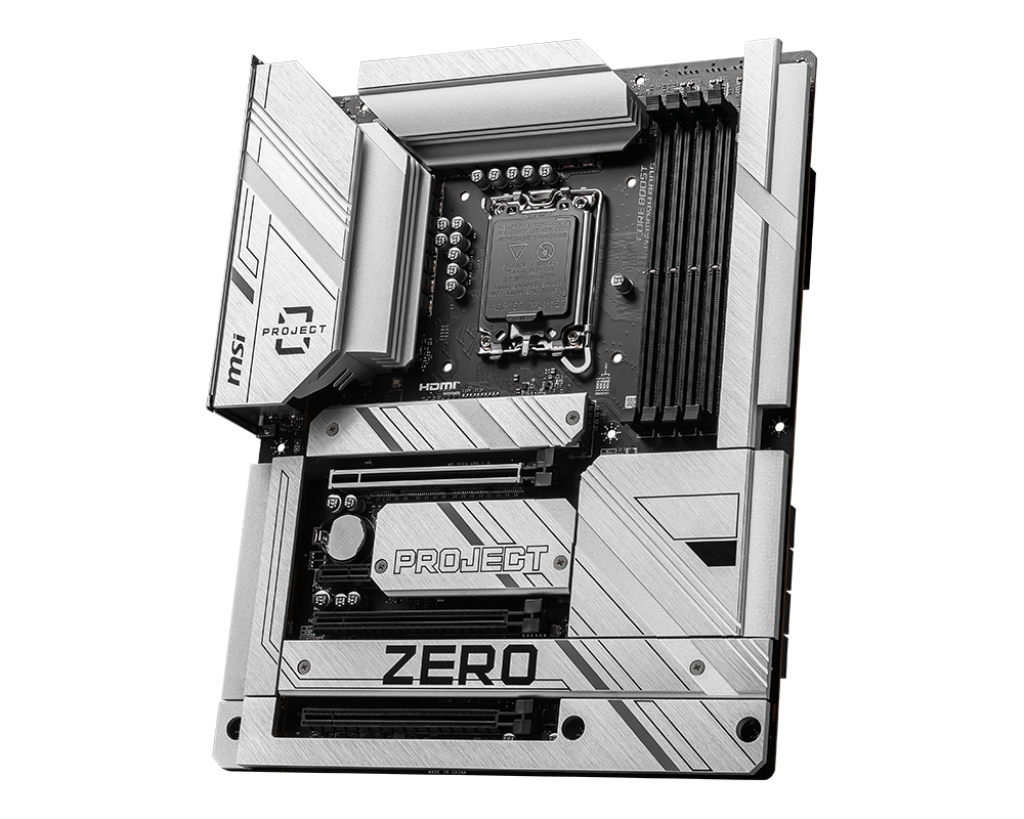

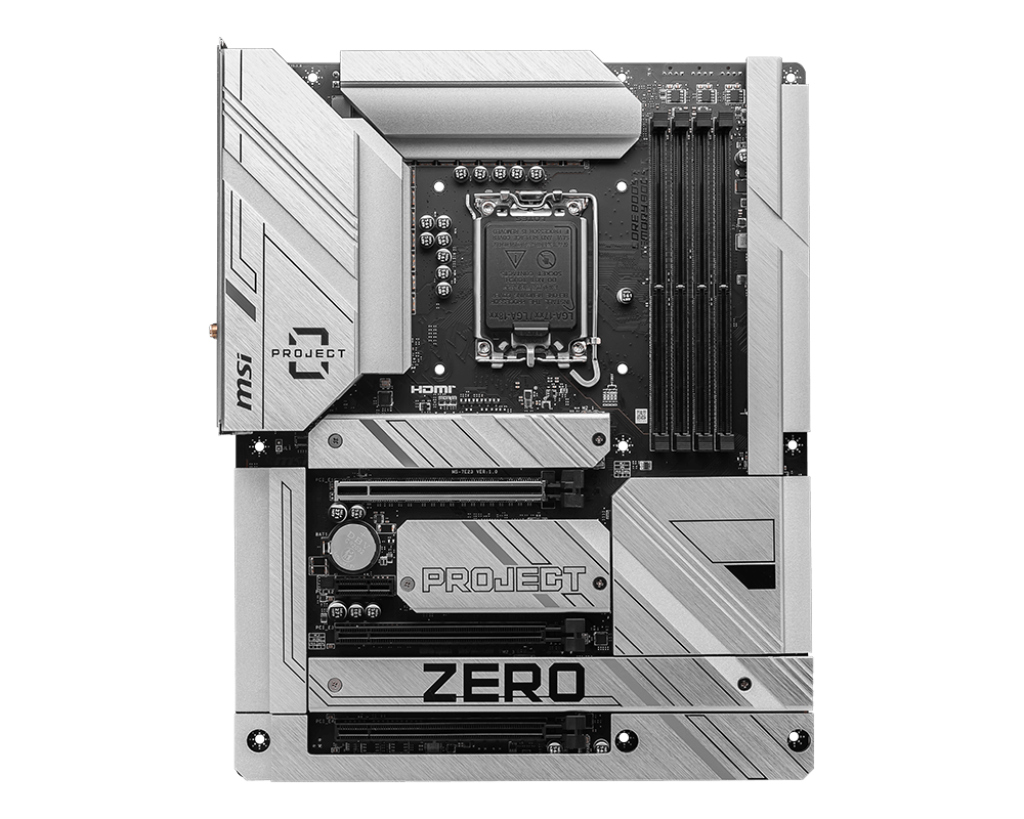

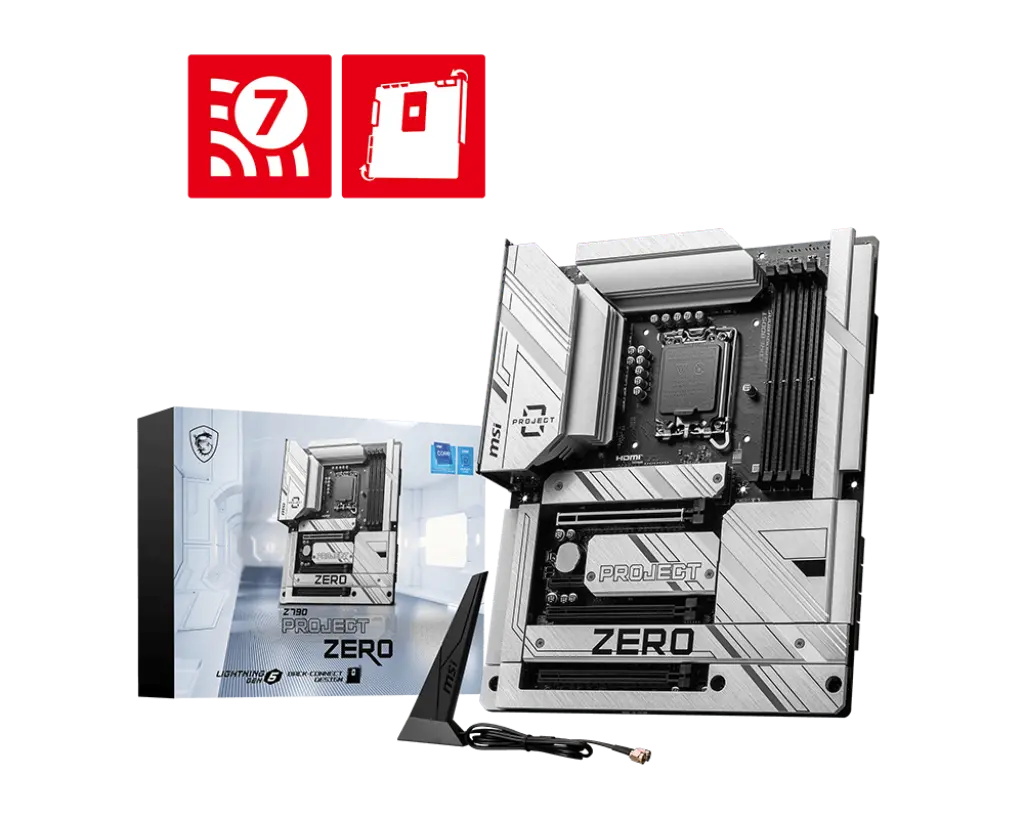

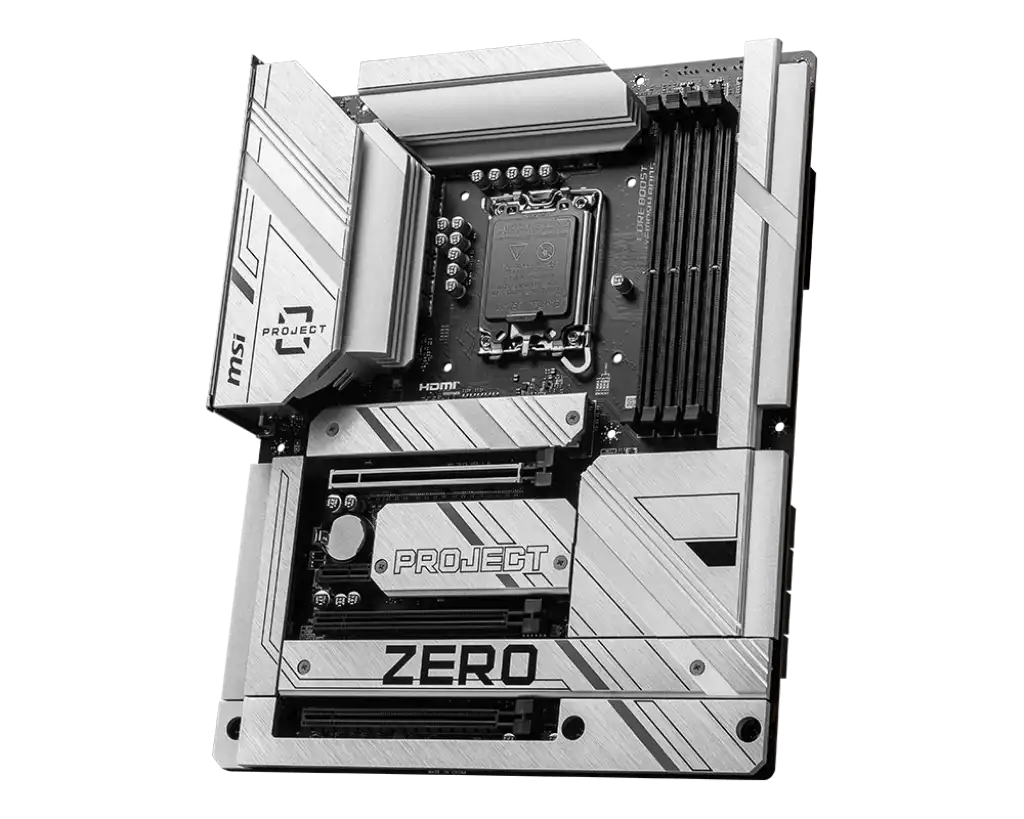

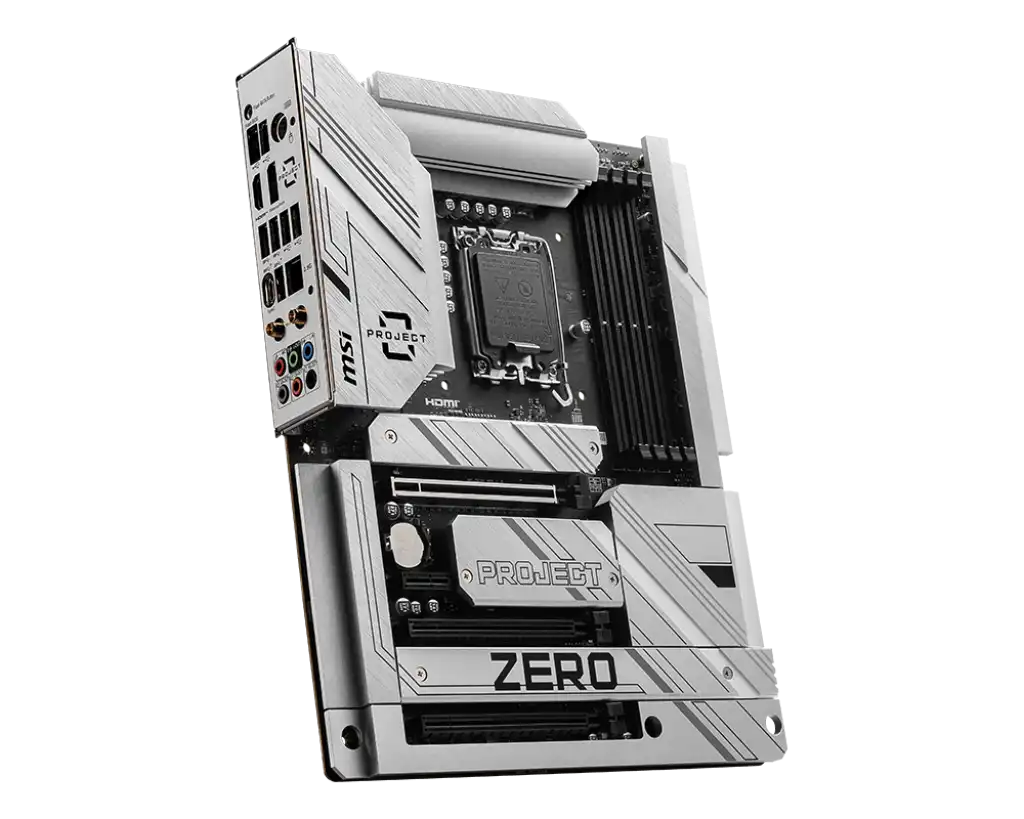

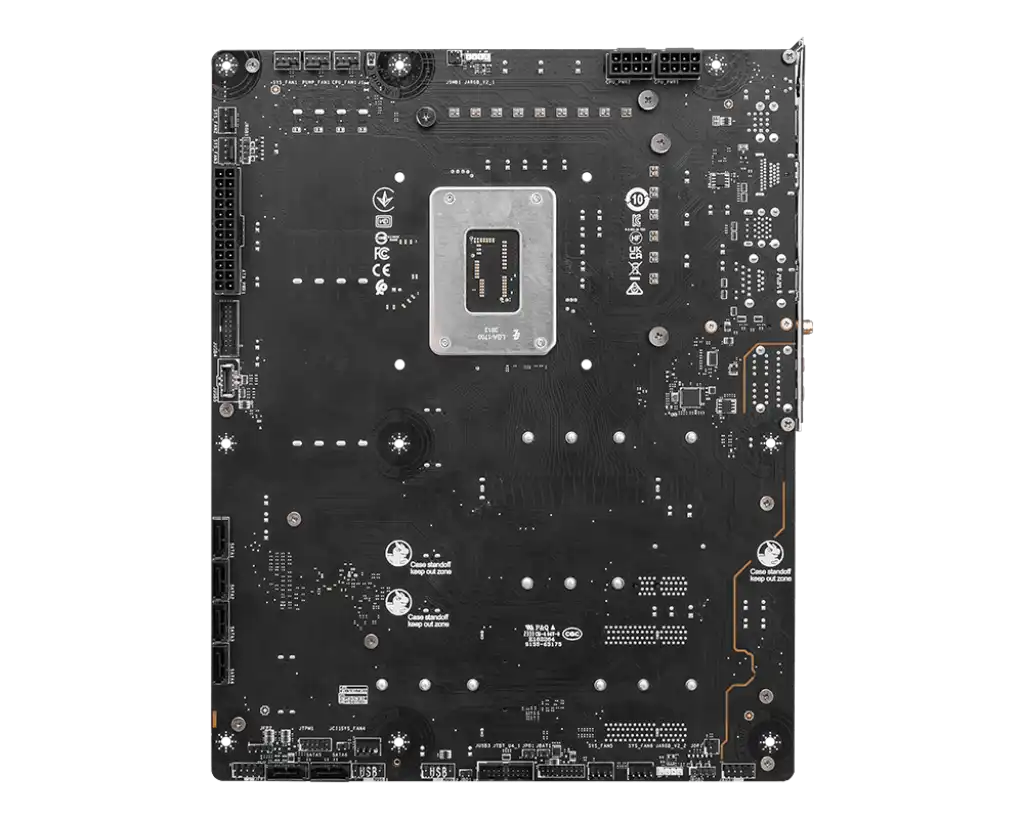

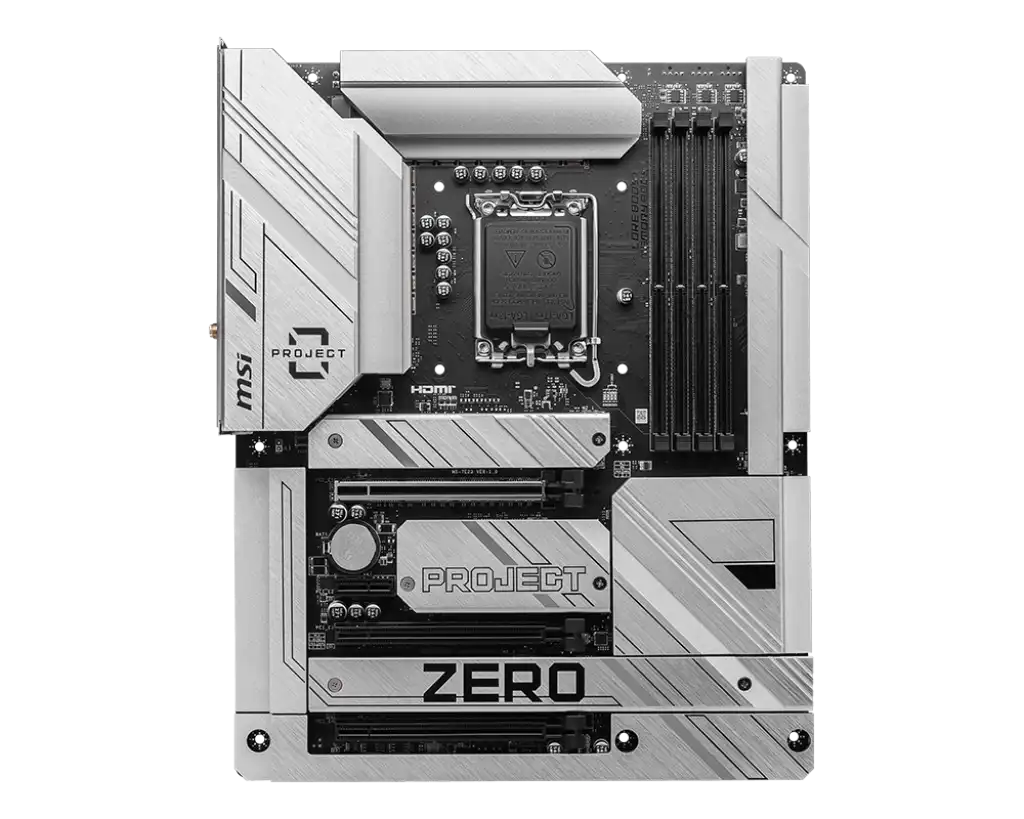

MSI Z790 PROJECT ZERO Motherboard
  • Model:Z790 PROJECT ZERO
  • Supports Intel 12th/13th/14th Gen CPUs
  • Z790 chipset, LGA 1700 socket, ATX form
  • Supports DDR5 memory up to 7200+ MHz
  • PCIe 5.0 slot, Lightning Gen 4 x4 M.2
  • 3 Years Warranty from MSI
₹ 32,650
Next Day Dispatch
1
Chipset
INTEL Z790
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA1700
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile
Onboard Graphics
1x HDMI™ Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec 7.1-Channel High Performance Audio
Storage
4x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 6x SATA 6G
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
LAN
Intel® 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 1x USB4 card connector (JTBT_U4_1, supports RTD3) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE
4x EZ Debug LED

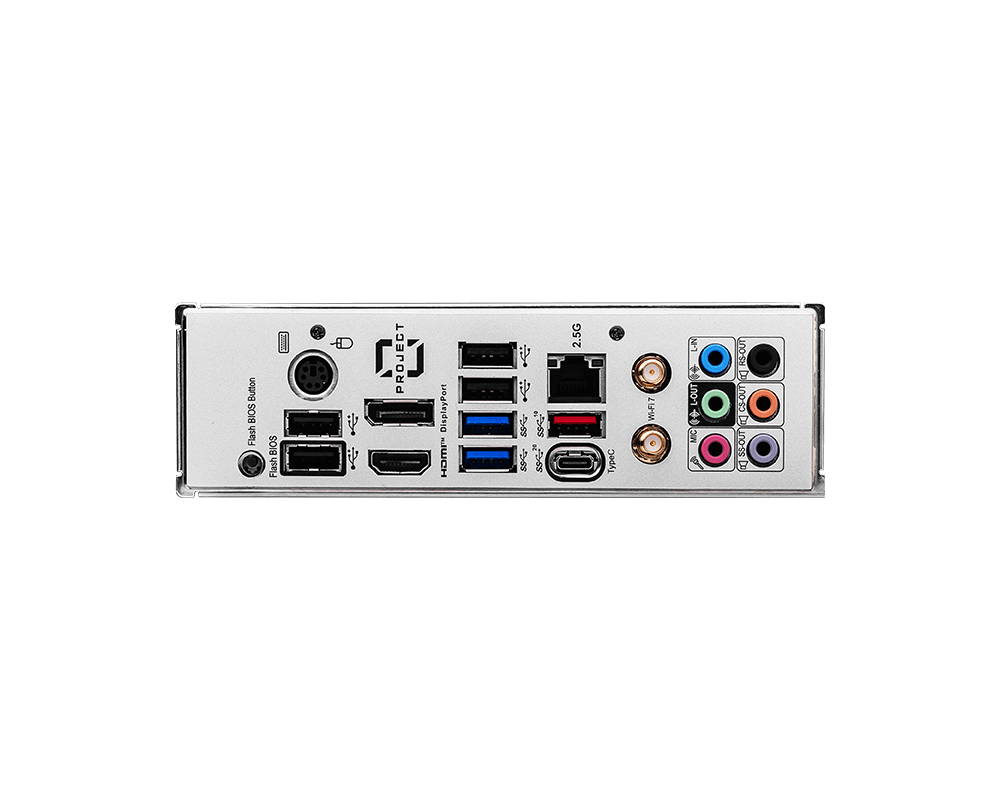

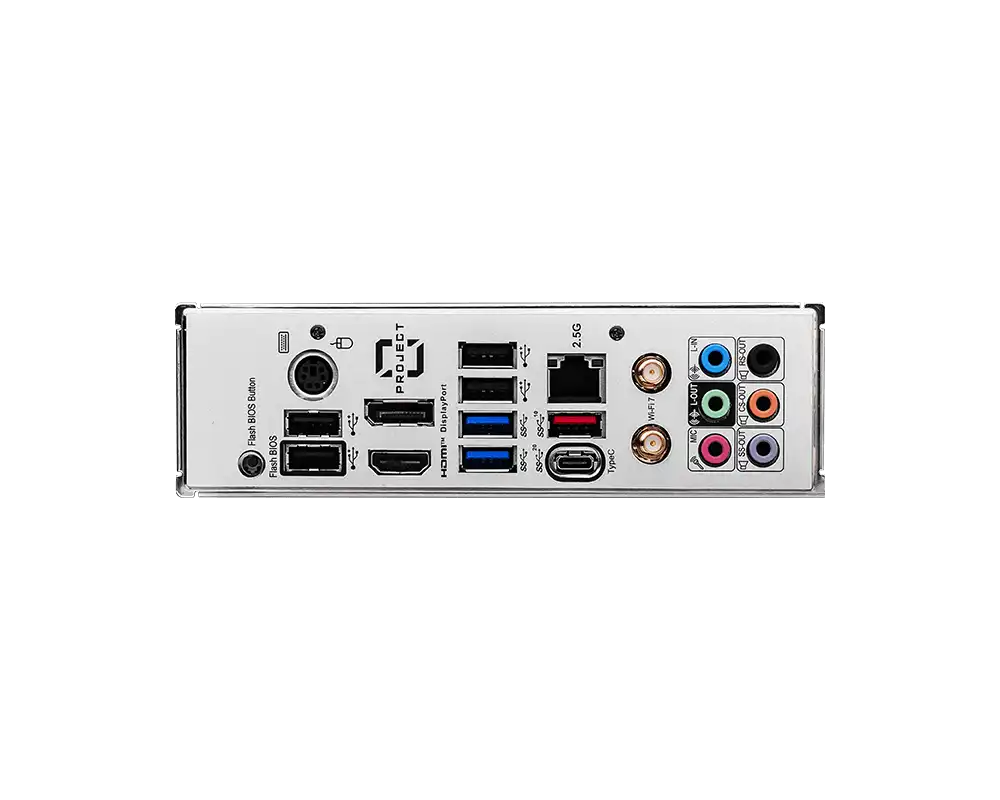

BACK PANEL PORTS
01. Mouse / Keyboard 02. DisplayPort 1.4 03. USB 2.0 04. 2.5G LAN Port 05. Wi-Fi / Bluetooth Antenna 06. HD Audio Connectors 07. Flash Bios Button 08. USB 2.0 09. HDMI™ 2.1 Port 10. USB 5Gbps Type-A 11. USB 20Gbps Type-C 12. USB 10Gbps Type-A
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
ATX 243.84mmx304.8mm
